Headline
Intuition-6 Series Metal Finishing Controllers
Copper/Nickel Plating Controllers
The Intuition-6 series provides reliable, flexible and powerful control for your electroless plating or etching process
Features & Benefits
Key Features
Interface & Programming

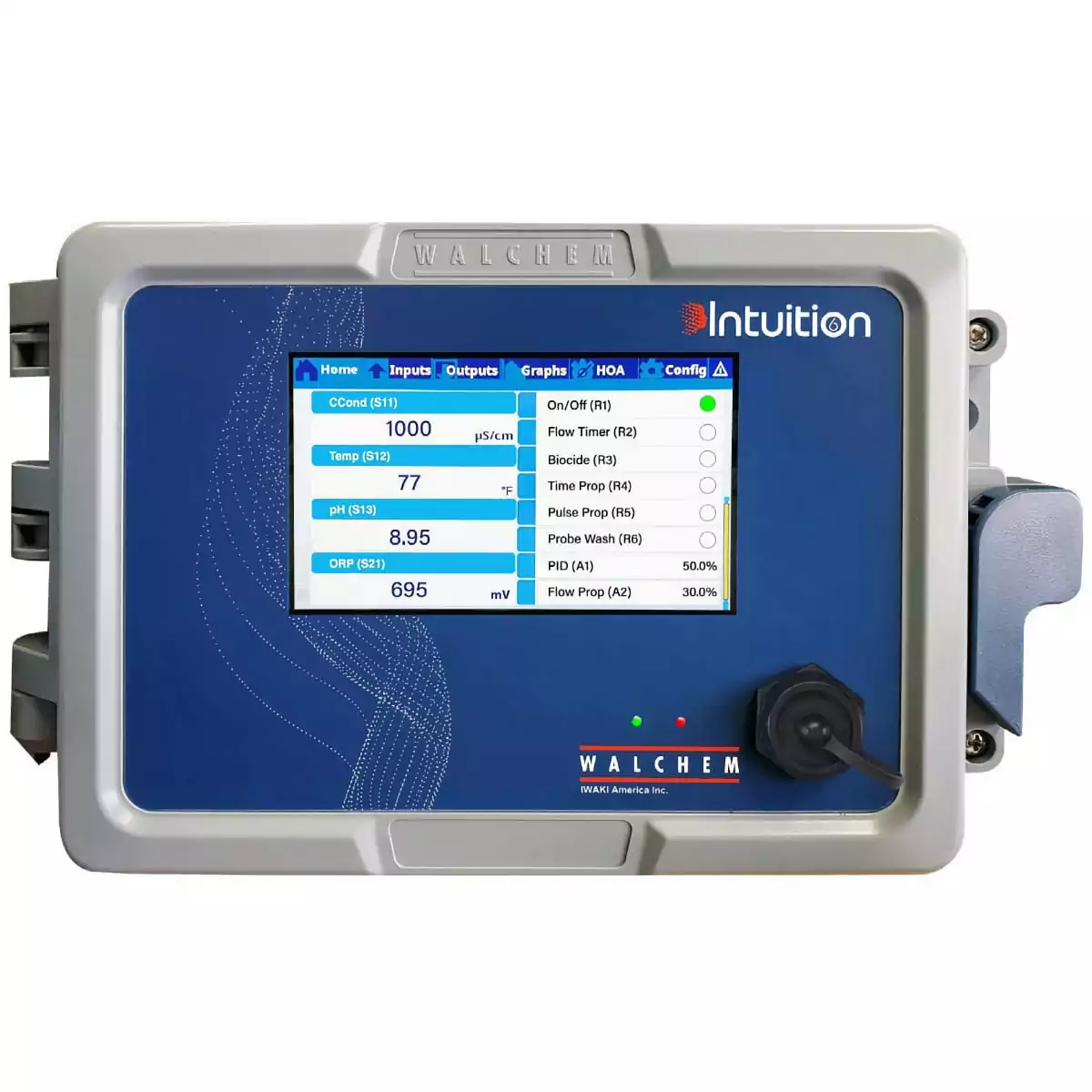

- Large touchscreen with icon-based programming
- Familiar to W600
- On-screen and web-based graphing capabilities
- Sensor values visualization
- Control output status monitoring
- Email notifications for:
- Alarm messages
- Datalogs
- Graphs
- System summary reports
Connectivity & I/O
- Two sensor input slots
- Dual analog inputs for 4-20 mA transmitters
- Six relay outputs
- Six virtual inputs
- Six virtual outputs
- Ethernet connectivity options:
- Internet access
- LAN integration
- BACnet compatibility
- Modbus/TCP support
Sensor Capabilities
- Universal analytical sensor card supporting:
- pH/ORP measurements
- Conductivity readings
- Disinfection monitoring
- Copper or Nickel plus pH sensing
- Accurate and reliable photometric sensors
- Combination analog and analytical sensor inputs
Installation & Housing
- Economical wall-mount package
- Easy installation design
Dimensional drawings
Exploded view
