WARNING: Pumping of flammables or combustible liquids can generate a static electric discharge, causing fire or explosion resulting in injury or death. Read and understand operating instructions
before starting this unit. Follow all federal, state and local safety codes including NFPA 30 - NFPA77. Prior to connecting to air supply, install bond and ground wires and check continuity of each wire.
A meter reading of one ohm or less is required for safe liquid transfer. Use only metallic drum, receiving vessel and metallic pump when pumping flammables. Air motors are not recognized under any current Underwriter’s Laboratory listing program. Consult a qualified engineer for suitability for use in a hazardous area or on flammables.
Note: Not recommended for use with the SP-700SR or 800SR Series pump.
Product details
Spot an error? Let us know!
Headline

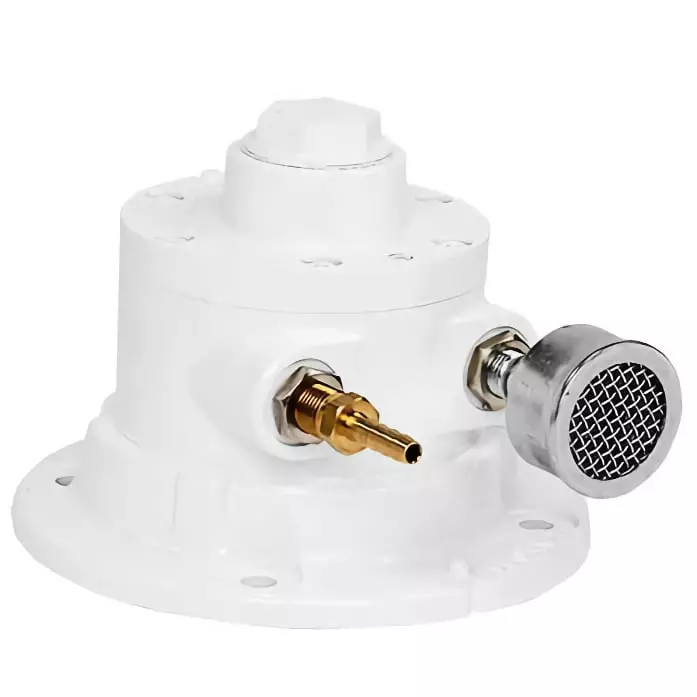

Air | 3/4 hp
Ideal for environments in which electricty is not an option. Engineered for chemical applications as well as non-corrosive liquids.
Additional Notes
Models
| Model Number | Air Consumption | Output | lbs (kg) |
|---|---|---|---|
| SP-A2 | 28 CFM (13.2 L/sec) @ 90 psi (6,2 bar) | 3/4 hp (560 w) | 3.4 (1,5) |
| SP-A2P (Trigger Lock) |
28 CFM (13.2 L/sec) @ 90 psi (6,2 bar) | 3/4 hp (560 w) | 3.4 (1,5) |
Performance
| Spec | Rated Value |
|---|---|
| Power Type | Pneumatic |
| Horsepower (Watts) | 0.75 (560) |
| Air Consumption | 28 CFM (13.2 l/sec) @ 100 psi (6,8 bar) |
| Air Inlet / Exhaust Size | 1/4" npt(f) / 3/8" npt(f) |
| Trigger Lock | SP-A2 : No |
| SP-A2P : Yes | |
| Housing / Adapter Material | Aluminum |
| Noise Level | 87 dBa |
| Lubrication Required | Yes, Daily |
| Weight | 3.4 lbs (1.5 kg) |
Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| SPI-SPA2 | SP-A2 | Motor Drive - Air 3/4hp (560W) | $1,116.00 |
