Warning: This pump is not suitable for use with Flammable/Combustible liquids.
* Note: When pumping viscosities over 1,000 cps, pump must be used intermittently to avoid potential premature failure and/or damage.
Product details
Spot an error? Let us know!
Headline
Package 7 | Aluminum
Engineered to transfer light oils, automotive fluids and lubricants.
Additional Notes
Applications
- Light Machining Oils
- Hydraulic Fluid
- Motor Oil (Up to 30 wt.)
- Anti-Freeze
- Lubricating Oil
Performance
| Spec | Rated Value |
|---|---|

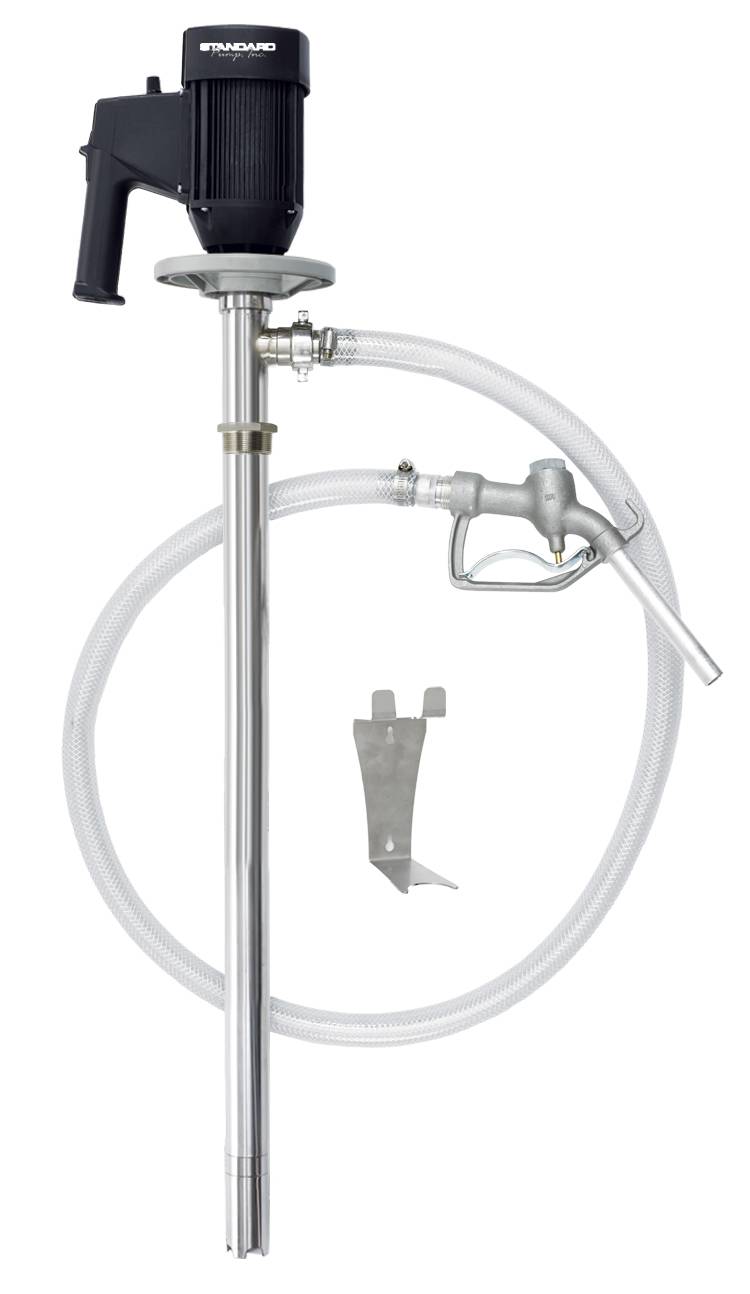

| Package Includes | Motor, Pump Tube, Hose, Storage Bracket, Barrel Adapter & Hand Nozzle |
| Motor Type | Open Drip Proof (IP44) |
| Pump Tube Material | Aluminum, SS316, PTFE, Carbon Graphite |
| Immersion Length | 39" (1000 mm) or 47" (1200 mm) |
| Discharge Hose | PVC, 6 ft (1,8 m), 1" (25 mm) I.D. |
| Hand Nozzle Material | Aluminum, Buna |
| Maximum Flow Rate | 22 GPM (83 LPM) based on water |
| Maximum Viscosity | 1500 cps (mPas) |
| Maximum Temperature | 175° F (80° C) |
| Shipping Weight | 23 lbs. (10,43 kg) |
DRUMS
| MPN | Motor | Volts | Pump Tube |
|---|---|---|---|
| 9760 | SP-280P-V | 110V | SP-6600-39 |
| 9761 | SP-280P-2-V | 220V | SP-6600-39 |
TANKS
| MPN | Motor | Volts | Pump Tube |
|---|---|---|---|
| 9762 | SP-280P-V | 110V | SP-6600-47 |
| 9763 | SP-280P-2-V | 220V | SP-6600-47 |
Dimensional drawings
