Warning: This pump is not suitable for use with Flammable/Combustible liquids.
* Note: When pumping viscosities over 1,000 cps, pump must be used intermittently to avoid potential premature failure and/or damage.
Product details
Spot an error? Let us know!
Headline
Package 5 | PVDF - Meter
Engineered to safely measure and dispense corrosive chemicals.
Additional Notes
Applications
- Sulfuric Acid 66 baume
- Concentrated Nitric (98%)
- Hydrofluoric Acid
- Propionic Acid
Performance
| Spec | Rated Value |
|---|---|
| Package Includes | Motor, Pump Tube, Hose, Storage Bracket, Flow Meter, Barrel Adapter & Hand Nozzle |
| Motor Type | TEFC (IP54) |
| Pump Tube Material | PVDF, Hastelloy C-276, Carbon Graphite |
| Immersion Length | 39" (1000 mm) or 47" (1200 mm) |
| Discharge Hose | Modified Cross-Link Polyethylene, 6 ft (1,8 m), 1" (25 mm) I.D. |
| Hand Nozzle Material | PVDF, Viton |
| Flow Meter Material | PVDF, Viton, Halar, Ceramic |
| Flow Meter Type | Digital / Battery Powered Totalizer |
| Maximum Flow Rate | 13.5 GPM (51 LPM) based on water |
| Maximum Viscosity | 300 cps (mPas) |
| Maximum Temperature | 175° F (80° C) |
| Shipping Weight | 31 lbs. (14,06 kg) |
DRUMS
| MPN | Motor | Volts | Pump Tube |
|---|---|---|---|
| 9510 | SP-ENC-V | 110V | SP-PVDF-39 |
| 9511 | SP-ENC-2-V | 220V | SP-PVDF-39 |
TANKS
| MPN | Motor | Volts | Pump Tube |
|---|---|---|---|
| 9512 | SP-ENC-V | 110V | SP-PVDF-47 |
| 9513 | SP-ENC-2-V | 220V | SP-PVDF-47 |

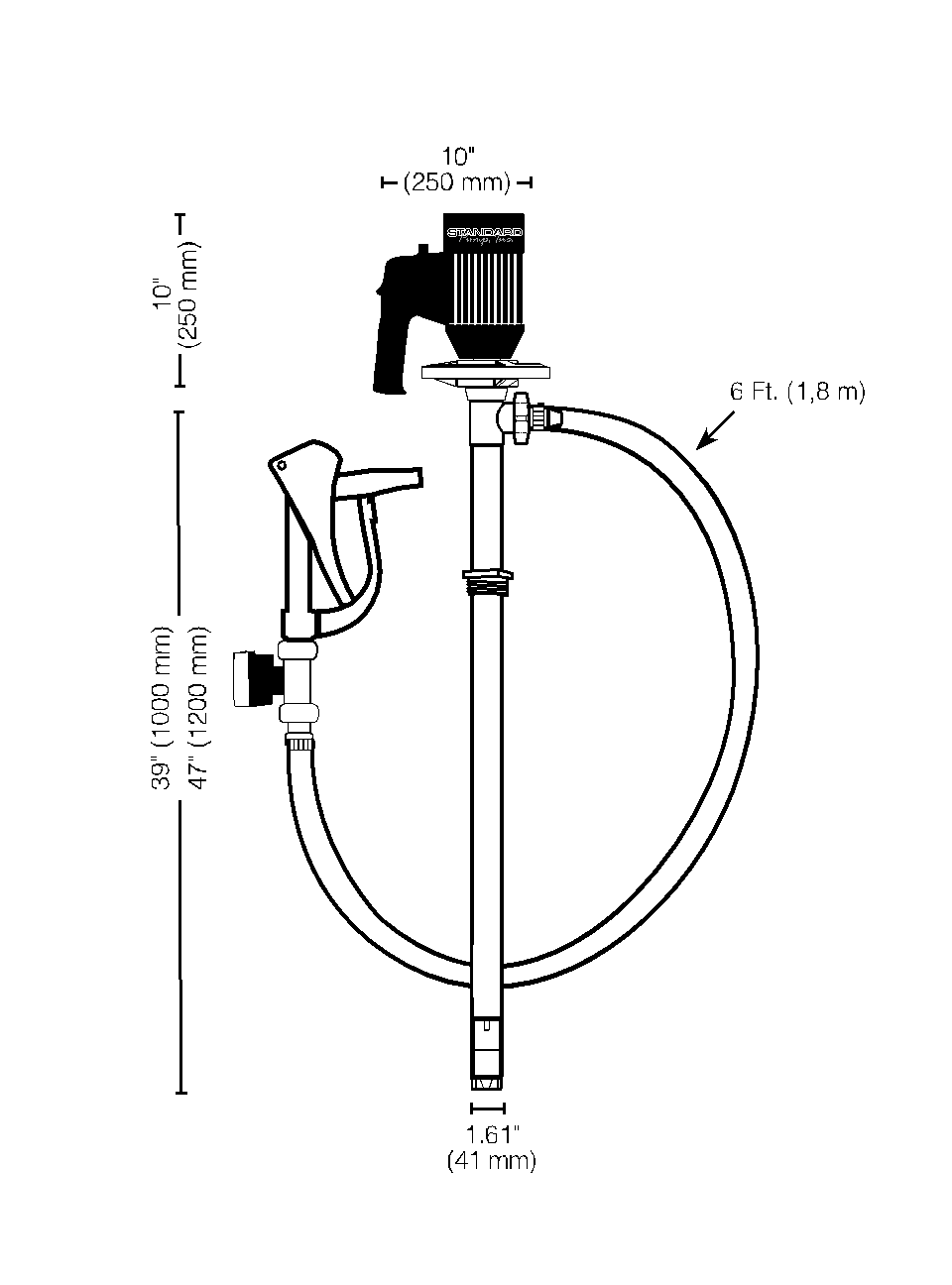

Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| SPI-9510 | 9510 | PP5 - Concentrated Acids & Alkalis Measurement - 115V - 39 in | $5,289.00 | |
| SPI-9511 | 9511 | PP5 - Concentrated Acids & Alkalis Measurement - 230V - 39 in | $5,322.00 | |
| SPI-9512 | 9512 | PP5 - Concentrated Acids & Alkalis Measurement - 115V - 47 in | $5,322.00 | |
| SPI-9513 | 9513 | PP5 - Concentrated Acids & Alkalis Measurement - 230V - 47 in | $5,535.00 |
