Headline
WTP

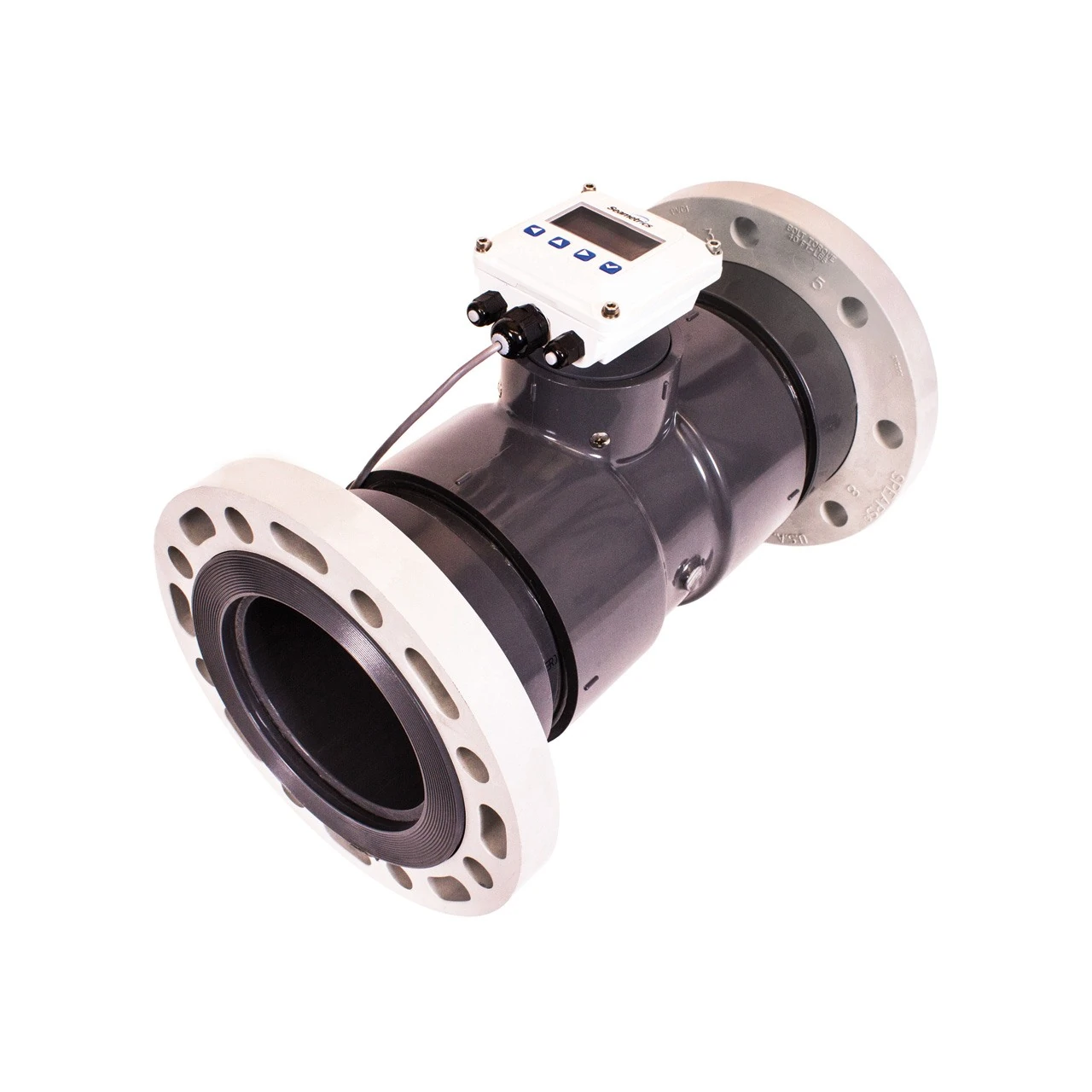

PVC In-line Turbine Meter
This unique system of 3" to 8" turbine meters uses just one moving part, a precision helical rotor. Rotation of the rotor is electronically detected and processed. The high-quality jewel bearings and shafts minimize friction while providing long life in non-lubricating fluids. The entire rotor assembly can be easily
Features & Benefits
Key Features
Design & Construction
- PVC-body turbine flow meter
- Turbine rotor is the only moving part, optimizing low-flow performance
- Materials are chemical-resistant
- Can be ordered with stub ends (standard) or flanges (optional)
Performance
- In-line, individually-calibrated turbine meter maximizes accuracy
- Solid-state pickup
- Electronic register can be meter-mounted or remote
- Available with blind pulse or 4-20 mA output
Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| SEA-WTP100400 | WTP100-400 | In-Line Turbine Meter - PVC - 4" Sensor Only | $2,882.00 | |
| SEA-WTP100600 | WTP100-600 | In-Line Turbine Meter - PVC - 6" Sensor Only | $3,627.00 | |
| SEA-WTP103300 | WTP103-300 | In-Line Turbine Meter - PVC - 3" - FT430 | $3,364.00 | |
| SEA-WTP103400 | WTP103-400 | In-Line Turbine Meter - PVC - 4" - FT430 | $3,617.00 | |
| SEA-WTP103600 | WTP103-600 | In-Line Turbine Meter - PVC - 6" - FT430 | $4,467.00 | |
| SEA-WTP107300 | WTP107-300 | In-Line Turbine Meter - PVC - 3" - FT450 | $3,564.00 | |
| SEA-WTP107400 | WTP107-400 | In-Line Turbine Meter - PVC - 4" - FT450 | $3,805.00 | |
| SEA-WTP107600 | WTP107-600 | In-Line Turbine Meter - PVC - 6" - FT450 | $4,536.00 | |
| SEA-WTP109300 | WTP109-300 | In-Line Turbine Meter - PVC - 3" - FT440 | $3,488.00 | |
| SEA-WTP109400 | WTP109-400 | In-Line Turbine Meter - PVC - 4" - FT440 | $3,734.00 | |
| SEA-WTP109600 | WTP109-600 | In-Line Turbine Meter - PVC - 6" - FT440 | $4,467.00 |
