Headline
PE202
Inline Low-Flow Magmeter
Features & Benefits
Features:
- No Moving Parts
- Requires no straight pipe
- Pulse and/or 4-20 mA output
- Chemical and corrosion resistant
- Insensitive to fluid density and fluid viscosity changes
Additional Notes
| Specs | Value |
|---|---|
| Pipe Size | 3/4”, 1/2”, 3/8”, 1/4” ** |
| Fittings | 1/2” NPT fittings standard in 3/4” or 3/8” flowbody. NPT threaded adapters available for above pipe sizes. |
| Materials Body | PVDF |
| Materials Electrodes | PVDF carbon fiber filled |
| Materials Ground | PVDF carbon fiber filled |
| Materials Housing | HDPE with 25% glass |
| Materials Adapters (NPT) | Polypropylene or PVDF |
| Temperature Ambient | 0˚ to 130˚ F (-18˚ to 54˚ C) |
| Temperature Fluid | 32˚ to 200˚ F (0˚ to 93˚ C) |
| Pressure | 150 psi |
| Flow Range -75 | 20 GPM max. (0.2 GPM cutoff) |
| Flow Range -38 | 3 GPM max. (0.03 GPM cutoff) |
| Accuracy -75 | ±1% plus ±0.005 GPM of reading across rated range |
| Accuracy -38 | ±1% plus ±0.002 GPM of reading across rated range |
| Output Signal | Optoisolated current sinking or current sourcing pulse output: 30 Vdc, 5 mA max Optoisolated 4-20 mA current loop: 7 Vdc plus load voltage drop min; 50 Vdc max |
| Output Signal -75 | 500 pulses/liter (1892 pulses/gallon) |
| Output Signal -38 | 1000 pulses/liter (3785 pulses/gallon) |
| Power | 10–15 Vdc, 150 mA (linear power supply recommended) |
| Conductivity | >20 microSiemens |
| Empty Pipe Detection | Hardware/software, conductivity-based |
| Environmental | NEMA 4X standard; IP66 splashproof standard |

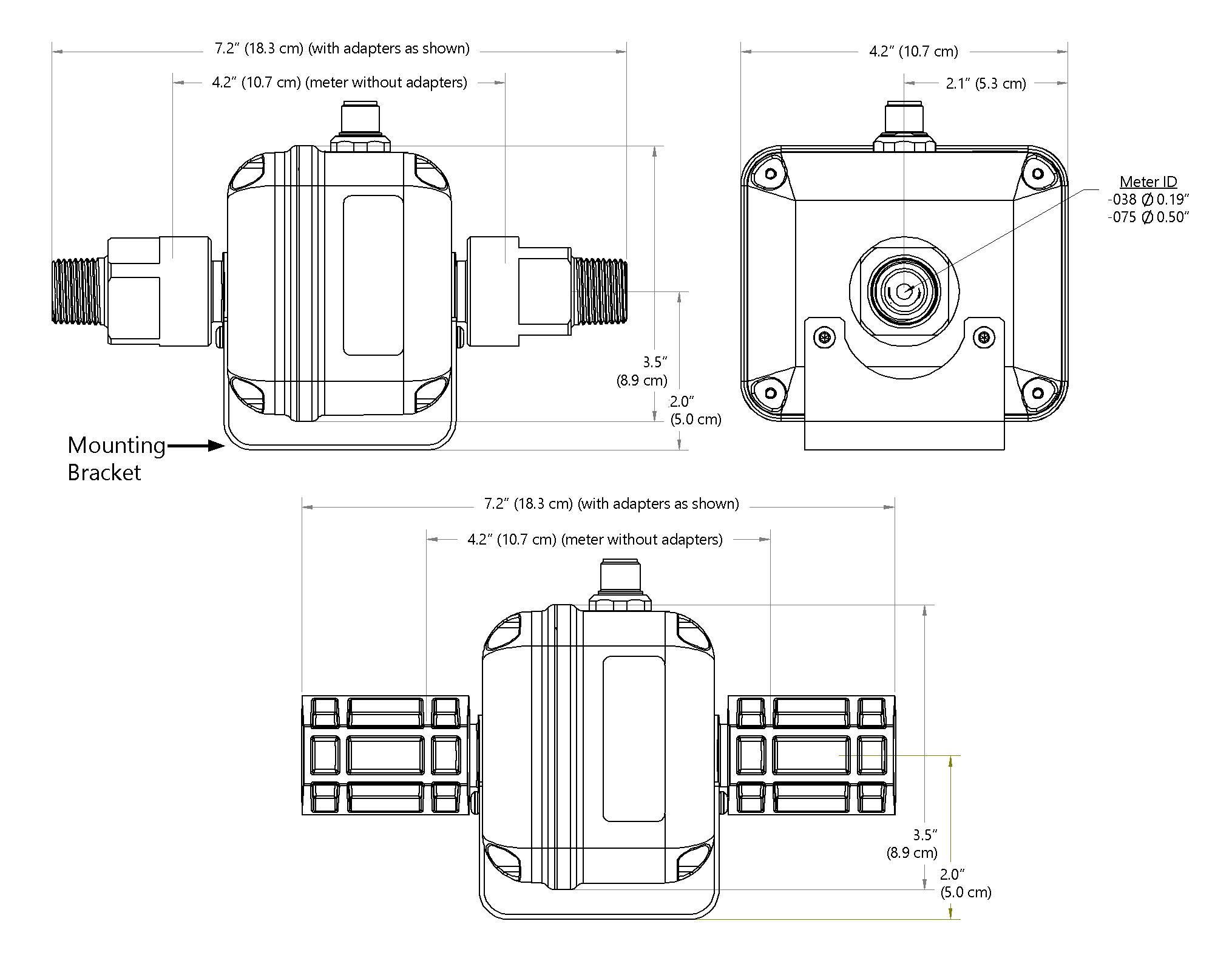

Dimensional drawings
