Headline

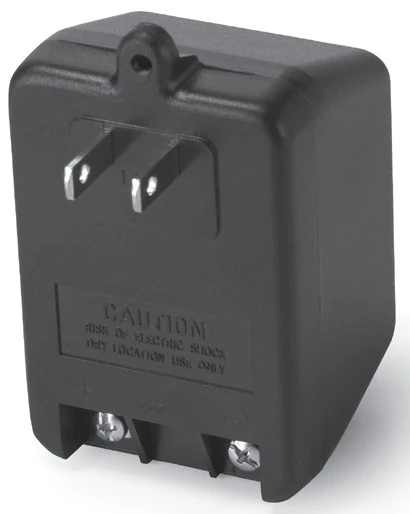

The PC3 is designed as a convenient 24 Vdc power supply for use with a 120 Vac outlet, primarily for mechanical meter applications. Terminals allow user connection of wiring on the low-voltage side. Since this is an unregulated power supply, actual voltage may be as high as 36 Vdc, depending on line voltage and load. The PC3 should be used only in applications where these voltages are tolerated.
Features & Benefits
Features
- Single or dual power supply
- Rugged plastic housing
- Wall, panel, DIN rail or outlet mounting styles
- 24 Vdc and 12 Vdc, depending on model
Applications
- Power supplies for:
- Flowmeters
- Indicators and controllers
- 4-20 mA loop devices
- Magmeter/indicator combinations
Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| SEA-100059 | 100059 | Adapter Fitting, Brass, NPT Thread, 1-1/2", 2pc, Old Style | $212.00 | |
| SEA-100061 | 100061 | Collar, Locking, Brass | $230.00 | |
| SEA-100064 | 100064 | Nut, Compression, Brass | $22.00 | |
| SEA-100066 | 100066 | Nipple, Close, Thd, Brass, 2" | $111.00 | |
| SEA-100068 | 100068 | Housing, Rotor, Brass, IP | $132.00 | |
| SEA-100069 | 100069 | Valve Assembly, Brass, Hot-Tap | $408.00 | |
| SEA-100082 | 100082 | Adapter Fitting, SS, NPT Thread, 1-1/2", 2pc, OldStyle | $346.00 | |
| SEA-100084 | 100084 | Nut, Compression, SS | $45.00 | |
| SEA-100103 | 100103 | Nipple, Close, 316 SS, 2" | $132.00 | |
| SEA-100116 | 100116 | Collar, Locking, SS | $339.00 | |
| SEA-100118 | 100118 | Housing, Rotor, 316 SS, IP | $268.00 | |
| SEA-100119 | 100119 | Valve Assembly, 316 SS, Hot-Tap | $696.00 | |
| SEA-100152 | 100152 | Rotor & Bearings Assy, WT, Kynar (3" - 8" sizes only) | $445.00 | |
| SEA-100154 | 100154 | U-Clip, Retainer | $50.00 | |
| SEA-100231 | 100231 | Lens Assembly, Acrylic with Bearing, Pre-5/2005 | $214.00 |
