Headline
MJ

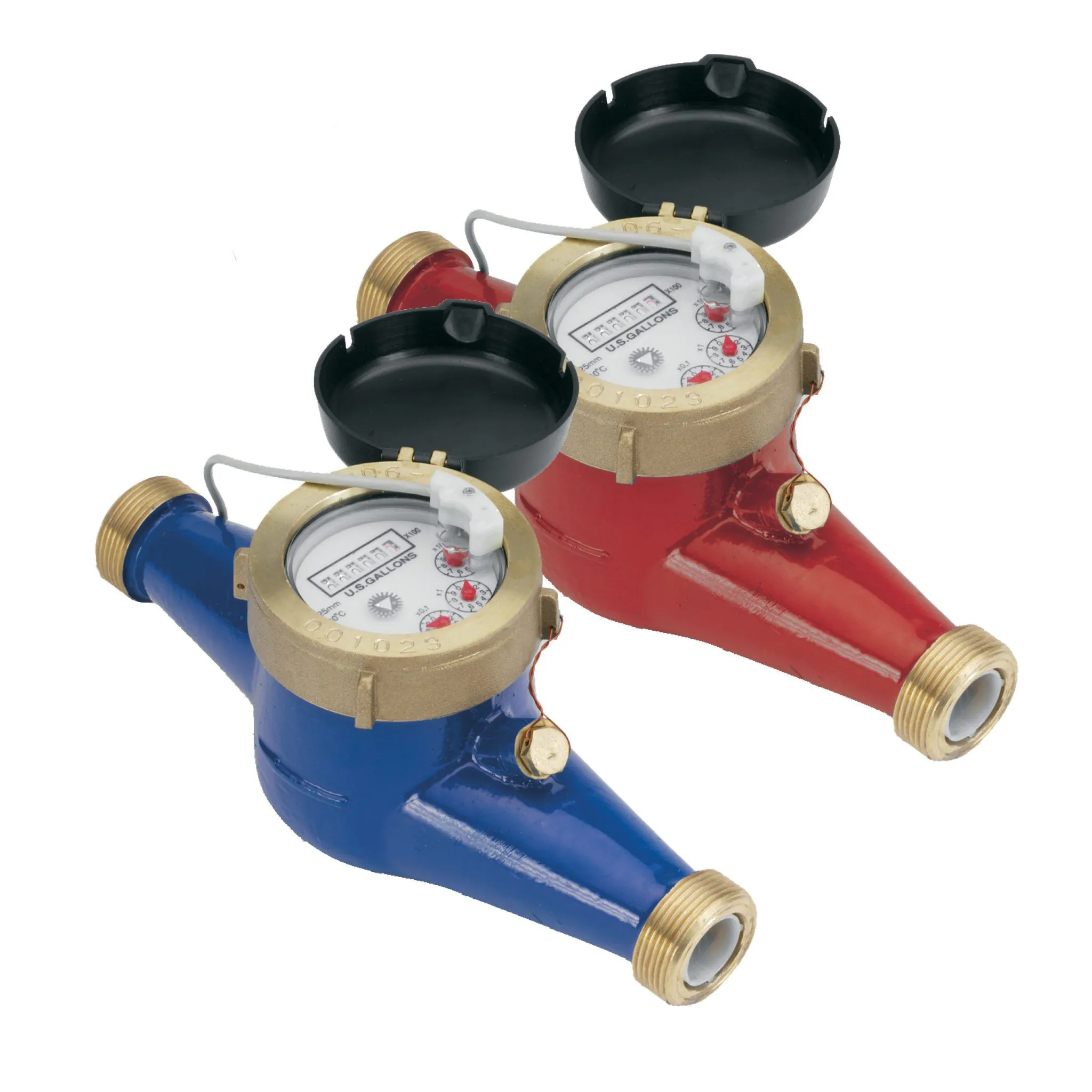

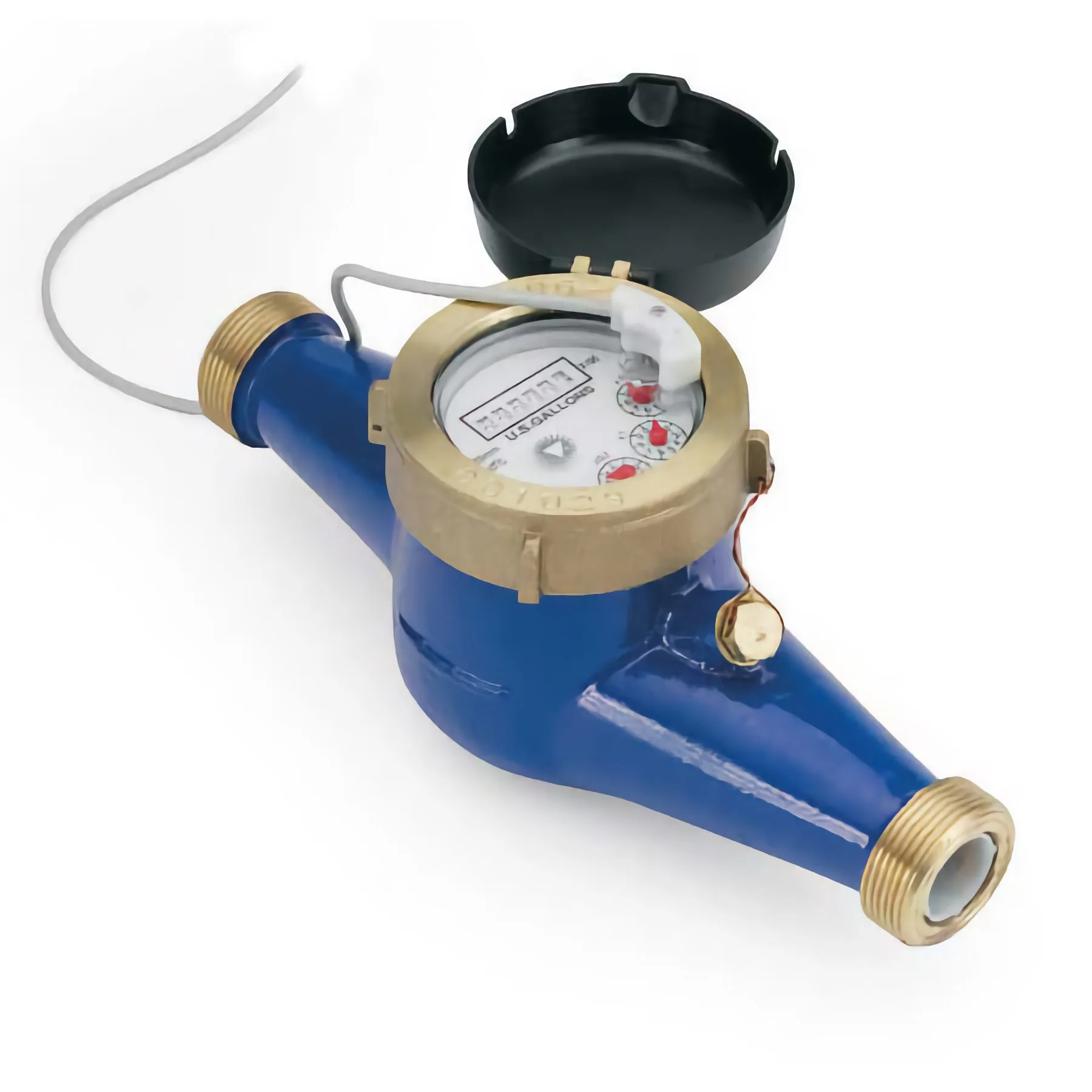

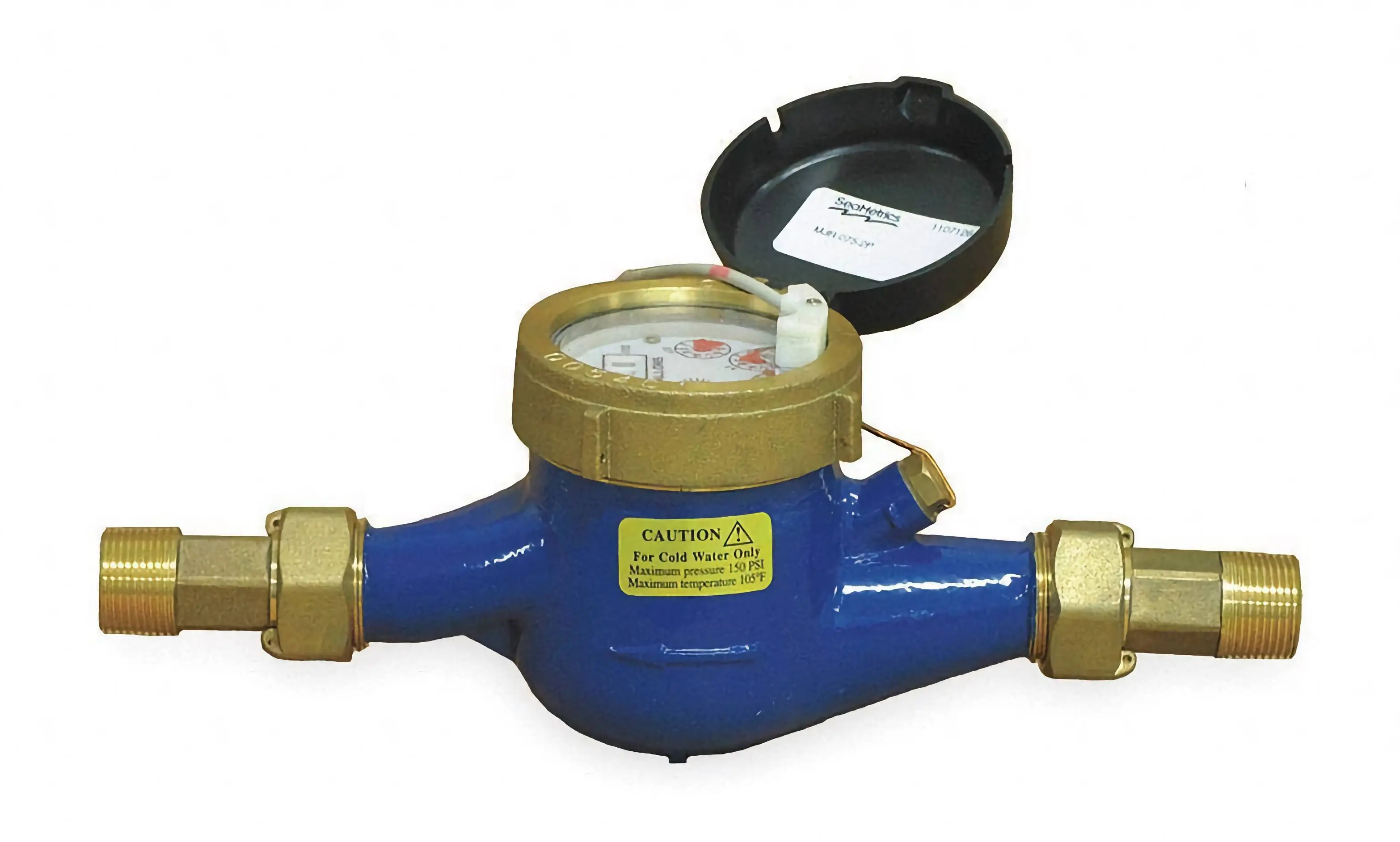

Bronze Body Pulse Meters for Cold and Hot Water
Features & Benefits
Features:
- Designed for metering pump pacing or water treatment control
- Hot or cold water models

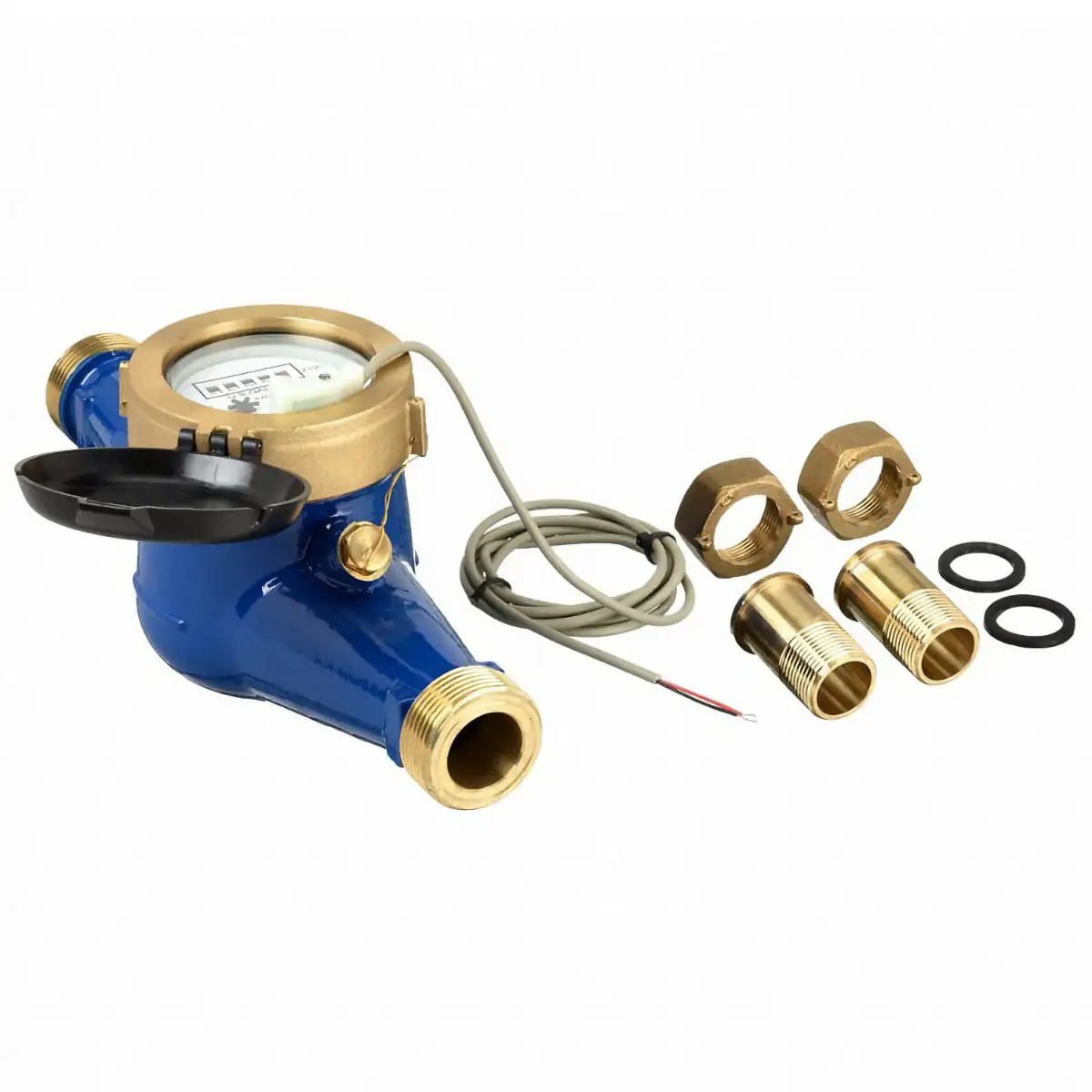

- Rugged epoxy-coated bronze bodies with union ends
- Mechanical register
- Reed switch (MJR) or Hall-effect (MJE) output
- 100:1 turndown
- Wide range of field-changeable pulse rates
- True dry-top construction
Additional Notes
Specs | Value |
---|---|
Power | 6 mA at 12 Vdc (MJE/MJHE only) |
Cold water Temperature | 105˚ F (40˚ C) max |
Hot Water Temperature | 194˚ F (90˚ C) max |
Pressure | 150 psi operating |
Body Materials | Cast bronze, epoxy powder coated inside and out |
Internals Materials | Engineered thermoplastic |
Magnet Materials | Alnico |
Accuracy | +/- 1.5% of reading |
Cable Length | 12’ (4 m) standard (2 |
Alternate configurations
SKU | Description | List price | - |
---|---|---|---|
SEA-MJR075 | MJR-075 | Water Meter (Non-Drinking) - Pulse Output (Reed Switch) - 3/4 Inch | $208.00 | |
SEA-MJR075100G | MJR-075-100G | Water Meter (Non-Drinking) - Pulse Output (Reed Switch) - 3/4 Inch - 100 Gallons per Pulse | $215.25 | |
SEA-MJR07510G | MJR-075-10G | Water Meter (Non-Drinking) - Pulse Output (Reed Switch) - 3/4 Inch - 10 Gallons per Pulse | $215.25 | |
SEA-MJR07510P | MJR-075-10P | Water Meter (Non-Drinking) - Pulse Output (Reed Switch) - 3/4 Inch - 10 Pulses per Gallon | $215.25 | |
SEA-MJR0751G | MJR-075-1G | Water Meter (Non-Drinking) - Pulse Output (Reed Switch) - 3/4 Inch - 1 Gallon per Pulse | $215.25 | |
SEA-MJR07520P | MJR-075-20P | Water Meter (Non-Drinking) - Pulse Output (Reed Switch) - 3/4 Inch - 20 Pulses per Gallon | $215.25 | |
SEA-MJR0752P | MJR-075-2P | Water Meter (Non-Drinking) - Pulse Output (Reed Switch) - 3/4 Inch - 2 Pulses per Gallon | $215.25 | |
SEA-MJR0754P | MJR-075-4P | Water Meter (Non-Drinking) - Pulse Output (Reed Switch) - 3/4 Inch - 4 Pulses per Gallon | $215.25 | |
SEA-MJR07550G | MJR-075-50G | Water Meter (Non-Drinking) - Pulse Output (Reed Switch) - 3/4 Inch - 50 Gallons per Pulse | $215.25 | |
SEA-MJR0755G | MJR-075-5G | Water Meter (Non-Drinking) - Pulse Output (Reed Switch) - 3/4 Inch - 5 Gallons per Pulse | $215.25 | |
SEA-MJR100 | MJR-100 | Water Meter (Non-Drinking) - Pulse Output (Reed Switch) - 1 Inch | $325.00 | |
SEA-MJR10010G | MJR-100-10G | Water Meter (Non-Drinking) - Pulse Output (Reed Switch) - 1 Inch - 10 Gallons per Pulse | $334.95 | |
SEA-MJR1001G | MJR-100-1G | Water Meter (Non-Drinking) - Pulse Output (Reed Switch) - 1 Inch - 1 Gallon per Pulse | $334.95 | |
SEA-MJR1002P | MJR-100-2P | Water Meter (Non-Drinking) - Pulse Output (Reed Switch) - 1 Inch - 2 Pulses per Gallon | $334.95 | |
SEA-MJR1004P | MJR-100-4P | Water Meter (Non-Drinking) - Pulse Output (Reed Switch) - 1 Inch - 4 Pulses per Gallon | $334.95 |
