MJHR-075-20P | Hot Water Meter - Pulse Output (Reed Switch) - 3/4 Inch - 20 Pulses per Gallon

Pictures may not be actual SKU

MJHR-075-20P | Hot Water Meter - Pulse Output (Reed Switch) - 3/4 Inch - 20 Pulses per Gallon

Name: MJHR-075-20P | Hot Water Meter - Pulse Output (Reed Switch) - 3/4 Inch - 20 Pulses per Gallon
Brand: Seametrics
SKU: SEA-MJHR07520P
Price: 655.4 USD
Availability: InStock

SEA | Seametrics

MJ | MJ Multi-jet Pulse Water Meters

MJHR | Hot Water Meters - Pulse Output (Standard RS)

SEA-MJHR07520P

Description

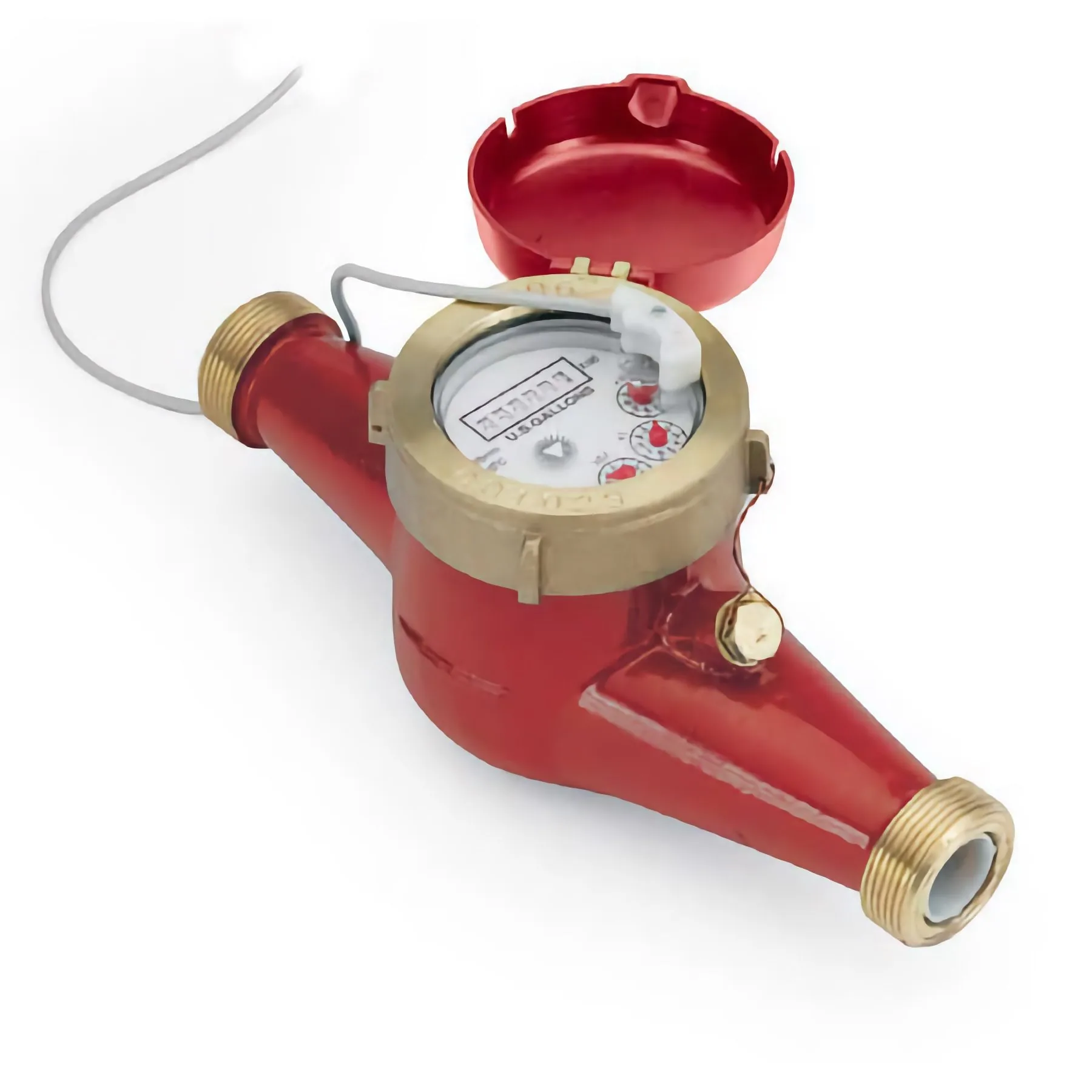

Seametrics MJHR-075-20P Multi-jet Pulse Water Meter - Hot water (below 194 F) 0.75 in with Reed Switch Dry Contact - Pulser, a 20 Pulse per Gallon pulse rate, and Tinned Wire connector included

Configuration

Base Model

Series

MJ | Multi-jet Pulse Water Meters

Model

H | Bronze - Hot water (below 194 F)

Sensors

R | Pulser - Reed Switch - Dry Contact

Size

075 | 3/4"

Configuration

Pulse Rate

20P | 20 Pulse/Gal (075 - Reed Switch only))

Options

_ | Flying Leads

Available to Order

Ships from PA - GA - OR

Typically ships within [ 7 ] days

24/7 Sales & Support 484-544-0506

$655.40 Configured Price

Quantity:

− +

Overview
Support Docs
SKU List

Headline

MJH

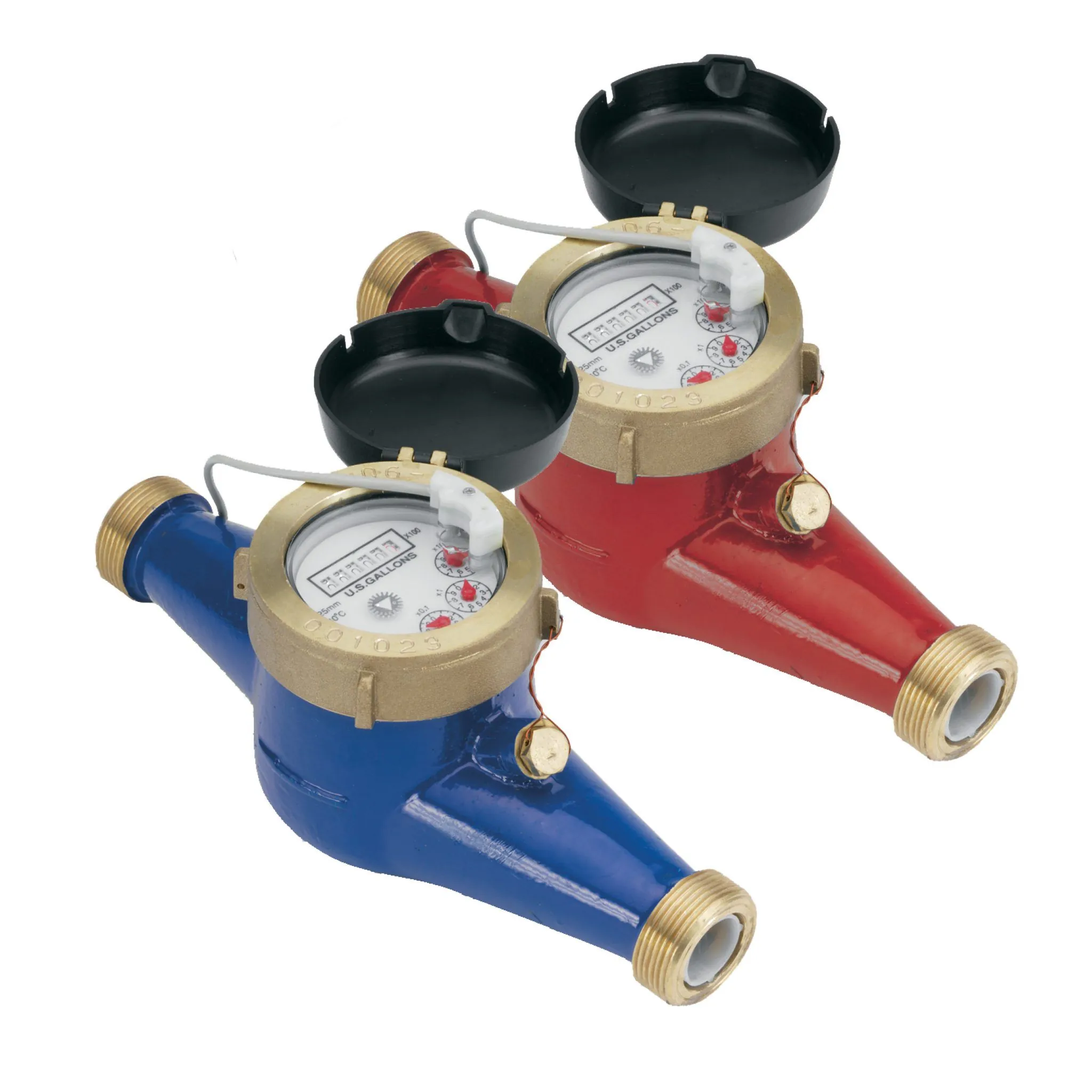

Bronze Body Pulse Meters for Cold and Hot Water

Features & Benefits

Key Features

Control & Operation

Designed for metering pump pacing or water treatment control
Wide range of field-changeable pulse rates
Reed switch (MJR) or Hall-effect (MJE) output
100:1 turndown

Construction

Rugged epoxy-coated bronze bodies

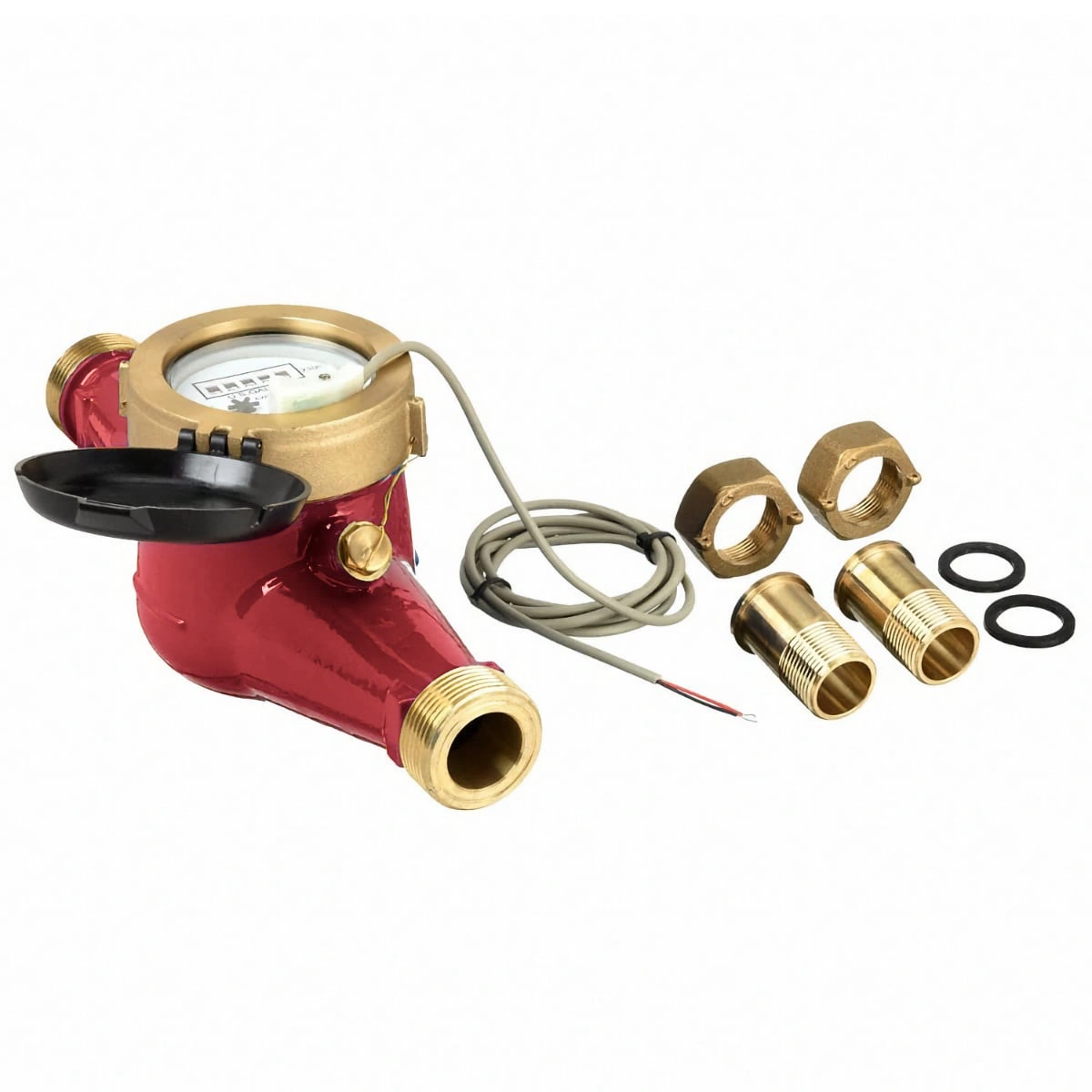

Union ends
True dry-top construction
Mechanical register

Flexibility

Hot or cold water models

Manual

MJ MJH Manual

Model Codes

MJ MJH Model Number Matrix

Datasheet

MJ MJH Datasheet

Performance Charts

J Pressure Drop Chart

Support Videos

https://youtu.be

Support URL

https://www.seametrics.com

Alternate configurations

SKU	Description	List price	-
SEA-MJHR075	MJHR-075 \| Hot Water Meter - Pulse Output (Reed Switch) - 3/4 Inch	$634.00	SEA-MJHR075 Detail
SEA-MJHR075100G	MJHR-075-100G \| Hot Water Meter - Pulse Output (Reed Switch) - 3/4 Inch - 100 Gallons per Pulse	$655.40	SEA-MJHR075100G Detail
SEA-MJHR07510G	MJHR-075-10G \| Hot Water Meter - Pulse Output (Reed Switch) - 3/4 Inch - 10 Gallons per Pulse	$655.40	SEA-MJHR07510G Detail
SEA-MJHR07510P	MJHR-075-10P \| Hot Water Meter - Pulse Output (Reed Switch) - 3/4 Inch - 10 Pulses per Gallon	$655.40	SEA-MJHR07510P Detail
SEA-MJHR0751G	MJHR-075-1G \| Hot Water Meter - Pulse Output (Reed Switch) - 3/4 Inch - 1 Gallon per Pulse	$655.40	SEA-MJHR0751G Detail
SEA-MJHR0752P	MJHR-075-2P \| Hot Water Meter - Pulse Output (Reed Switch) - 3/4 Inch - 2 Pulses per Gallon	$655.40	SEA-MJHR0752P Detail
SEA-MJHR0754P	MJHR-075-4P \| Hot Water Meter - Pulse Output (Reed Switch) - 3/4 Inch - 4 Pulses per Gallon	$655.40	SEA-MJHR0754P Detail
SEA-MJHR07550G	MJHR-075-50G \| Hot Water Meter - Pulse Output (Reed Switch) - 3/4 Inch - 50 Gallons per Pulse	$655.40	SEA-MJHR07550G Detail
SEA-MJHR0755G	MJHR-075-5G \| Hot Water Meter - Pulse Output (Reed Switch) - 3/4 Inch - 5 Gallons per Pulse	$655.40	SEA-MJHR0755G Detail
SEA-MJHR100	MJHR-100 \| Hot Water Meter - Pulse Output (Reed Switch) - 1 Inch	$1,016.00	SEA-MJHR100 Detail
SEA-MJHR100100G	MJHR-100-100G \| Hot Water Meter - Pulse Output (Reed Switch) - 1 Inch - 100 Gallons per Pulse	$1,062.00	SEA-MJHR100100G Detail
SEA-MJHR10010G	MJHR-100-10G \| Hot Water Meter - Pulse Output (Reed Switch) - 1 Inch - 10 Gallons per Pulse	$1,062.00	SEA-MJHR10010G Detail
SEA-MJHR1001G	MJHR-100-1G \| Hot Water Meter - Pulse Output (Reed Switch) - 1 Inch - 1 Gallon per Pulse	$1,062.00	SEA-MJHR1001G Detail
SEA-MJHR1002P	MJHR-100-2P \| Hot Water Meter - Pulse Output (Reed Switch) - 1 Inch - 2 Pulses per Gallon	$1,062.00	SEA-MJHR1002P Detail
SEA-MJHR1004P	MJHR-100-4P \| Hot Water Meter - Pulse Output (Reed Switch) - 1 Inch - 4 Pulses per Gallon	$1,062.00	SEA-MJHR1004P Detail
