Headline
MJH

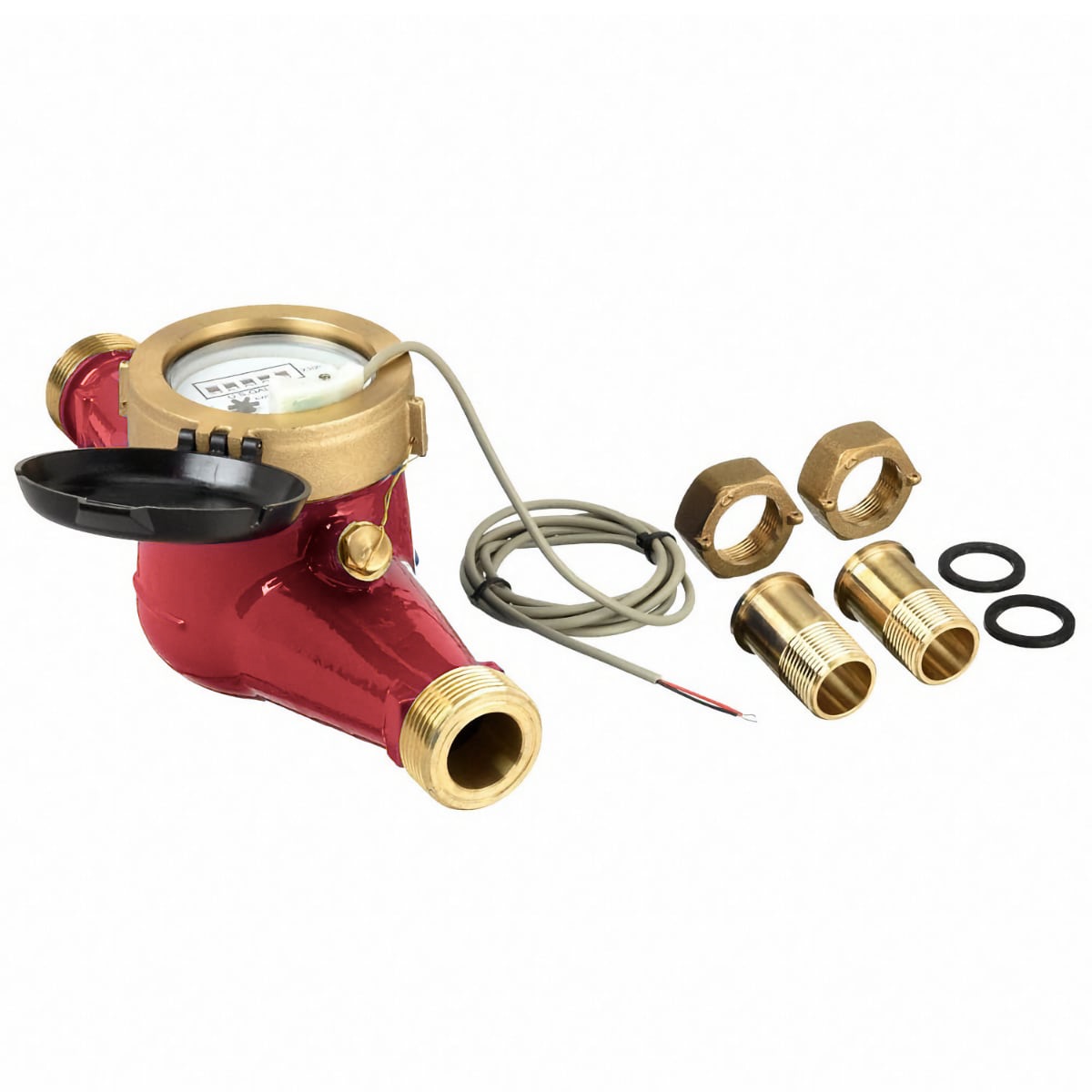

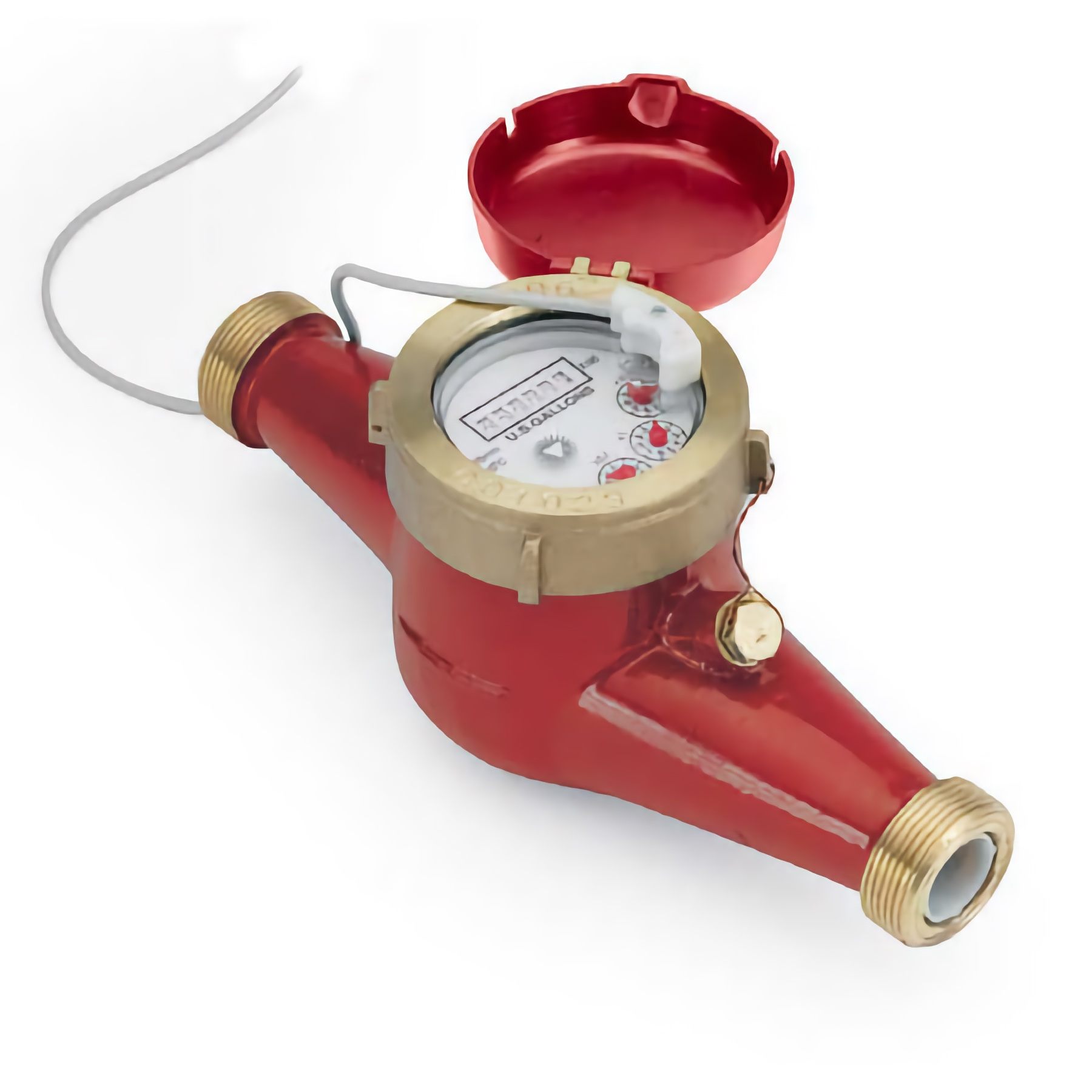

Bronze Body Pulse Meters for Cold and Hot Water
Features & Benefits
Features:
- Designed for metering pump pacing or water treatment control
- Hot or cold water models
- Rugged epoxy-coated bronze bodies with union ends
- Mechanical register
- Reed switch (MJR) or Hall-effect (MJE) output
- 100:1 turndown
- Wide range of field-changeable pulse rates
- True dry-top construction
Additional Notes
| Specs | Value |
|---|---|
| Power | 6 mA at 12 Vdc (MJE/MJHE only) |
| Cold water Temperature | 105˚ F (40˚ C) max |
| Hot Water Temperature | 194˚ F (90˚ C) max |
| Pressure | 150 psi operating |
| Body Materials | Cast bronze, epoxy powder coated inside and out |
| Internals Materials | Engineered thermoplastic |
| Magnet Materials | Alnico |
| Accuracy | +/- 1.5% of reading |
| Cable Length | 12’ (4 m) standard (2 |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| SEA-MJHE075 | MJHE-075 | Hot Water Meter - Pulse Output (Hall effect) - 3/4 Inch | $340.00 | |
| SEA-MJHE075100G | MJHE-075-100G | Hot Water Meter - Pulse Output (Hall effect) - 3/4 Inch - 100 Gallons per Pulse | $341.25 | |
| SEA-MJHE07510G | MJHE-075-10G | Hot Water Meter - Pulse Output (Hall effect) - 3/4 Inch - 10 Gallons per Pulse | $341.25 | |
| SEA-MJHE07510P | MJHE-075-10P | Hot Water Meter - Pulse Output (Hall effect) - 3/4 Inch - 10 Pulses per Gallon | $341.25 | |
| SEA-MJHE0751G | MJHE-075-1G | Hot Water Meter - Pulse Output (Hall effect) - 3/4 Inch - 1 Gallon per Pulse | $341.25 | |
| SEA-MJHE100 | MJHE-100 | Hot Water Meter - Pulse Output (Hall effect) - 1 Inch | $558.00 | |
| SEA-MJHE100100G | MJHE-100-100G | Hot Water Meter - Pulse Output (Hall effect) - 1 Inch - 100 Gallons per Pulse | $571.20 | |
| SEA-MJHE10010G | MJHE-100-10G | Hot Water Meter - Pulse Output (Hall effect) - 1 Inch - 10 Gallons per Pulse | $571.20 | |
| SEA-MJHE1001G | MJHE-100-1G | Hot Water Meter - Pulse Output (Hall effect) - 1 Inch - 1 Gallon per Pulse | $571.20 | |
| SEA-MJHE150 | MJHE-150 | Hot Water Meter - Pulse Output (Hall effect) - 1-1/2 Inch | $996.00 | |
| SEA-MJHE150100G | MJHE-150-100G | Hot Water Meter - Pulse Output (Hall effect) - 1-1/2 Inch - 100 Gallons per Pulse | $1,039.50 | |
| SEA-MJHE15010G | MJHE-150-10G | Hot Water Meter - Pulse Output (Hall effect) - 1-1/2 Inch - 10 Gallons per Pulse | $1,039.50 | |
| SEA-MJHE200 | MJHE-200 | Hot Water Meter - Pulse Output (Hall effect) - 2 Inch | $1,499.00 | |
| SEA-MJHE200100G | MJHE-200-100G | Hot Water Meter - Pulse Output (Hall effect) - 2 Inch - 100 Gallons per Pulse | $1,578.15 | |
| SEA-MJHE20010G | MJHE-200-10G | Hot Water Meter - Pulse Output (Hall effect) - 2 Inch - 10 Gallons per Pulse | $1,578.15 |
