Headline
MJ

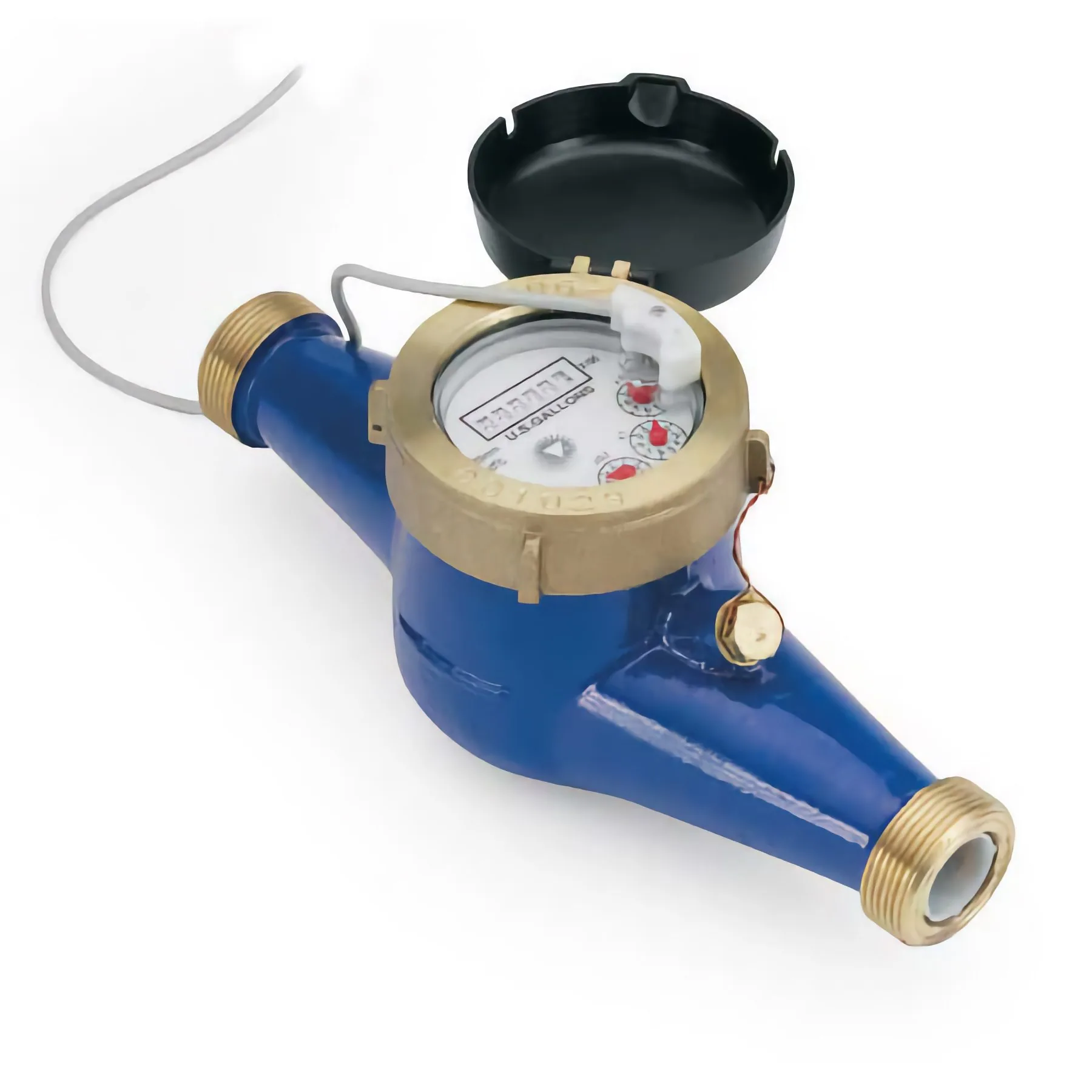

Bronze Body Pulse Meters for Cold and Hot Water
Features & Benefits
Features:
- Designed for metering pump pacing or water treatment control
- Hot or cold water models

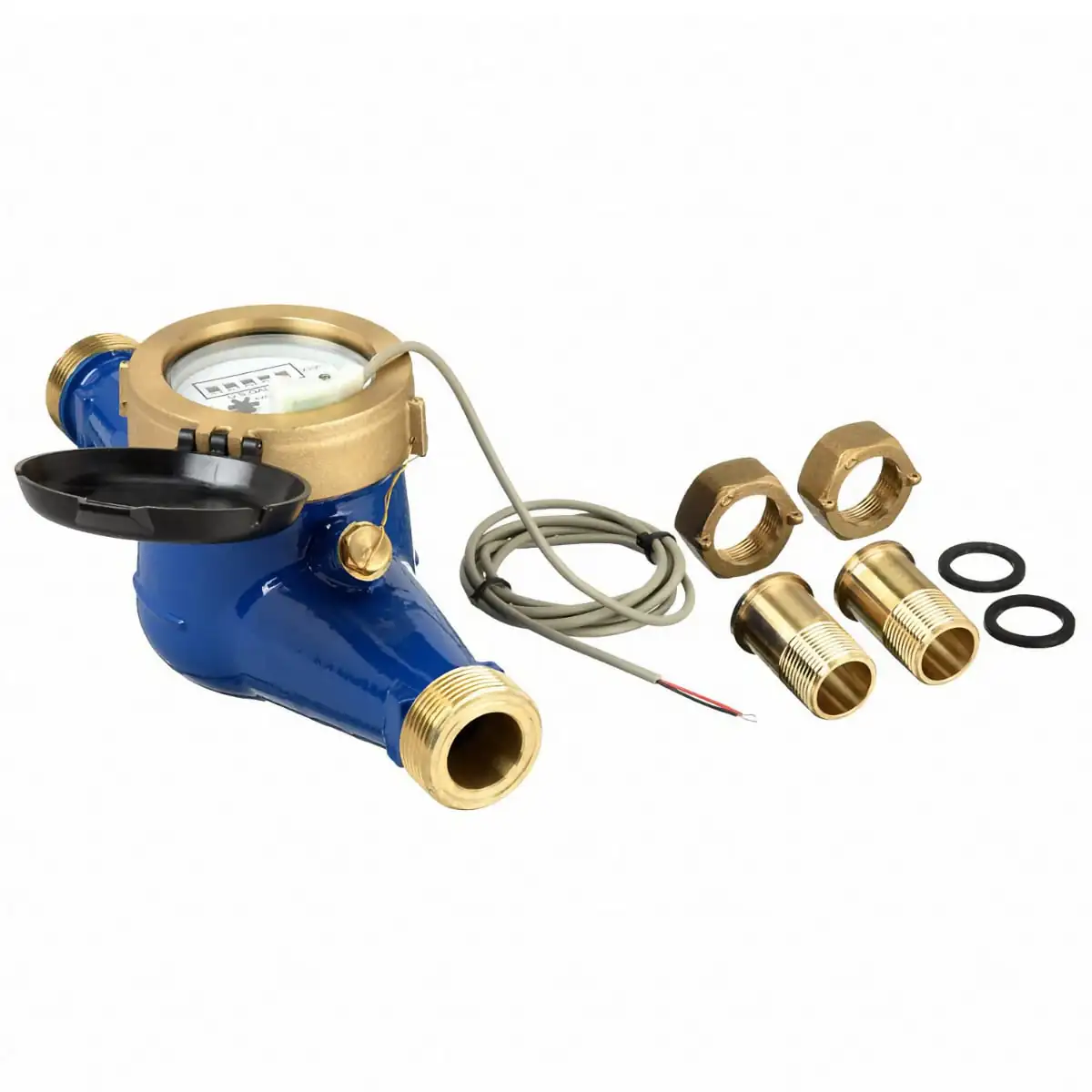

- Rugged epoxy-coated bronze bodies with union ends
- Mechanical register
- Reed switch (MJR) or Hall-effect (MJE) output
- 100:1 turndown
- Wide range of field-changeable pulse rates
- True dry-top construction
Additional Notes
| Specs | Value |
|---|---|
| Power | 6 mA at 12 Vdc (MJE/MJHE only) |
| Cold water Temperature | 105˚ F (40˚ C) max |
| Hot Water Temperature | 194˚ F (90˚ C) max |
| Pressure | 150 psi operating |
| Body Materials | Cast bronze, epoxy powder coated inside and out |
| Internals Materials | Engineered thermoplastic |
| Magnet Materials | Alnico |
| Accuracy | +/- 1.5% of reading |
| Cable Length | 12’ (4 m) standard (2 |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| SEA-MJE075 | MJE-075 | Water Meter (Non-Drinking) - Pulse Output (Hall effect) - 3/4 Inch | $263.00 | |
| SEA-MJE07510G | MJE-075-10G | Water Meter (Non-Drinking) - Pulse Output (Hall effect) - 3/4 Inch - 10 Gallons per Pulse | $273.00 | |
| SEA-MJE07510P | MJE-075-10P | Water Meter (Non-Drinking) - Pulse Output (Hall effect) - 3/4 Inch - 10 Pulses per Gallon | $273.00 | |
| SEA-MJE0751G | MJE-075-1G | Water Meter (Non-Drinking) - Pulse Output (Hall effect) - 3/4 Inch - 1 Gallon per Pulse | $273.00 | |
| SEA-MJE100 | MJE-100 | Water Meter (Non-Drinking) - Pulse Output (Hall effect) - 1 Inch | $410.00 | |
| SEA-MJE100100G | MJE-100-100G | Water Meter (Non-Drinking) - Pulse Output (Hall effect) - 1 Inch - 100 Gallons per Pulse | $424.20 | |
| SEA-MJE10010G | MJE-100-10G | Water Meter (Non-Drinking) - Pulse Output (Hall effect) - 1 Inch - 10 Gallons per Pulse | $424.20 | |
| SEA-MJE1001G | MJE-100-1G | Water Meter (Non-Drinking) - Pulse Output (Hall effect) - 1 Inch - 1 Gallon per Pulse | $424.20 | |
| SEA-MJE150 | MJE-150 | Water Meter (Non-Drinking) - Pulse Output (Hall effect) - 1-1/2 Inch | $708.00 | |
| SEA-MJE150100G | MJE-150-100G | Water Meter (Non-Drinking) - Pulse Output (Hall effect) - 1-1/2 Inch - 100 Gallons per Pulse | $730.80 | |
| SEA-MJE15010G | MJE-150-10G | Water Meter (Non-Drinking) - Pulse Output (Hall effect) - 1-1/2 Inch - 10 Gallons per Pulse | $730.80 | |
| SEA-MJE1501G | MJE-150-1G | Water Meter (Non-Drinking) - Pulse Output (Hall effect) - 1-1/2 Inch - 1 Gallon per Pulse | $730.80 | |
| SEA-MJE200 | MJE-200 | Water Meter (Non-Drinking) - Pulse Output (Hall effect) - 2 Inch | $879.00 | |
| SEA-MJE200100G | MJE-200-100G | Water Meter (Non-Drinking) - Pulse Output (Hall effect) - 2 Inch - 100 Gallons per Pulse | $918.75 | |
| SEA-MJE20010G | MJE-200-10G | Water Meter (Non-Drinking) - Pulse Output (Hall effect) - 2 Inch - 10 Gallons per Pulse | $918.75 |
