Headline
IP800
Fixed Depth Insertion Paddlewheel

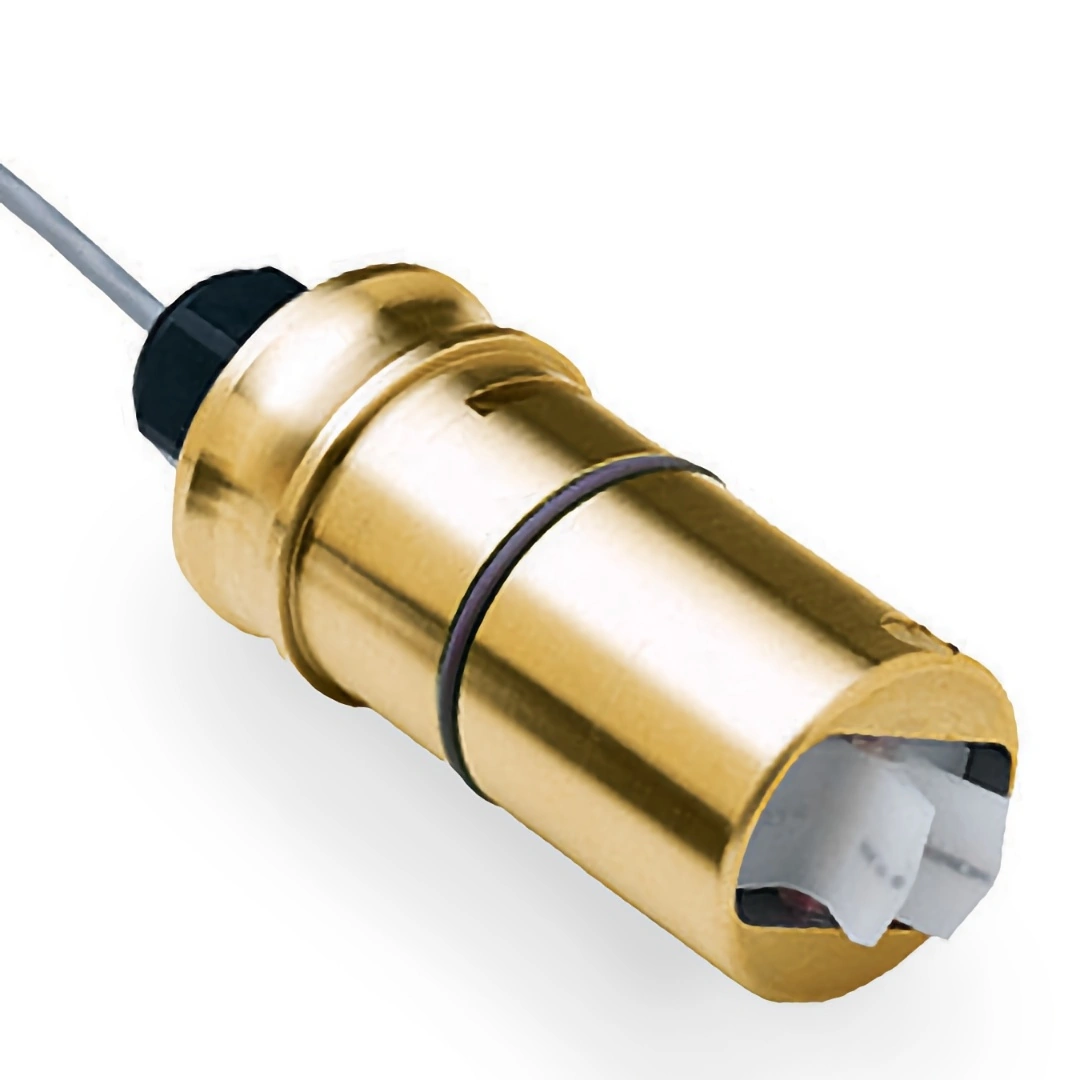

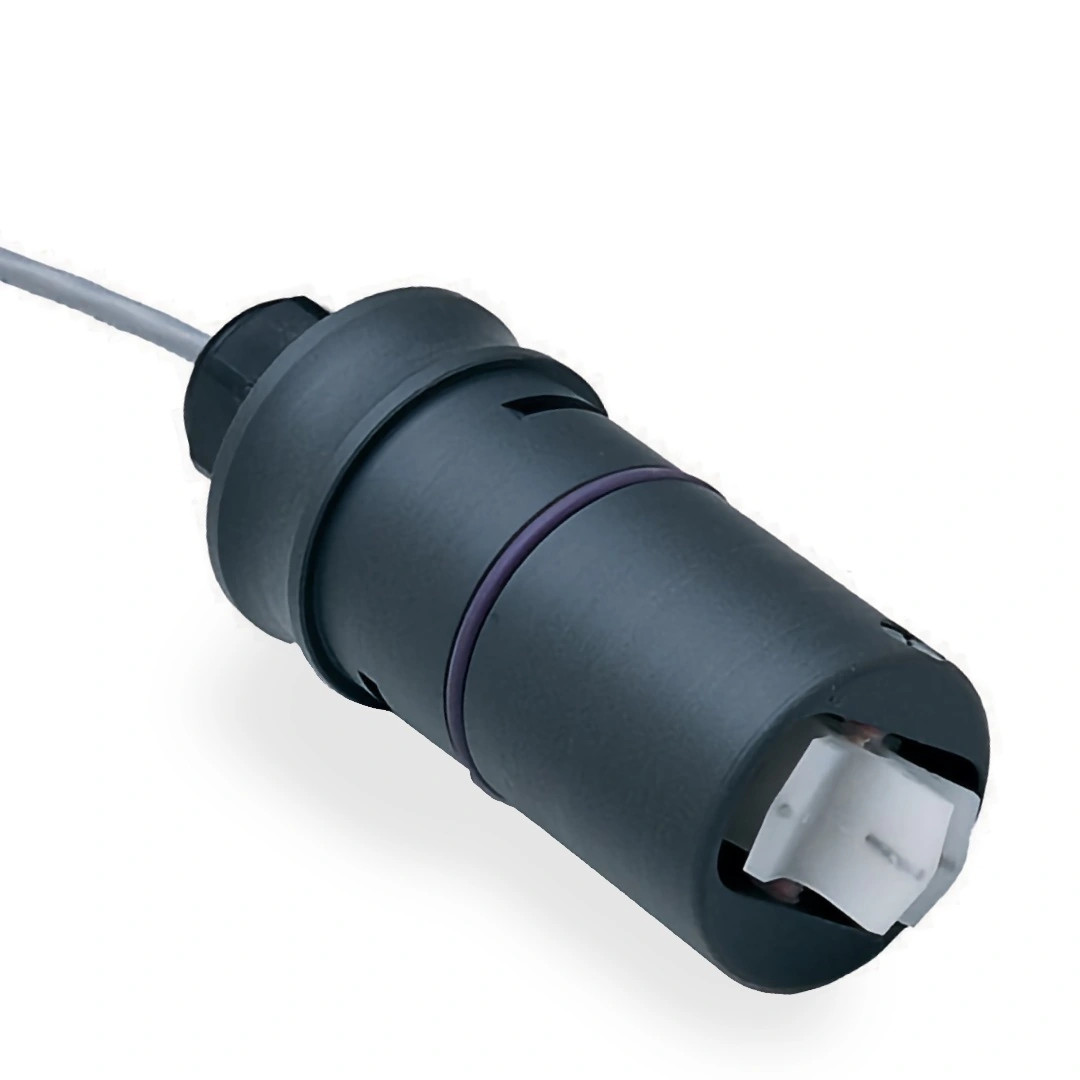

The IP800-Series are impeller (or "paddlewheel") insertion meters designed for use with a wide variety of liquids in pipe sizes 1/2" to 8". Sensors are available in brass, 316 stainless steel, PVC, and polypropylene. Bodies are machined from a solid rod for maximum precision. High quality jewel bearings and nickel-bound tungsten carbide shafts are used for extreme low friction and long life. Low-flow performance is good, although other Seametrics flow meters are recommended where extremely low flows are being measured.
Features & Benefits
Key Features
Performance & Durability
- High-quality ruby bearings for excellent low-flow performance and long life
- One easily-replaced moving part
- Pickup exerts no magnetic drag on the rotor
Connectivity & Control
- Square-wave frequency output can connect directly to PLCs or counter controls
- Indicator or transmitter can be mounted on the flowmeter or remote
Installation Flexibility
- Fittings are available in a wide variety of materials and sizes
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| SEA-IP819B | IP819B | Fixed Depth Insertion Paddlewheel Meter - Brass - 1/2"-3" - FT440 | $1,484.00 | |
| SEA-IP819P | IP819P | Fixed Depth Insertion Paddlewheel Meter - PVC - 1/2"-3" - FT440 | $1,273.00 | |
| SEA-IP819S | IP819S | Fixed Depth Insertion Paddlewheel Meter - 316 SS - 1/2"-3" - FT440 | $1,495.00 | |
| SEA-IP819SHP | IP819S-HP | Fixed Depth Insertion Paddlewheel Meter - 316 SS - Hi Pres,1/2"-3" - FT440 | $1,859.00 | |
| SEA-IP819Y | IP819Y | Fixed Depth Insertion Paddlewheel Meter - Polypro - 1/2"-3" - FT440 | $1,327.00 | |
| SEA-IP829B | IP829B | Fixed Depth Insertion Paddlewheel Meter - Brass - 4"-8" - FT440 | $1,560.00 | |
| SEA-IP829P | IP829P | Fixed Depth Insertion Paddlewheel Meter - PVC - 4"-8" - FT440 | $1,303.00 | |
| SEA-IP829S | IP829S | Fixed Depth Insertion Paddlewheel Meter - 316 SS - 4"-8" - FT440 | $1,574.00 | |
| SEA-IP829SHP | IP829S-HP | Fixed Depth Insertion Paddlewheel Meter - 316 SS - Hi Pres - 4"-8" - FT440 | $1,842.00 | |
| SEA-IP829Y | IP829Y | Fixed Depth Insertion Paddlewheel Meter - Polypro - 4"-8" - FT440 | $1,360.00 |
