Headline
IP800
Fixed Depth Insertion Paddlewheel

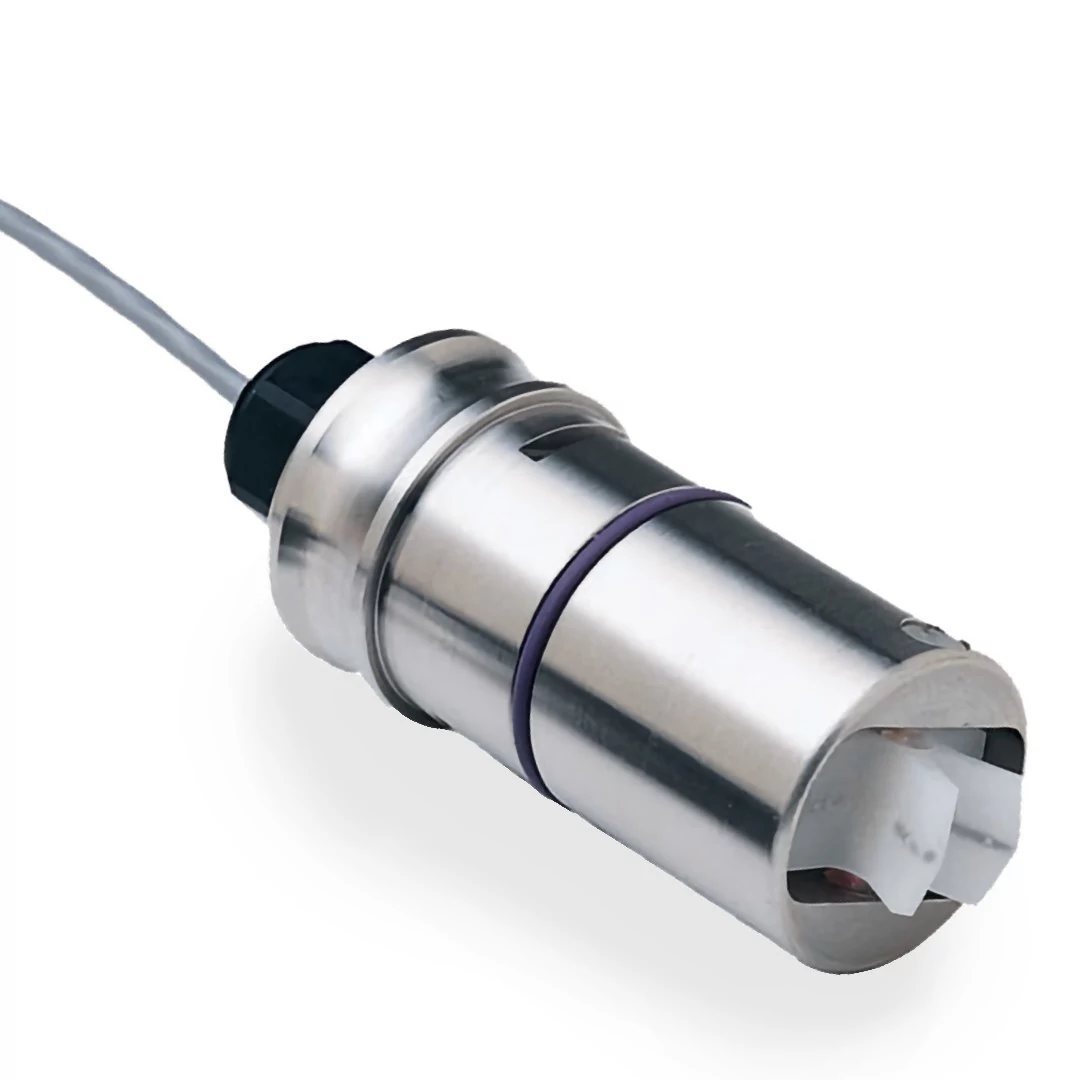

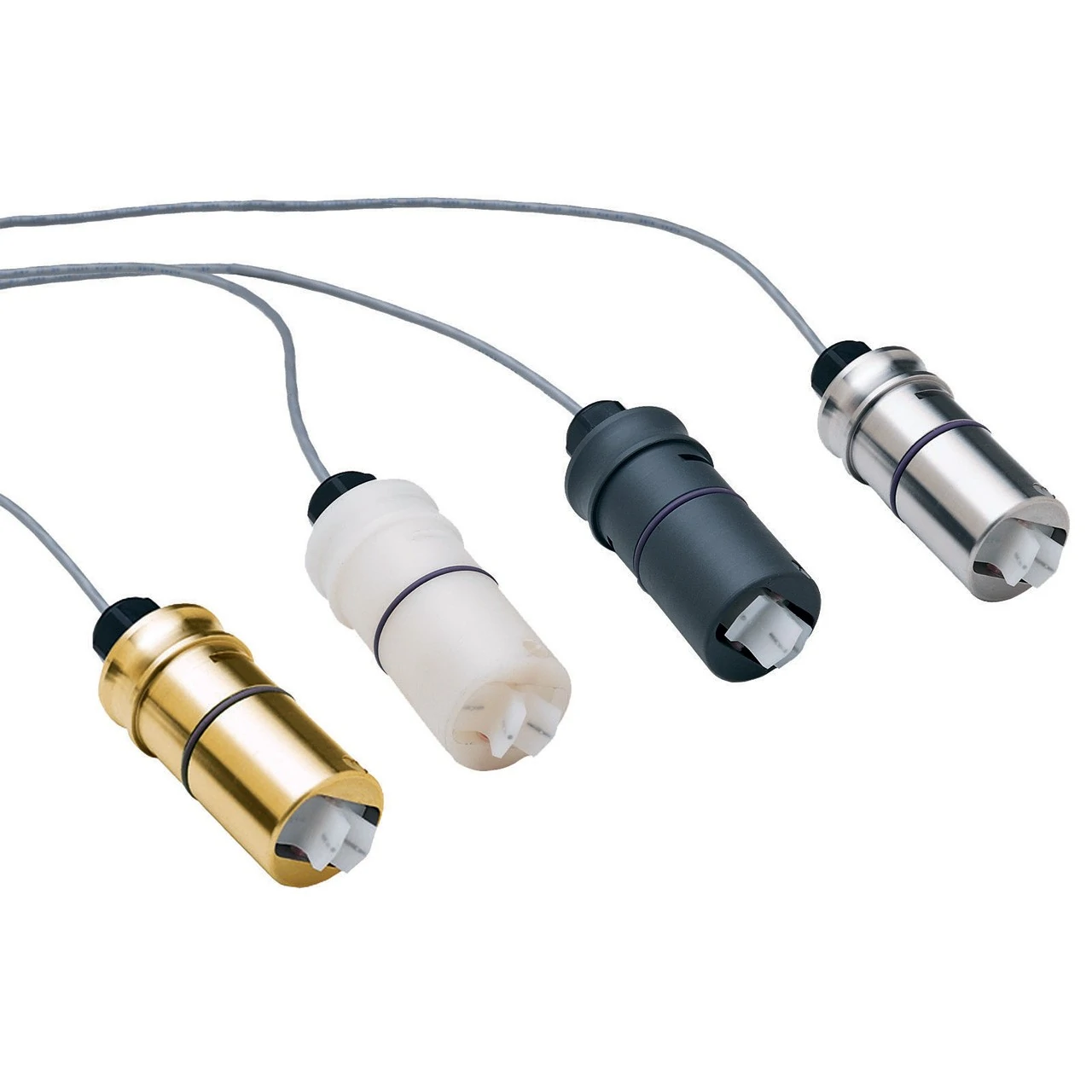

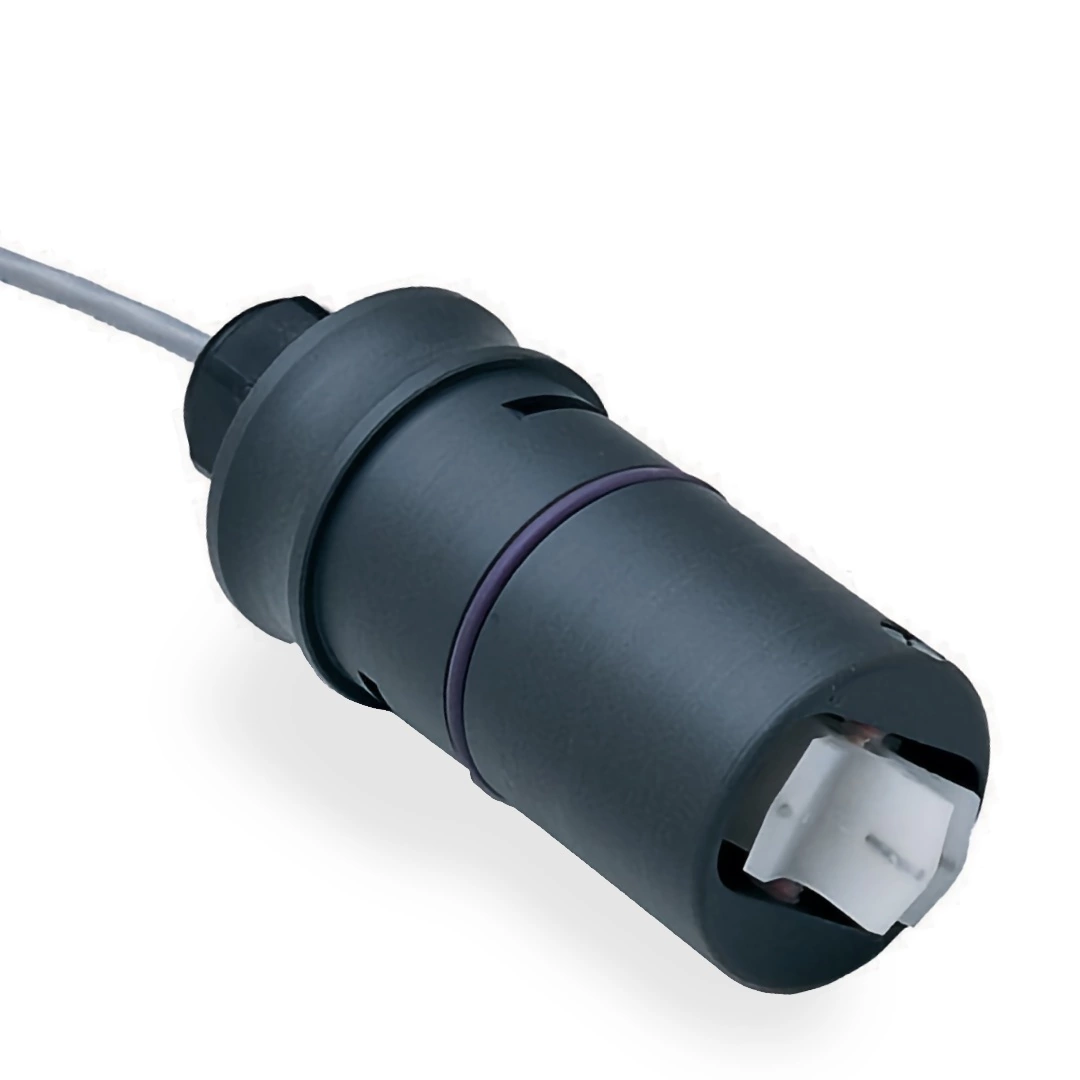

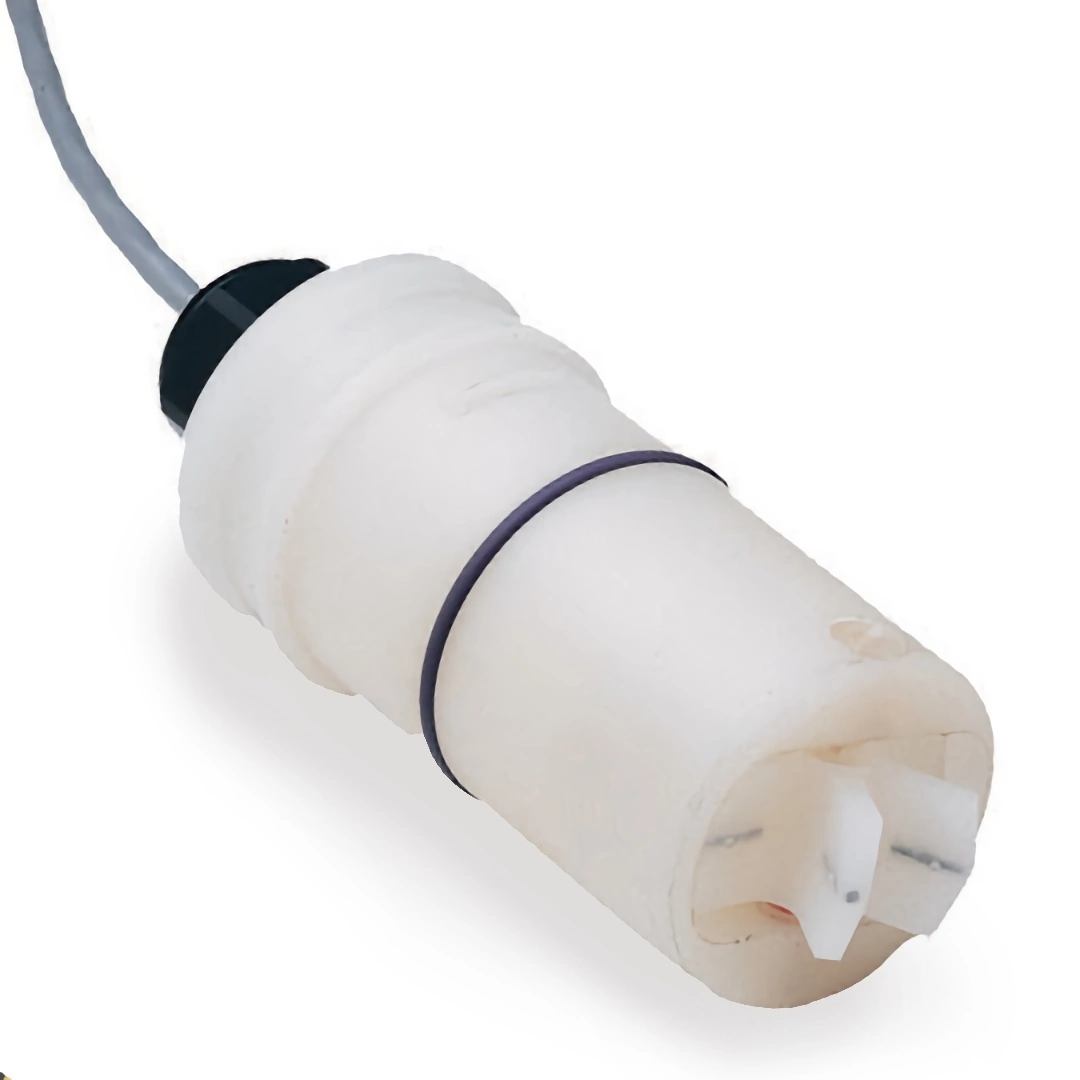

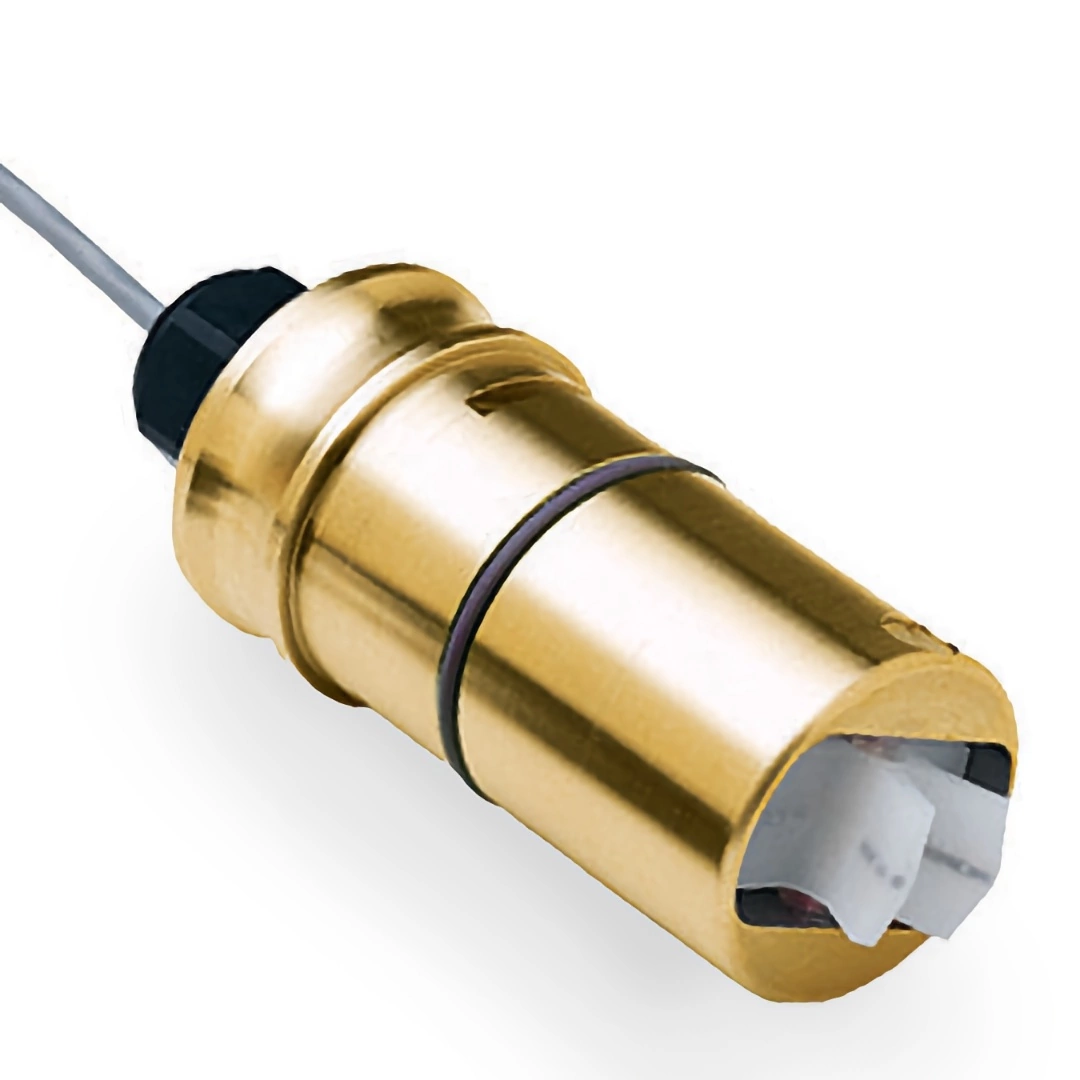

The IP800-Series are impeller (or "paddlewheel") insertion meters designed for use with a wide variety of liquids in pipe sizes 1/2" to 8". Sensors are available in brass, 316 stainless steel, PVC, and polypropylene. Bodies are machined from a solid rod for maximum precision. High quality jewel bearings and nickel-bound tungsten carbide shafts are used for extreme low friction and long life. Low-flow performance is good, although other Seametrics flow meters are recommended where extremely low flows are being measured.
Features & Benefits
Key Features
Performance & Durability
- High-quality ruby bearings for excellent low-flow performance and long life
- One easily-replaced moving part
- Pickup exerts no magnetic drag on the rotor
Connectivity & Control
- Square-wave frequency output can connect directly to PLCs or counter controls

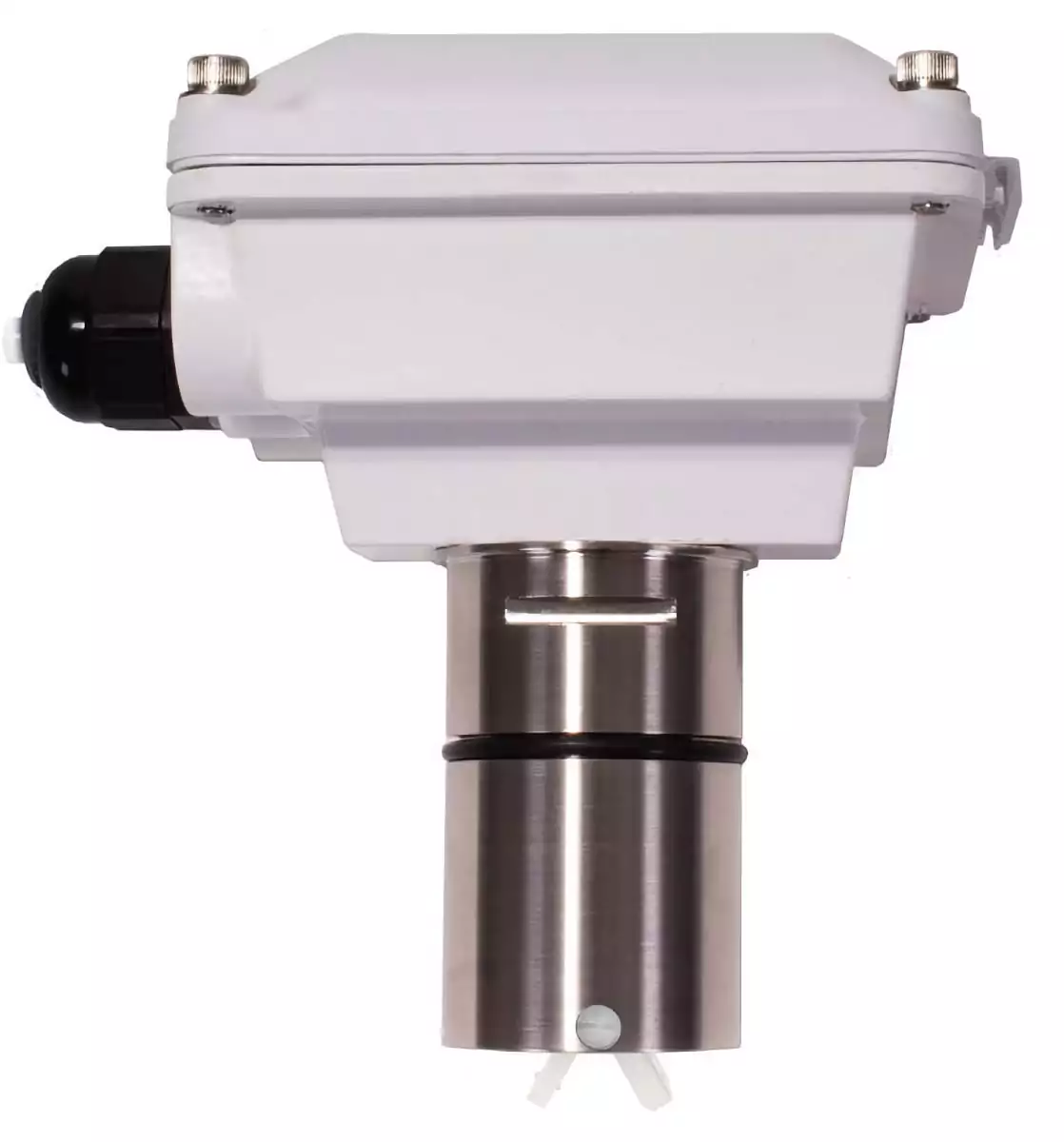

- Indicator or transmitter can be mounted on the flowmeter or remote
Installation Flexibility
- Fittings are available in a wide variety of materials and sizes
