Headline
IP800
Fixed Depth Insertion Paddlewheel

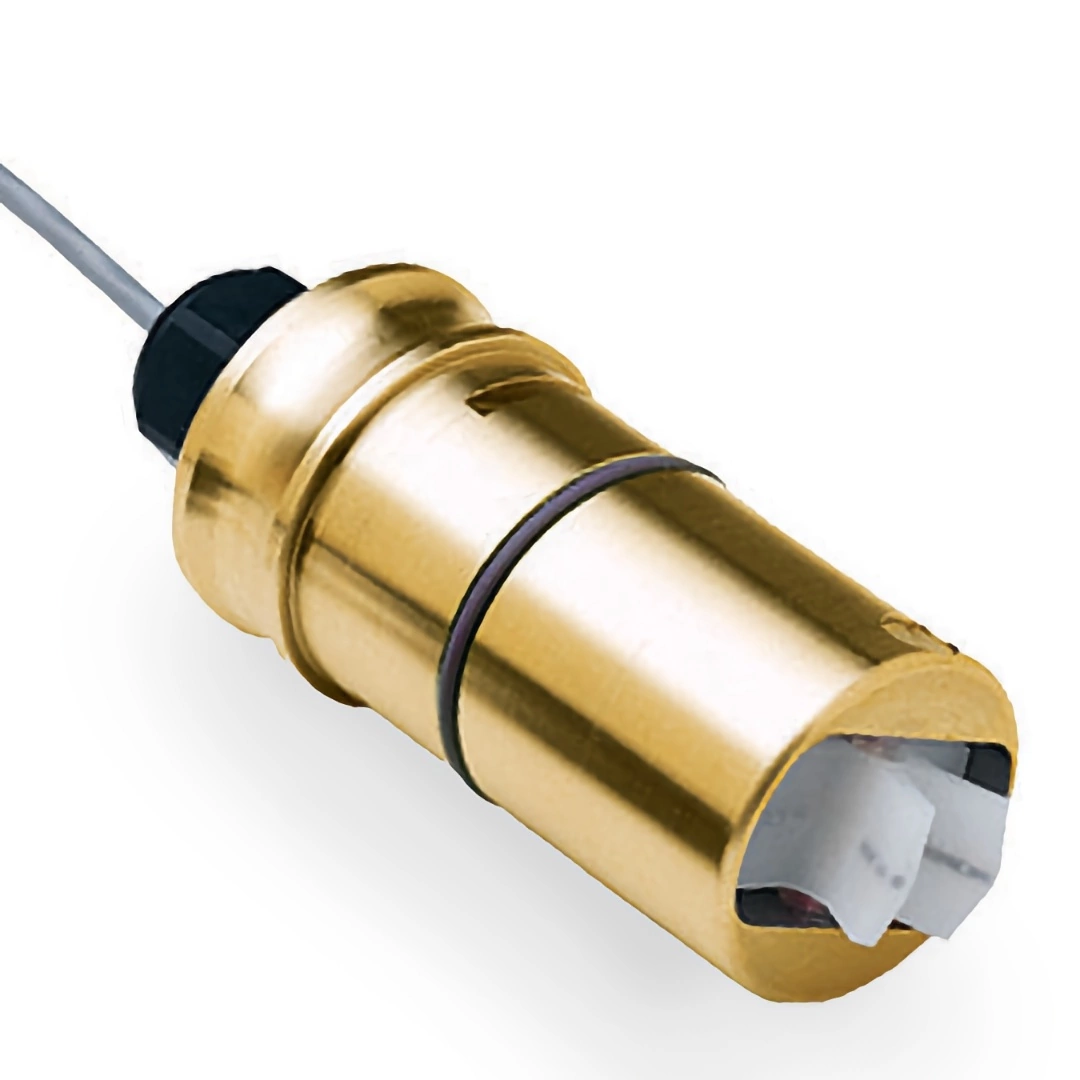

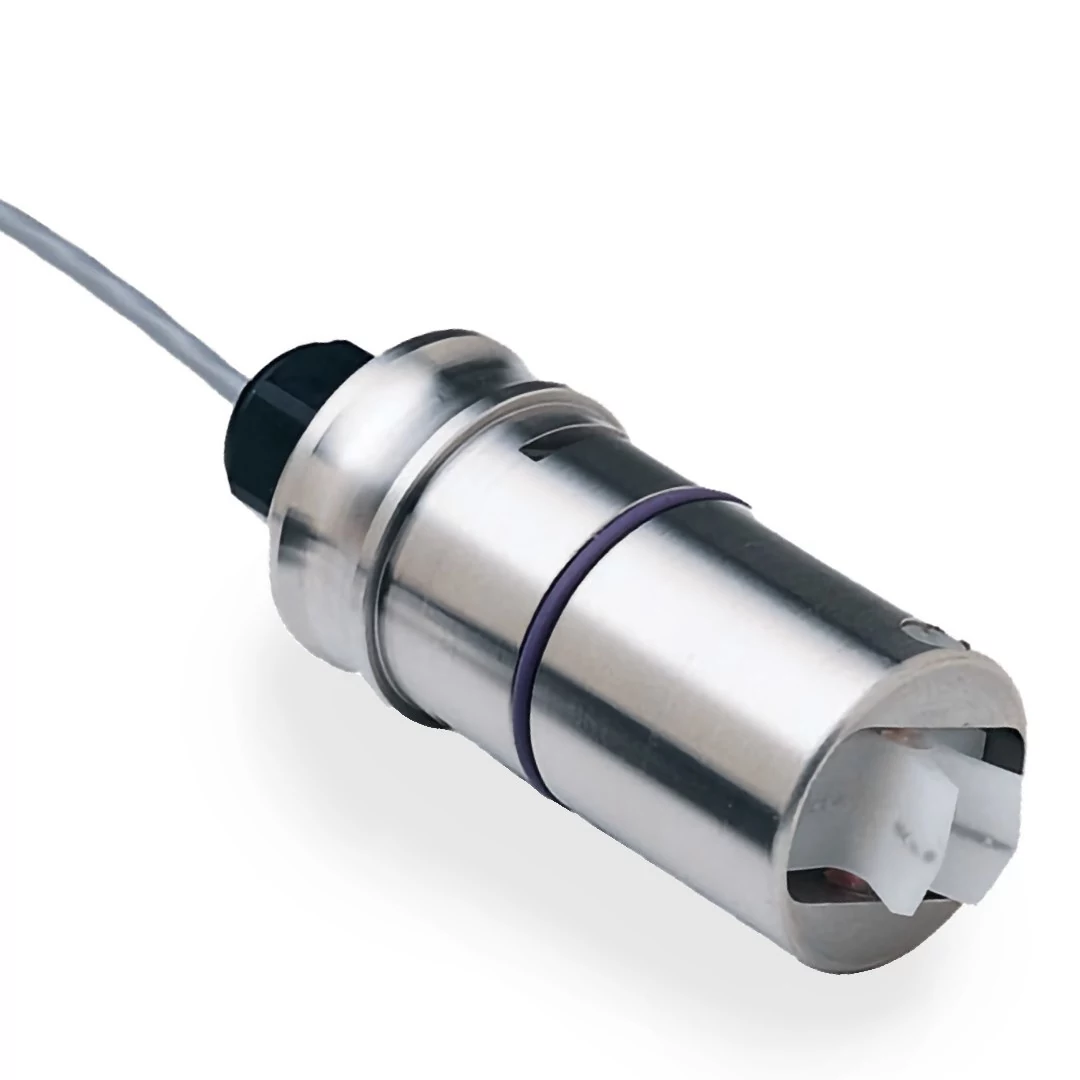

The IP800-Series are impeller (or “paddlewheel”) insertion meters designed for use with a wide variety of liquids in pipe sizes 1/2” to 8”. Sensors are available in brass, 316 stainless steel, PVC, and polypropylene. Bodies are machined from a solid rod for maximum precision. High quality jewel bearings and nickel-bound tungsten carbide shafts are used for extreme low friction and long life. Low-flow performance is good, although other Seametrics flow meters are recommended where extremely low flows are being measured.
Features & Benefits
Features:
- High-quality ruby bearings for excellent low-flow performance and long life
- One easily-replaced moving part
- Pickup exerts no magnetic drag on the rotor
- Square-wave frequency output can connect directly to PLC's or counter controls

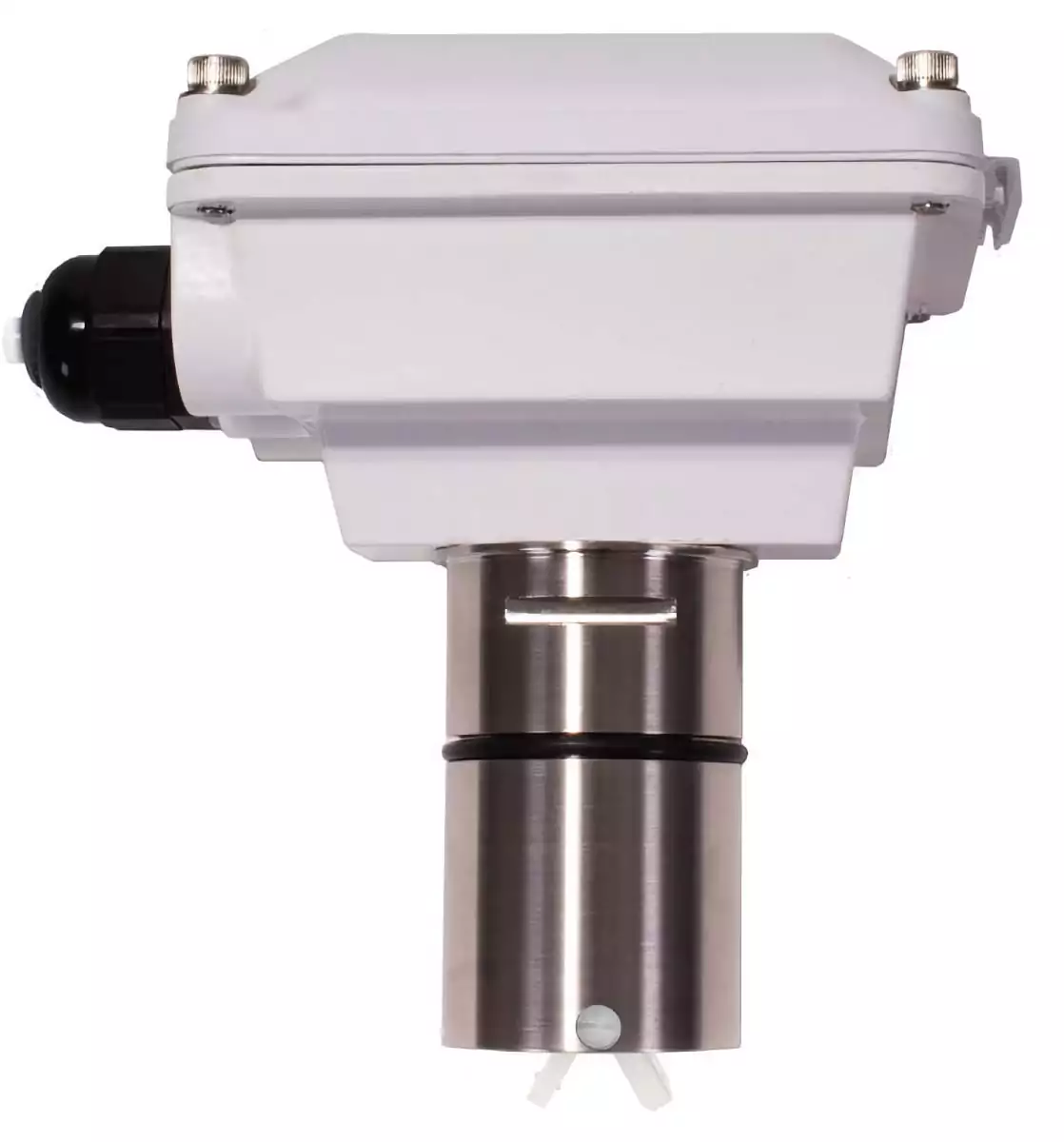

- Indicator or transmitter can be mounted on the flowmeter or remote
- Fittings are available in a wide variety of materials and sizes
Additional Notes
| Specs | Value | ||||||
|---|---|---|---|---|---|---|---|
| Pipe Size | 1/2” to 8” | ||||||
| Power | Low Power: 6-36 Vdc/< 2 mA Micropowered (-04 Option): 3.1-16 Vdc/60 μA @ 3.6 Vdc | ||||||
| Sensor | Low Power: Digital Magnetoresistive Micropowered (-04 Option): Giant Magnetoresistance (GMR) | ||||||
| Optional Housing Materials | Powder-coated cast aluminum | ||||||
| Sensor Body Materials | Brass, 316 Stainless Steel, PVC, or Polypropylene | ||||||
| O-ring Materials | EPDM (Viton optional) | ||||||
| Rotor Materials | PVDF (Kynar) | ||||||
| Shaft Materials | Kynar /Tungsten Carbide (Kynar /Ceramic or Kynar/Silicon Carbide optional) | ||||||
| Bearings Materials | Ruby jewel | ||||||
| Flow Velocity | 0.3 to 30 ft/sec (0.09 to 9.14 m/sec) | ||||||
| Accuracy | ± 1.5% of full scale | ||||||
| Output Transistor Maximum Current Sinking | 150mA (low power version only) | ||||||
| Cable | #22 AWG 3-con, 18’ (6m); 2,000’ (610m) maximum cable run Note: 50’ (15m) maximum for battery powered or micropowered versions. | ||||||
| Environmental | See meter mounted electronics specification for rating | ||||||
| Regulatory | Mark |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| SEA-IP813B | IP813B | Fixed Depth Insertion Paddlewheel Meter - Brass - 1/2"-3" - FT430 | $1,216.00 | |
| SEA-IP813P | IP813P | Fixed Depth Insertion Paddlewheel Meter - PVC - 1/2"-3" - FT430 | $1,032.00 | |
| SEA-IP813S | IP813S | Fixed Depth Insertion Paddlewheel Meter - 316 SS - 1/2"-3" - FT430 | $1,228.00 | |
| SEA-IP813SHP | IP813S-HP | Fixed Depth Insertion Paddlewheel Meter - 316 SS - Hi Pres,1/2"-3" - FT430 | $1,546.00 | |
| SEA-IP813Y | IP813Y | Fixed Depth Insertion Paddlewheel Meter - Polypro - 1/2"-3" - FT430 | $1,080.00 | |
| SEA-IP823B | IP823B | Fixed Depth Insertion Paddlewheel Meter - Brass - 4"-8" - FT430 | $1,282.00 | |
| SEA-IP823P | IP823P | Fixed Depth Insertion Paddlewheel Meter - PVC - 4"-8" - FT430 | $1,060.00 | |
| SEA-IP823S | IP823S | Fixed Depth Insertion Paddlewheel Meter - 316 SS - 4"-8" - FT430 | $1,297.00 | |
| SEA-IP823SHP | IP823S-HP | Fixed Depth Insertion Paddlewheel Meter - 316 SS - Hi Pres - 4"-8" - FT430 | $1,532.00 | |
| SEA-IP823Y | IP823Y | Fixed Depth Insertion Paddlewheel Meter - Polypro - 4"-8" - FT430 | $1,111.00 |
