Headline
IP800
Fixed Depth Insertion Paddlewheel

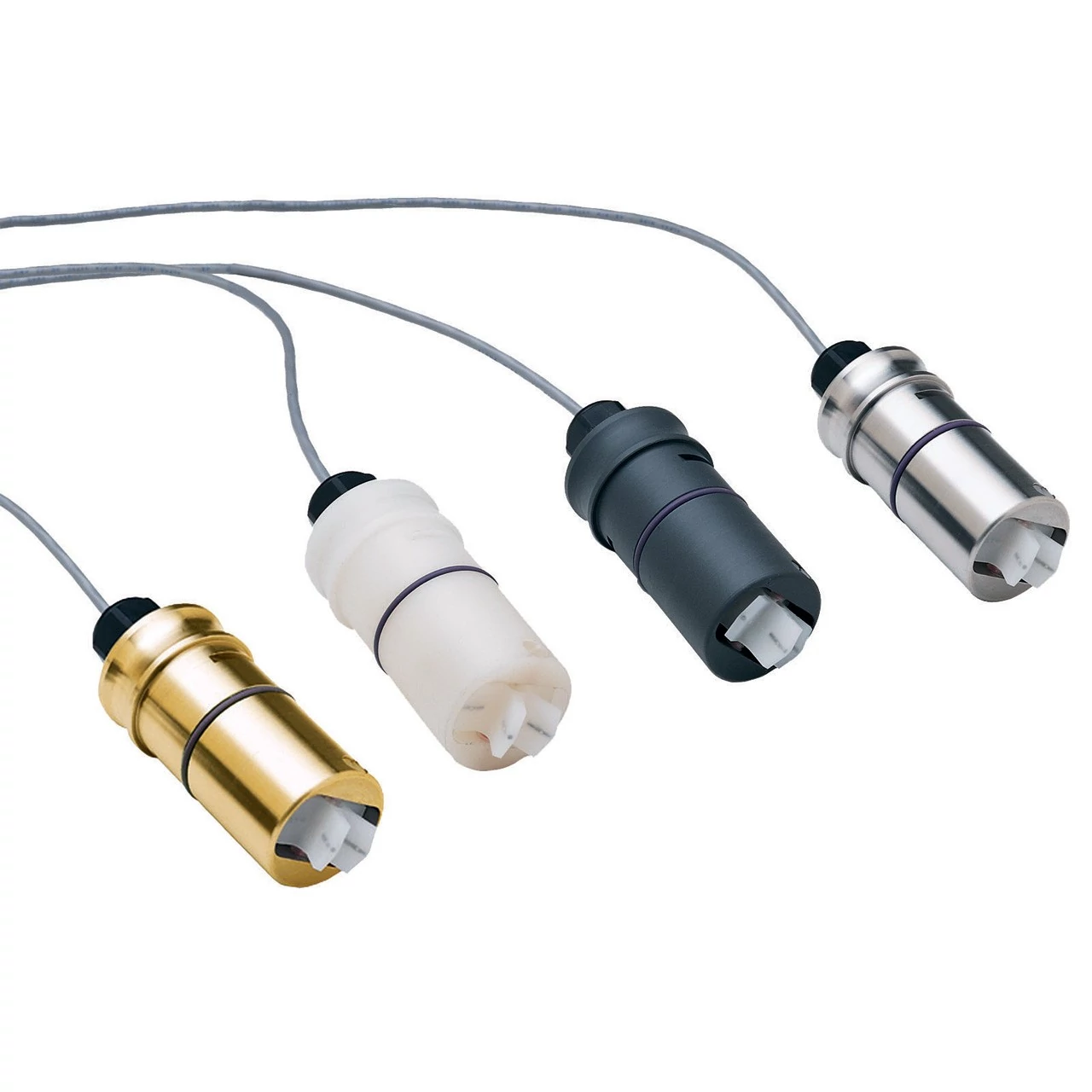

The IP800-Series are impeller (or "paddlewheel") insertion meters designed for use with a wide variety of liquids in pipe sizes 1/2" to 8". Sensors are available in brass, 316 stainless steel, PVC, and polypropylene. Bodies are machined from a solid rod for maximum precision. High quality jewel bearings and nickel-bound tungsten carbide shafts are used for extreme low friction and long life. Low-flow performance is good, although other Seametrics flow meters are recommended where extremely low flows are being measured.
Features & Benefits
Key Features
Performance & Durability
- High-quality ruby bearings for excellent low-flow performance and long life
- One easily-replaced moving part
- Pickup exerts no magnetic drag on the rotor
Connectivity & Control
- Square-wave frequency output can connect directly to PLCs or counter controls
- Indicator or transmitter can be mounted on the flowmeter or remote
Installation Flexibility
- Fittings are available in a wide variety of materials and sizes
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| SEA-IP810B | IP810B | Fixed Depth Insertion Paddlewheel Meter - Brass - 1/2"-3" | $732.00 | |
| SEA-IP810P | IP810P | Fixed Depth Insertion Paddlewheel Meter - PVC - 1/2"-3" | $532.00 | |
| SEA-IP810S | IP810S | Fixed Depth Insertion Paddlewheel Meter - 316 SS - 1/2"-3" | $474.00 | |
| SEA-IP810SHP | IP810S-HP | Fixed Depth Insertion Paddlewheel Meter - 316 SS - Hi Pres - 1/2"-3" | $1,093.00 | |
| SEA-IP820B | IP820B | Fixed Depth Insertion Paddlewheel Meter - Brass - 4"-8" | $808.00 | |

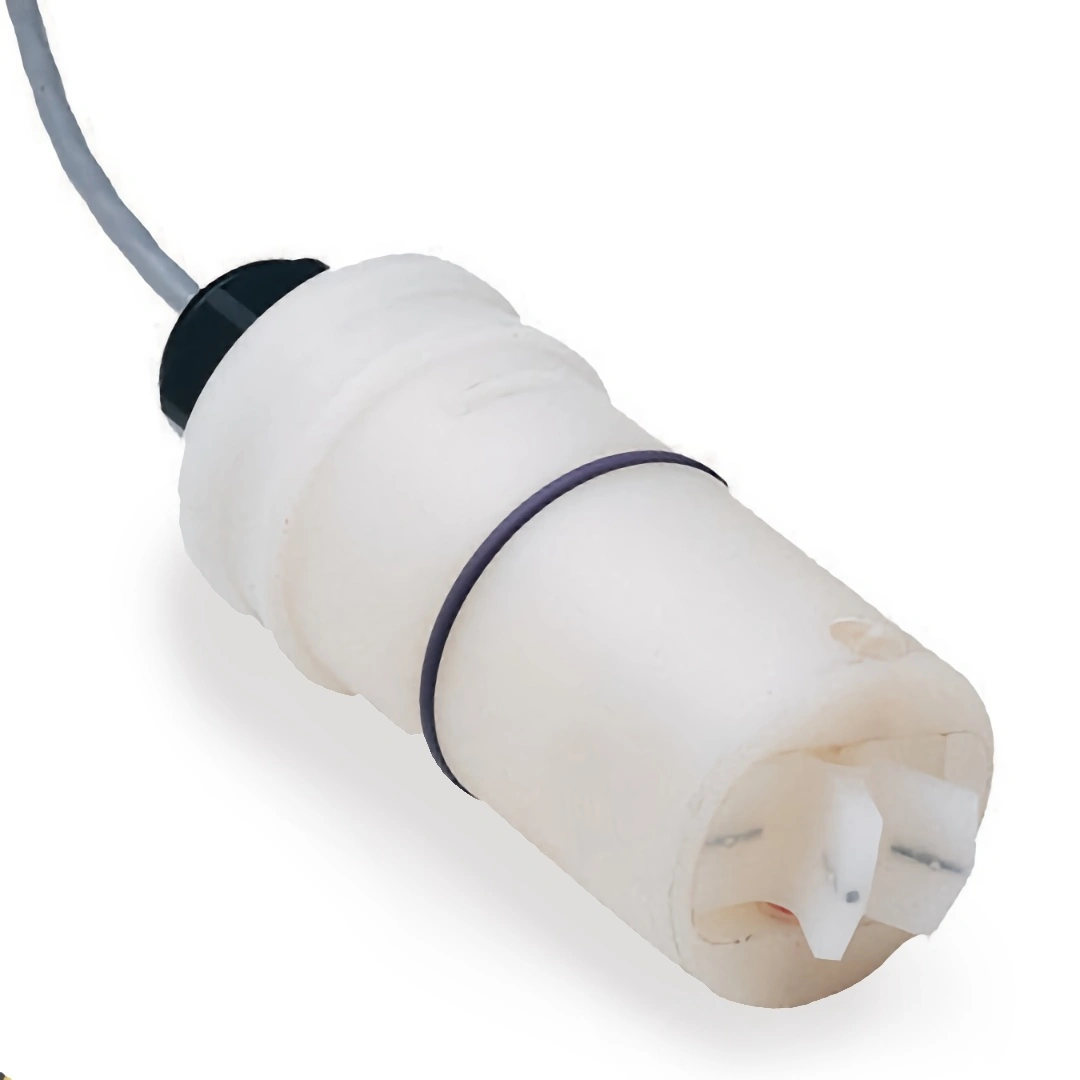

| SEA-IP820P | IP820P | Fixed Depth Insertion Paddlewheel Meter - PVC - 4"-8" | $563.00 | |
| SEA-IP820S | IP820S | Fixed Depth Insertion Paddlewheel Meter - 316 SS - 4"-8" | $824.00 | |
| SEA-IP820SHP | IP820S-HP | Fixed Depth Insertion Paddlewheel Meter - 316 SS - Hi Pres - 4"-8" | $1,098.00 | |
| SEA-IP820Y | IP820Y | Fixed Depth Insertion Paddlewheel Meter - Polypro - 4"-8" | $673.00 |
