Headline
IP150/250
Hot-Tap Adjustable Depth Insertion Paddlewheel
Features & Benefits
Key Features
Installation & Compatibility
- Isolation valve allows insertion and removal with the pipe under pressure
- Two sizes fit entire pipe range: IP150 to 12", IP250 to 40"
- Uses standard NPT threaded pipe fittings or saddles
Performance & Reliability
- High-quality ruby bearings for excellent low-flow performance and long life
- One easily-replaced moving part
Control & Integration
- Square-wave frequency output can connect directly to PLCs or counter controls
- Controls can be remote or meter mounted
Technical Specifications
| Model | Pipe Size Range |
|---|---|
| IP150 | Up to 12" |
| IP250 | Up to 40" |

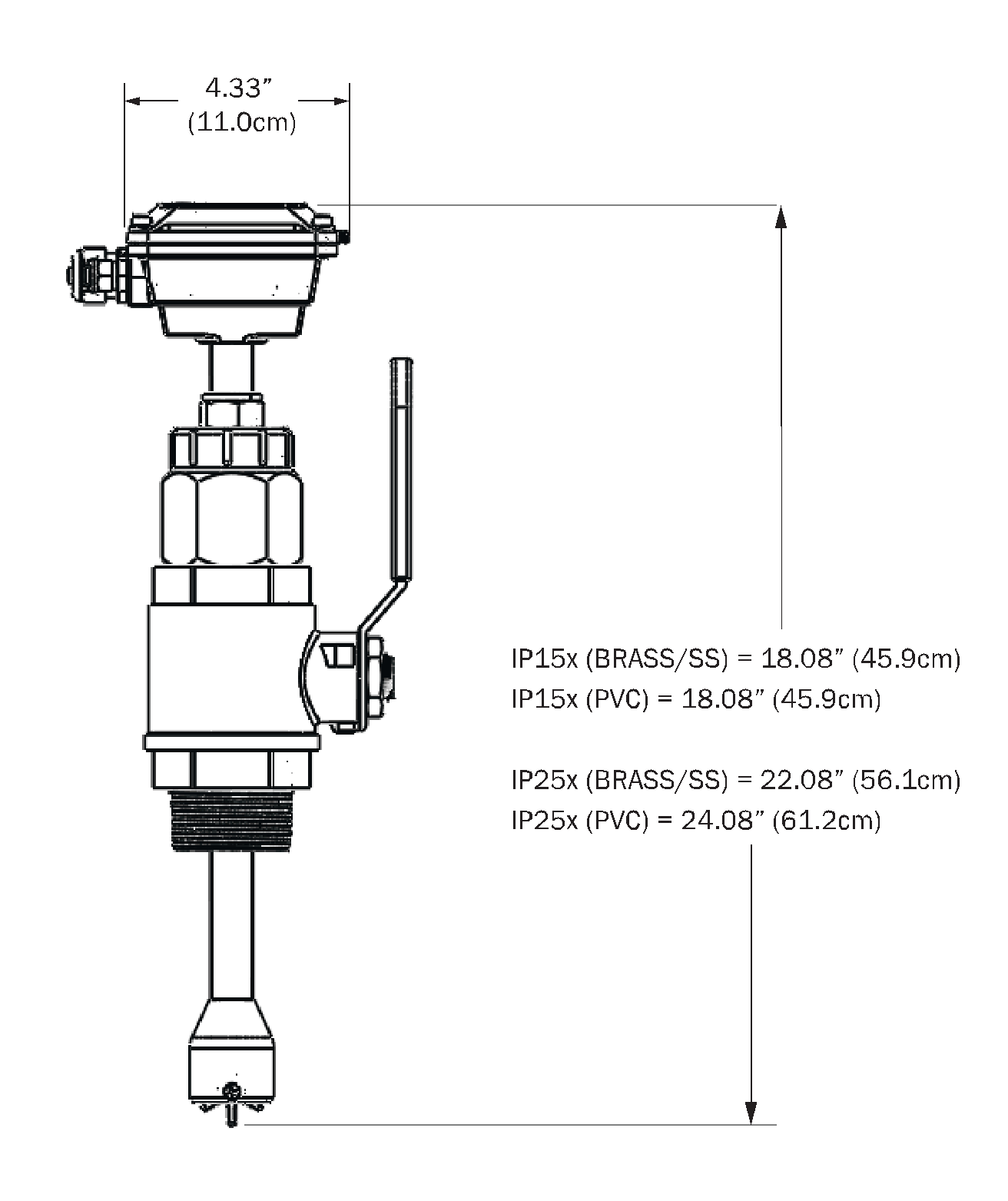

Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| SEA-IP150B | IP150B | Hot Tap Adj Depth Insertion Paddlewheel Meter - Brass - 3"-12" | $1,608.00 | |
| SEA-IP150P | IP150P | Hot Tap Adj Depth Insertion Paddlewheel Meter - PVC - 3"-12" | $1,527.00 | |
| SEA-IP150S | IP150S | Hot Tap Adj Depth Insertion Paddlewheel Meter - 316 SS - 3"-12" | $1,642.00 | |
| SEA-IP250B | IP250B | Hot Tap Adj Depth Insertion Paddlewheel Meter - Brass - 12"- 40" | $1,655.00 | |
| SEA-IP250P | IP250P | Hot Tap Adj Depth Insertion Paddlewheel Meter - PVC - 12"- 40" | $1,607.00 | |
| SEA-IP250S | IP250S | Hot Tap Adj Depth Insertion Paddlewheel Meter - 316 SS - 12"- 40" | $1,689.00 |
