Headline
EX90

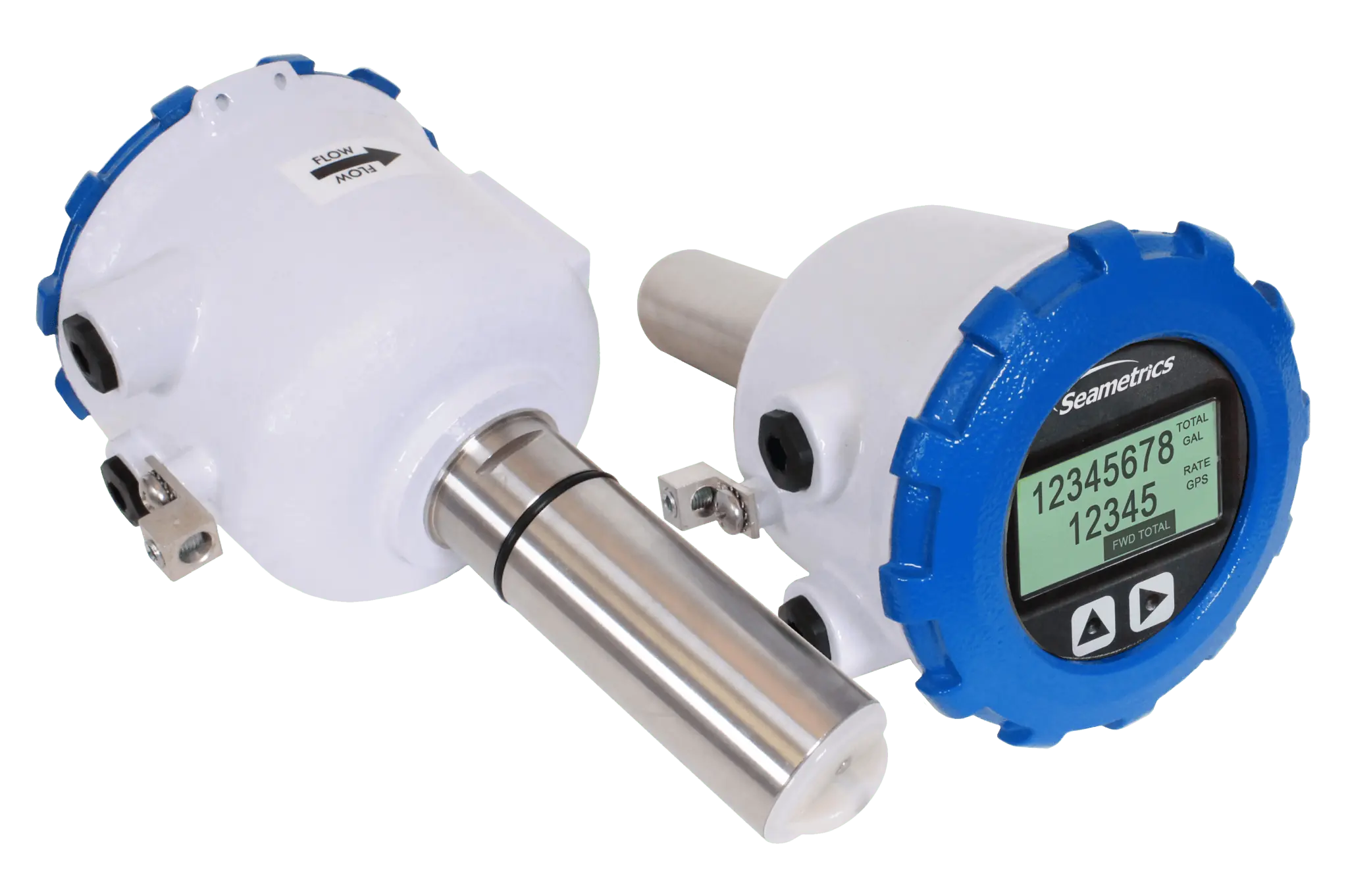

Battery Powered Insertion Magmeter

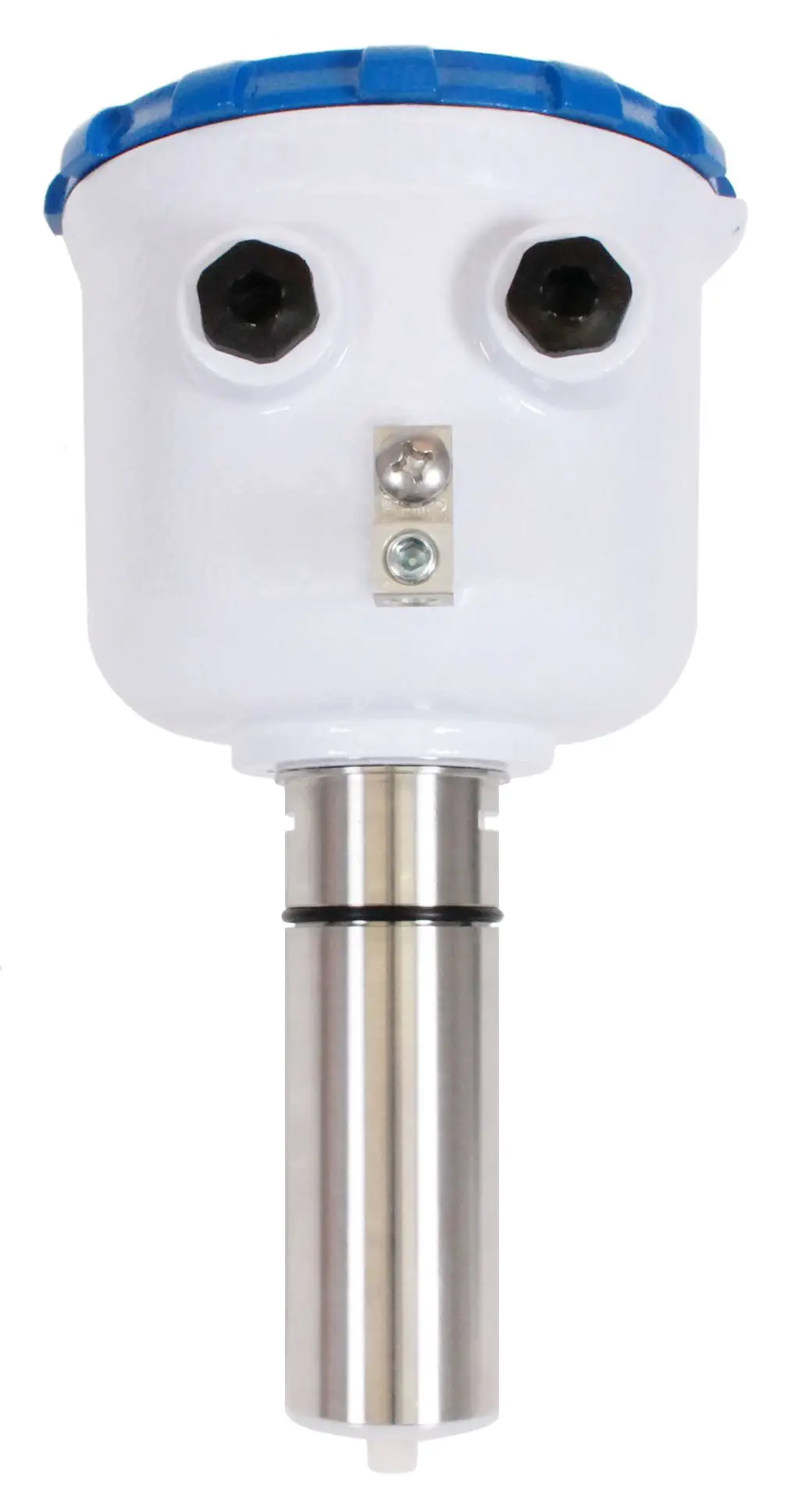

The EX90-series battery powered, insertion electromagnetic flow meter is designed for use with conductive fluids in 4”–12” pipe. The EX90’s stainless steel body allows the meter to operate in a wide range of temperatures, pressure, and corrosive or dirty environments.
Features & Benefits
Features:
- Direct replacement for propeller meters
- Easy to install
- Less pipe obstruction
- No moving parts or bearings to replace
- No routine maintenance
- Pulse Output Standard
- 4 year battery life
- Certified to NSF/ANSI 61 Standard
Additional Notes
| Specs | Value |
|---|---|
| Pipe Size | 4” to 12” |
| Sensor Body Materials | 316 SS |
| Electrodes Materials | Hastelloy |
| Housing Materials | Powder-coated diecast aluminum |
| Electrode Cap Materials | PVDF (Kynar) |
| O-Ring Materials | EPDM |
| Operating Temperature | 10˚ to 140˚ F (-12˚ to 60˚ C) |
| Storage Temperature | -40˚ to 158˚ F (-40˚ to 70˚ C) |
| Fluid Temp. | 32˚ to 200˚ F (0˚ to 93˚ C) |
| Pressure | 200 psi (14 bar) |
| Flow Rate | 0.5 - 4.5 m/sec (1.64 - 14.8 ft/sec) (Low flow cutoff .15 m/sec; .49 ft/sec) |
| Calibration Accuracy 0.5 - 4.5 m/s (1.64-14.76 ft/sec) |
+/- 2% of reading |
| Calibration Accuracy 0.3 - 0.5 m/sec (0.98 - 1.64 ft/sec) | +/- (2% of reading + 0.25% of full scale) |

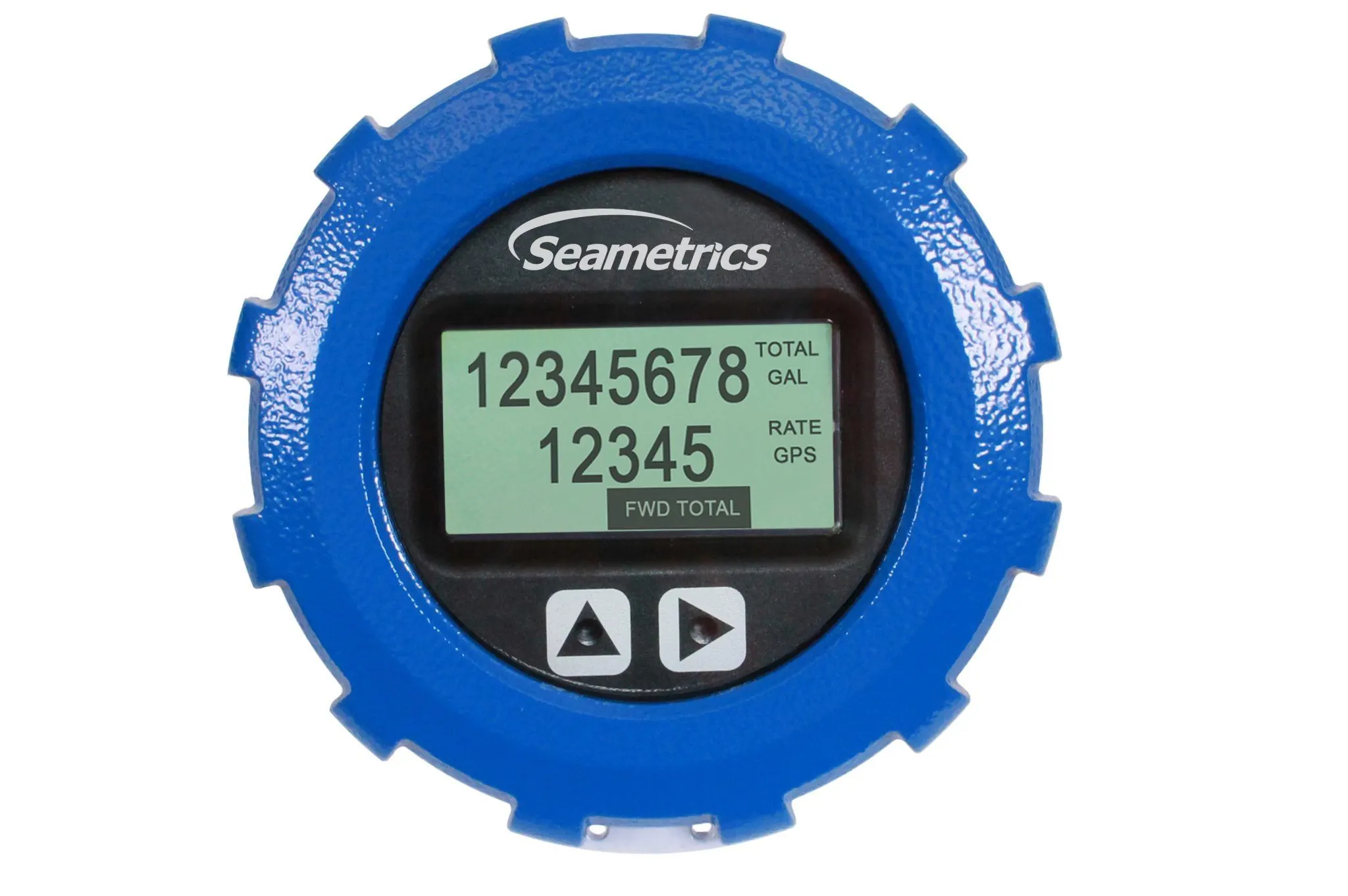

| Display Type | 128x64 dot-matrix LCD |
| Bidirectional | Forward Total, Reverse Total, Net Total, Batch Forward, Batch Reverse |
| Power | One lithium 7.2V ‘D’ size battery pack, replaceable. |
| Scaled Pulse Output Signal | Current sinking pulse, isolated, 36 Vdc at 10 mA max |
| Pulse Rates | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width varies with output frequency, 150 pulses/sec max |
| Optional Output Cable | 20ft (6m) standard length polyurethane jacketed cable—for power and outputs. (Lengths up to 200’ (60 m) available.) |
| Conductivity | >20 microSiemens/cm |
| Empty Pipe Detection | Hardware/software, conductivity-based |
| Regulatory | (EN 61326) Pending. Certifi to NSF/ANSI standard 61 and NSF 372 (Stainless only with EPDM O-ring. Viton pending). |
| Environmental | IP67 |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| SEA-EX900400BXX01006S | EX90-0400-BX-X-01-006S | Battery Powered Insertion Magmeter - 4 Inch - 20 ft Cable - w Data Logger | $2,109.45 | |
| SEA-EX900400BXX01015S | EX90-0400-BX-X-01-015S | Battery Powered Insertion Magmeter - 4 Inch - 50 ft Cable - w Data Logger | $2,196.60 | |
| SEA-EX900400BXX01030S | EX90-0400-BX-X-01-030S | Battery Powered Insertion Magmeter - 4 Inch - 100 ft Cable - w Data Logger | $2,343.60 | |
| SEA-EX900400BXX01045S | EX90-0400-BX-X-01-045S | Battery Powered Insertion Magmeter - 4 Inch - 150 ft Cable - w Data Logger | $2,490.60 | |
| SEA-EX900400BXXXX006S | EX90-0400-BX-X-XX-006S | Battery Powered Insertion Magmeter - 4 Inch - 20 ft Cable - w/o Datalogging | $2,000.25 | |
| SEA-EX900400BXXXX015S | EX90-0400-BX-X-XX-015S | Battery Powered Insertion Magmeter - 4 Inch - 50 ft Cable - w/o Datalogging | $2,086.35 | |
| SEA-EX900400BXXXX030S | EX90-0400-BX-X-XX-030S | Battery Powered Insertion Magmeter - 4 Inch - 100 ft Cable - w/o Datalogging | $2,233.35 | |
| SEA-EX900400BXXXX045S | EX90-0400-BX-X-XX-045S | Battery Powered Insertion Magmeter - 4 Inch - 150 ft Cable - w/o Datalogging | $2,378.25 | |
| SEA-EX900400BXXXX060S | EX90-0400-BX-X-XX-060S | Battery Powered Insertion Magmeter - 4 Inch - 200 ft Cable - w/o Datalogging | $2,525.25 |
