Headline
EX800
Fixed Depth Insertion Magmeter

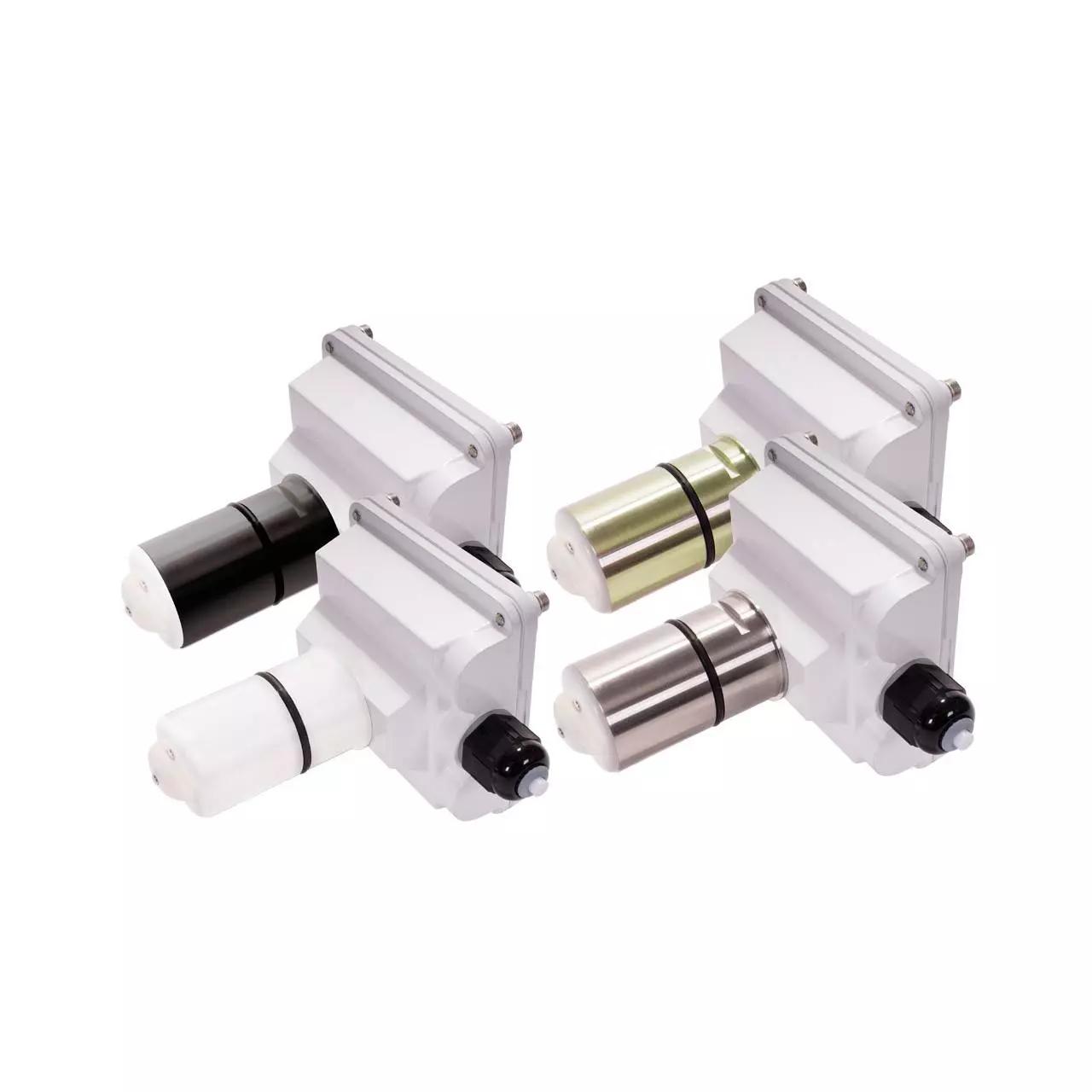

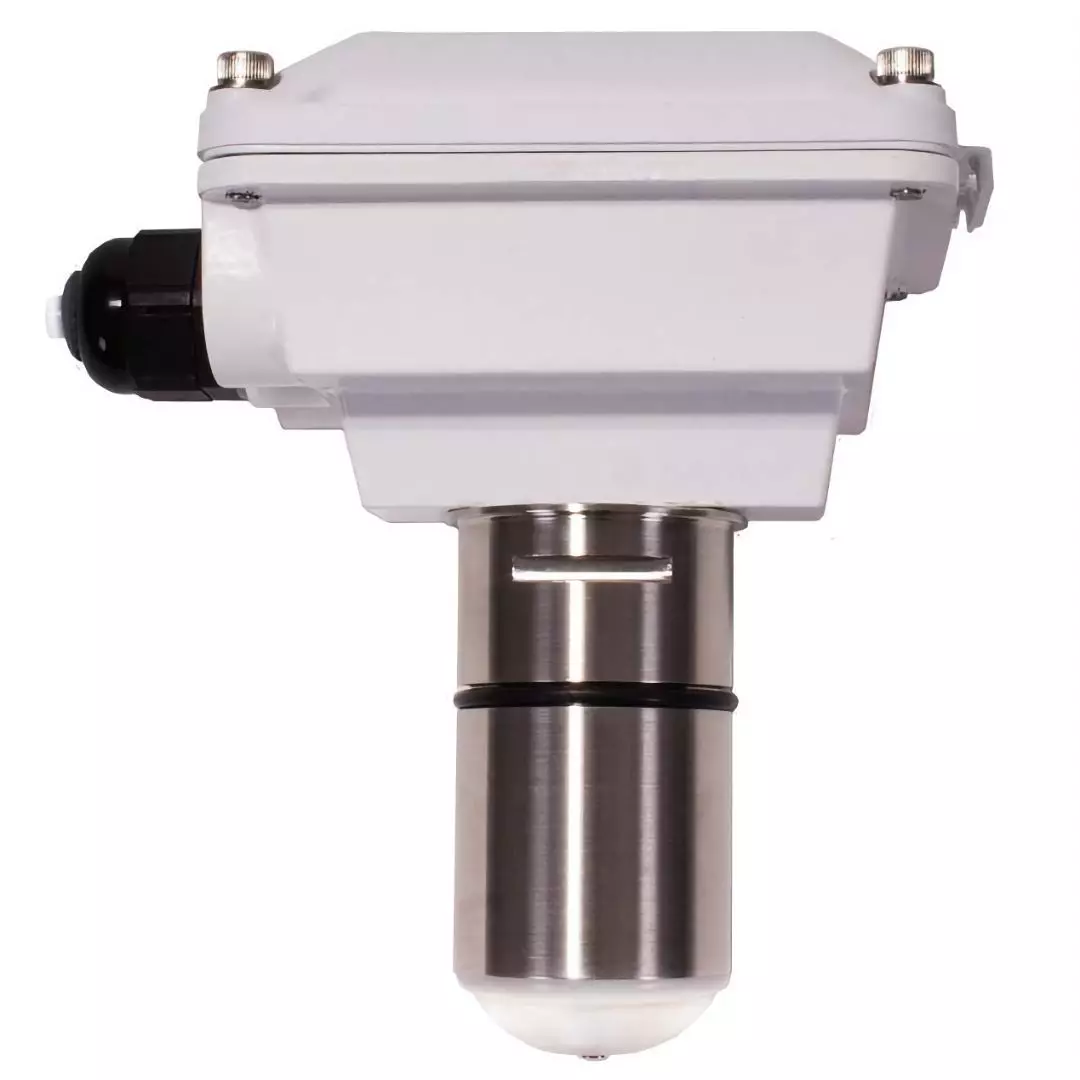

EX800-Series insertion electromagnetic flowmeters are designed for use with conductive liquids in 1 to 12" pipe. A choice of materials (stainless steel, brass, and PVC) allows the meter to adapt to a range of temperature, pressure, and corrosive environments.
Features & Benefits
Key Features
Performance & Reliability
- Low-flow performance and accuracy superior to any mechanical flow sensor
- No moving parts to wear out
- Simple pulse train output compatible with:
- SeaMetrics signal processing modules
- Direct PLC connection
Installation & Design
- Dedicated fittings for simplicity
- Retainer clip automatically sets correct depth
- Meter extends only about 1/8 of pipe diameter
- Minimizes potential for clogging with debris
Technical Specifications
| Specification | Details |
|---|---|
| Pipe Sizes | 1" to 12" |
| Material Options | Brass, 316 Stainless, PVC |
| Certifications | NSF/ANSI 61 Standard (stainless version) |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| SEA-EX813B | EX813B | Fixed Depth Insertion Magmeter - Brass - 1"-3" - FT430 | $1,858.00 | |
| SEA-EX813P | EX813P | Fixed Depth Insertion Magmeter - PVC - 1"-3" - FT430 | $1,727.00 | |
| SEA-EX813S | EX813S | Fixed Depth Insertion Magmeter - 316 SS - 1"-3" - FT430 | $1,882.00 | |
| SEA-EX823B | EX823B | Fixed Depth Insertion Magmeter - Brass - 4"-10" - FT430 | $1,902.00 | |
| SEA-EX823P | EX823P | Fixed Depth Insertion Magmeter - PVC - 4"-10" - FT430 | $1,763.00 | |
| SEA-EX823S | EX823S | Fixed Depth Insertion Magmeter - 316 SS - 4"-10" - FT430 | $1,975.00 | |
| SEA-EX833B | EX833B | Fixed Depth Insertion Magmeter - Brass - 12" - FT430 | $2,048.00 | |
| SEA-EX833P | EX833P | Fixed Depth Insertion Magmeter - PVC - 12" - FT430 | $1,904.00 |
