Headline
EX800
Fixed Depth Insertion Magmeter
EX800-Series insertion electromagnetic flowmeters are designed for use with conductive liquids in 1 to 12" pipe. A choice of materials (stainless steel, brass, and PVC) allows the meter to adapt to a range of temperature, pressure, and corrosive environments.
Features & Benefits
Key Features
Performance & Reliability
- Low-flow performance and accuracy superior to any mechanical flow sensor
- No moving parts to wear out
- Simple pulse train output compatible with:
- SeaMetrics signal processing modules
- Direct PLC connection
Installation & Design
- Dedicated fittings for simplicity
- Retainer clip automatically sets correct depth
- Meter extends only about 1/8 of pipe diameter
- Minimizes potential for clogging with debris
Technical Specifications
| Specification | Details |
|---|---|
| Pipe Sizes | 1" to 12" |
| Material Options | Brass, 316 Stainless, PVC |
| Certifications | NSF/ANSI 61 Standard (stainless version) |

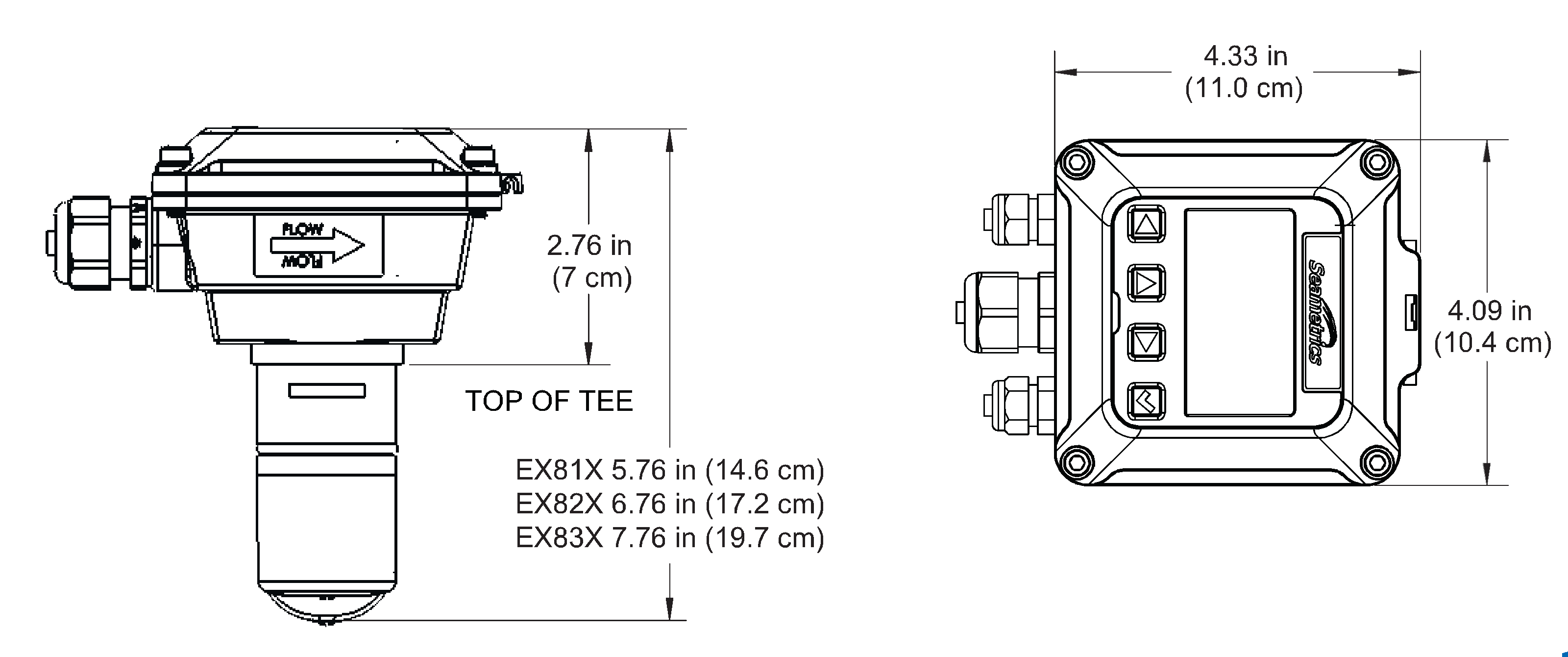

Dimensional drawings
