PT35
Dual Pulse Timer
The PT35 digital counter-timer is designed to be used with Seametrics (or similar) meters and flow sensors that produce a pulse signal. It is typically used in water treatment and chemical dosing applications, most often in cooling towers and boilers. The PT35 serves as either a single or a dual timer, depending on whether one or both of its independent accumulators and timers are used.
Features & Benefits
Features:
- For use with MJ-Series pulse meters or any of our insertion meters
- Microcontroller-based
- Glass-reinforced housing with clear weatherproof cover
- Exact digital time setting
- Dual counter/timer with optional sequential operation
- Plug-in outputs and power cord for convenience in cooling tower applications
Additional Notes
| Specs | Value |
|---|---|
| Power | 115 Vac |
| Sensor Power | 12 Vdc, unregulated @ 20 mA max |
| Output (2) | 115 Vac |
| Enclosure | 5” x 7” (12.7 x 17.8 cm) polycarbonate |
| Accumulator Range | 1–9999 pulses |
| Timer Range | 1–9999 seconds |
| Maximum Input Frequency | 1000 Hz |
| Relay Contact Rating | 5 A resistive @ 115 Vac, or 1/4 HP |
| Temperature | 32˚ - 130˚ F (0˚ - 55˚ C) |
| Environmental | NEMA 1, IP10 |

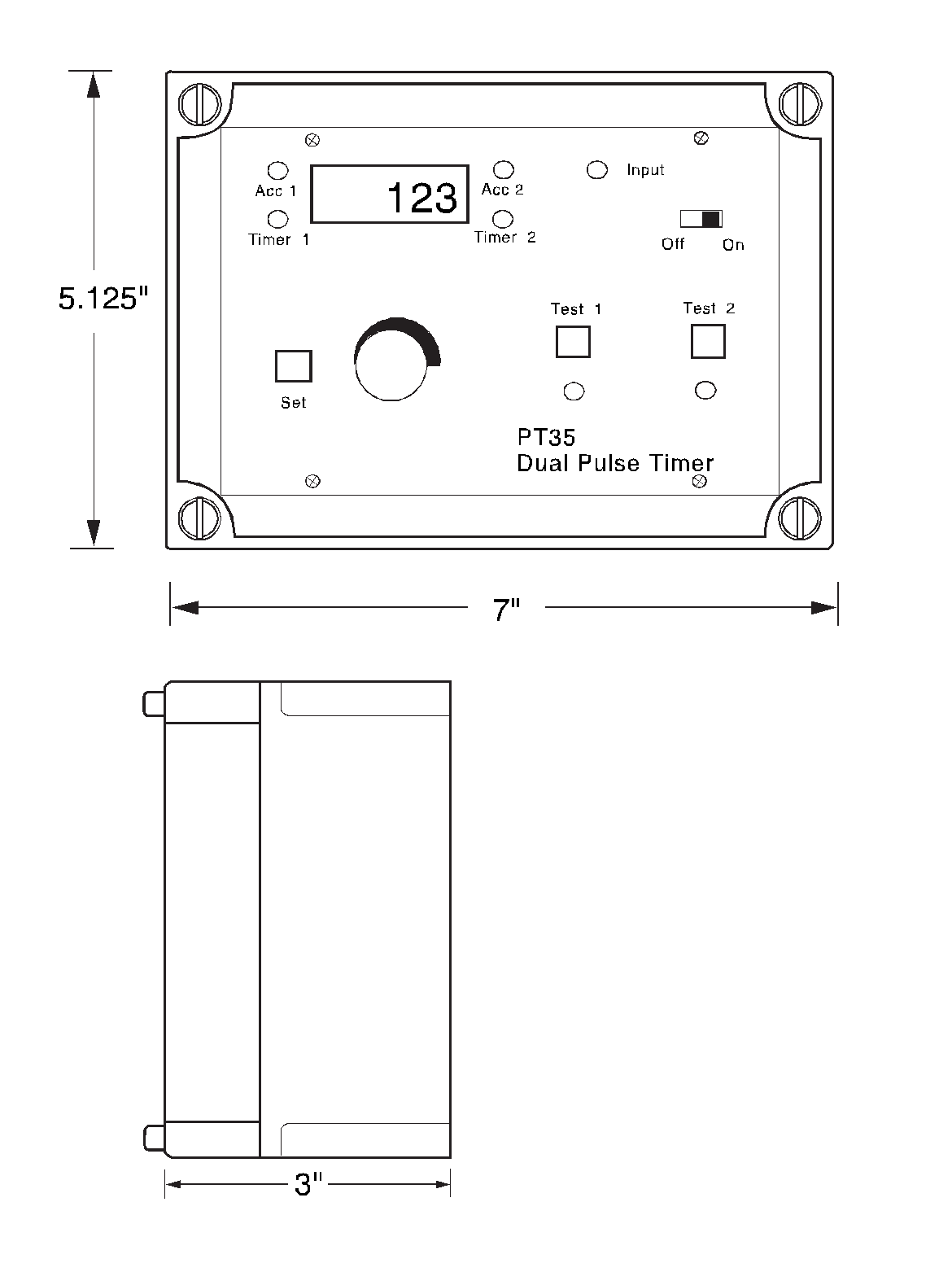

Dimensional drawings
