PS40
Pulse Splitter
The PS40 is a low-voltage device that allows a Seametrics flow sensor to drive multiple (up to four) pulse-responsive devices, such as solenoid driven chemical metering pumps, counter timers, or remote totalizers. It requires an external DC power supply for operation and can provide power to a single low power Seametrics flow sensor, such as an MJE meter. It can also be used with a dry contact sensor, such as the MJR reed switch meter.
Features & Benefits
Features:
- Allows single meter to operate multiple devices
- Ideal for pacing multiple metering pumps
- Solid state outputs plus one relay (dry contact)
Additional Notes
| Specs | Value |
|---|---|
| Power | 10–32 Vdc |
| Relay | Operational frequency = 50 Hz max Contacts = 250 mA max, 36 Vdc max, 3 W max. |
| Optoisolation | 10 mA max @ 30 Vdc max |
| Outputs | Three open collector optoisolated One Form C relay |
| Environmental | NEMA 4X, IP66 |

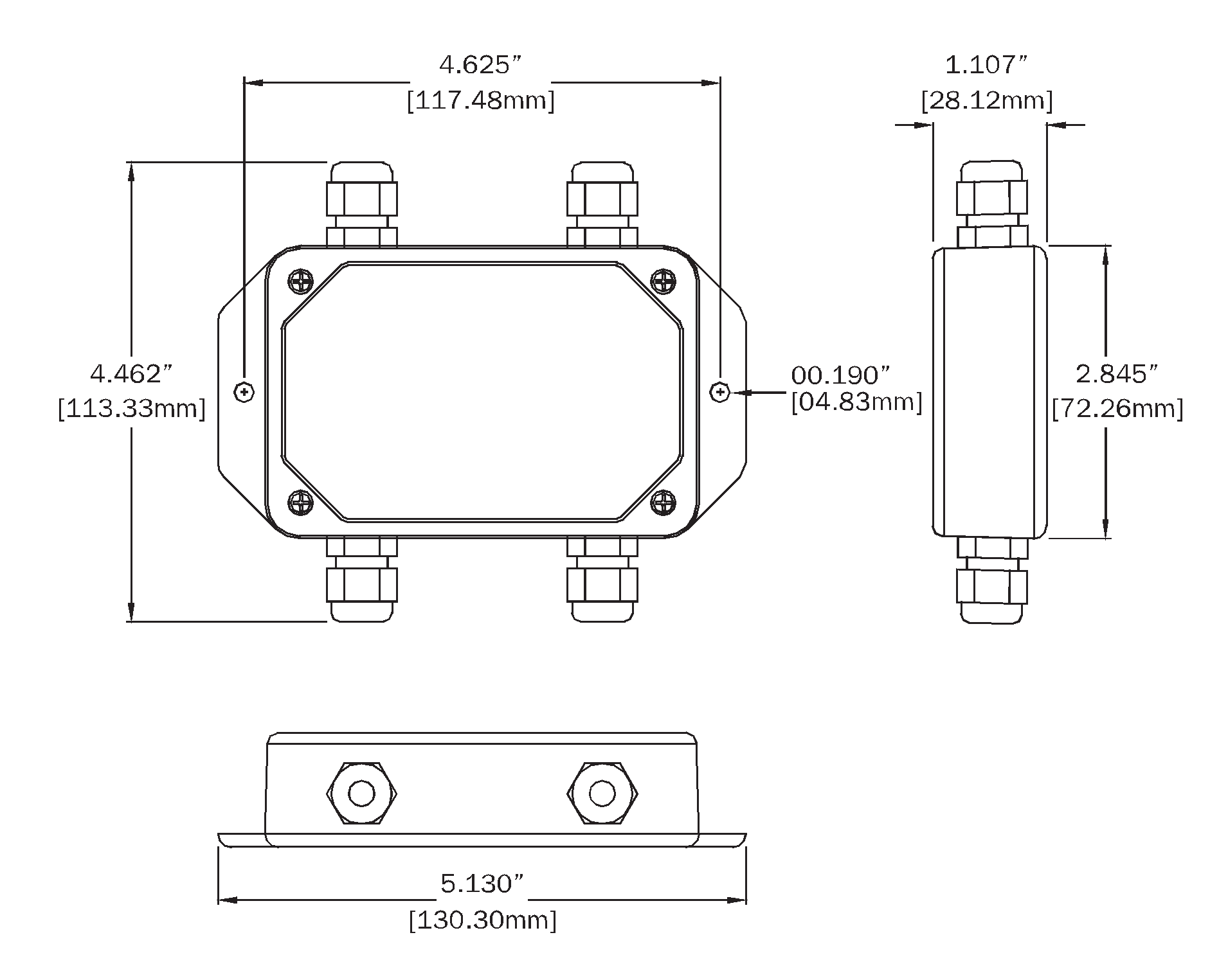

Dimensional drawings
