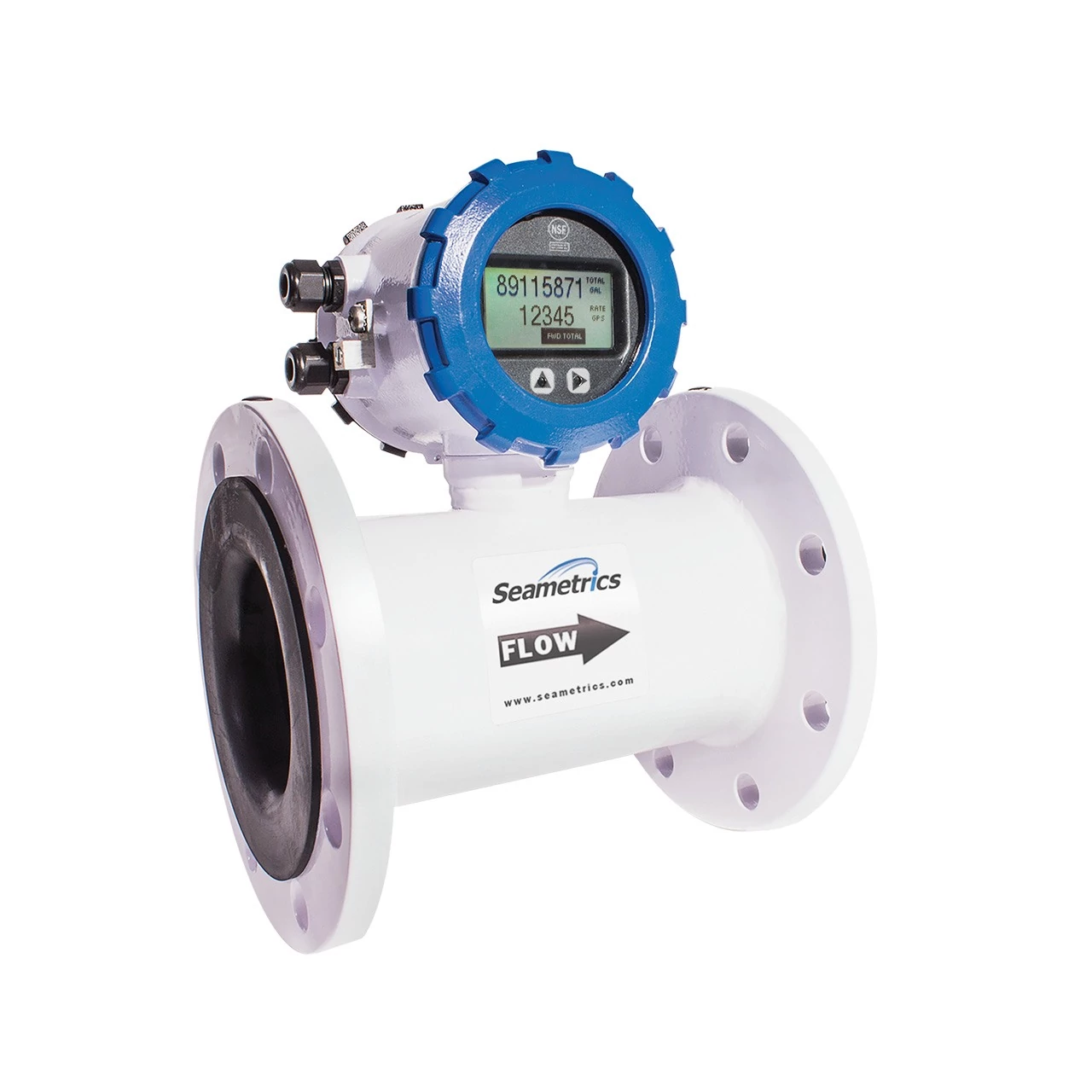

iMAG 4700p
Premium Flanged In-line Magmeter, Includes One Pulse and 4-20mA Output
Features & Benefits
Key Features
Power & Setup

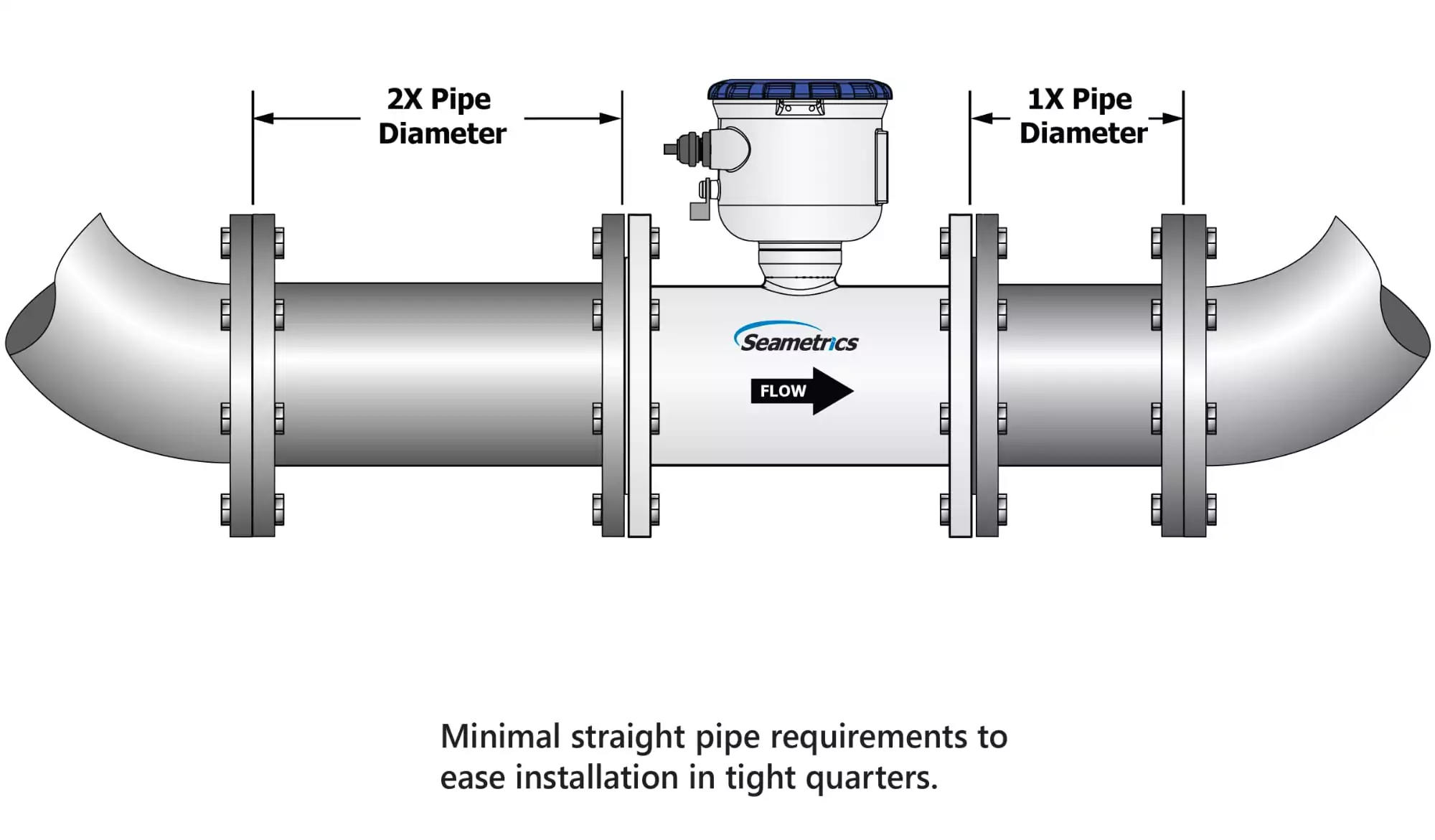

- Easy installation with minimal straight pipe required
- External AC or DC power versions
- Battery backup capability
- Meter mounted rate/total indicator
Output Options
- Standard outputs:
- Pulse
- 4-20mA
- Optional outputs:
- HART/4-20mA
- Modbus
- Digital
- Optional datalogger
Applications
- Water & wastewater treatment
- Municipal systems
- Pump skids and stations
- Packaged plants
- Filtration systems
- Reclaimed water
- Hydraulic fracturing
Technical Specifications
- Protection rating: IP68
- Safety certification: NSF-61
- Available models: iMAG-4700, iMAG4700r
Dimensional drawings
Reference Dimensions
| iMAG 4700r / iMAG 4700p | L | L | H | H | T | T | ID | ID | AG3000p | AG3000p | AG3000r | AG3000r |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Meter Size | inch | mm | inch | mm | inch | mm | inch | mm | Shipping Weight lbs | Shipping Weight Kg | Shipping Weight lbs | Shipping Weight Kg |
| 3†* | 12.25 | 311 | 7.95 | 201.9 | 0.68 | 17.25 | 2.6 | 66.04 | 39 | 17.5 | 40 | 18 |
| 4†| 10.12 | 257 | 8.6 | 218 | 0.62 | 15.7 | 3.12 | 79 | 34 | 15.5 | 43 | 19.5 |
| 6†| 12.09 | 307 | 9.4 | 239 | 0.69 | 17.5 | 5.05 | 128 | 50 | 22.5 | 59 | 27 |
| 8†| 14.14 | 359 | 10.4 | 264 | 0.69 | 17.5 | 6.44 | 164 | 71 | 32 | 78 | 35 |
| 10†| 18.08 | 459 | 11.5 | 292 | 0.69 | 17.5 | 8.61 | 219 | 130 | 59 | 135 | 61 |
| 12†| 19.68 | 500 | 12.5 | 317 | 0.81 | 20.6 | 10.55 | 268 | 170 | 77 | 175 | 79 |
| Flanges Standard ANSI 150 lb. drilling | Cable 1 lb. |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| SEA-IMAG4700P0200 | IMAG4700p-0200 | Flanged Magmeter - Horizontal Display (Premium) - 2 Inch - Configurable | $3,357.00 | |
| SEA-IMAG4700P0200F1PA1X010000 | IMAG-4700p-0200-F1-P-A1-X-01-0000 | Flanged Magmeter - Horizontal Display (Premium) - 2 Inch - NSF Gasket Kit - AC Power - w/ Data Logger | $3,821.00 | |
| SEA-IMAG4700P0200F1PA1XXX0000 | IMAG-4700p-0200-F1-P-A1-X-XX-0000 | Flanged Magmeter - Horizontal Display (Premium) - 2 Inch - NSF Gasket Kit - AC Power - w/o Data Logger | $3,695.00 | |
| SEA-IMAG4700P0200F1PD1X010000 | IMAG-4700p-0200-F1-P-D1-X-01-0000 | Flanged Magmeter - Horizontal Display (Premium) - 2 Inch - NSF Gasket Kit - DC Power - w/ Data Logger | $3,622.00 | |
| SEA-IMAG4700P0200F1PD1XXX0000 | IMAG-4700p-0200-F1-P-D1-X-XX-0000 | Flanged Magmeter - Horizontal Display (Premium) - 2 Inch - NSF Gasket Kit - DC Power - w/o Data Logger | $3,495.00 | |
| SEA-IMAG4700P0200F1RA1X010000 | IMAG-4700p-0200-F1-R-A1-X-01-0000 | Flanged Magmeter - Horizontal Display (Premium) - 2 Inch - Std Gasket Kit - AC Power - w/ Data Logger | $3,770.00 | |
| SEA-IMAG4700P0200F1RA1XXX0000 | IMAG-4700p-0200-F1-R-A1-X-XX-0000 | Flanged Magmeter - Horizontal Display (Premium) - 2 Inch - Std Gasket Kit - AC Power - w/o Data Logger | $3,643.00 | |
| SEA-IMAG4700P0200F1RD1X010000 | IMAG-4700p-0200-F1-R-D1-X-01-0000 | Flanged Magmeter - Horizontal Display (Premium) - 2 Inch - Std Gasket Kit - DC Power - w/ Data Logger | $3,570.00 | |
| SEA-IMAG4700P0200F1RD1XXX0000 | IMAG-4700p-0200-F1-R-D1-X-XX-0000 | Flanged Magmeter - Horizontal Display (Premium) - 2 Inch - Std Gasket Kit - DC Power - w/o Data Logger | $3,444.00 | |
| SEA-IMAG4700P0300 | IMAG4700p-0300 | Flanged Magmeter - Horizontal Display (Premium) - 3 Inch - Configurable | $3,534.00 | |
| SEA-IMAG4700P0300F1PA1X010000 | IMAG-4700p-0300-F1-P-A1-X-01-0000 | Flanged Magmeter - Horizontal Display (Premium) - 3 Inch - NSF Gasket Kit - AC Power - w/ Data Logger | $4,021.00 | |
| SEA-IMAG4700P0300F1PA1XXX0000 | IMAG-4700p-0300-F1-P-A1-X-XX-0000 | Flanged Magmeter - Horizontal Display (Premium) - 3 Inch - NSF Gasket Kit - AC Power - w/o Data Logger | $3,894.00 | |
| SEA-IMAG4700P0300F1PD1X010000 | IMAG-4700p-0300-F1-P-D1-X-01-0000 | Flanged Magmeter - Horizontal Display (Premium) - 3 Inch - NSF Gasket Kit - DC Power - w/ Data Logger | $3,821.00 | |
| SEA-IMAG4700P0300F1PD1XXX0000 | IMAG-4700p-0300-F1-P-D1-X-XX-0000 | Flanged Magmeter - Horizontal Display (Premium) - 3 Inch - NSF Gasket Kit - DC Power - w/o Data Logger | $3,695.00 | |
| SEA-IMAG4700P0300F1RA1X010000 | IMAG-4700p-0300-F1-R-A1-X-01-0000 | Flanged Magmeter - Horizontal Display (Premium) - 3 Inch - Std Gasket Kit - AC Power - w/ Data Logger | $3,950.00 |
