Headline

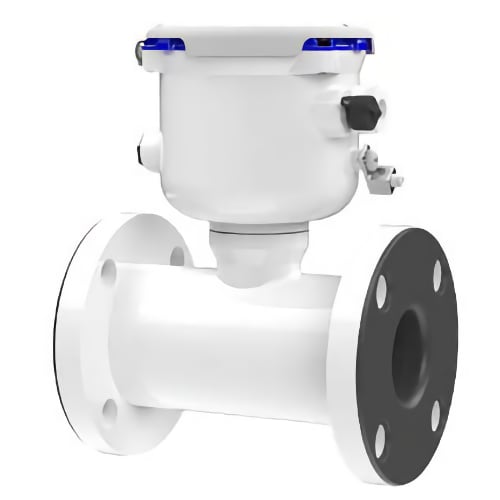

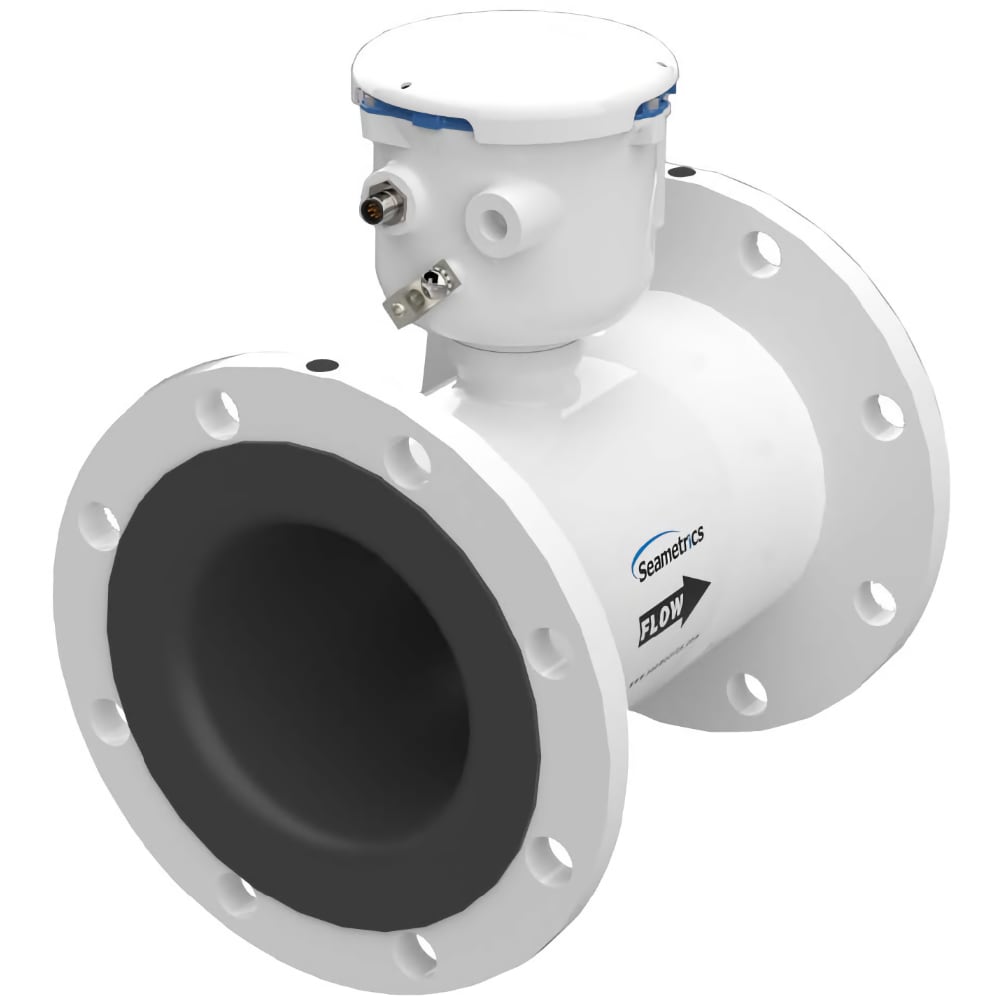

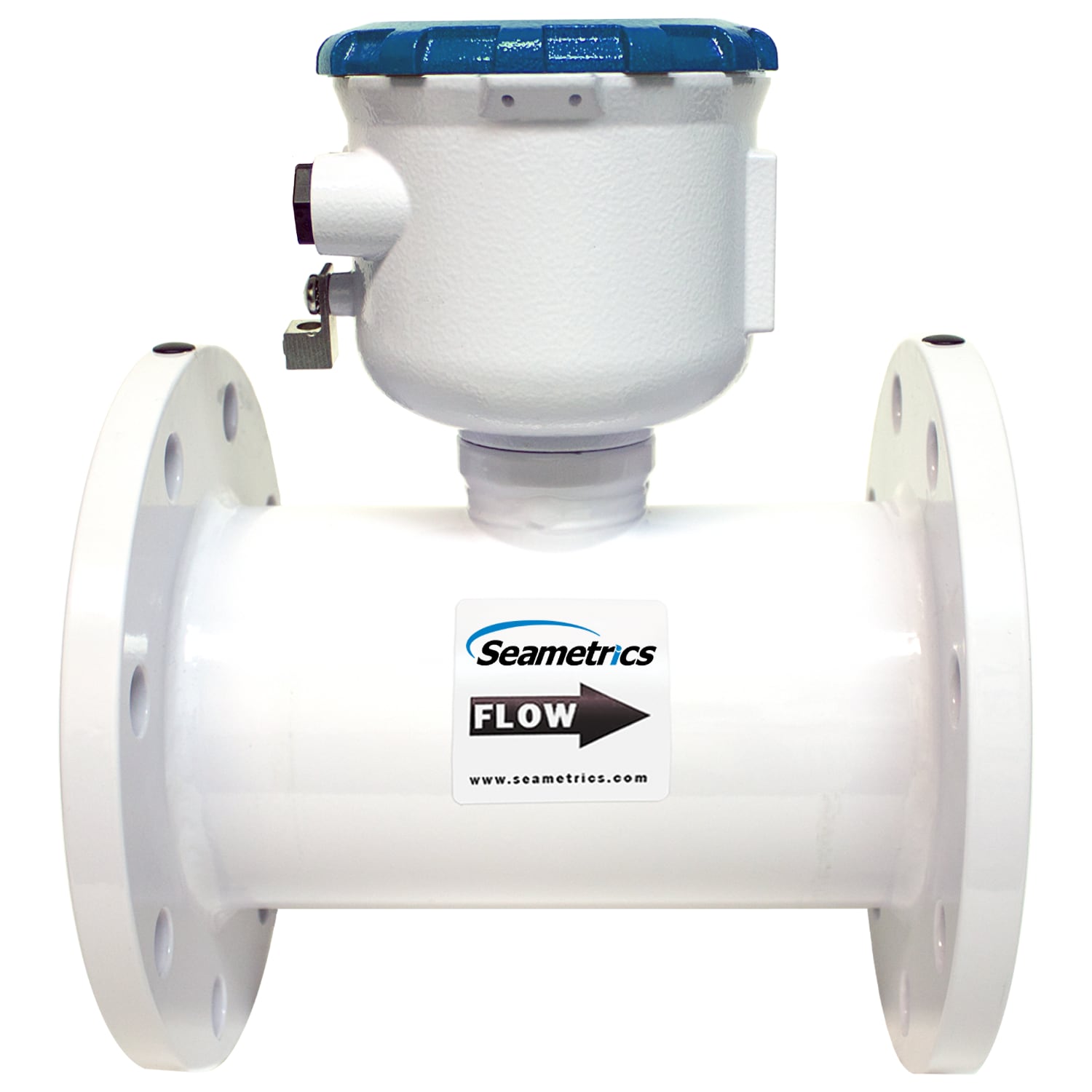

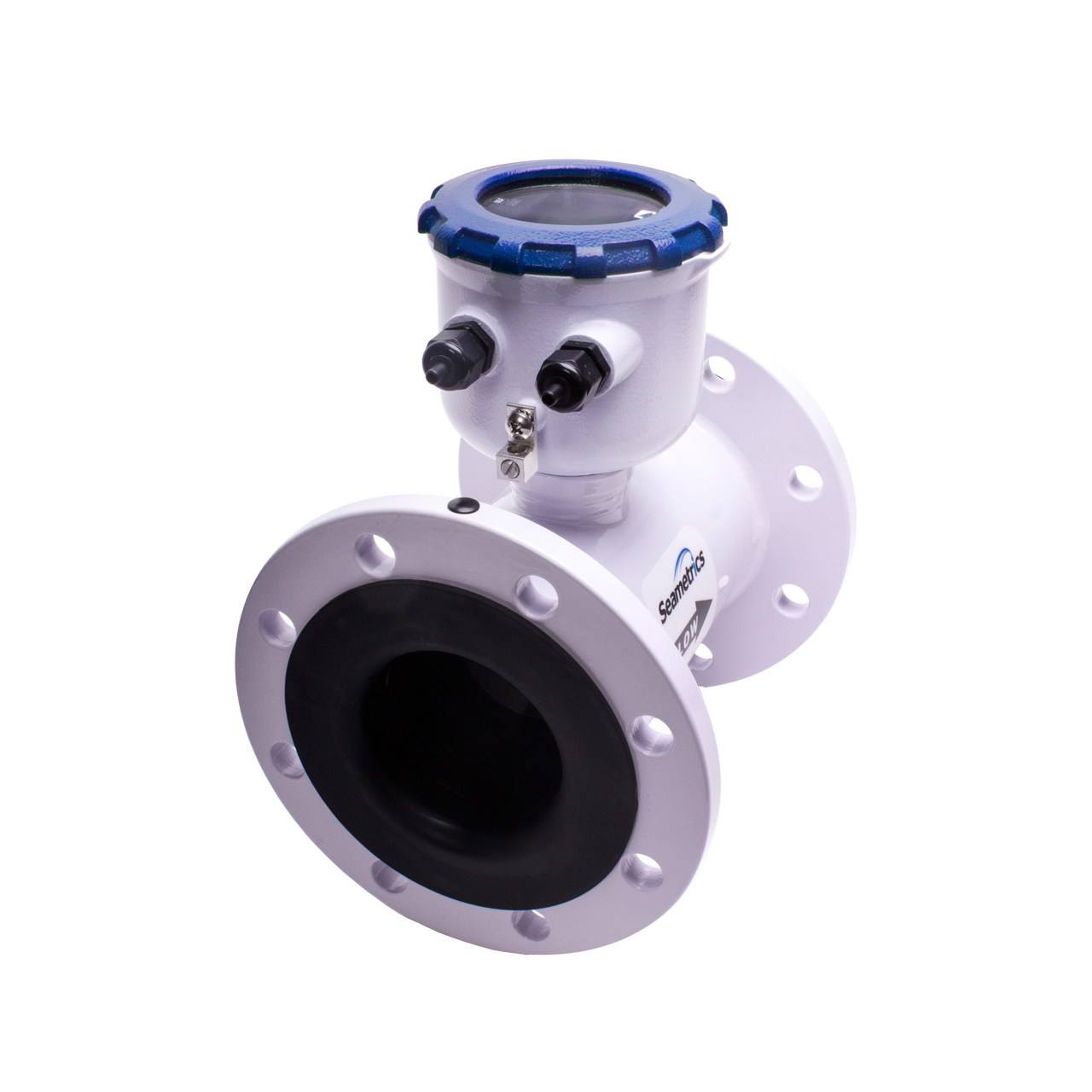

iMAG 4700
Battery Powered Flanged In-line Magmeter, Includes One Pulse Output
Features & Benefits
Features:
- Easy Setup
- Battery or external DC power versions

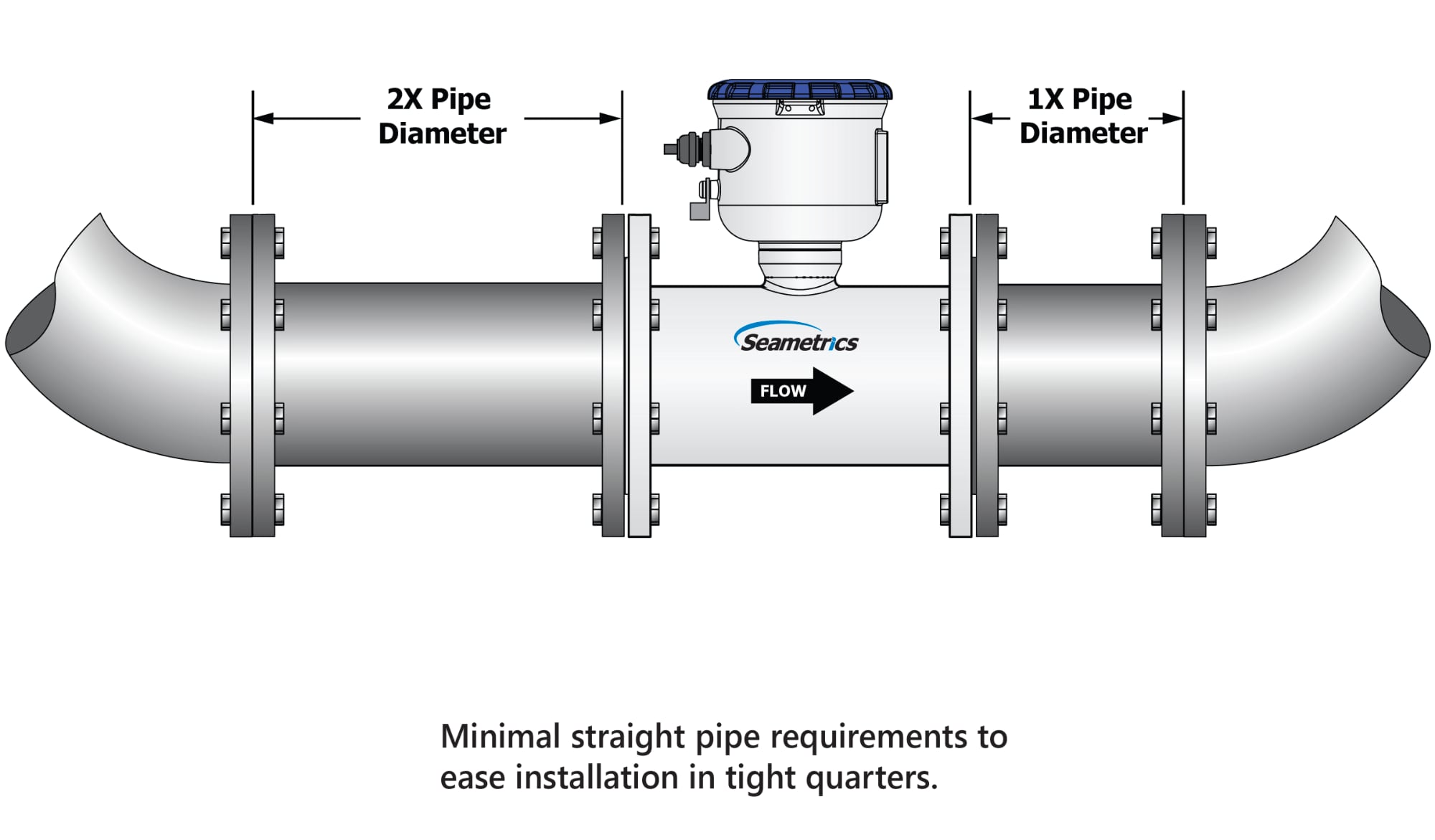

- Minimal straight pipe

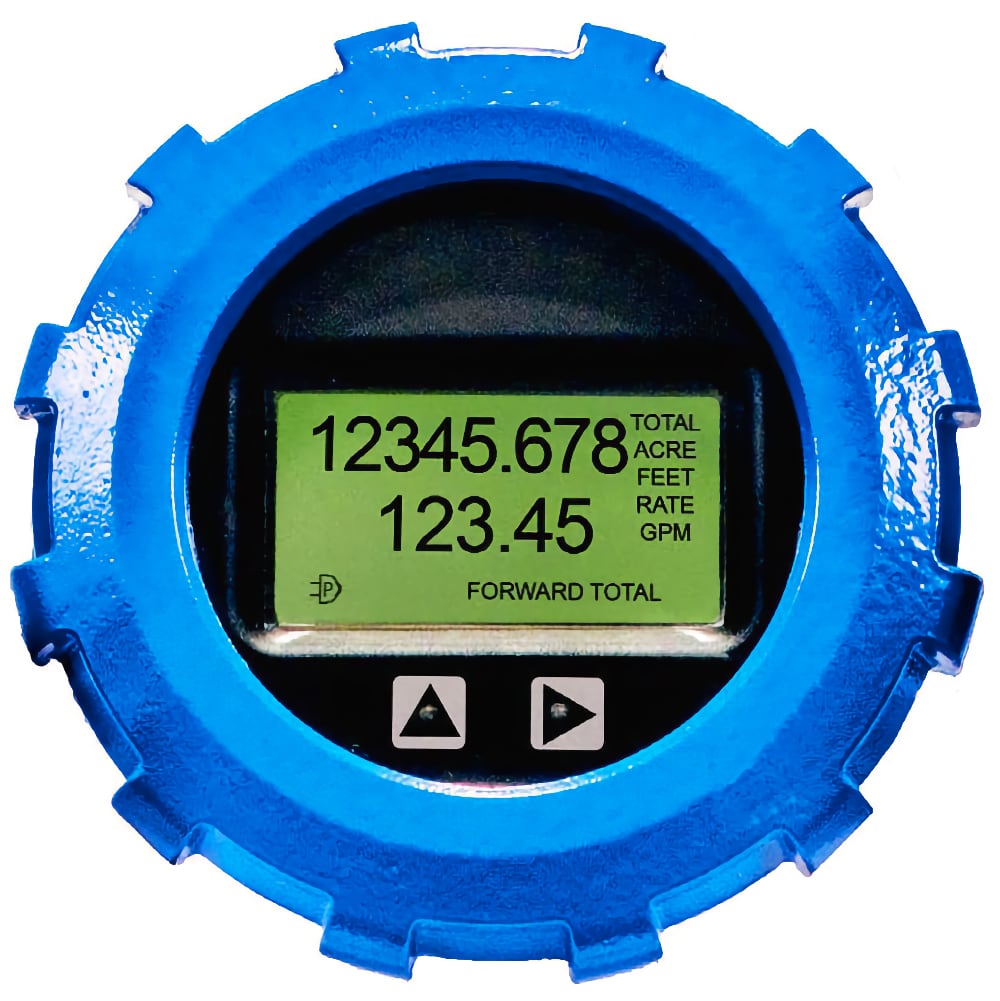

- Meter mounted rate/total indicator
- Pulse output standard
- Additional optional output (DC version) 4-20mA loop, HART/4-20mA, or Modbus
- Optional datalogger
- Use in water & wastewater treatment, municipalities, pump skids, pump stations, packaged plants, filtration systems, reclaimed water, hydraulic fracturing
- NSF-61 approved, IP68 rated
- iMAG-4700p and iMAG4700r models also available
Additional Notes
Spec | Detail | Value |
---|---|---|
Pipe Sizes | 2”, 3”, 4”, 6”, 8”, 10”, 12” | |
Flanges | 150 lb. ANSI Pattern | |
Pressure | 150 psi (10.3 bar) line pressure | |
Temperature | Operating | 10˚ to 140˚ F (-12˚ to 60˚ C) |
Storage | -40˚ to 158˚ F (-40˚ to 70˚ C) | |
Accuracy | ±0.75% of reading on iMAG 4700p and 4700r (±1.0% iMAG 4700), ±0.025% of full-scale flow from low flow cutoff to maxi. flow rate of 10 m/sec | |
Low Flow Cutoff | 0.5% of maximum flow rate | |
Material | Body (2”-12”) | Welded steel, epoxy-coated |
Liner (2” & 3”) | Polyurethane/Noryl® | |
Liner (4”-12”) | Santoprene flange/Polypropylene liner body | |
Electronics Housing | Powder-coated diecast aluminum | |
Electrodes | 316 stainless steel | |
Power | DC Power | 9-36 Vdc @ 250 mA max, 30 mA average |
Battery Backup | DC powered units: One lithium 7.2V ‘D’ size battery pack, replaceable. AC powered units: One 9V alkaline battery, replaceable. | |
AC Power | 85-264Vac, 50/60Hz, 0.12A (iMAG 4700r and 4700p only) | |
Battery | One lithium 7.2V ‘D’ size battery pack, replaceable. (iMAG 4700 only) | |
Scaled Pulse Output | Signal | Current sinking pulse, isolated, 36 Vdc at 10 mA max |
Pulse Rates | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max. | |
Options | 4-20mA Current Loop | Isolated, passive, 24Vdc, 650 Ω maximum current loop |
HART/4-20mA | HART protocol over 4-20mA line (iMAG4700p & iMAG4700r only) | |
High Speed Digital | Isolated, open collector, 24 Vdc (iMAG4700p only) | |
Serial Communications | Isolated, asynchronous serial RS485, Modbus® RTU protocol | |
Cable | Power/Output Cable | 20ft (6m) standard length polyurethane jacketed cable—for power and outputs (lengths up to 200’ available). |
Remote Display Cable | 20ft (6m) standard length polyurethane jacketed cable—for connection between meter and remote display (lengths up to 200’ available). (iMAG 4700r) | |
Conductivity | >20 microSiemens/cm | |
Empty Pipe Detection | Hardware/software, conductivity-based | |
Regulatory | CE (EN 61326), 2”-12” certified to NSF/ANSI standard 61 60°C (140°F) | |
Environmental | NEMA 6P, IP68 (10ft (3m) depth, continuously) |
Dimensional drawings
Reference Dimensions
iMAG 4700 | L | L | H | H | T | T | ID | ID | Shipping Weight | Shipping Weight |
---|---|---|---|---|---|---|---|---|---|---|
Meter Size | inch | mm | inch | mm | mm | mm | inch | mm | lbs | Kg |
3” | 12.25 | 311 | 7.08 | 179.8 | 179.8 | 17.25 | 2.6 | 66.04 | 38 | 17 |
4” | 10.12 | 257 | 8.3 | 211 | 211 | 15.7 | 3.12 | 79 | 33 | 15 |
6” | 12.09 | 307 | 9.1 | 231 | 231 | 17.5 | 5.05 | 128 | 49 | 22 |
8” | 14.14 | 359 | 10.1 | 257 | 257 | 17.5 | 6.44 | 164 | 70 | 32 |
10” | 18.08 | 459 | 11.2 | 284 | 284 | 17.5 | 8.61 | 219 | 130 | 59 |
12” | 19.68 | 500 | 12.2 | 310 | 310 | 20.6 | 10.55 | 268 | 170 | 77 |
Alternate configurations
SKU | Description | List price | - |
---|---|---|---|
SEA-IMAG47000200 | IMAG4700-0200 | Flanged Magmeter - Vertical Display (Base) - 2 Inch - Configurable | $2,232.00 | |
SEA-IMAG47000200F1PBXXXX0000 | IMAG-4700-0200-F1-P-BX-X-XX-0000 | Flanged Magmeter - Vertical Display (Base) - 2 Inch - NSF Gasket Kit - Battery Power - w/o Data Logger | $2,341.50 | |
SEA-IMAG47000200F1PD1X010000 | IMAG-4700-0200-F1-P-D1-X-01-0000 | Flanged Magmeter - Vertical Display (Base) - 2 Inch - NSF Gasket Kit - DC Power - w/ Data Logger | $2,450.70 | |
SEA-IMAG47000200F1PD1XXX0000 | IMAG-4700-0200-F1-P-D1-X-XX-0000 | Flanged Magmeter - Vertical Display (Base) - 2 Inch - NSF Gasket Kit - DC Power - w/o Data Logger | $2,341.50 | |
SEA-IMAG47000200F1RBXX010000 | IMAG-4700-0200-F1-R-BX-X-01-0000 | Flanged Magmeter - Vertical Display (Base) - 2 Inch - Std Gasket Kit - Battery Power - w/ Data Logger | $2,406.60 | |
SEA-IMAG47000200F1RBXXXX0000 | IMAG-4700-0200-F1-R-BX-X-XX-0000 | Flanged Magmeter - Vertical Display (Base) - 2 Inch - Std Gasket Kit - Battery Power - w/o Data Logger | $2,295.30 | |
SEA-IMAG47000200F1RD1X010000 | IMAG-4700-0200-F1-R-D1-X-01-0000 | Flanged Magmeter - Vertical Display (Base) - 2 Inch - Std Gasket Kit - DC Power - w/ Data Logger | $2,406.60 | |
SEA-IMAG47000200F1RD1XXX0000 | IMAG-4700-0200-F1-R-D1-X-XX-0000 | Flanged Magmeter - Vertical Display (Base) - 2 Inch - Std Gasket Kit - DC Power - w/o Data Logger | $2,295.30 | |
SEA-IMAG47000300 | IMAG4700-0300 | Flanged Magmeter - Vertical Display (Base) - 3 Inch - Configurable | $2,352.00 | |
SEA-IMAG47000300F1PBXX010000 | IMAG-4700-0300-F1-P-BX-X-01-0000 | Flanged Magmeter - Vertical Display (Base) - 3 Inch - NSF Gasket Kit - Battery Power - w/ Data Logger | $2,593.50 | |
SEA-IMAG47000300F1PBXXXX0000 | IMAG-4700-0300-F1-P-BX-X-XX-0000 | Flanged Magmeter - Vertical Display (Base) - 3 Inch - NSF Gasket Kit - Battery Power - w/o Data Logger | $2,481.15 | |
SEA-IMAG47000300F1PD1X010000 | IMAG-4700-0300-F1-P-D1-X-01-0000 | Flanged Magmeter - Vertical Display (Base) - 3 Inch - NSF Gasket Kit - DC Power - w/ Data Logger | $2,593.50 | |
SEA-IMAG47000300F1PD1XXX0000 | IMAG-4700-0300-F1-P-D1-X-XX-0000 | Flanged Magmeter - Vertical Display (Base) - 3 Inch - NSF Gasket Kit - DC Power - w/o Data Logger | $2,481.15 | |
SEA-IMAG47000300F1RBXX010000 | IMAG-4700-0300-F1-R-BX-X-01-0000 | Flanged Magmeter - Vertical Display (Base) - 3 Inch - Std Gasket Kit - Battery Power - w/ Data Logger | $2,530.50 | |
SEA-IMAG47000300F1RBXXXX0000 | IMAG-4700-0300-F1-R-BX-X-XX-0000 | Flanged Magmeter - Vertical Display (Base) - 3 Inch - Std Gasket Kit - Battery Power - w/o Data Logger | $2,421.30 |
