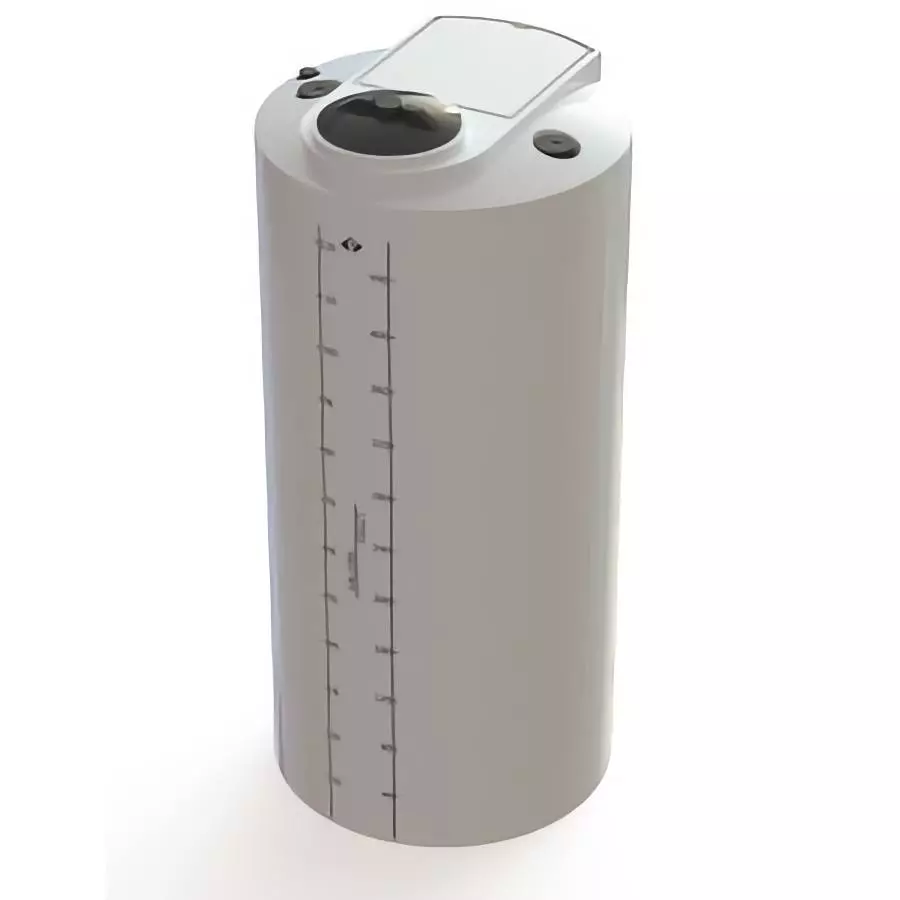

01-31687 | 125 Gal - ProChem Process Chemical Tanks - LPE 1.9 - Natural

ProChem Process Chemical Tanks are designed for industrial process chemical applications where a single-walled design is desired.

ProChem Process Chemical Tanks include an integrally molded pump mounting platform on top and standard process fittings for fill and discharge of chemicals, water or food products. Supplied with a large vented access opening and easy to read calibration in liters and gallons, the ProChem Tank offers standard features not previously available.

Key Features

Construction & Materials

• Heavy Duty Construction
  • Available in 1.5 or 1.9 Specific Gravity
  • Suitable for wide range of products
• Choice of Materials:
  • Linear Polyethylene (LPE)
  • XLPE
  • PPL
  • PVDF
• Molded-In Calibration with black numbers in Gallons and Liters

Mounting & Connections

• Large Pump Mounting Platform
  • Load capacity: 225 lbs / 102.6 kg
  • Direct-mounting of chemical feed pump
  • Pump suction connection (up to 300 gallons)
• Standard Top Process Fittings
  • Top fill and discharge connections
  • Level sensor (300 Gallons and below)

Technical Specifications

Certifications

• LPE Tanks: NSF/ANSI/CAN 61 Compliant for Potable Water
• XLPE Tanks: NSF/ANSI/CAN 61 Certified (40 gallons and up)
• PPL and PVDF Tanks: Not Certified NSF/ANSI/CAN 61

Standard Options

• Seismic/Wind Restraint Systems
• Agitation
• Process Connections
