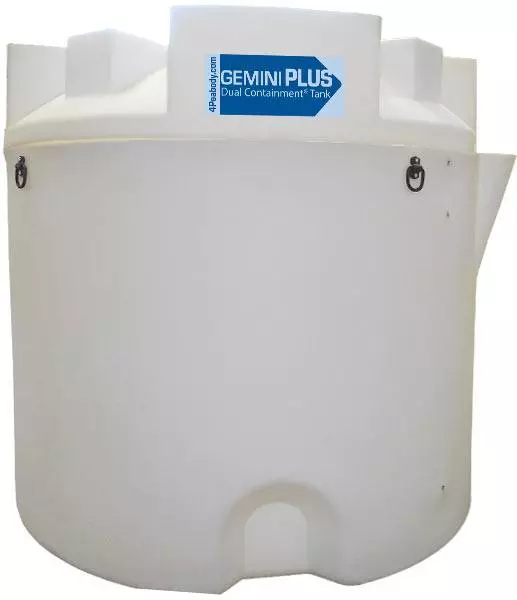

Gemini PLUS Tanks
Peabody Engineering is proud to introduce our Gemini PLUS Double Walled Chemical process and storage tank 1300-gallon size. We have designed this tank with all the integral design features you need to make it simple and affordable to customize your tank for even the most demanding applications.
This is the FIRST tank in our new PLUS line of chemical process and storage solutions. The Gemini PLUS 1300 is also available ASTM D-1998 rated and is available in LPE, HDPE, XLPE, PPL or PVDF construction.
The base tank includes a large 16” OD threaded access manway, heavy-duty D-ring lifting lugs and provisions for easy attachment of standard Ladders, truck fill lines, top or bottom discharge assemblies, level and leak detection, seismic restraint packages and more. The Gemini PLUS can be pre-fitted to your specifications at the factory or easily retro-fitted in the field.
NSF/ANSI/CAN 61 Certified
- Tanks made from Linear Polyethylene (LPE) are available ALS-Truesdail NSF/ANSI/CAN 61 Certified.
- PPL and PVDF Tanks of all sizes are Not Certified NSF/ANSI/CAN 61. Contact for further info.
| SKU | Description | List price | - |
|---|---|---|---|
| PEA-0133362 | 01-33362 | 1300 Gal - Gemini PLUS - Standard 1.3 - Natural | $7,964.22 | |
| PEA-0133363 | 01-33363 | 1300 Gal - Gemini PLUS - ASTM D-1998 - 1.5 - Natural | $8,308.52 | |
| PEA-0133365 | 01-33365 | 1300 Gal - Gemini PLUS - XLPE 1.3 - Natural | $10,004.65 | |
| PEA-0133366 | 01-33366 | 1300 Gal - Gemini PLUS - ASTM D-1998 - XLPE 1.5 - Natural | $10,972.26 | |
| PEA-0133367 | 01-33367 | 1300 Gal - Gemini PLUS - ASTM D-1998 - XLPE 1.9 - Natural | $11,672.62 |
