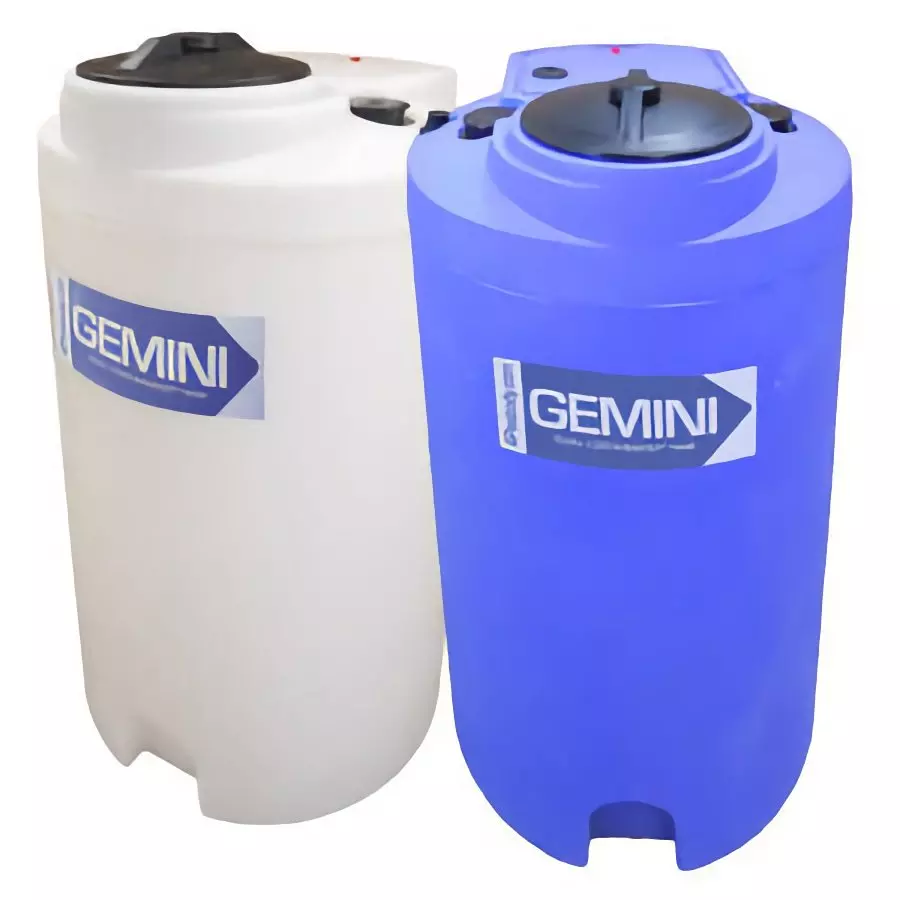

01-29437 | 40 Gal - Gemini Dual Containment Tank - LPE SD 1.5 - Natural - Cylindrical

Our Gemini Dual Containment Tanks, also known as Double Wall Tanks, are rated for a wide range of chemical applications.

Gemini Dual Containment Tanks are durable, heavy-duty and are unaffected by the ultra-violet rays of the sun or other environmental conditions, which makes them perfect for indoor or outdoor use.

The Gemini "Tank-in-a-Tank" design provides you with a perfect solution for storage and dispensing of your chemicals into your processes, with standard features like the pump mounting platform, overflow dikes, vented lid and threaded fittings, which offer years of trouble-free and maintenance free service.

A large selection of standard accessories like suction tubes and level indicators compliment your tank for a complete, engineered dual containment tank solution. All of Peabody's Gemini Dual Containment Tanks meet or exceed secondary containment requirements under EPA's 49 CFR Regulations.

Peabody Gemini Tank Features

Construction & Materials

• Linear Polyethylene (LPE) construction with options for:
  • Standard Duty (SD) 1.5 SPG rating
  • Heavy Duty (HD) 1.9 SPG rating
  • Additional materials: Polypropylene (PPL), XLPE, PVDF
• Superior chemical resistance for:
  • Acids and caustics
  • Sodium hypochlorite
  • Biocides
  • Aggressive applications unsuitable for stainless steel
• Durable dual wall "Tank in a Tank" design
  • Secondary containment for chemical safety
  • Meets/exceeds EPA requirements (49-CFR)

Safety & Monitoring

• NEW Standard secondary tank leak detection port
  • Optional leak detection alarm capability
• NSF/ANSI/CAN 61 Certification available for:
  • LPE tanks (Standard and Heavy Duty)
  • XLPE tanks (40 gallons and up)
  • Note: PPL and PVDF tanks not NSF certified

Integrated Features

• Integral pump mounting platform
  • 240 pound lid rating
  • Supports metering pump or mixer mounting
  • Sump reservoir models with primary tank drainage
• Pump pick-up tube port
  • Quick installation of pump suction line
  • Check valve integration
  • Sealed contents protection
• Integral mouse door
  • Recessed design for bottom connections
  • Optional bottom bulkhead fitting
  • Supports flooded suction or bottom fill

Customization Options

• Size options including Gemini Plus 1300 Gallon
• Custom colors (minimum order quantity)
• Private label mold-in graphics
  • Permanent tank integration
  • Weather-resistant
  • No cracking, peeling, or deterioration
