DICE Technology: simple, compact, all-in-one solution for chemical dosing

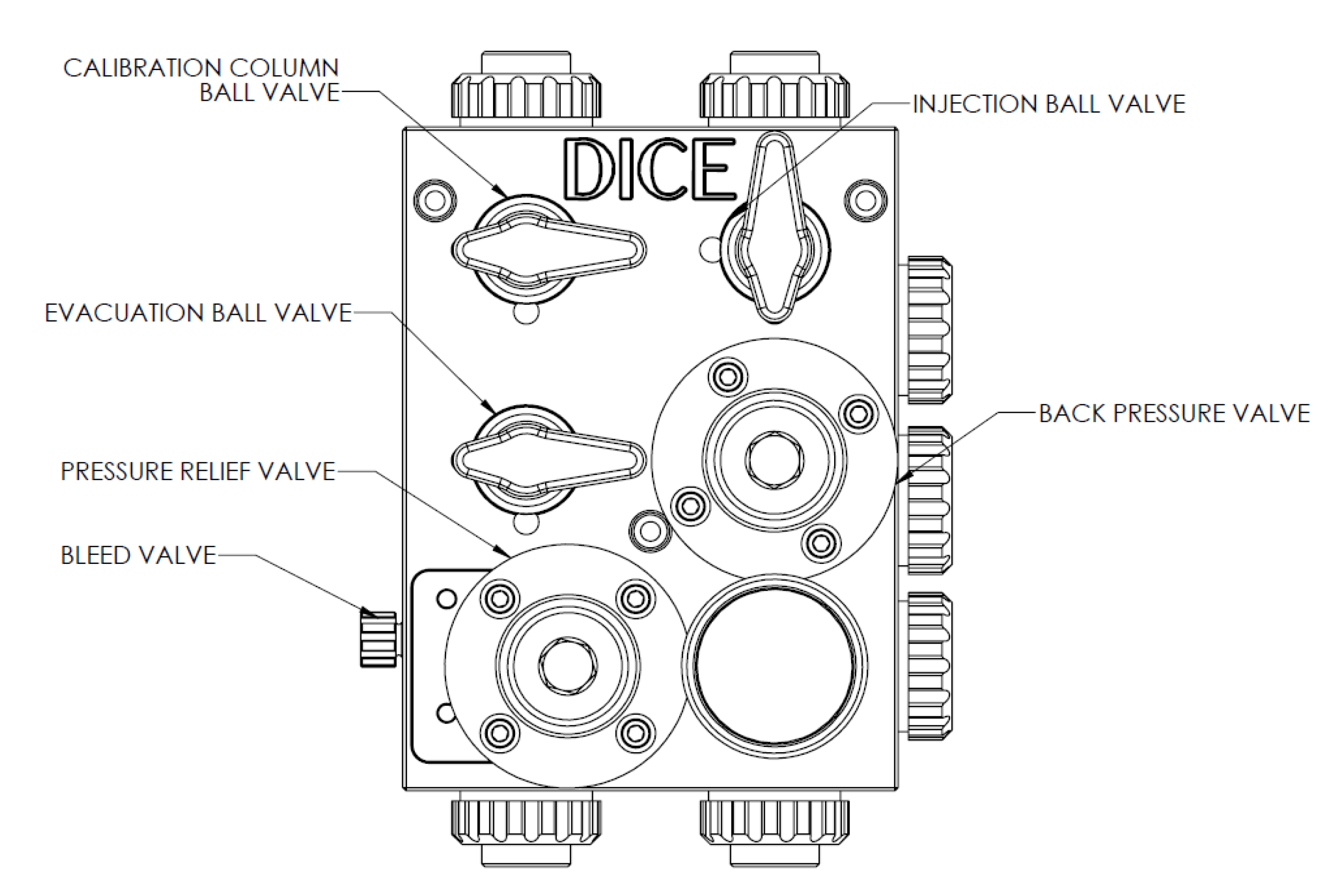

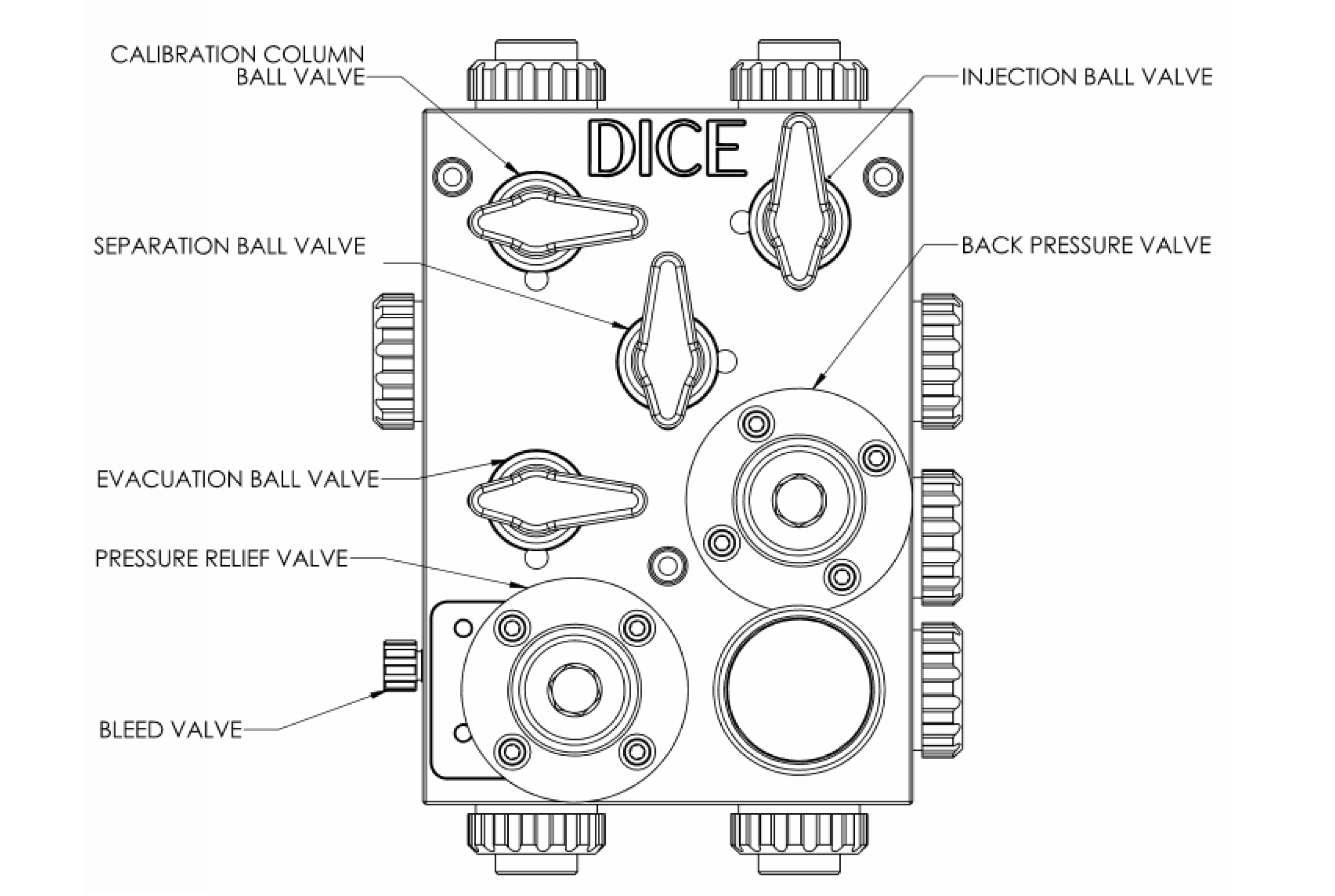

The DICE dosing modules integrate all the necessary discharge components required for a typical chemical dosing system.
The block type design allows for a rigid, compact and reliable product. The significantly reduced number of connections is a major benefit as it greatly decreases the leakage potential.
The modules allow for better precision and protection in the dosing system. They also feature great quality due to their machined fabrication and an extremely small required footprint.
Application Solutions
Municipal & Industrial
- Leak-proof chemical dosing systems for:
- Reliable and efficient processes
- Improved employee safety
- Reduced maintenance costs
- Simplified troubleshooting
- Emergency response readiness
- Streamlined operator workflows
Institutional & Commercial
- Advanced dosing system features:
- Repeatable operation without losing prime
- Pressure relief valve safety systems
- Rapid validation capabilities
- Quick chemical drum replacement
- Efficient routine inspections
Safety & Efficiency Benefits
Process Safety
- Comprehensive leak prevention
- Overpressure risk elimination

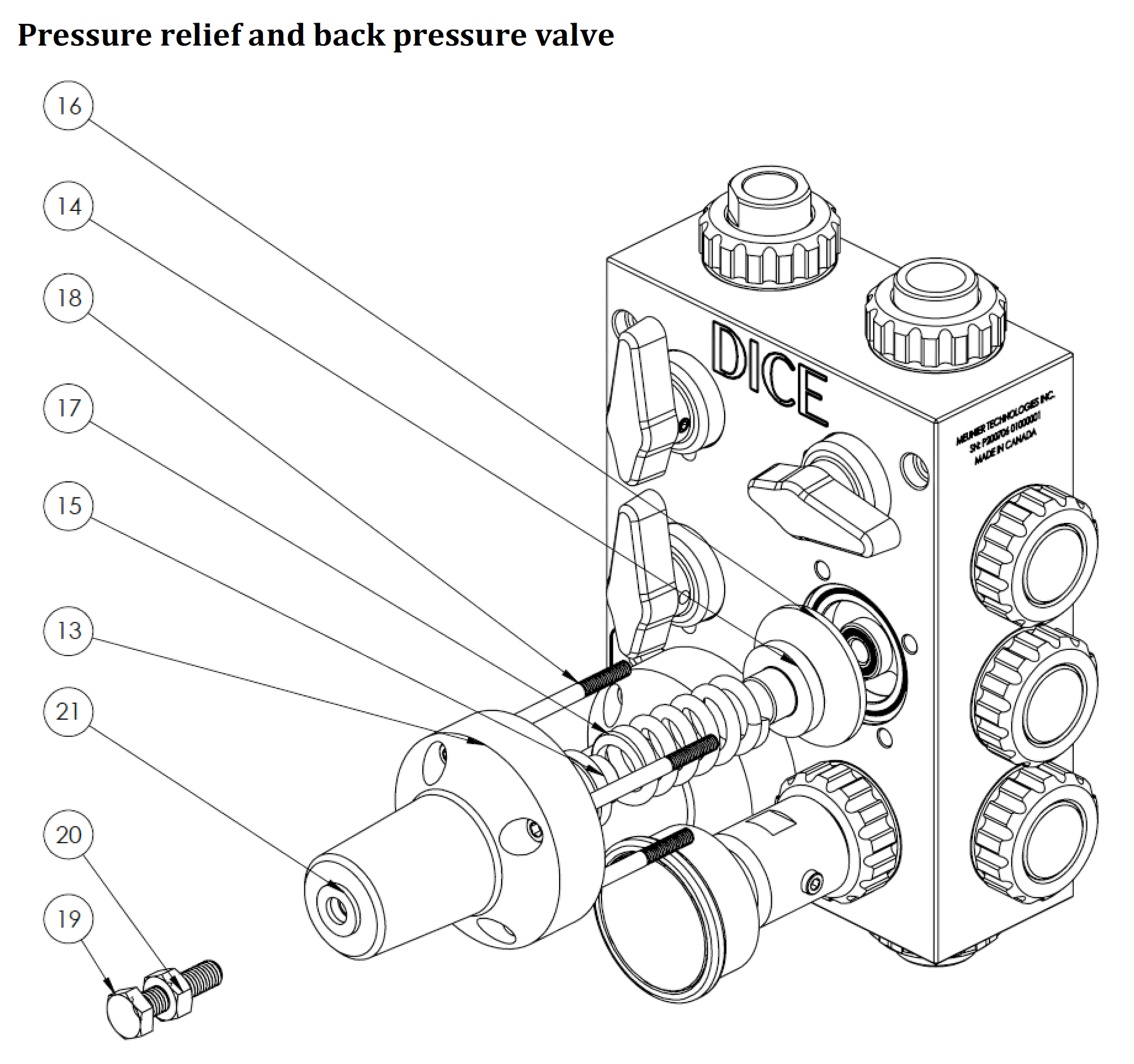

- Built-in pressure relief systems
- Enhanced employee protection
- Simplified maintenance procedures
Operational Efficiency
- Quick system validation
- Streamlined drum replacement
- Efficient inspection protocols
- Consistent prime maintenance
- Reduced downtime
System Comparison
Other standard materials:

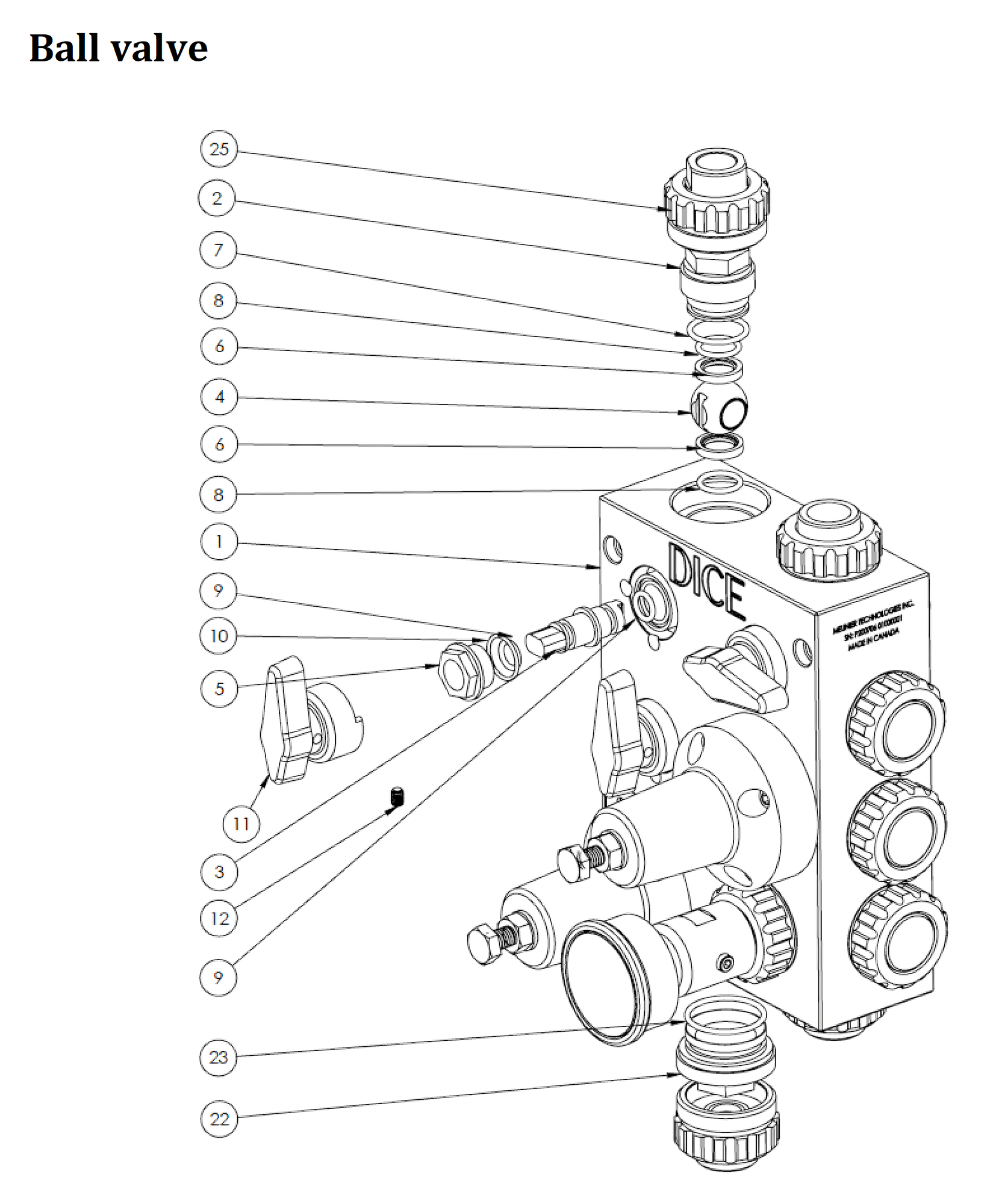

Ball valve handle | ABS plastic
Ball valve seat | Virgin PTFE
Bolts, nuts, washers, set screws | 18-8 stainless steel
Note | other materials can be supplied upon request

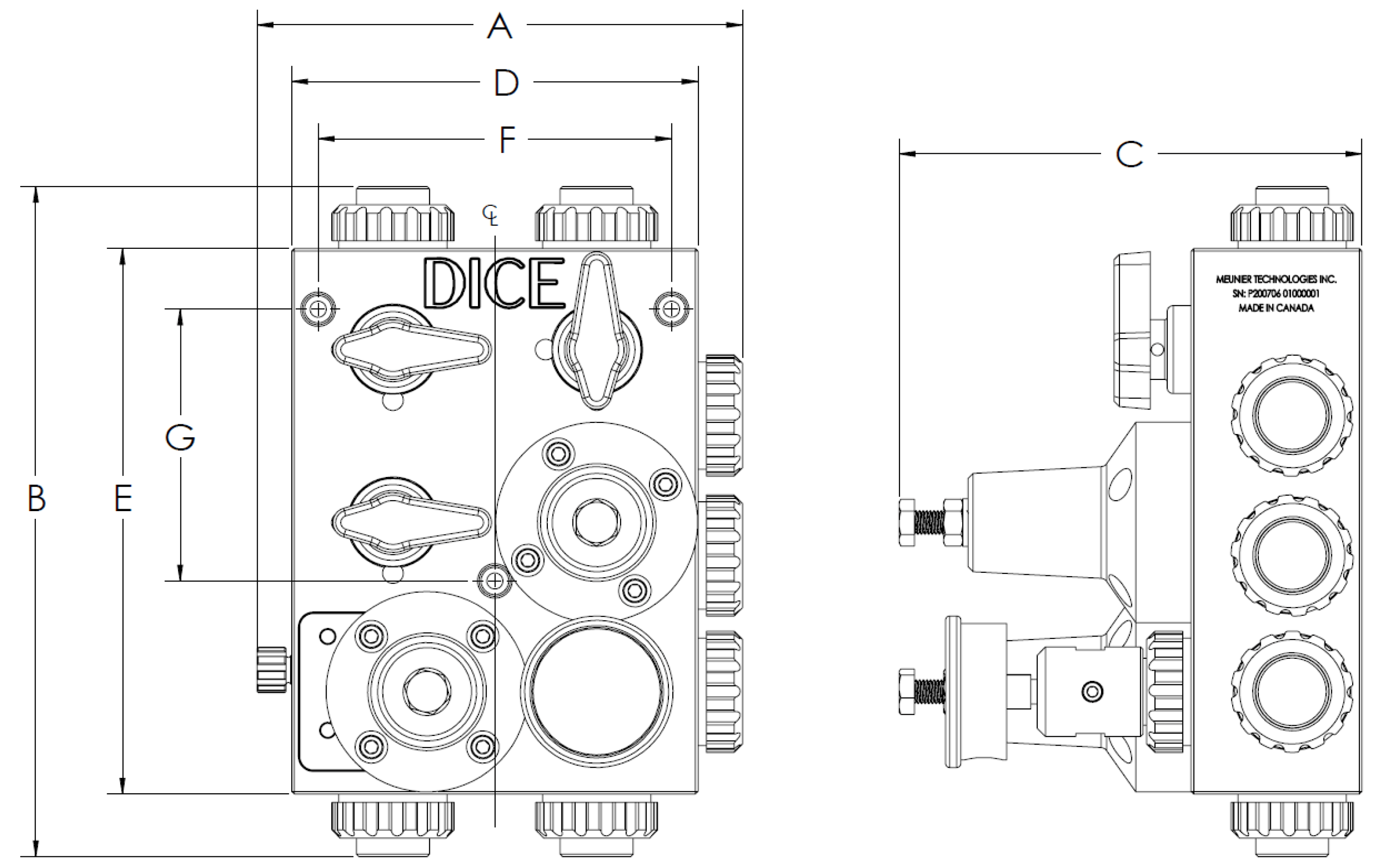

| DICE | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| DS (1/2") | 7.94 in | 11.05 in | 7.61 in | 6.65 in | 9.00 in | 5.78 in | 4.48 in |
| 201.8 mm | 280.8 mm | 193.4 mm | 168.9 mm | 228.6 mm | 146.9 mm | 113.9 mm | |
| DM (1/2") | 8.61 in | 12.30 in | 7.61 in | 7.15 in | 10.25 in | 6.28 in | 5.73 in |
| 218.6 mm | 312.5 mm | 193.4 mm | 181.6 mm | 260.3 mm | 159.6 mm | 145.7 mm | |
| DM (1") | 10.59 in | 14.80 in | 9.16 in | 8.78 in | 11.65 in | 7.64 in | 5.90 in |
| 269.0 mm | 376.0 mm | 232.7 mm | 223.0 mm | 296.0 mm | 194.0 mm | 150.0 mm |
