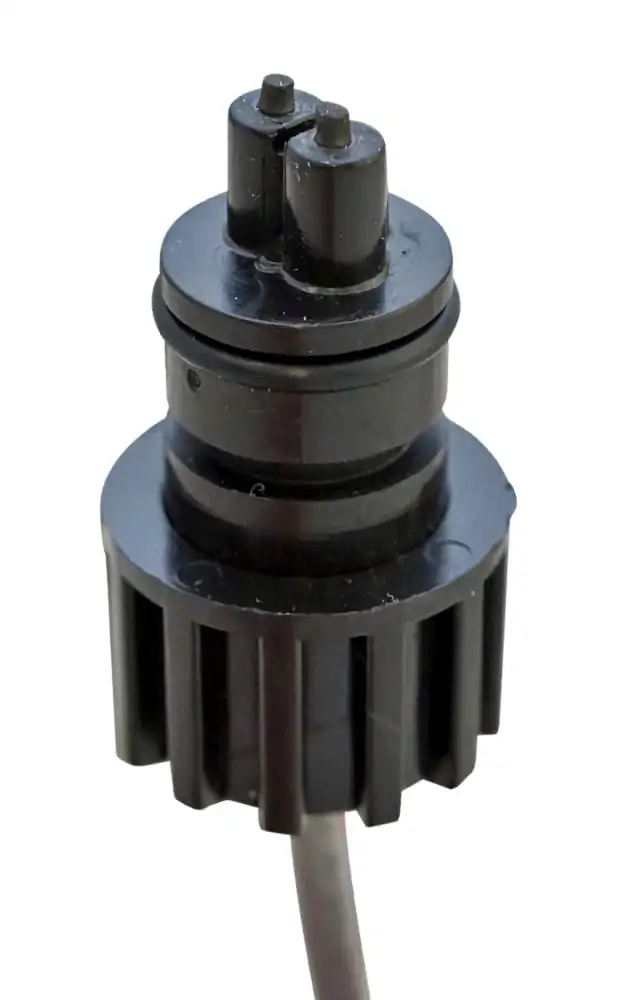

1229240 | 1575e Controller - Cooling Tower - Conductivity Sensor - Tee

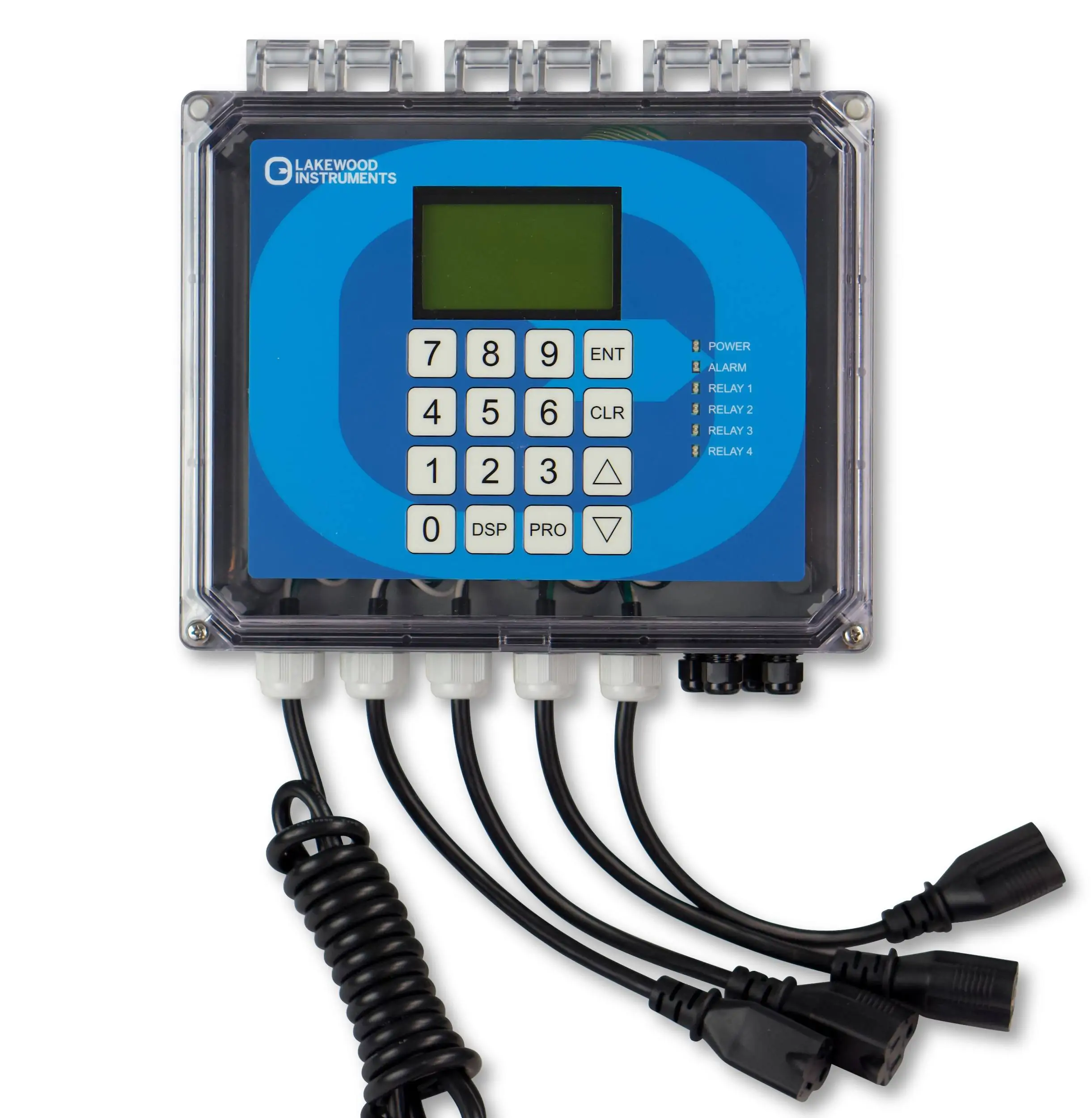

Model 1575e - Water Treatment Controller

Cooling Tower Installation

Key Features

Control & Programming

• Heavy-duty stainless steel domed numeric keypad with illuminated display
• Easy programming with tactile steel domed switches
• LED indicators for power, alarm and relay status
• Plain English, intuitive menu interface

Input/Output Capabilities

• Two water meter inputs
• Two drum switch inputs
• Conductivity input
• Flow switch input
• 4-20 mA output and input
• Three relay outputs for scheduled chemical feeds

Installation & Design

• Removable power cord and receptacles
• Simple conduit installations
• Large open shallow enclosure for easy wiring
• Single circuit board design
• Ball valve delay feature for motorized valve control

Advanced Monitoring

• 4-20 mA transmitter compatibility for:
  • Remote conductivity
  • Makeup conductivity
  • pH and ORP measurements
  • Pressure monitoring
  • Flow rate tracking
  • Traced chemistry control
  • Field-installable transmitter option

Benefits

Versatility & Reliability

• Compatible with multiple applications:
  • Boiler systems
  • Cooling towers
  • Condensate processing
• Enhanced reliability through single circuit design
• All features included as standard:
  • 4-20 mA output
  • Feed schedule clock
  • No additional options needed
