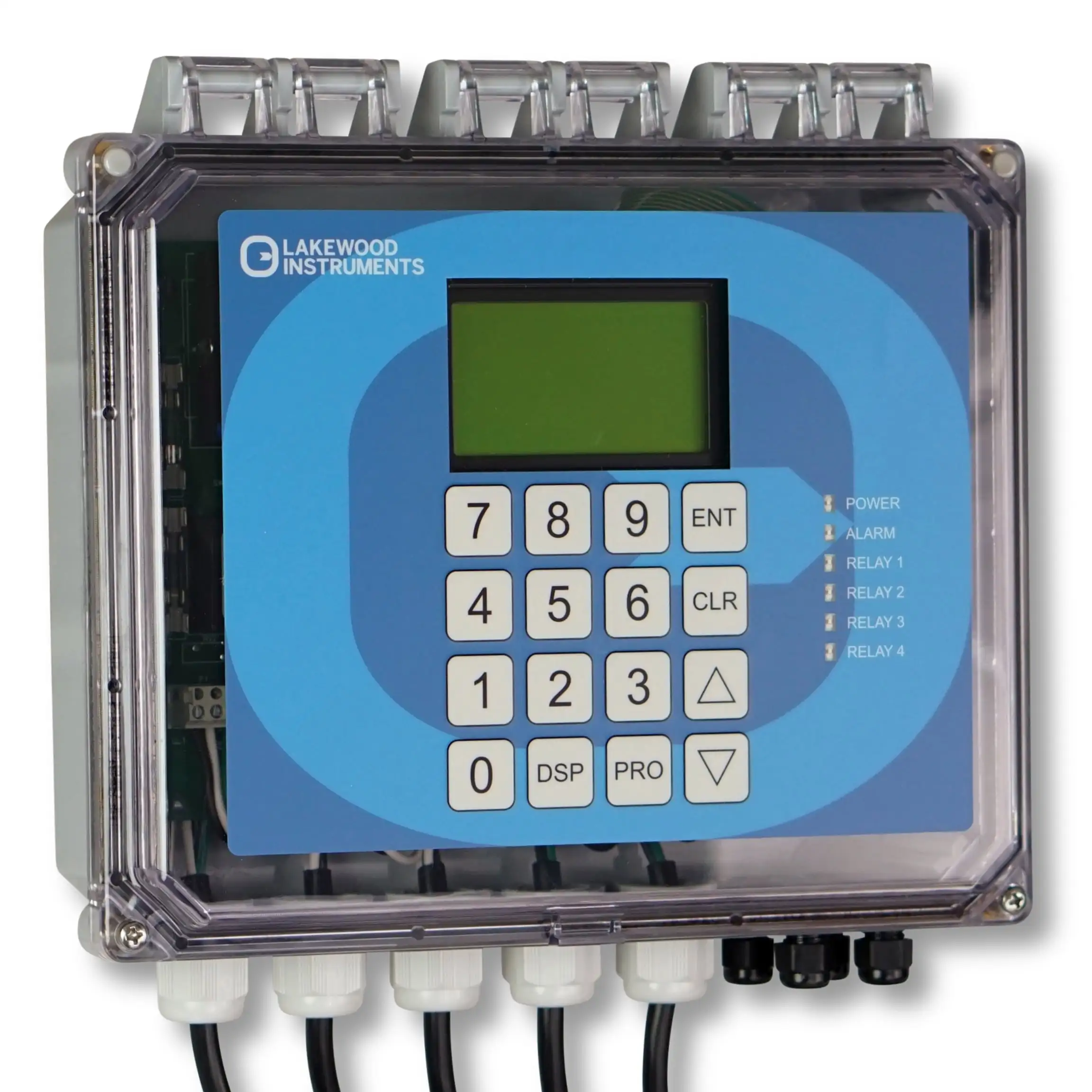

Model 1520/30e - pH or ORP Water Treatment Controller
Cooling Tower Installation
Features & Benefits
Features:
- Removable power cord and receptacles for simple conduit installations.
- Scheduled feed, which can use three relays for biocides or other chemicals.
- Two (2) water meter inputs, two (2) drum switch inputs, pH or ORP input, flow switch input, and 4-20 mA output are all standard features.
- A 4-20 mA Input for remote pH or ORP applications can be used in place of the standard pH or ORP input.
- Designed with a single circuit board for better reliability and lower cost.
- Large open shallow enclosure for easy wiring.
- Heavy-duty stainless steel domed numeric keypad and illuminated graphical display allow for quick and easy programming. Steel domed switches improve the tactile sensing and life expectancy of the keypad.
- LED indicators for power, alarm and relay status.
Benefits:
- Easy to program with the Lakewood plain English, intuitive, and user friendly menu interface.
- Controller can be removed from a cooling tower and be placed in another type of application when used with the appropriate pH or ORP sensor.
- Single circuit board design improves reliability.
- No add-on options. 4-20 mA output and biocide features are standard.
Additional Notes
Specifications:
- pH range: 2-12 pH
- ORP range: -1000 to +1000 mV

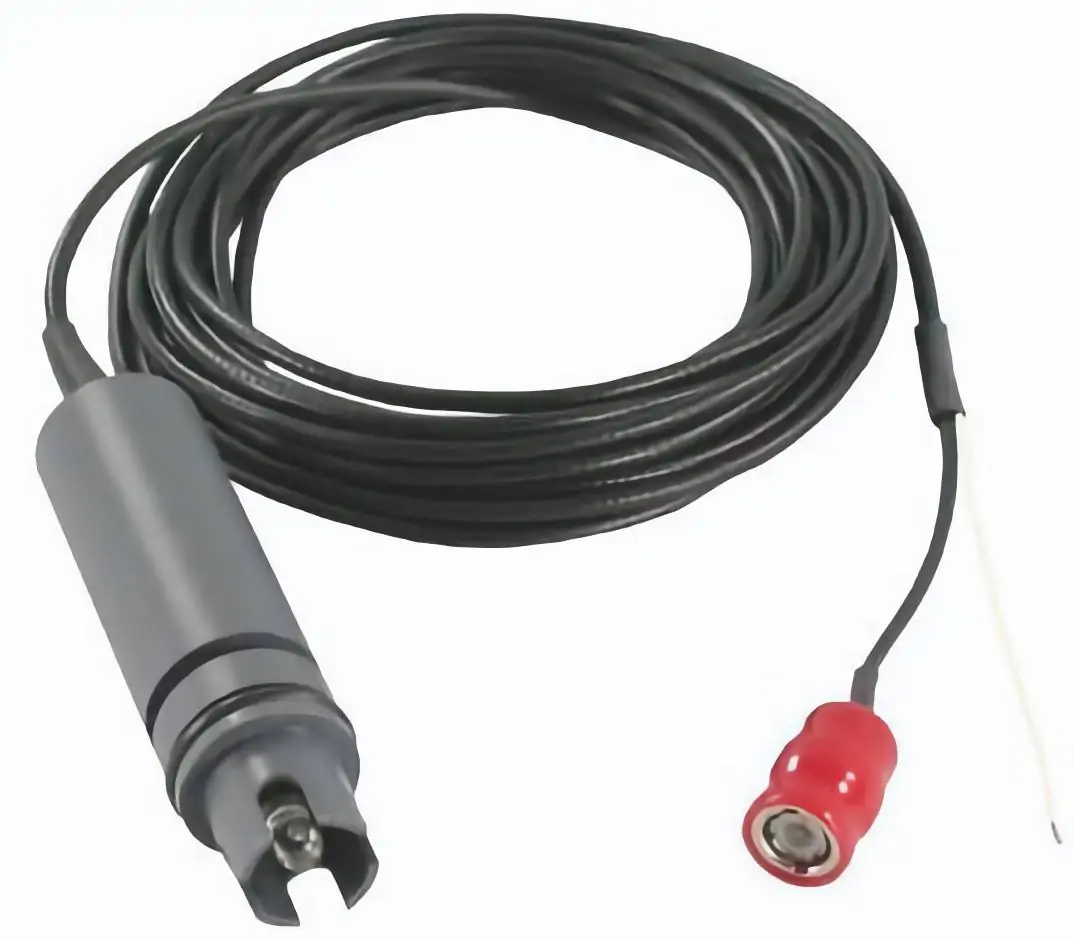

- Sensor Types: Solution ground, Signal differential, or Single-Ended
- Resolution: ± .10 pH or 1 mV
- Accuracy & repeatability: ± 1.0%
- Deadband/Setpoint: Adjustable
- Auto/Manual outputs: Menu selectable
- Keypad: 16 tactile push-buttons
- Display: Illuminated 128x64 pixel LCD
- Timer: Relay run time exceeded
- Output Signal: One 4 – 20 mA, non-isolated / isolated powered output
- Output relays: 4 selectable use
- Relay ratings: 3A each, 10A total
- Power: 120/240 VAC 50/60 Hz
- Ambient: 32° - 120°F (0 - 49°C)
- Power: 120/240 VAC 50/60 Hz
- Ambient 32° - 120°F (0 - 49°C)
- Enclosure: NEMA 4X, ETL
- Drum Switch Inputs: 2 digital contact inputs
- Water meter inputs (2) Contact head, paddle wheel or turbine
Wiring:
Plumbing:
| Sensors/Plumbing | Cooling Tower |
|---|---|
| Max Pressure | 140 psi (9.65 bar)@ 100 °F |
| Max Temp | 140°F (60°C) |
| Min flow | 1 gpm (3.785 Lpm) |
Dimensional drawings
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| LWI-1240475 | 1240475 | 1520e/1530e Controller - Process - pH or ORP - Controller Only | $1,455.00 | |
| LWI-1240476 | 1240476 | 1520e Controller - Process - pH Sensor - Flow Switch w/ Left Exit | $2,249.00 | |
| LWI-1240518 | 1240518 | 1520e Controller - Process - pH Sensor - Flow Switch w/ Left Exit - Mounted | $2,447.00 | |
| LWI-1240519 | 1240519 | 1530e Controller - Process - ORP Sensor - Flow Switch w/ Left Exit - Mounted | $2,447.00 | |
| LWI-1263418 | 1263418 | 1530e Controller - Process - ORP Sensor - Flow Switch w/ Left Exit | $2,249.00 |
