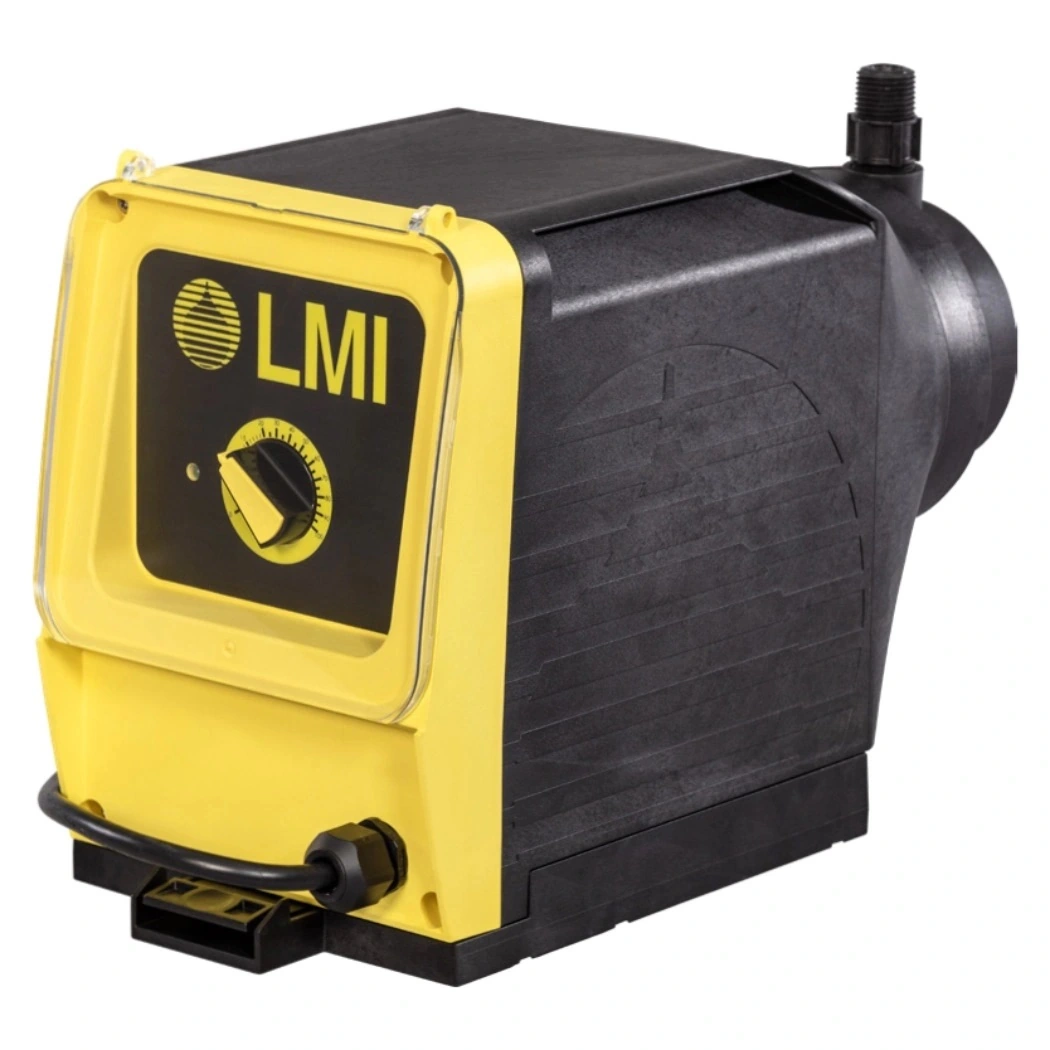

TD0951-566VI | LMI Metering Pump - 16.0 GPH - 75 PSI - PP for High Viscosity Polymers

Advanced Control with the Most Versatile Chemical Metering Pump on the Market

This new generation of pumps from LMI boasts the most advanced control features from manual speed adjustment, to full SCADA integration and remote control, and available MODBUS and PROFIBUS connected units. All TD Series Liquid Ends are new from LMI with improved materials, double ball check valves, and newly designed over-molded diaphragms proven to operate at continuous duty for over 40 million strokes. Liquid Ends are designed with proven FASTPRIME technology for quick and easy commissioning and priming of the units. Available in 3 models, Manual, Advanced, and COMMs, the TD Series pump fits seamlessly into your process control application.

Features and Benefits

• Revolutionary FluxDrive technology with fractional turndown capability, reduced weight, increased efficiency, and universal 115-230V, 50/60 Hz power supply
• 4 available sizes with flows up to 16 GPH (60.6 LPH) and up to 250 PSI (17.2 BAR)
• Best-in-class electronic components and enhanced control for full SCADA integration and advanced system process control features
• Standard FastPrime liquid ends that allow fast and easy priming with integrated bleed valve
• Field upgradable firmware via USB-C drive interface for always current feature set and firmware upgrades
• Rugged construction with NEMA 4X / IP 66 housing for the harshest environments and outdoor use
• Compact footprint for efficient use of space in process applications or OEM configuration with removable mounting baseplate
• Standardized M12 cable connection for easy commissioning and setup of all inputs and outputs
• Agency certifications - NSF 61, ETL, CE, and UKCA
• 4.3” Color TFT display with Intuitive navigation, enabling easy configuration, full digital manual control of advanced pumps and visibility to running status, alarms, logs, and system configurations
• External Control Inputs - Automate your process with pulse batch modes, 4 analog 4-20mA inputs, remote start/stop, and multiple sensor inputs including tank level indication, auto degassing technology, pressure sensors, leak detection and more
• Calibration Assist - Simply draw from a column and adjust the estimated value on-screen to the measured volume
• System & User Totalizers - An odometer for your pump that logs pump strokes, estimated volume, and power cycles – confirm pump operation between visits
• AccuPrime degassing technology for automatic degassing of the discharge line for stay-prime functionality
• Leak detection sensor integrated into the liquid ends for reliable detection of leaks and shutoff alarms and output relays for full safety and system control
