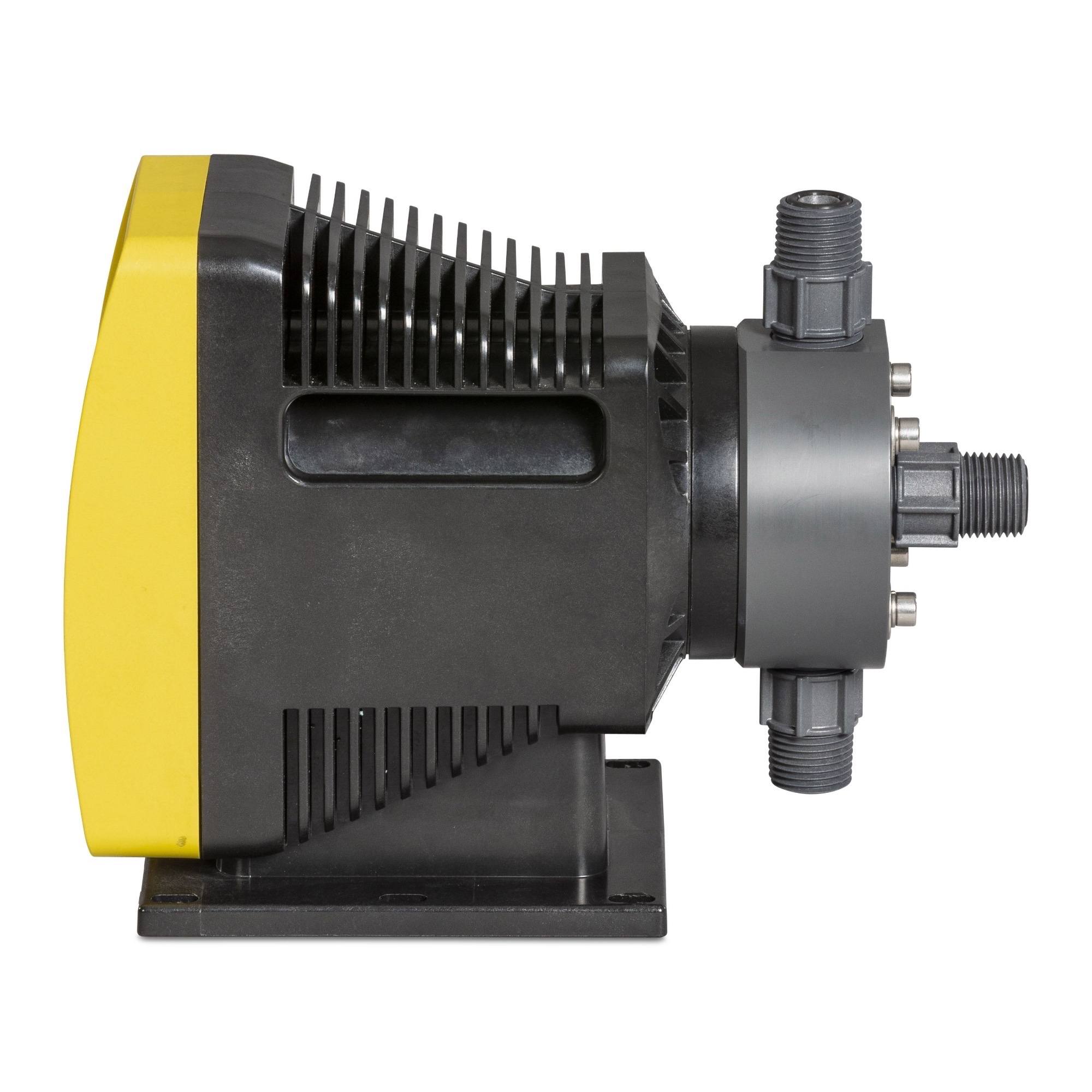

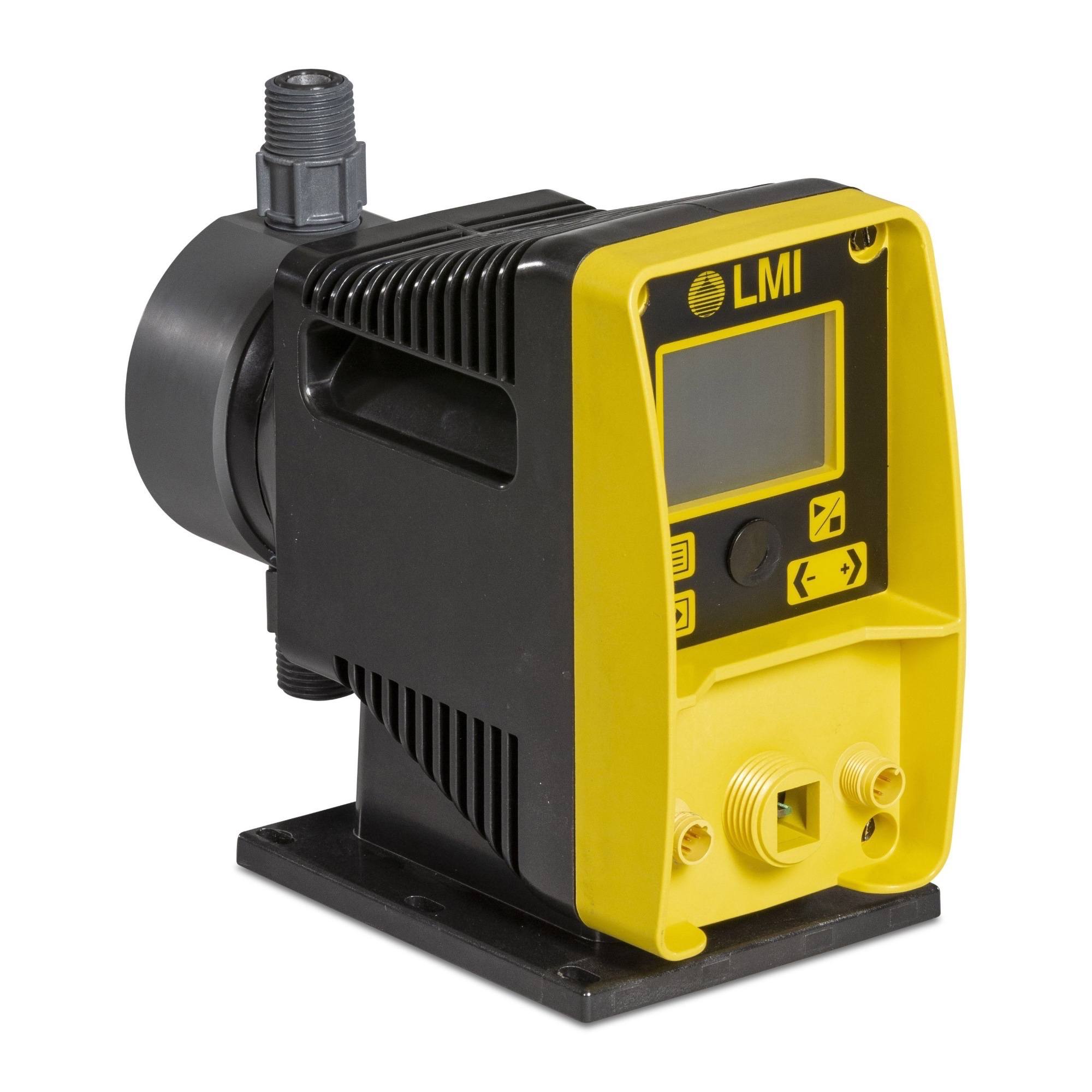

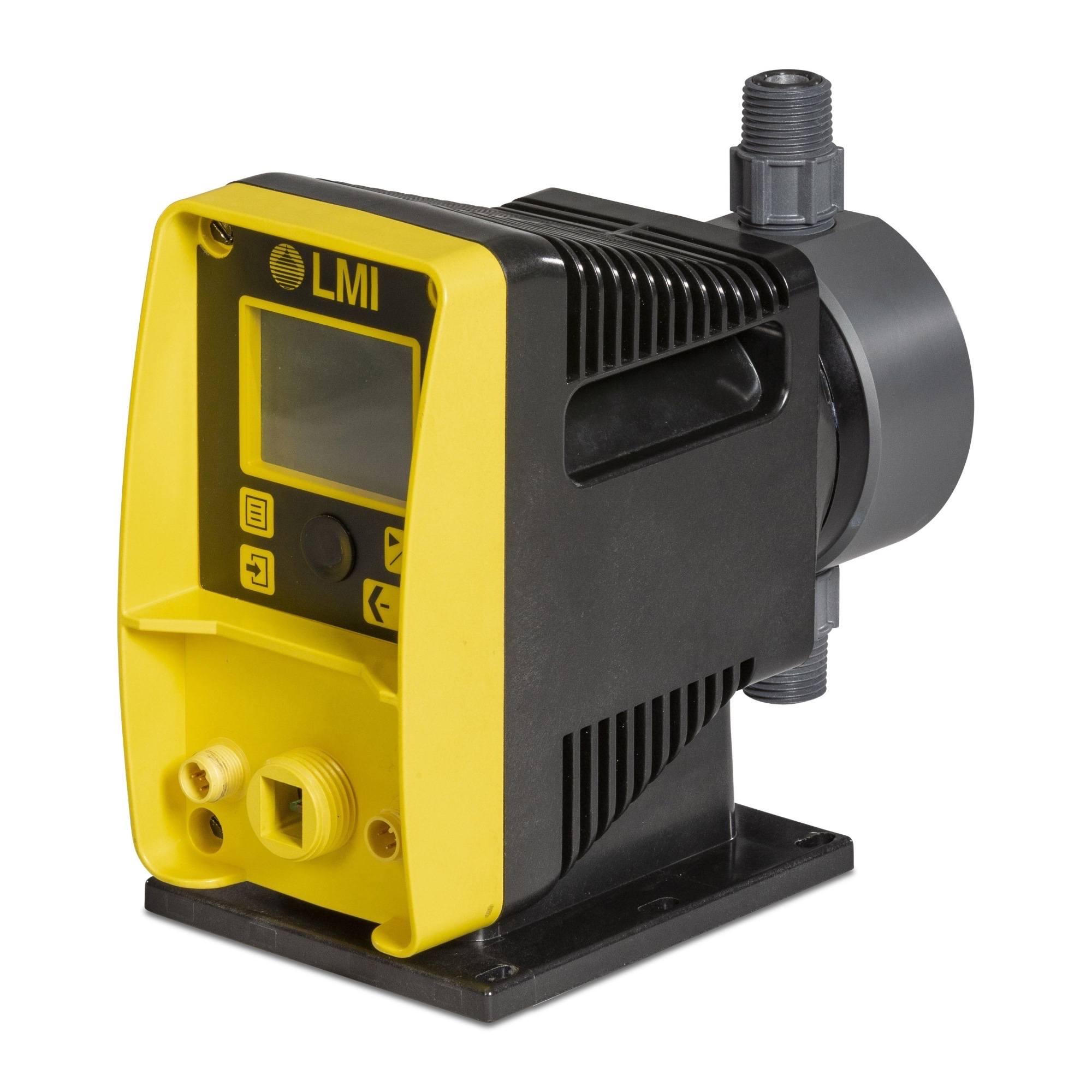

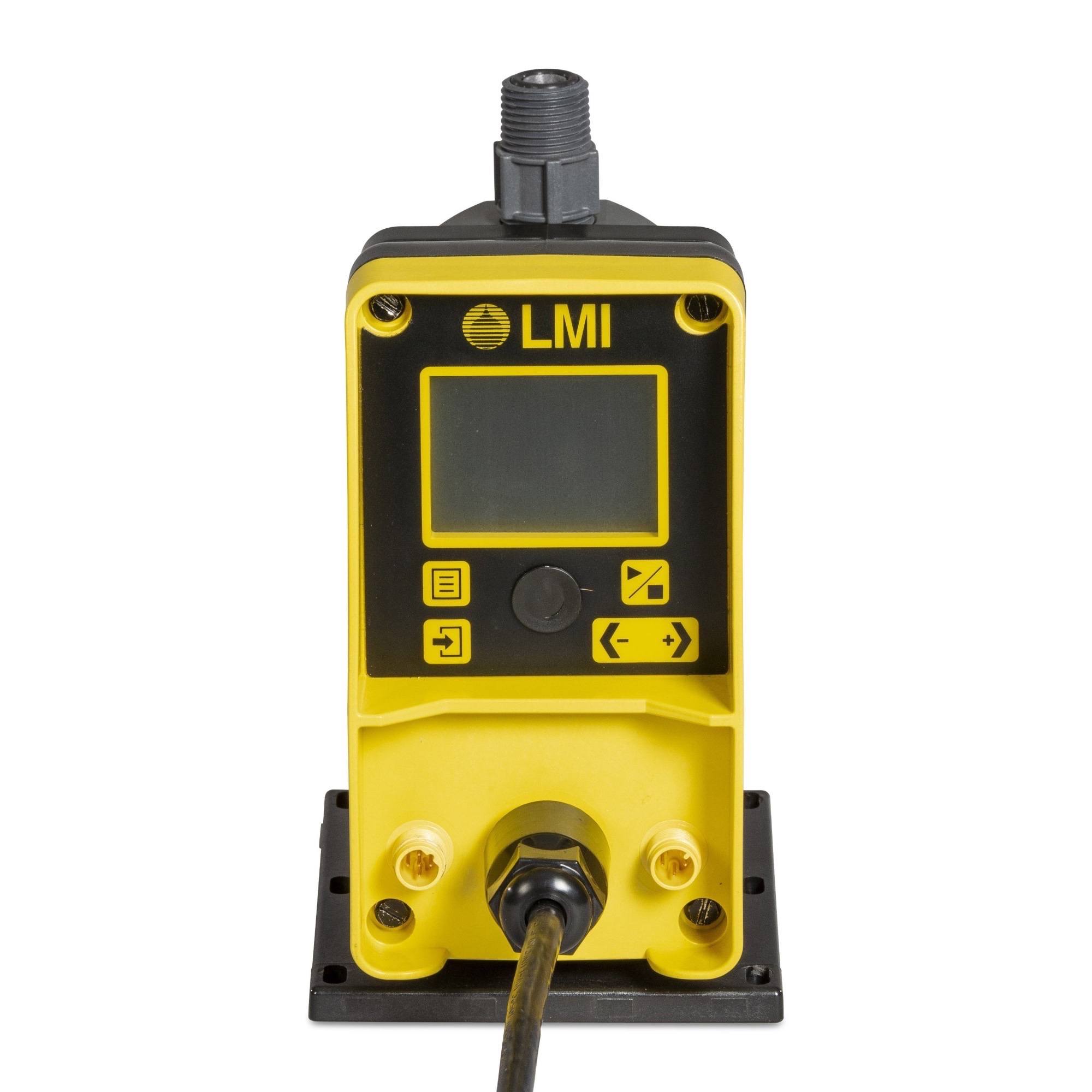

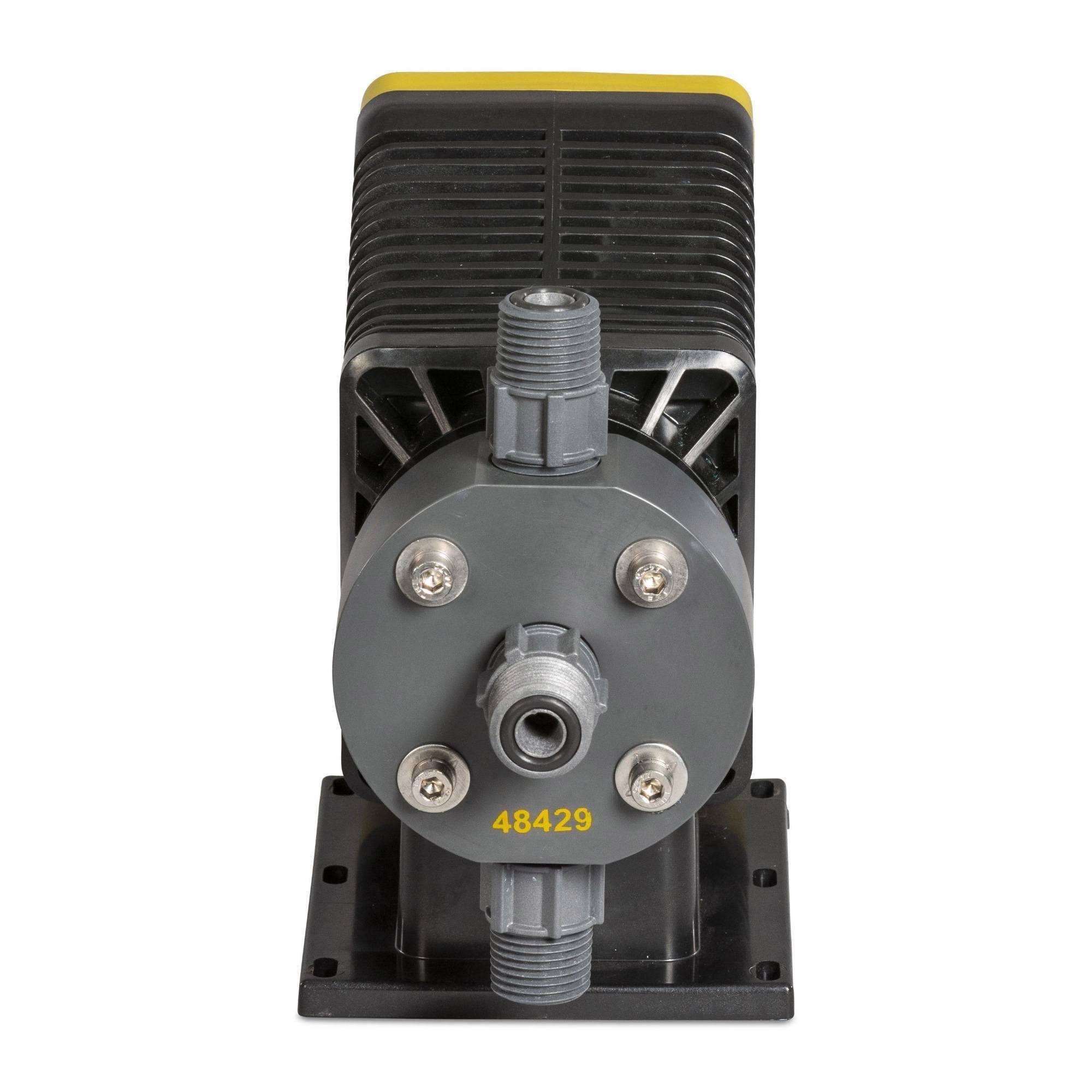

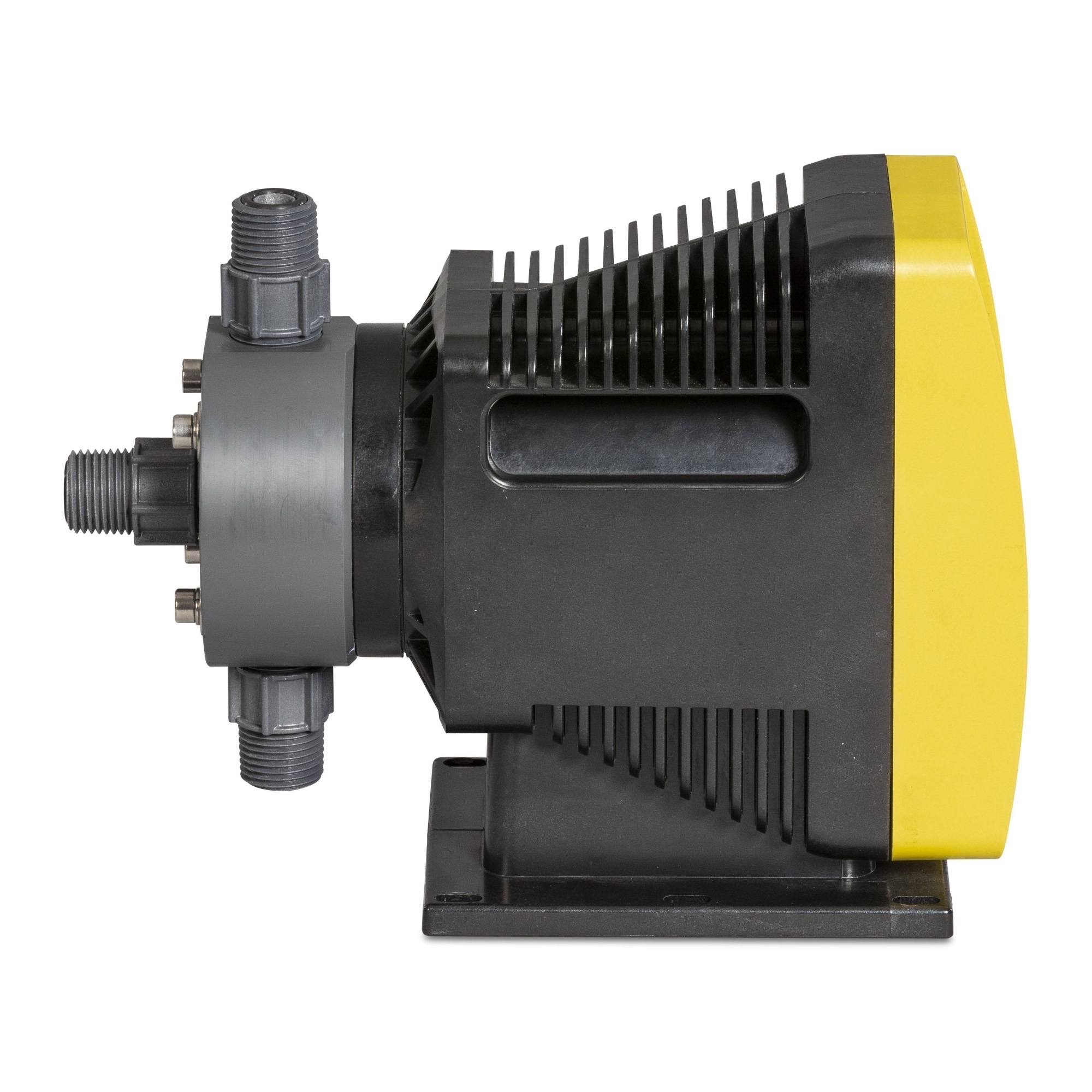

PD762-A48HI | LMI Metering Pump - 1.85 GPH - 50 psi - PVC w/ MFV

Pictures may not be actual SKU

Manual
Cut sheet
Materials of Construction

PD762-A48HI | LMI Metering Pump - 1.85 GPH - 50 psi - PVC w/ MFV

Name: PD762-A48HI | LMI Metering Pump - 1.85 GPH - 50 psi - PVC w/ MFV
Brand: LMI
SKU: LMI-PD762A48HI
Price: 1520 USD
Availability: InStock

LMI | LMI

PD | PD Series - 2 GPH

PD76 | LMI Metering Pumps - 2.0 GPH - 60 psi - Pulse Input

LMI-PD762A48HI

Description

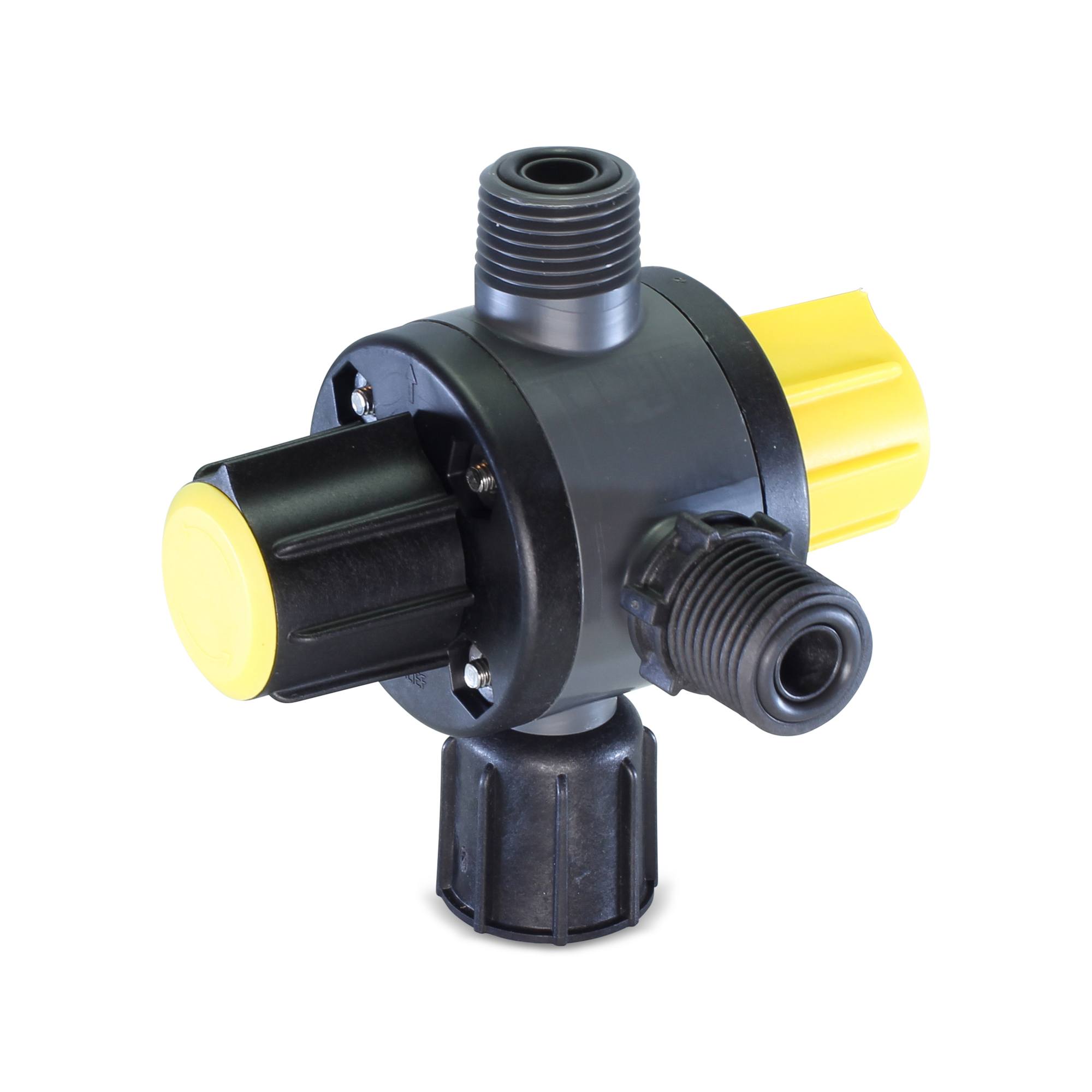

LMI's PD762-A48HI PD Series - solenoid driven, electronic metering pump for chemical feed up to 1.85 GPH (7.0 LPH) and pressure up to 50.0 psi (3.4 bar) uses the PD762 drive end with Manual (Stroke Frequency) & Remote (Pulse Input) control and USA 230V - Nema 6/15 power cord. The LE-A48HI liquid end - with 58062 Machined Multi-Function Valve contains a PVC head, PVC fittings, PTFE (Teflon) & Polyprel (TFE/P - Aflas) seals, and Ceramic check valve balls // LMI Pump Reference: Replaces A162-938HI, A762-938HI, P762-D68HI, P762-D68HM, P762-D68HU; Repair Kit RPM-A40A; Machined Multi-Function Valve 58060 Retrofit or 58062 Replacement

Key Specs

Feed Max

1.85 GPH

Pressure Max

50 psi

Head Material

PVC | PVC Plastic

Seal Material

PTFE | Teflon
TFE/P | Aflas

Stroke Rate

160 SPM

Configuration

Base Model

Series

PD | PD Series

Control Option

7 | Enhanced: Pulse Input - Remote Start/Stop - Tank Level Input

Output Capacity

6 | 2.0 GPH (7.6 LPH); 50 psi (3.4 bar)

Power Option

Power Cord

2 | 230V US Plug

Liquid End Option

Liquid End Type

A | AutoPrime Degas

Diaphragm Size

4 | Size Code 4 Liquifram

Liquid End Materials

8 | PVC Head - PVC Fittings - Ceramic Balls - Polyprel Seats - Polyprel O-rings

Accessory Valve

H | Multi-Function Valve (Machined)

Connections

I | Inch Tubing

Available to Order

Ships from PA - NC - GA - FL - OH - MI - TX - OR

Typically ships within [ 3 ] days

24/7 Sales & Support 484-544-0506

$1,520.00 Configured Price

Quantity:

− +

Overview
Tech Specs
Materials
Support Docs
Spare Parts
SKU List

Headline

Designed to Last

The PD Series Chemical Metering Pump is designed specifically for industrial water treatment applications. The PD Series metering pump adds advanced technology to one of LMI's most popular pump.

Available in two control options, Manual [ PD0x ] and Enhanced [ PD7x ], the PD Series pump fits seamlessly into your water treatment process while adding convenience and value to your application.

The Enhanced model [ PD7x ] offers external control and a large graphical display to provide intuitive access to advanced features.
