LE-925NI-150 | LMI Pump Liquid End - Machined - PP (A/P+)

Product info Show all specs
LMI | LMI
LE | Liquid Ends
LE-9xx | LMI Pump Liquid Ends - Machined - FastPrime (PD/AD)
LMI-LE925NI150
LMI logo
Description

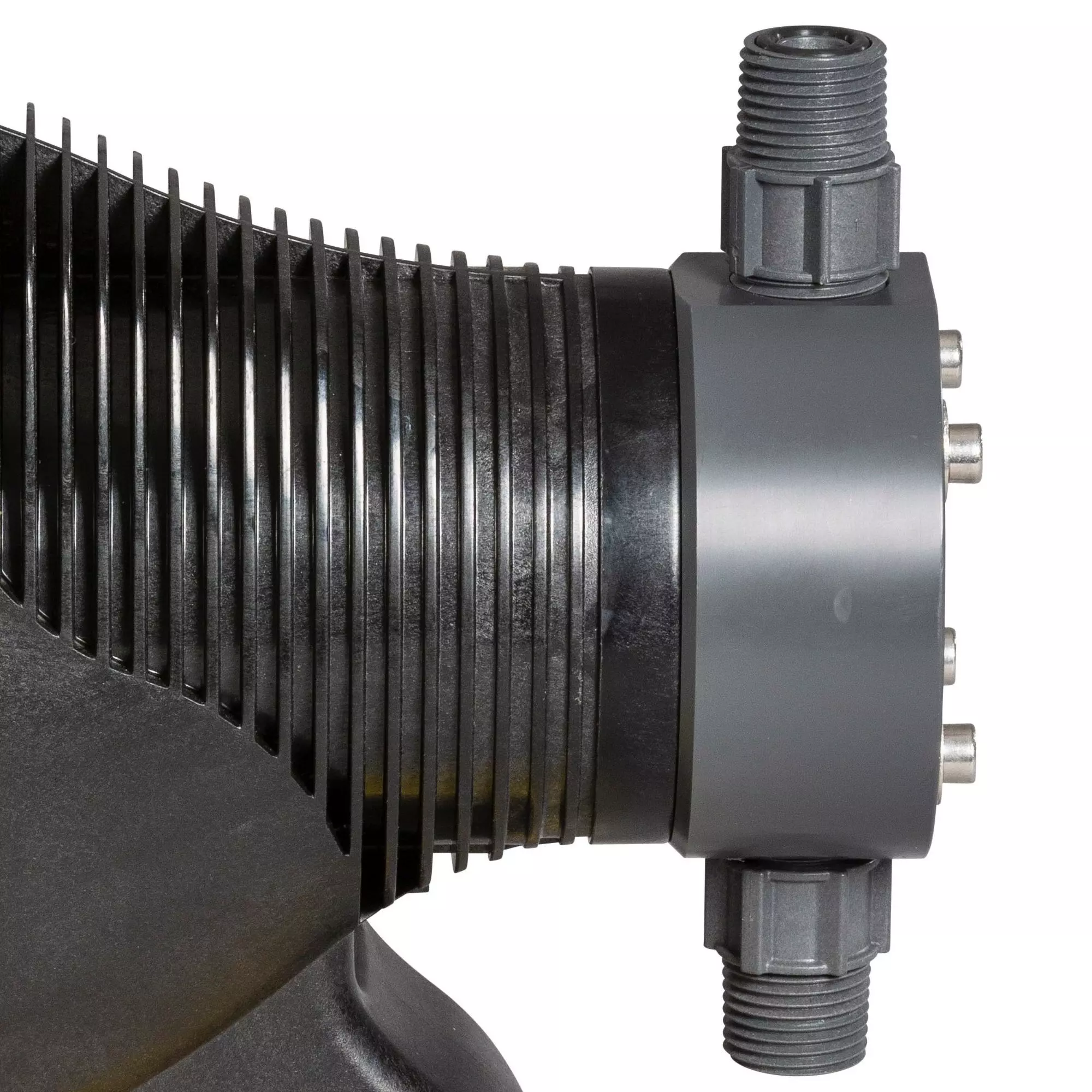

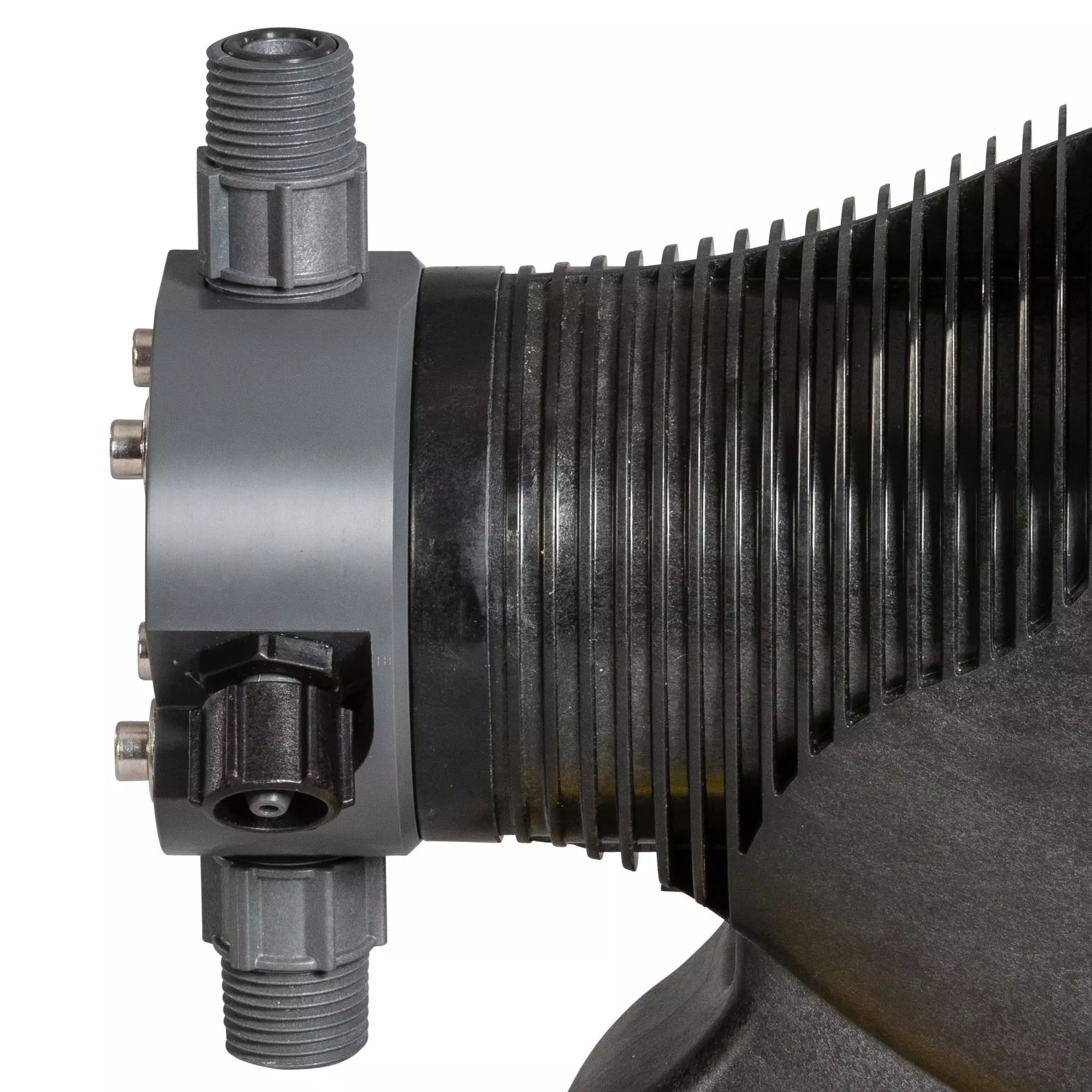

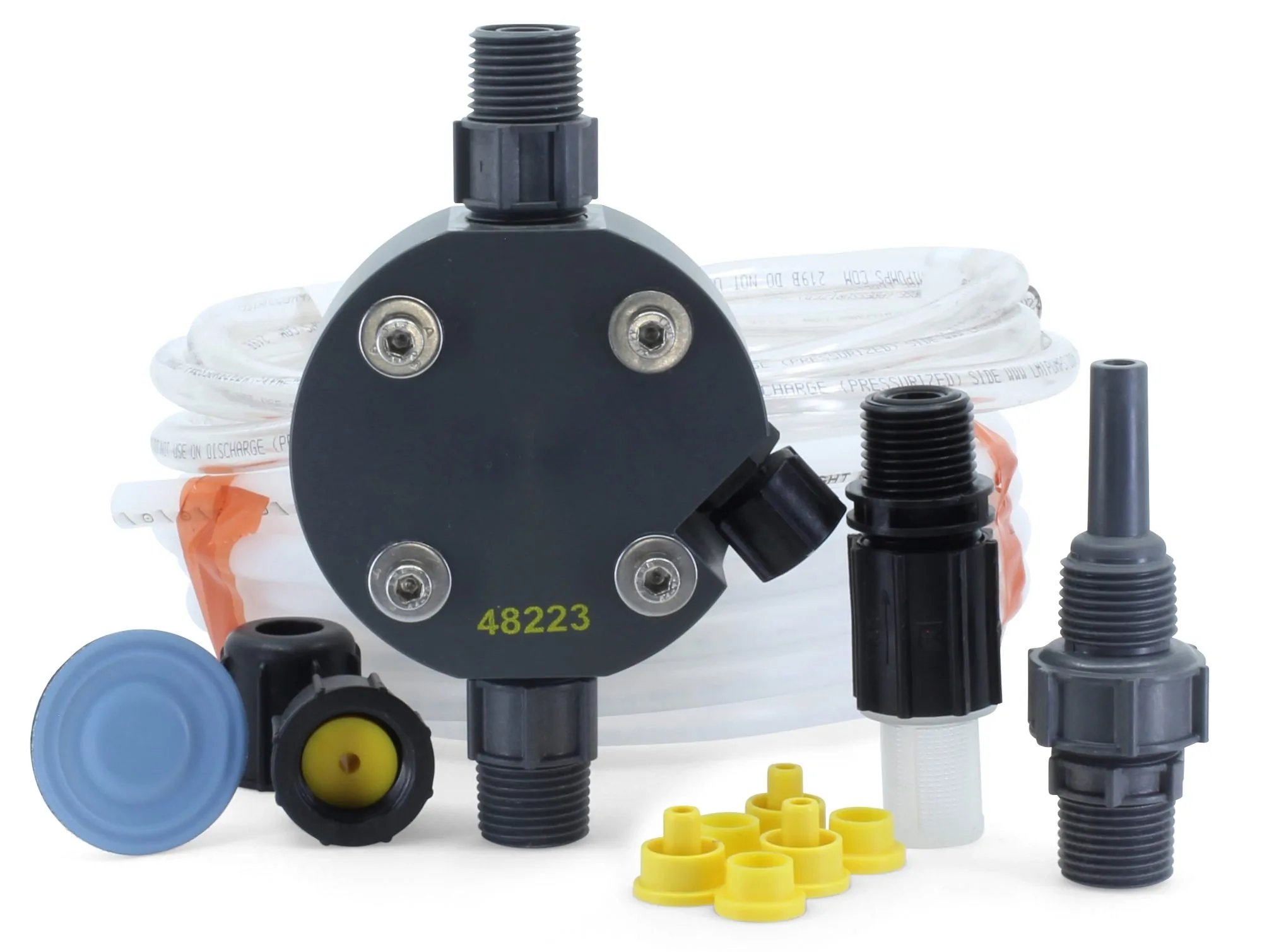

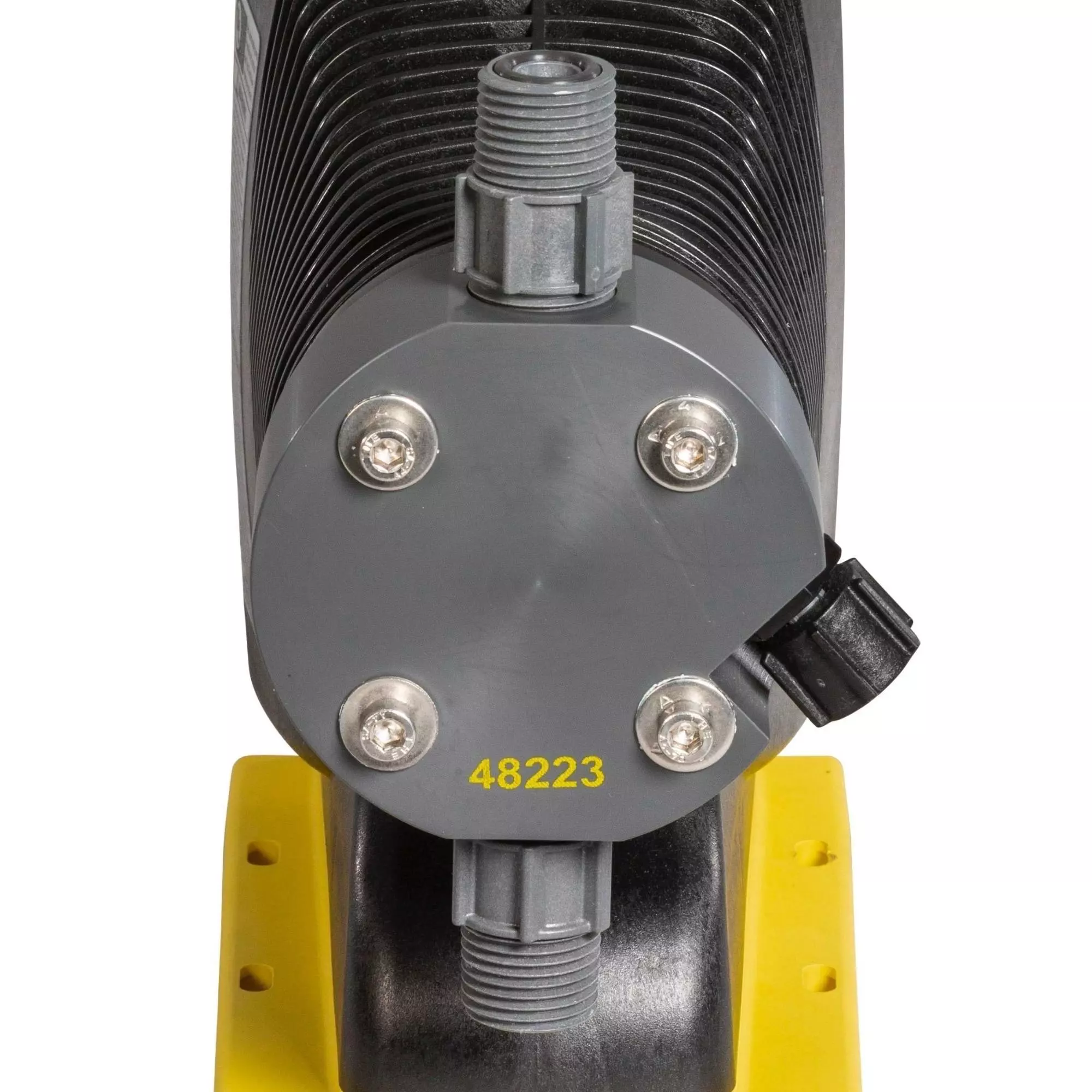

LMI's LE-925NI-150 Liquid End Assembly contains a Polypropylene pump head, Polypropylene fittings, PTFE (Teflon) seals, and Ceramic check valve balls. Contains pump head, diaphragm, and hardware needed to attach to an LMI Pump Drive End. Includes related foot valve, head assembly with suction and discharge fittings, injection valve, tubing and tubing connection kits // LMI Pump Reference: Machined FastPrime compatible with Pump Series PD, AD
Key Specs
Ball Material
AL203 | Ceramic
Seal Material
  • PTFE | Teflon
Fitting Material
PP | Polypropylene
Head Material
PP | Polypropylene
Configuration Model Codes
Base Model
Series
LE
Liquid End Option
Liquid End Type
9
Diaphragm Size
2
Liquid End Materials
5
Accessory Valve
N
Connections
I
Availability Call to confirm
Available to Order
Ships from PA - NC - GA - FL - OH - MI - TX - OR
Typically ships within [ 10 ] days
24/7 Sales & Support 484-544-0506
Price
Save Compare
$519.00 Configured Price
− +
Product details Spot an error? Let us know!
Features
Auto Degas
Not Included
Flow Measurement
Not Included
Flow Verification
Add-On
High Viscosity
Not Included
Leak Detection
Not Included
Temp Sensor
Not Included
Design
Mechanical Connections
Tubing | 3/8" OD PE
Chemical Compatibility
Exploded view
