Pictures may not be actual SKU

LE-498SP | LMI Pump Liquid End - Machined - PVC

Product info Show all specs
LMI | LMI
LE | Liquid Ends
LE-4xx | LMI Pump Liquid Ends - Machined - LiquiPro (B/C/E)
LMI-LE498SP
LMI logo
Description

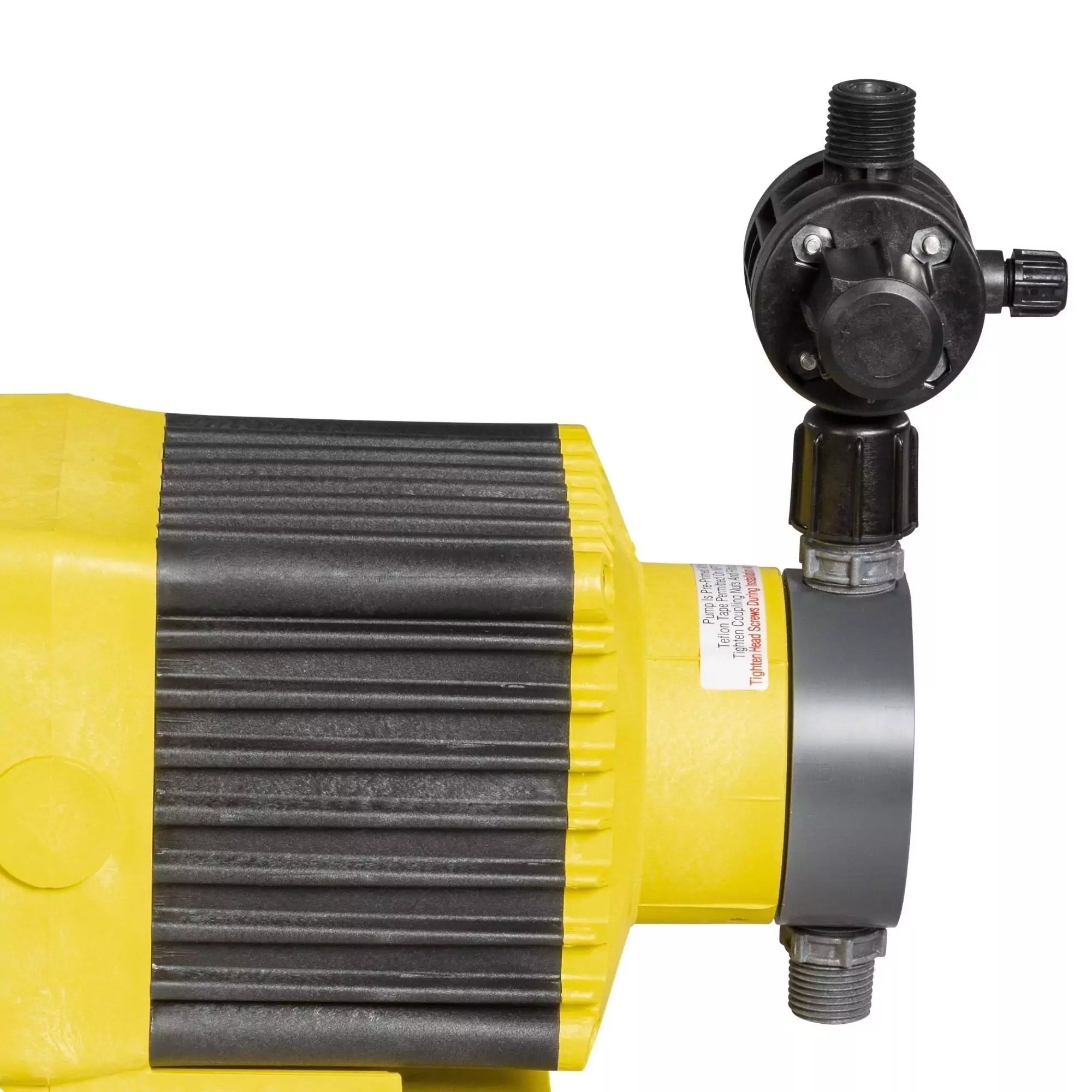

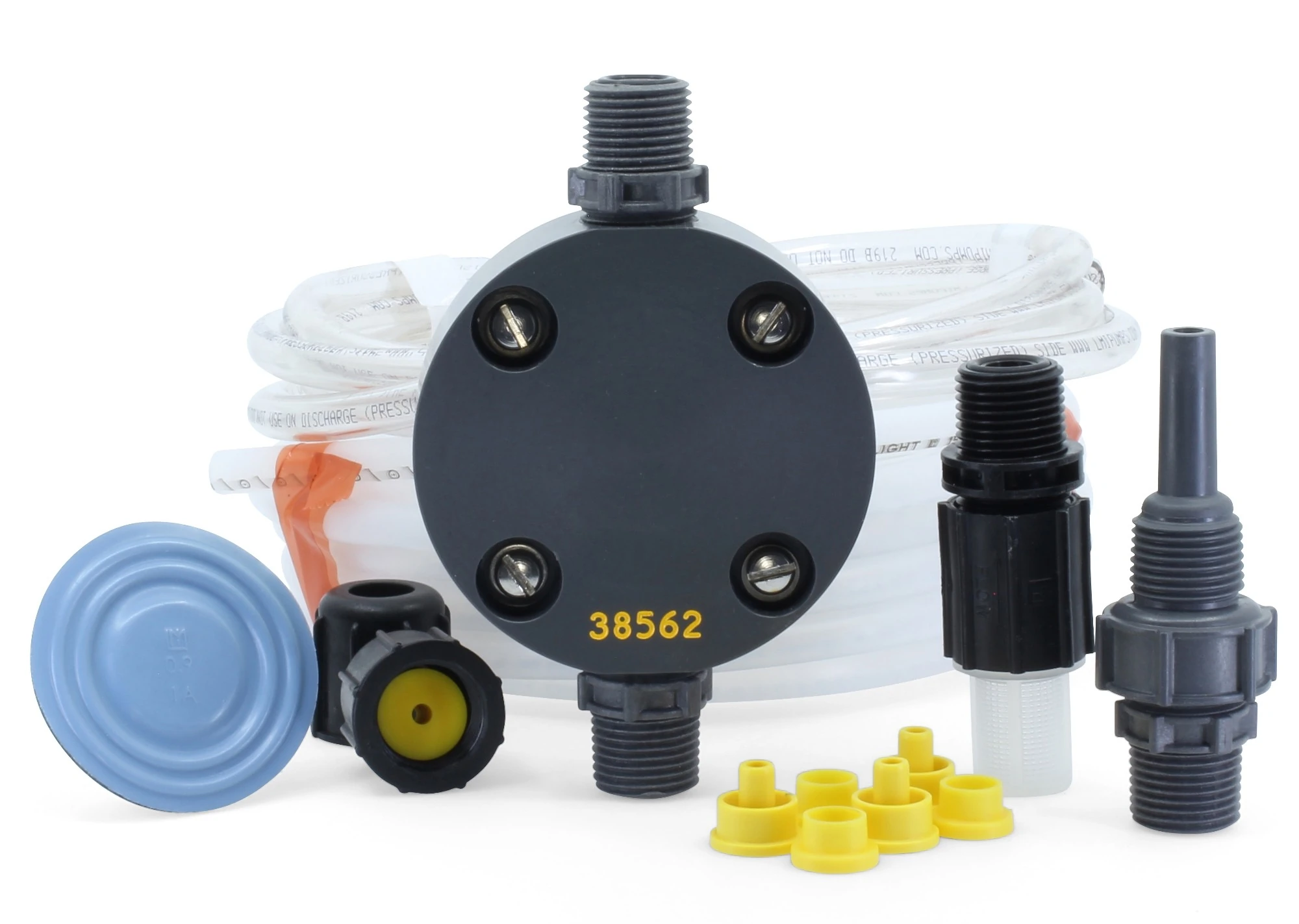

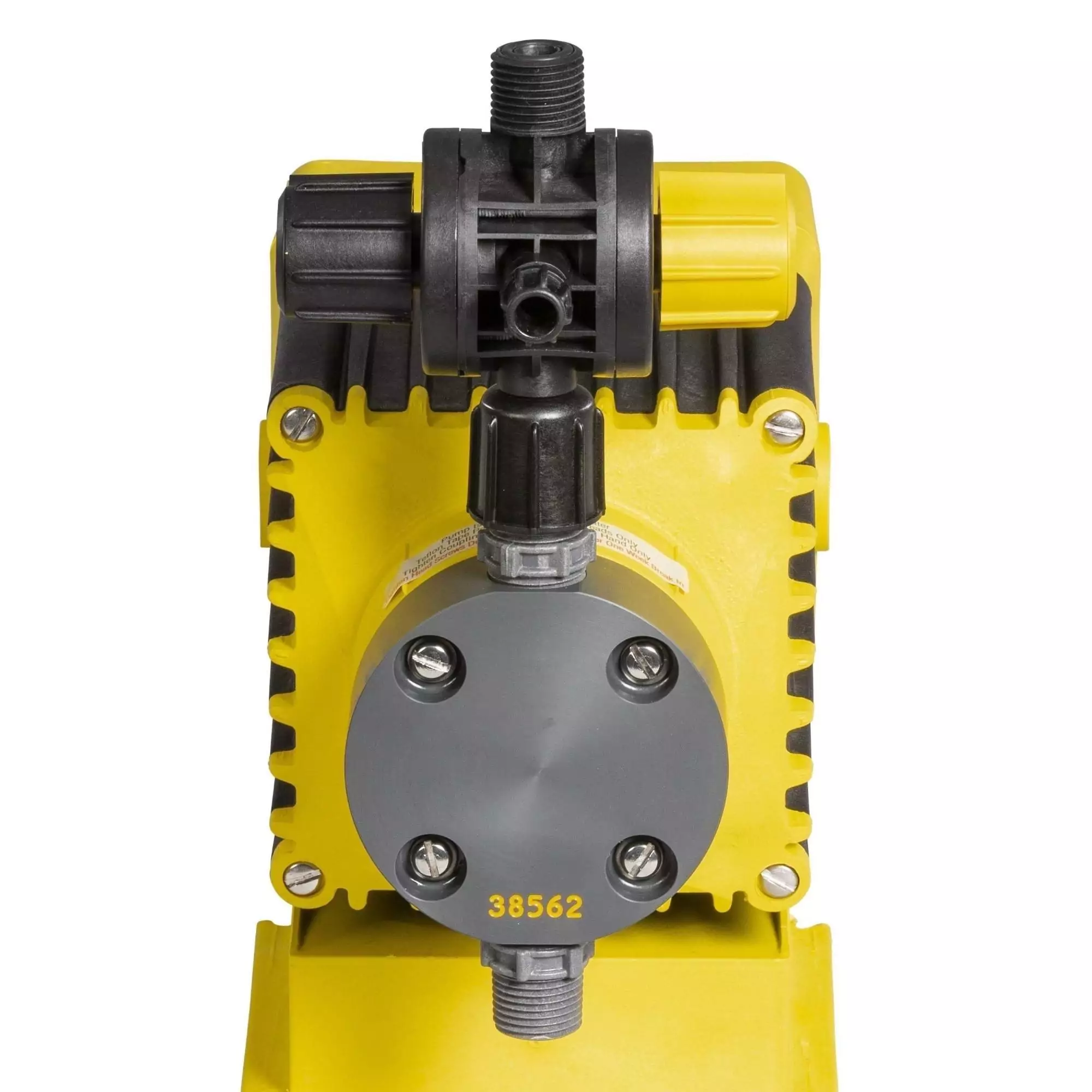

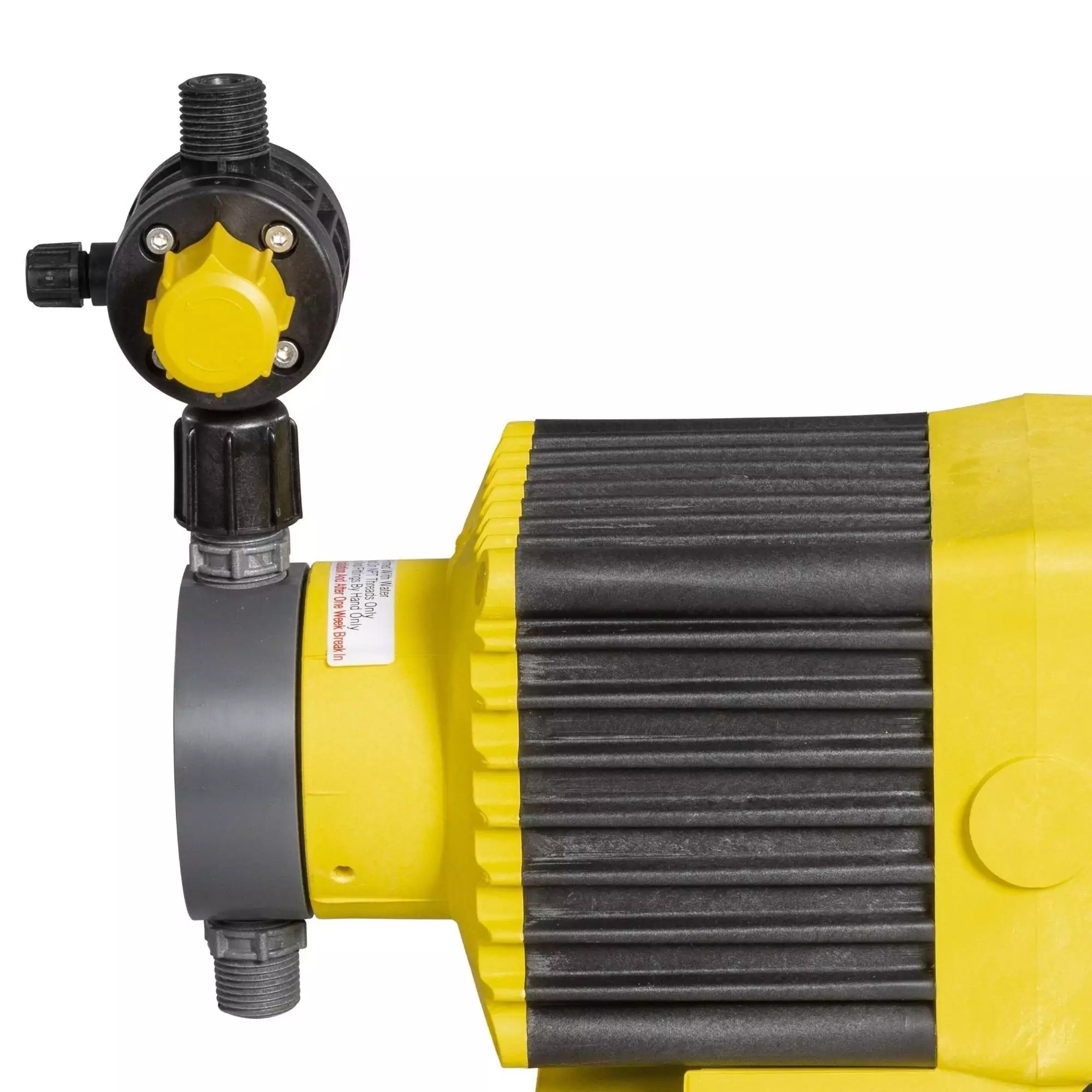

LMI's LE-498SP Liquid End Assembly contains a PVC pump head, PVC fittings, PTFE (Teflon) & Polyprel (TFE/P - Aflas) seals, and Ceramic check valve balls. Contains pump head, diaphragm, and hardware needed to attach to an LMI Pump Drive End. Includes related foot valve, head assembly with suction and discharge fittings, and injection valve // LMI Pump Reference: Machined LiquiPro compatible with Pump Series P, B, C, E
Key Specs
Ball Material
AL203 | Ceramic
Seal Material
  • PTFE | Teflon
  • TFE/P | Aflas
Fitting Material
PVC | PVC Plastic
Head Material
PVC | PVC Plastic
Configuration Model Codes
Base Model
Series
LE
Liquid End Option
Liquid End Type
4
Diaphragm Size
9
Liquid End Materials
8
Accessory Valve
S
Connections
P
Availability Call to confirm
In Stock
Ships from PA - NC - GA - FL - OH - MI - TX - OR
Typically ships within [ 0 to 2 ] days
24/7 Sales & Support 484-544-0506
Price
Save Compare
$630.00 Configured Price
− +
Product details Spot an error? Let us know!
Features
Auto Degas
Not Included
Flow Measurement
Not Included
Flow Verification
Add-On
High Viscosity
Not Included
Leak Detection
Not Included
Temp Sensor
Not Included
Design
Mechanical Connections
Pipe | 1/2" NPT M
Chemical Compatibility
Exploded view
