Designed to meet your most challenging water treatment needs

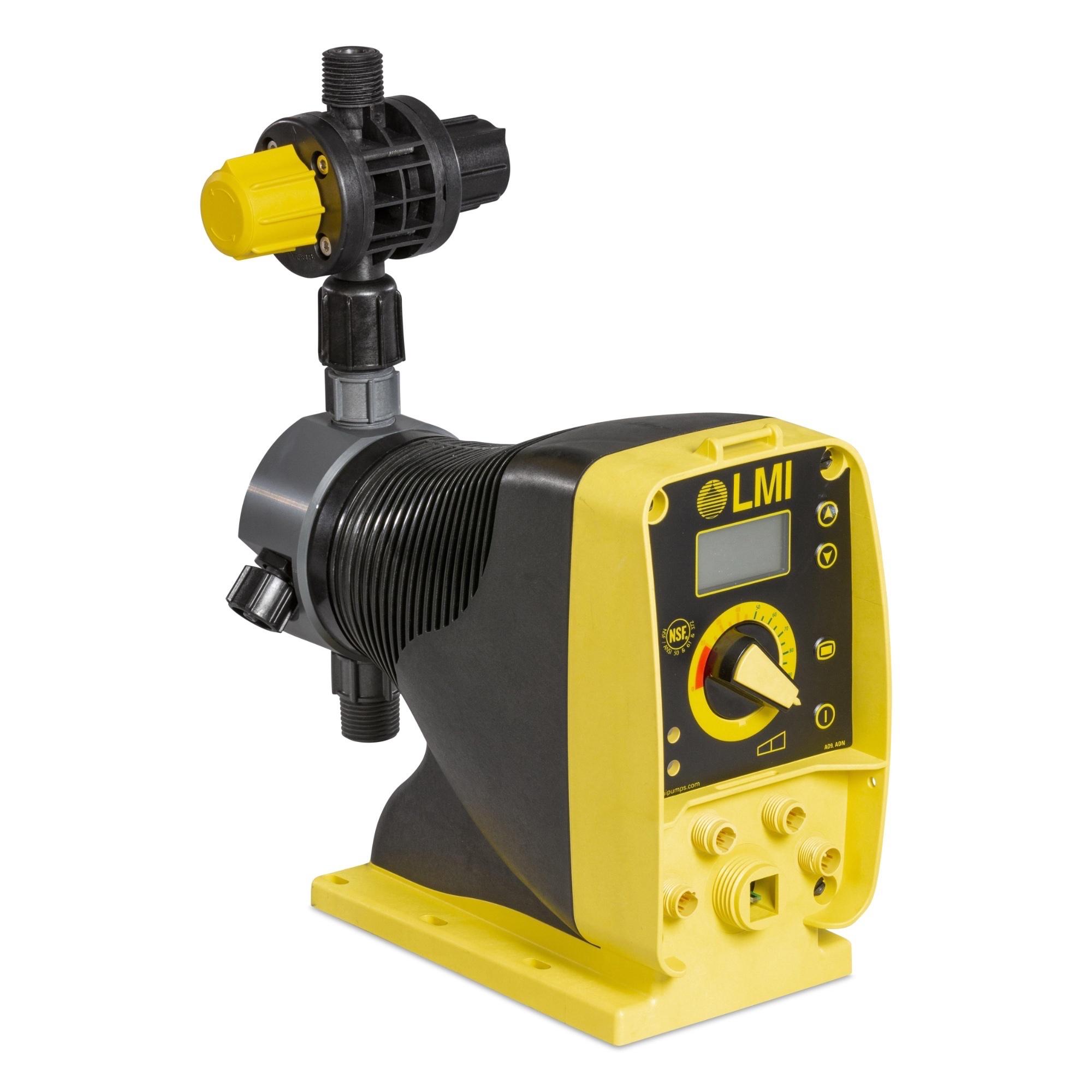

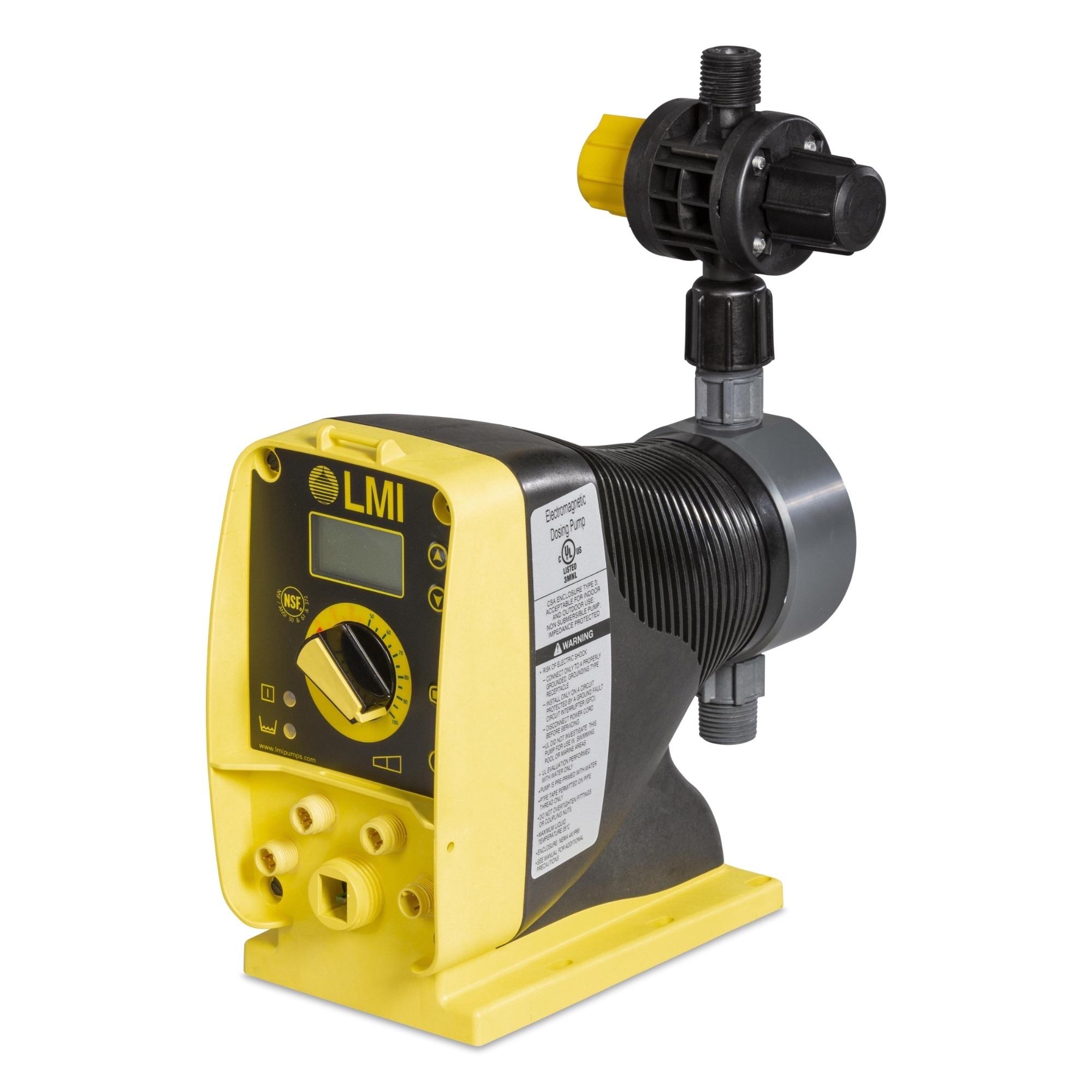

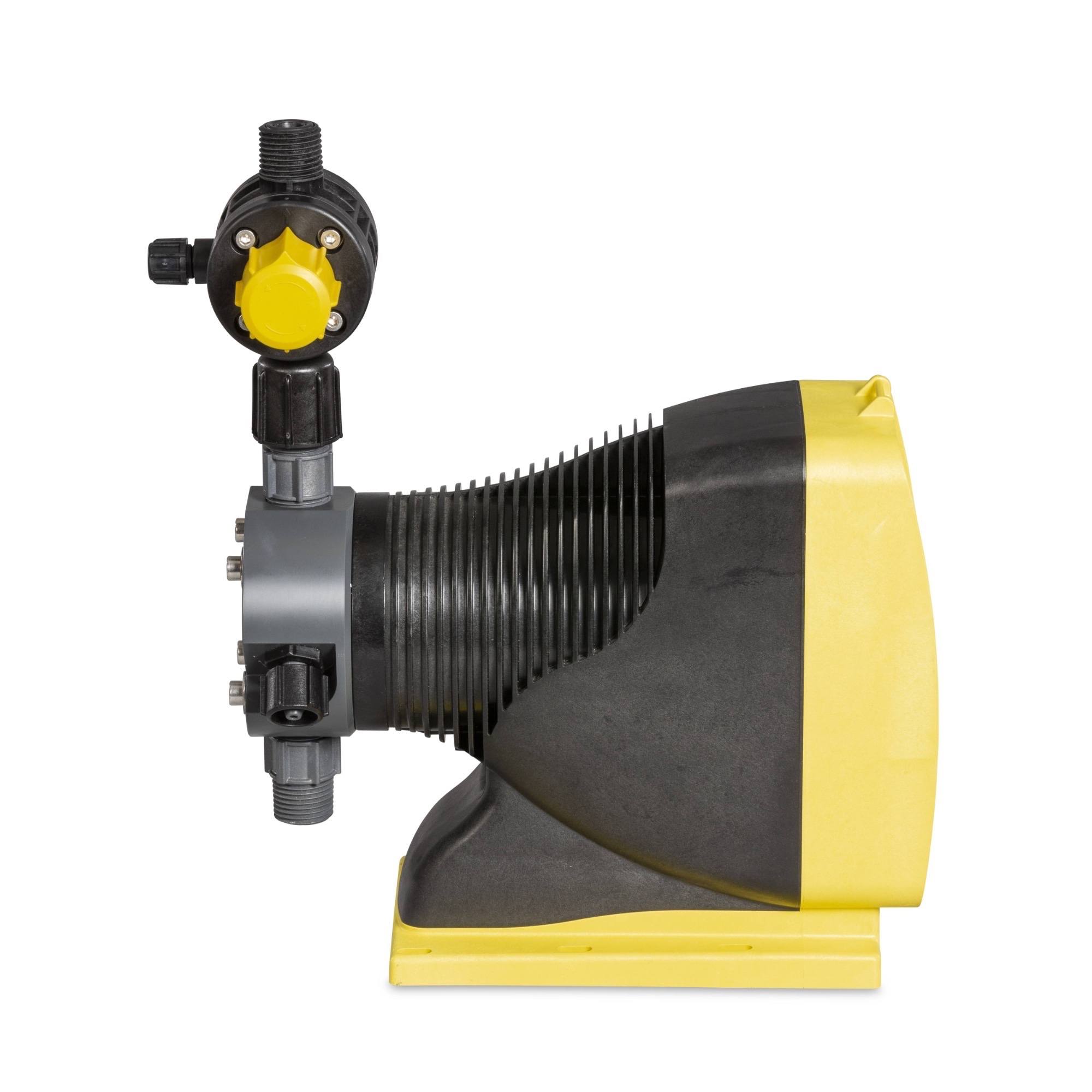

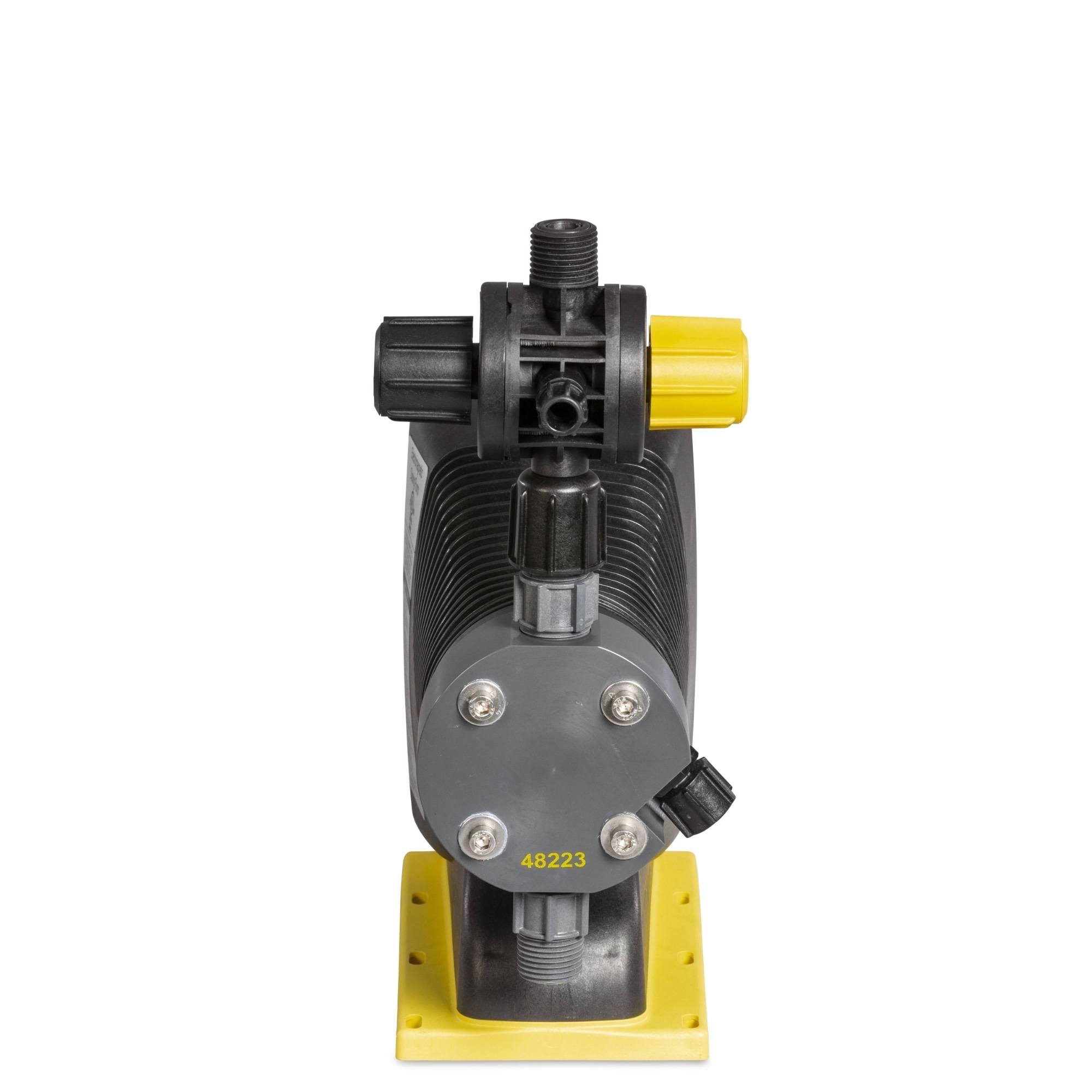

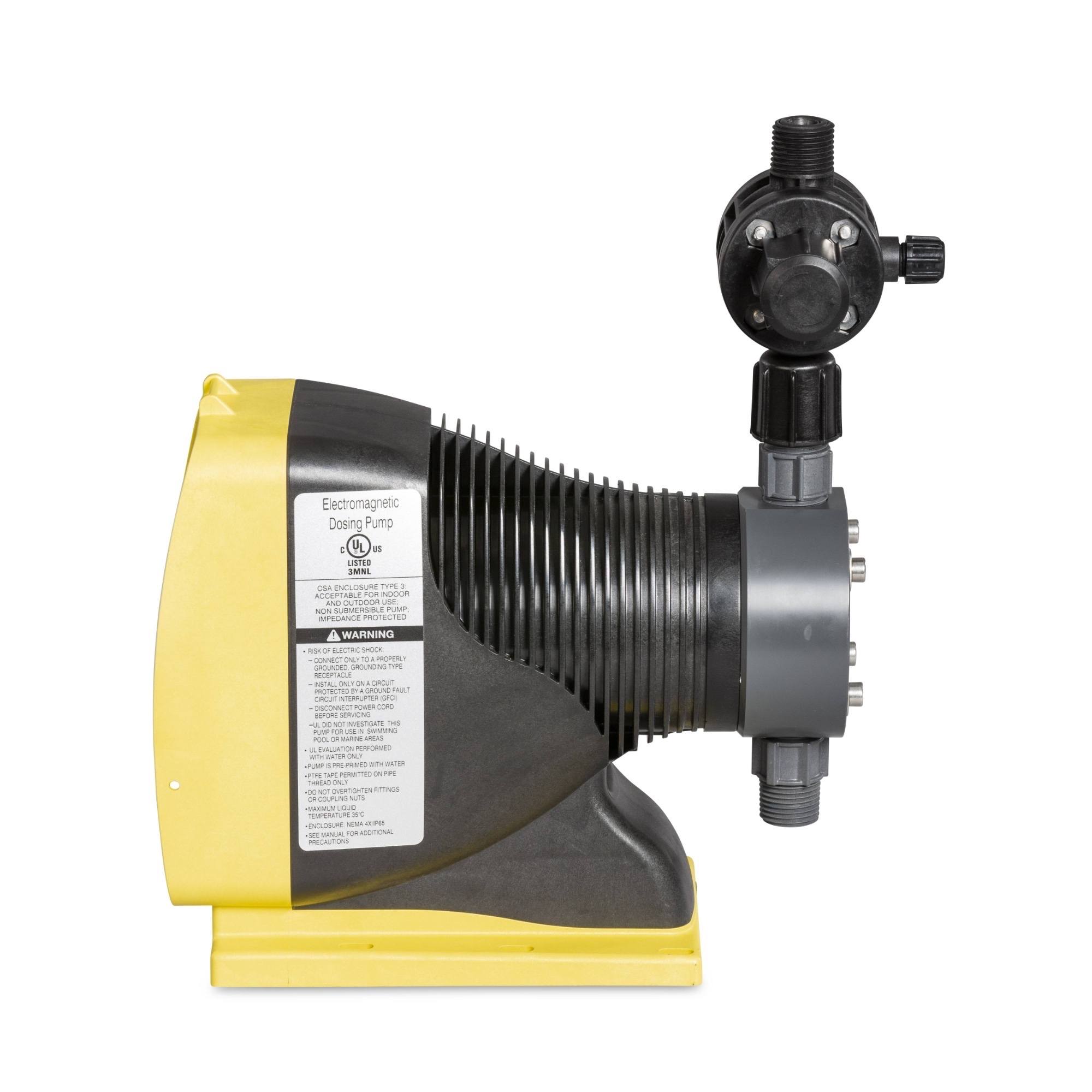

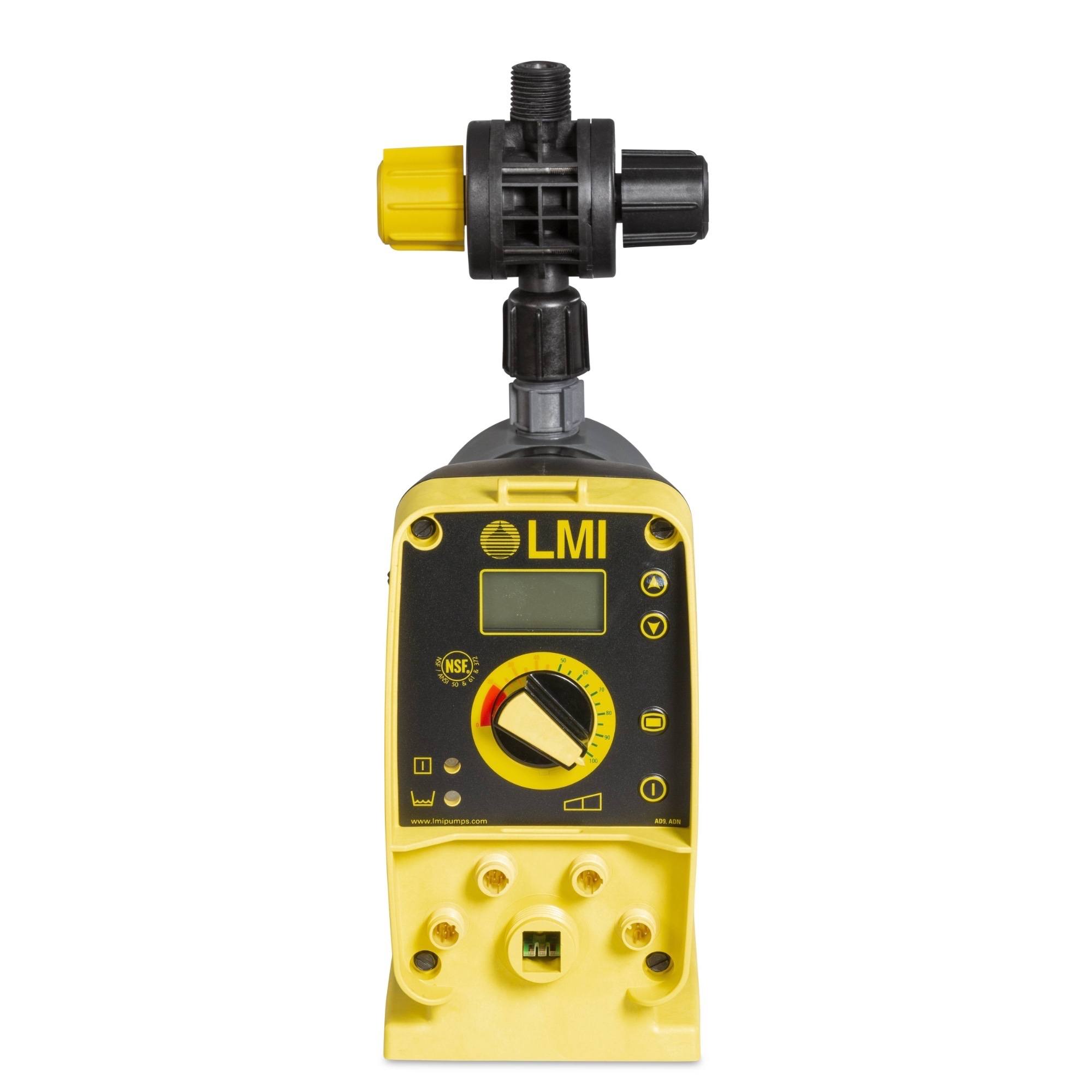

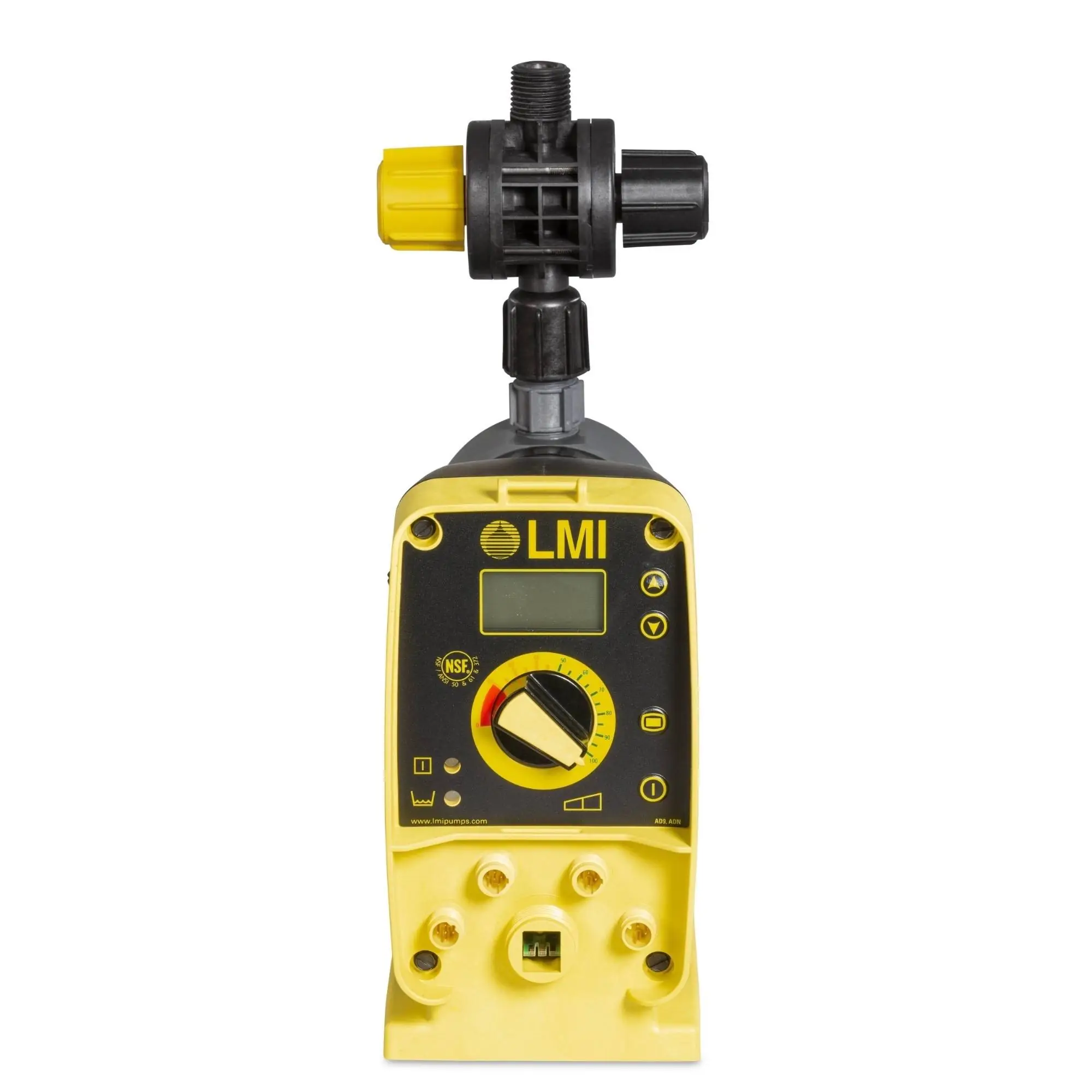

Designed specifically for commercial and industrial applications, the Excel AD chemical metering pump gives you improved electro-magnetics to meet your specific flow and pressure requirements, up to 250 psi (17.2 Bar) with capacities between .002 and 2.0 GPH (.8 to 7.6 l/h). The EXCEL AD pump provides industry solutions for more versatile chemical injection with up to 1000:1 turn-down capacity to take control of your application.
This line includes an advanced design fitting system for secure, leak-proof tubing or NPT connections. Every pump comes standard with FastPrime liquid ends. If pumping off-gassing liquids, select the (optional) AutoPrime liquid end. High-viscosity liquid ends (optional) are also available for pumping high viscosity liquids.
With an easy-to-read LCD user interface, external pacing, alarms and pulse/4-20 mA input and output capability the Excel AD pump has the power and flexibility you need to accurately perform in the harshest industrial or municipal environments.
Key Benefits
- Advanced Control
- Adjustable stroke frequency (up to 1000:1 turndown ratio)
- Digital and analog outputs for remote system control
- Easy-to-read LCD interface with clear content display
- Enhanced Reliability
- Double-ball check valves for improved accuracy
- FastPrime liquid ends for efficient priming
- Universal power supply compatibility
- Customizable Performance
- Multiple configuration options
- Application-specific adjustments
Standard Features
Core Features
- Push button controls
- LCD user interface
- Durable lockable clear cover
- Theoretical flow rate display
- NEMA 4X/IP-65 enclosure
- Industrial grade IP-68 interface
Advanced Features (9 Series)
- Backlit graphical display
- Selectable alarms
- Separate pulse/4-20 mA I/O connections
- Internal/External mode with wired output
Certifications & Warranty
- 3-year Warranty
- Certifications: UL, CUL, NSF 50, 372, 61, CE
Optional Accessories
- Valve Options
- Multi-function Valve
- AutoPrime liquid End
- High viscosity liquid end
- Monitoring & Control
- Dual low level float switch
- Digi-Pulse flow monitor
- Maintenance
- Repair & preventive maintenance kits
- Calibration columns
