Headline

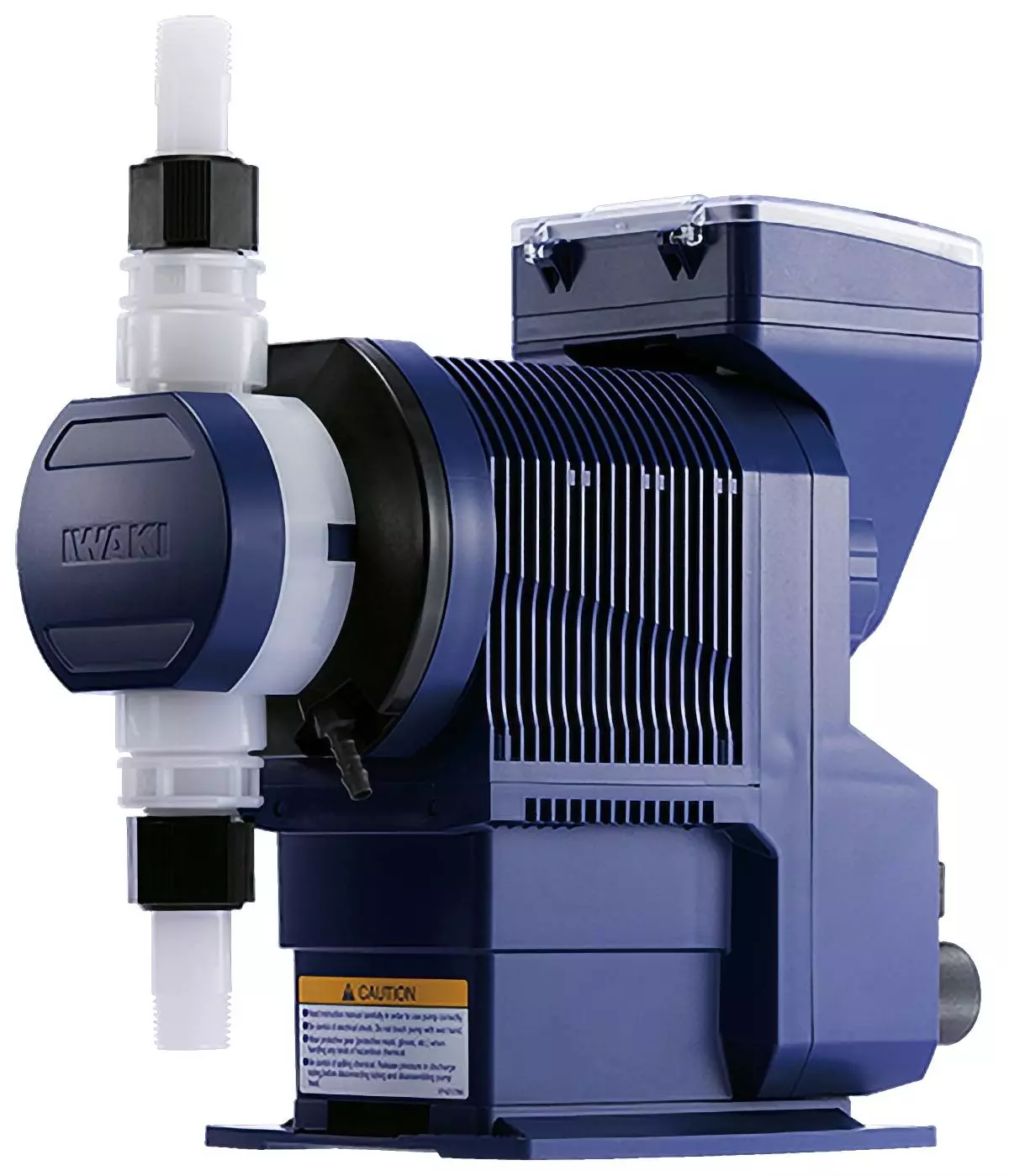

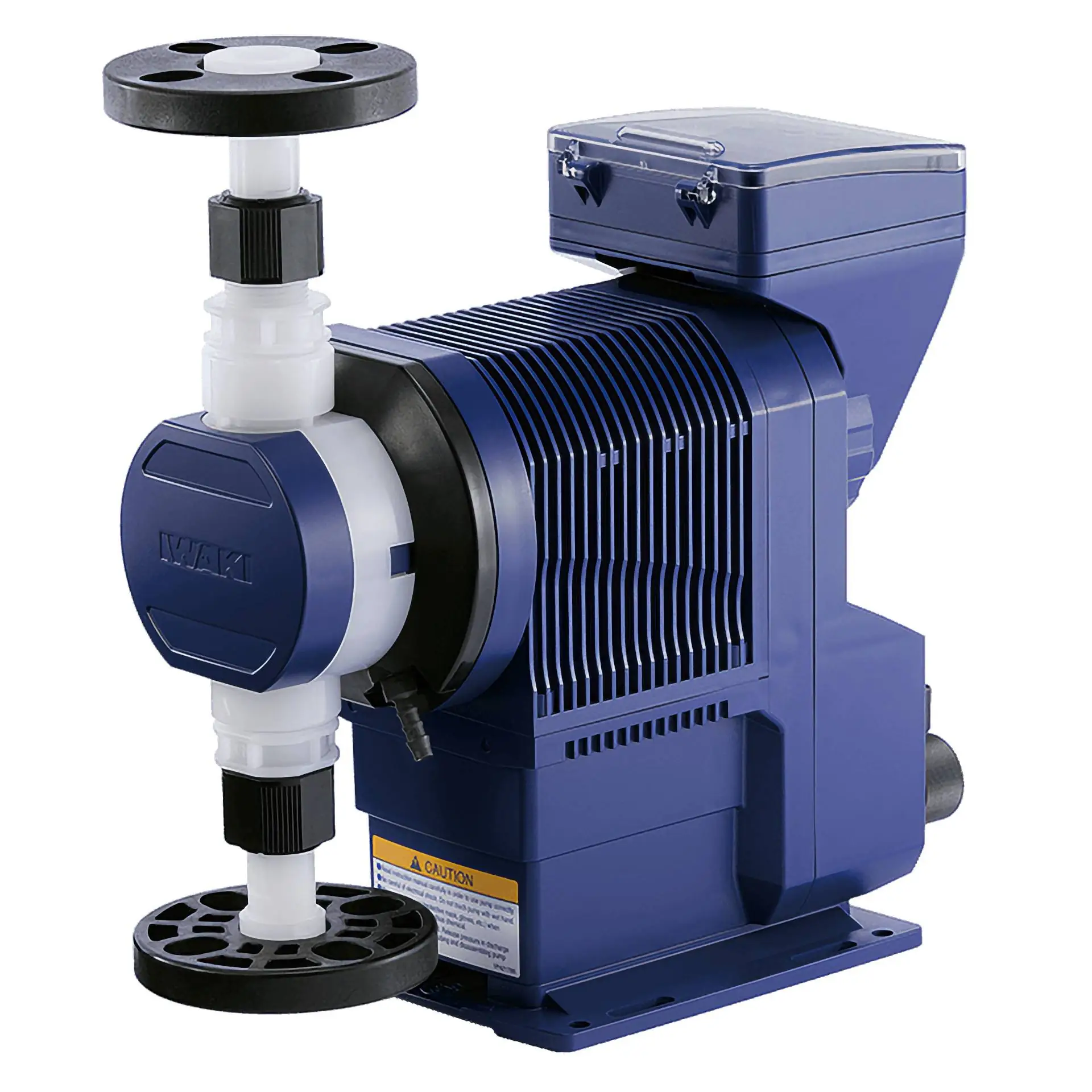

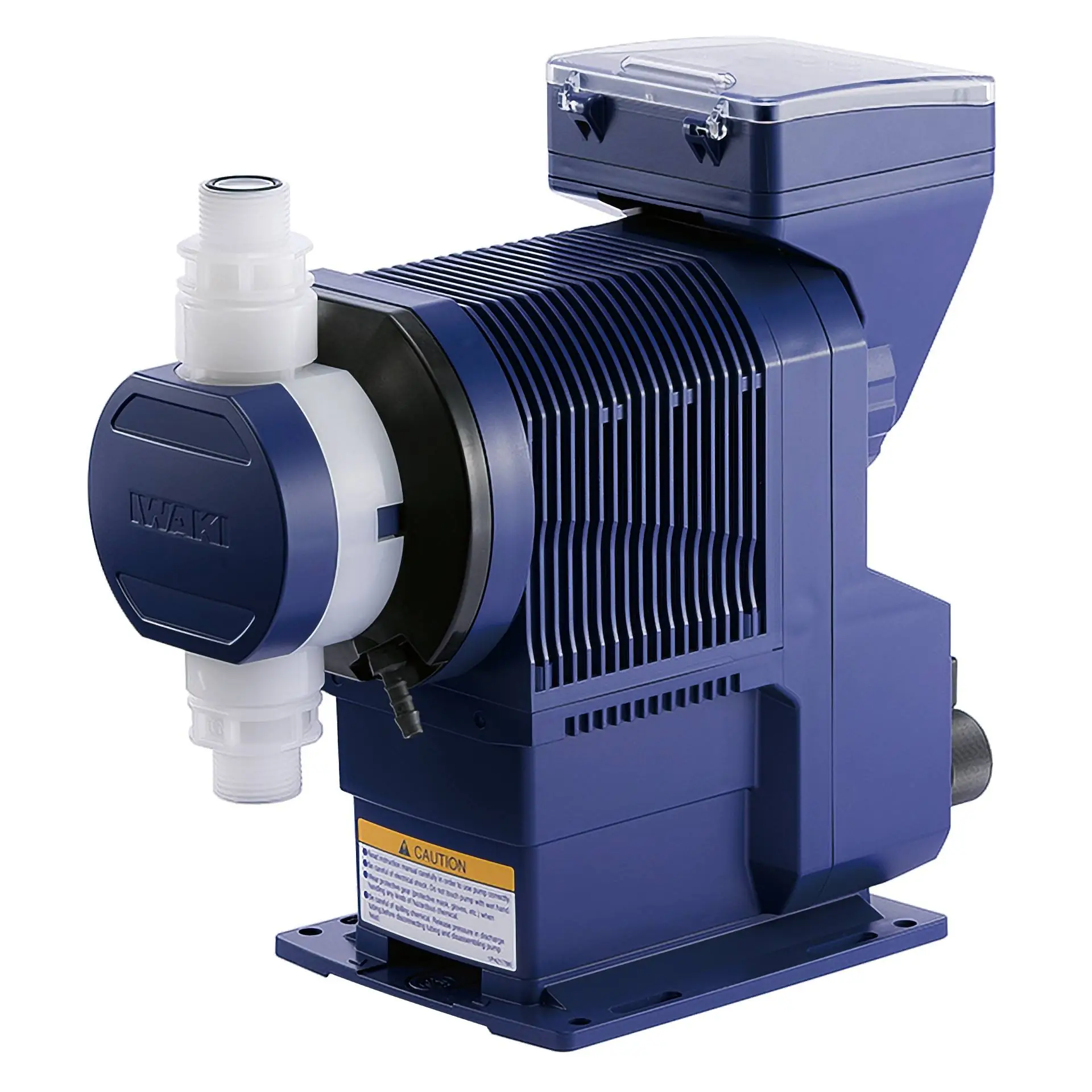

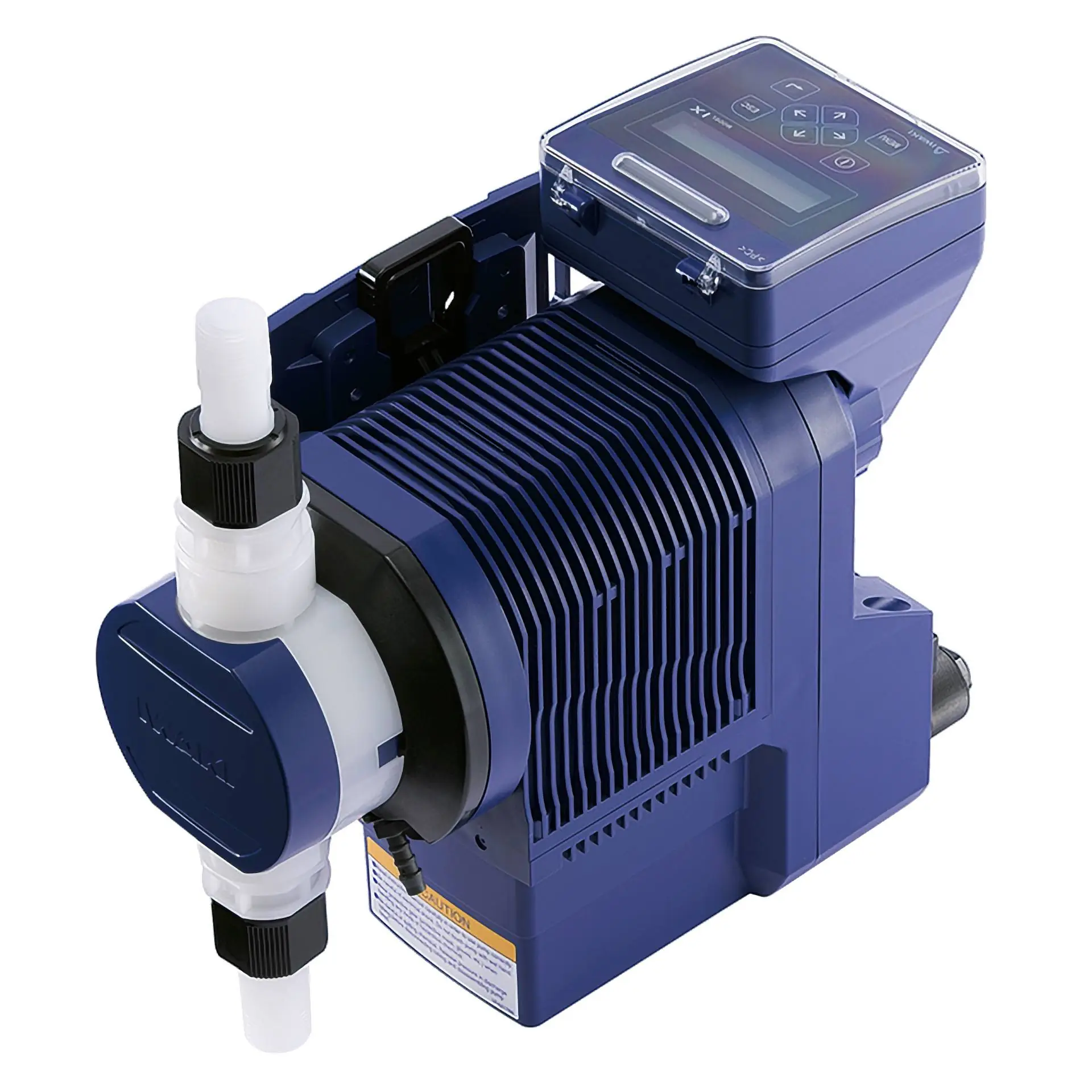

IX-Series
Iwaki's IX Series Metering Pumps are digitally controlled direct-drive diaphragm pumps. Years of experience in high-end motor technology result in extremely accurate and energy efficient metering pumps with high resolution.
The IX Series meets today's demand for automated chemical delivery in industries from water treatment to chemical process. Highly precise control offers a solution for a variety of dosing applications.
Features & Benefits
Key Benefits
Performance
-
1000:1 Turndown Ratio
- Efficient Brushless DC motors for speed control
- High resolution motor control for discharge and suction speeds
- Flow rates from 80 GPH (300 L/H) to 0.02 GPH (7.5m L/H)
-
±1% High Accuracy
- Precise motor control
- Efficient valve design
- Repeatable mechanically-driven diaphragm operation
Efficiency
- 70% Energy Savings
- Helical gears and return spring design
- Reduced power consumption versus conventional pumps
- Optimized mechanical diaphragm metering
Design
- High Compression Pump Head
- Fixed stroke length
- Proprietary liquid end design
- Maintains high compression during each stroke
- Fast priming with no gas-lock
- Full rated pressure capability
Technical Specifications
| Parameter | Value |
|---|---|
| Turndown Ratio | 1000:1 |
| Accuracy | ±1% |
| Max Flow Rate | 80 GPH (300 L/H) |
| Min Flow Rate | 0.02 GPH (7.5m L/H) |
| Energy Savings | Up to 70% |
