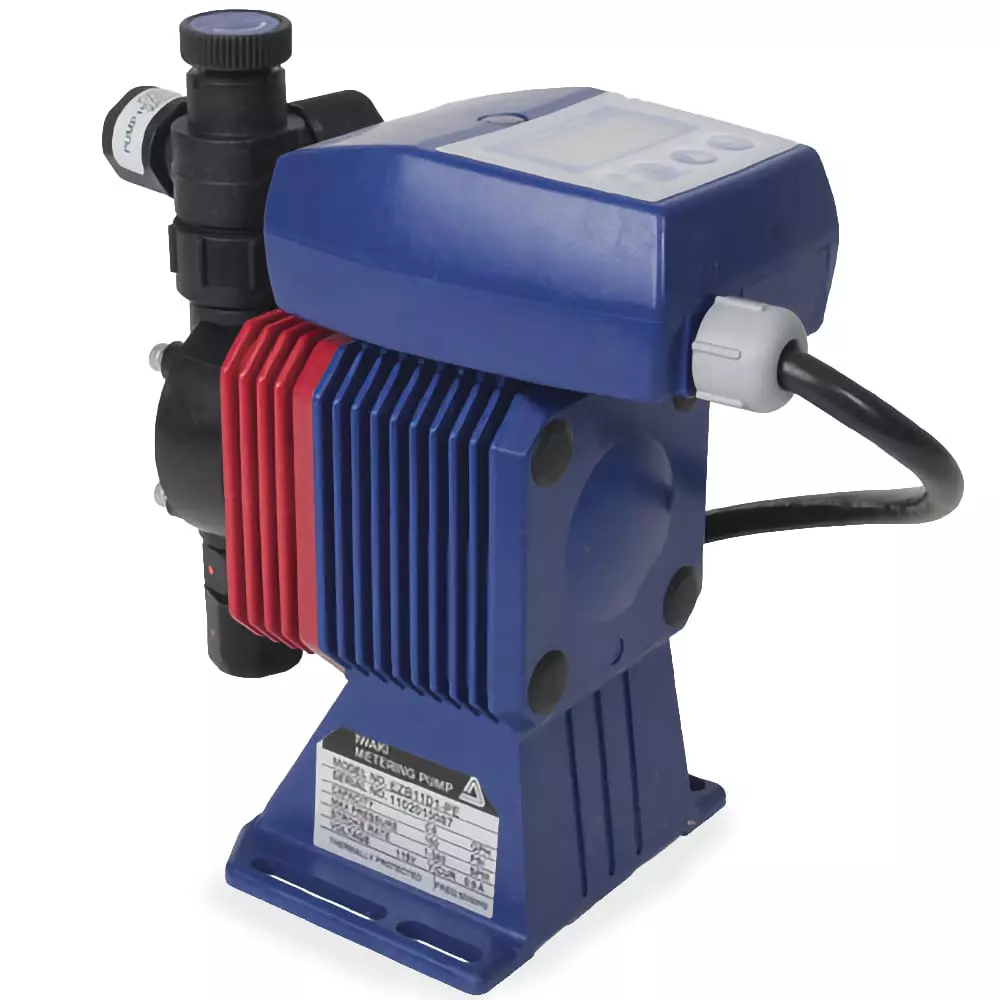

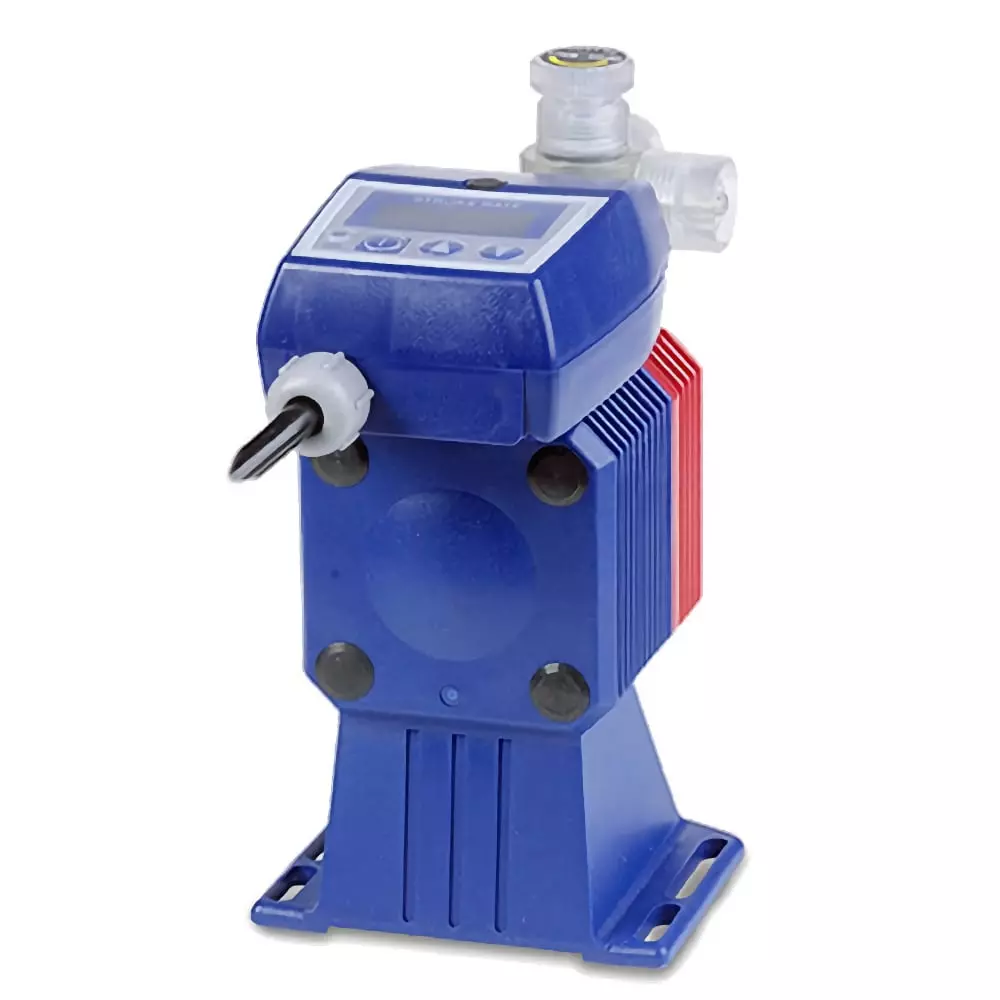

EZB11D1-PE | Metering Pump - 0.6 GPH - 150 psi - PP - EPDM

EZ Series

EZ Series electronic metering pumps offer precise chemical injection at a low cost. The compact size and simple control make them ideal for water treatment and OEM applications. EZ Series have outputs to 6.3 GPH (24 l/h) and a maximum pressure of 150 PSI (10 bar). Advanced microprocessor control and a turndown ratio of 360:1 make this series an exceptional value. The pumps are simple to operate with only three pushbutton keys and the unmatched turndown ratio provides both versatility and high resolution chemical feed which eliminates slug-feeding effects.

Key Benefits

High Speed Performance

• 360 strokes-per-minute operation
• High resolution chemical feed
• Superior to competitive products which operate at slower speeds
• Prevents slug feeding, diaphragm wear, and poor feed control

Engineered Longevity

• Dual bearing support system
  • Bearings on both ends of armature and shaft
  • Ensures proper axial movement
  • Enables 360 SPM operation
  • Extends diaphragm life

Superior Check Valve Design

• Dual Check Valve Assemblies in suction and discharge fittings
• Precision ball guides and tapered seats
• Controlled valve ball travel through precise machining
• Complete ball seating and sealing on every stroke
• Guarantees fast priming and reliable performance

Advanced Compression Technology

• High compression ratio design
  • Optimizes pump priming and venting
  • Reduces dead volume in pump head
  • Ensures proper feed with off-gassing products
  • Ideal for chemicals like Sodium Hypochlorite
