Headline

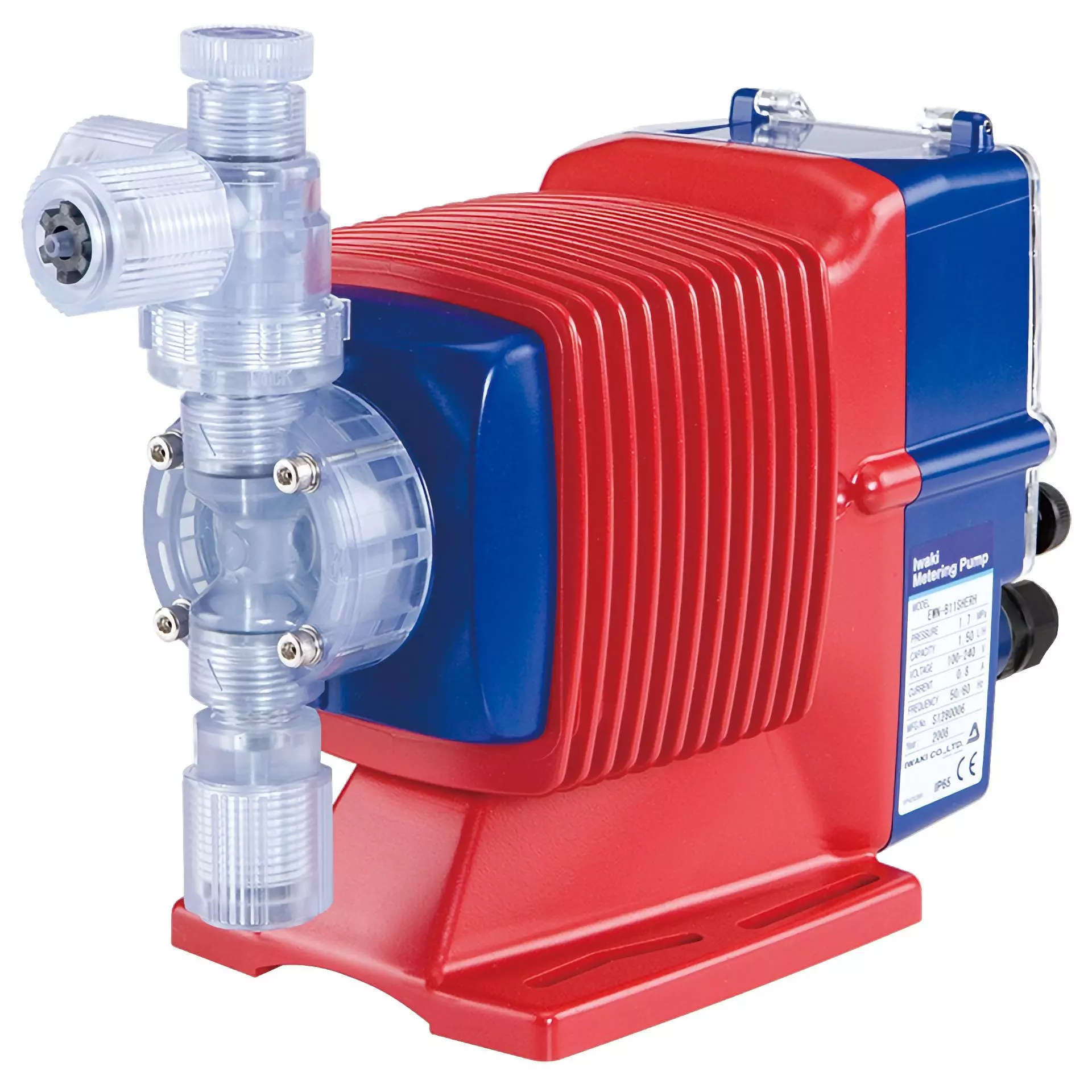

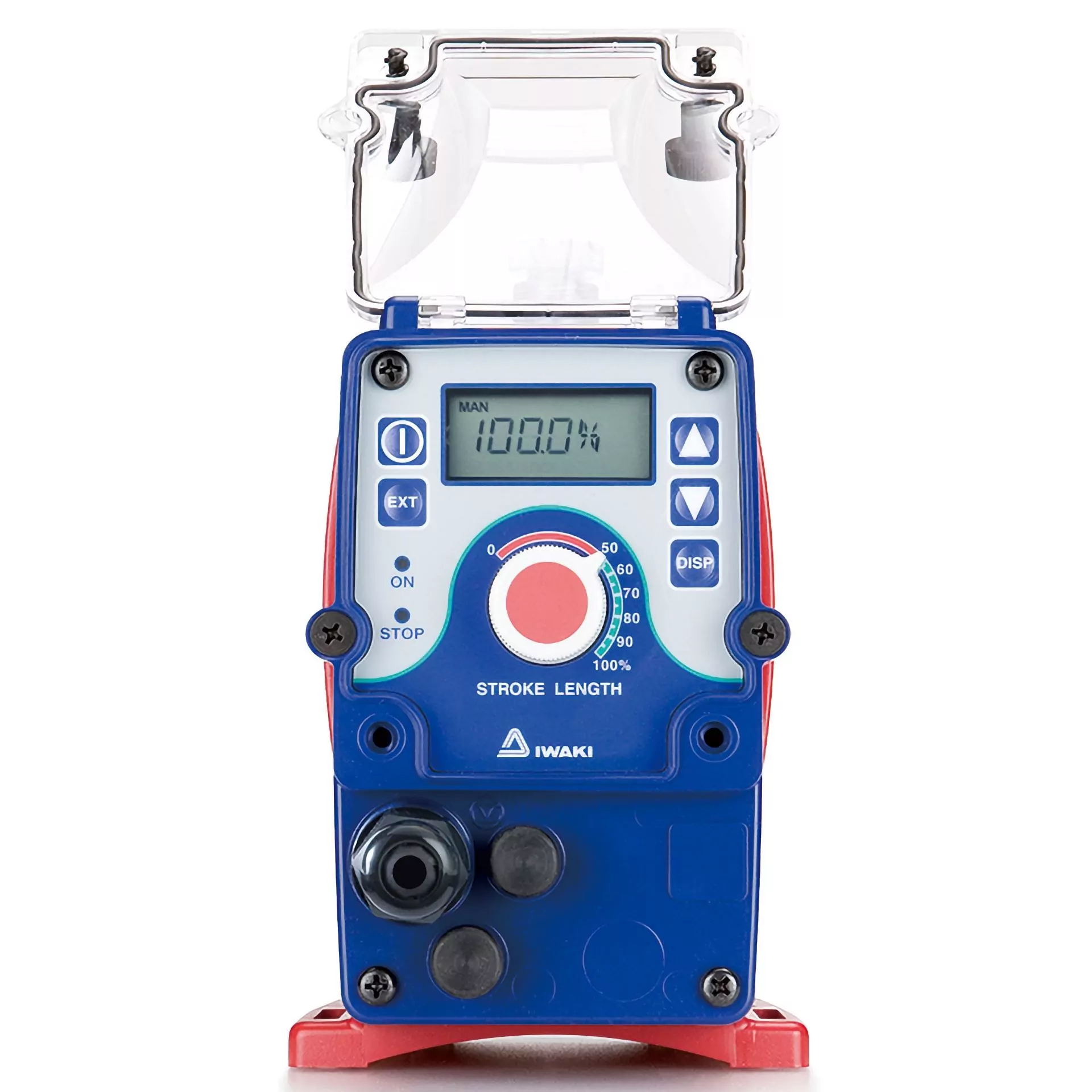

EWN-Series
The EWN Series electronic metering pumps offer superior high speed dosing capability with more standard features. The flexibility of the EWN pump enable it be integrated into virtually any chemical feed application using a universal-voltage, digital controller with an expanded set of control features. Superb valve performance and advanced solenoid engineering combine to make a highly precise pump for the most demanding applications.
Features & Benefits
Key Benefits
- High Speed Performance
- Engineered Longevity
- Superior Check Valve Performance
- Flexible Connections
- High Compression Ratio
Chemical Compatibility
Dimensional drawings
Reference Dimensions
| Material | Model | H | L | a | b | c | d |
|---|---|---|---|---|---|---|---|
| PC/PE/PA/VC/VE/VF/TC/TA | EWN-11,16, 21 | 7.83 | 10.43 | 0.94 | 6.45 | 0.9 | 1.85 |
| PC/PE/PA/VC/VE/VF/TC/TA | EWN-31 | 8.34 | 10.51 | 0.23 | 6.97 | 0.98 | 1.89 |
| PC/PE/PA/VC/VE/VF/TC/TA | EWN-36 | 8.3 | 10.51 | 0.27 | 6.93 | 0.94 | 1.89 |
| SH | EWN-11,16, 21 | 7.91 | 9.13 | 1.73 | 6.1 | 0.86 | 0.59 |
| SH | EWN-31 | 8.38 | 9.17 | 1.34 | 6.49 | 0.9 | 0.59 |
| SH | EWN-36 | 8.5 | 9.17 | 1.26 | 6.69 | 0.9 | 0.59 |
| FC | EWN-11,16, 21 | 6.53 | 9.09 | 1.57 | 6.31 | 0.9 | 0.51 |
| FC | EWN-31 | 6.97 | 9.29 | 0.9 | 6.97 | 0.98 | 0.63 |
| FC | EWN-36 | 6.97 | 9.25 | 0.9 | 6.97 | 0.94 | 0.63 |
Exploded view
