Headline

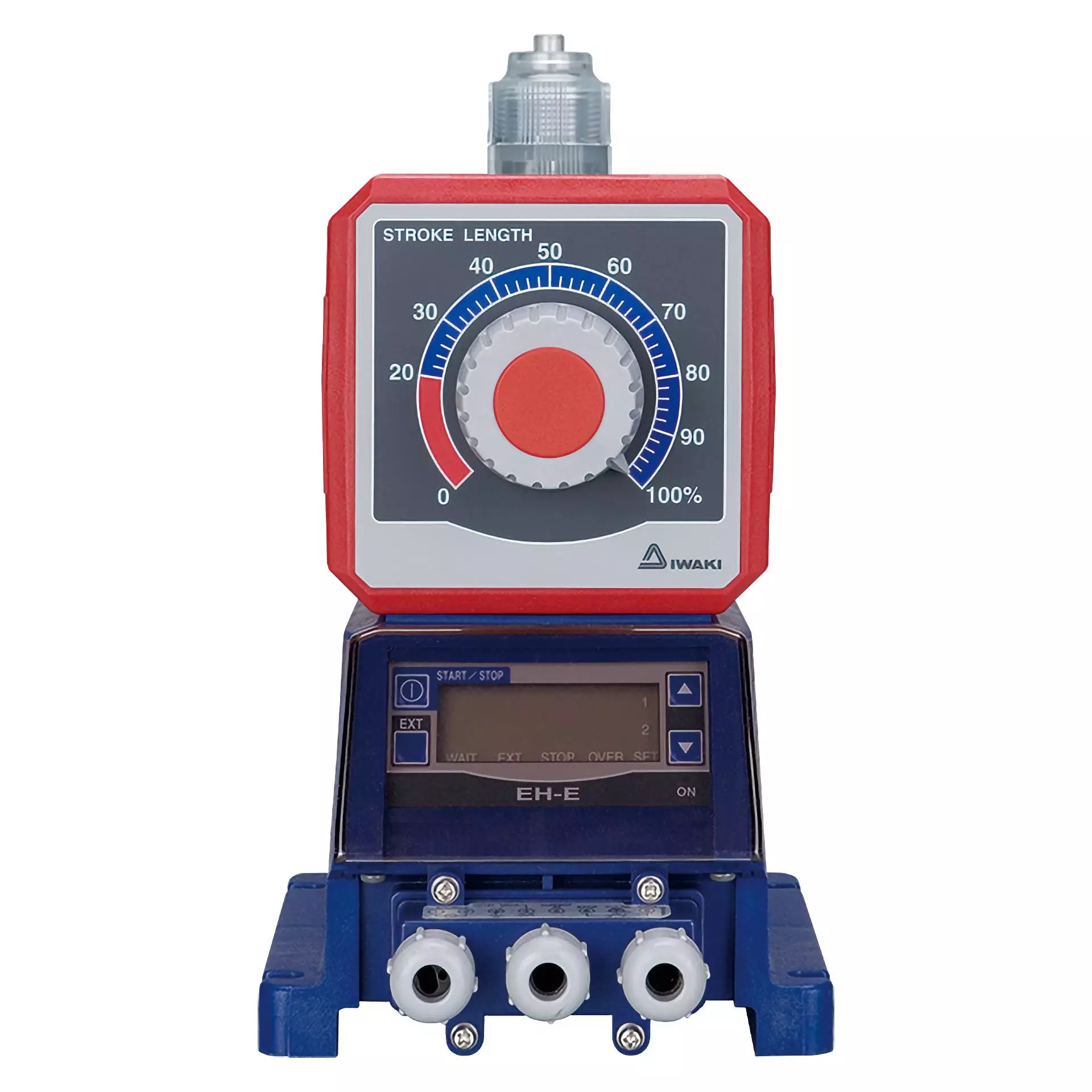

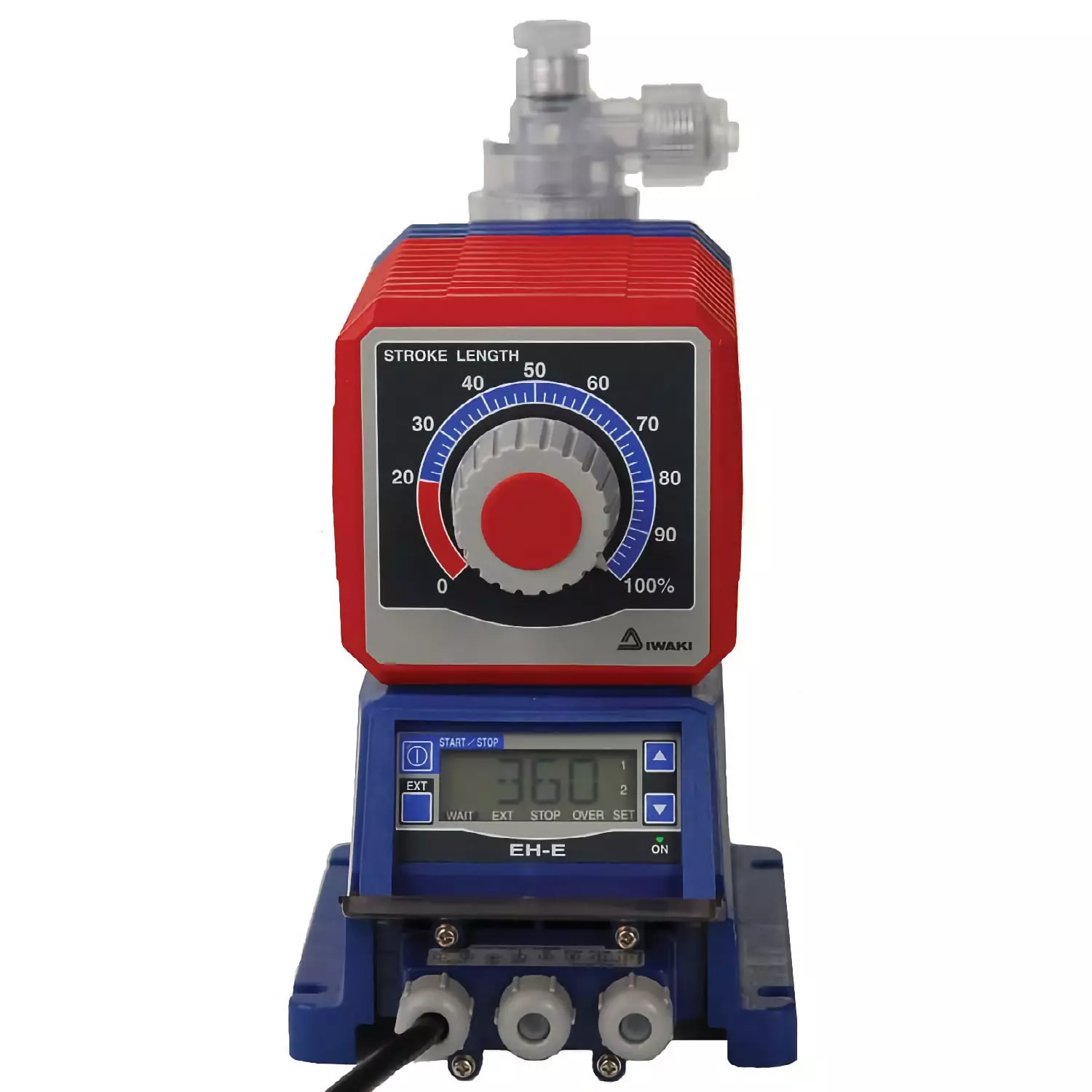

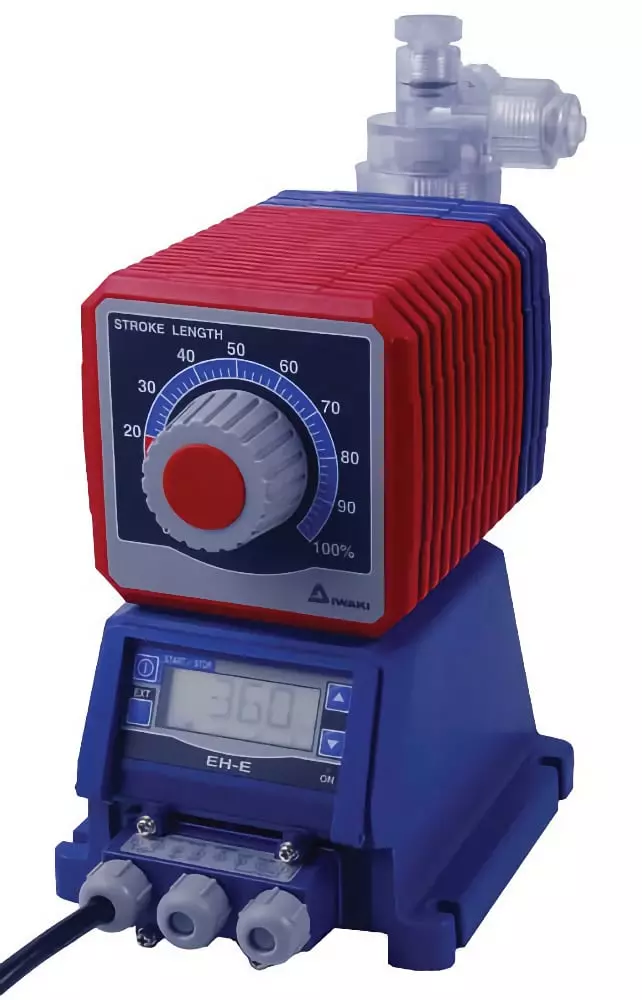

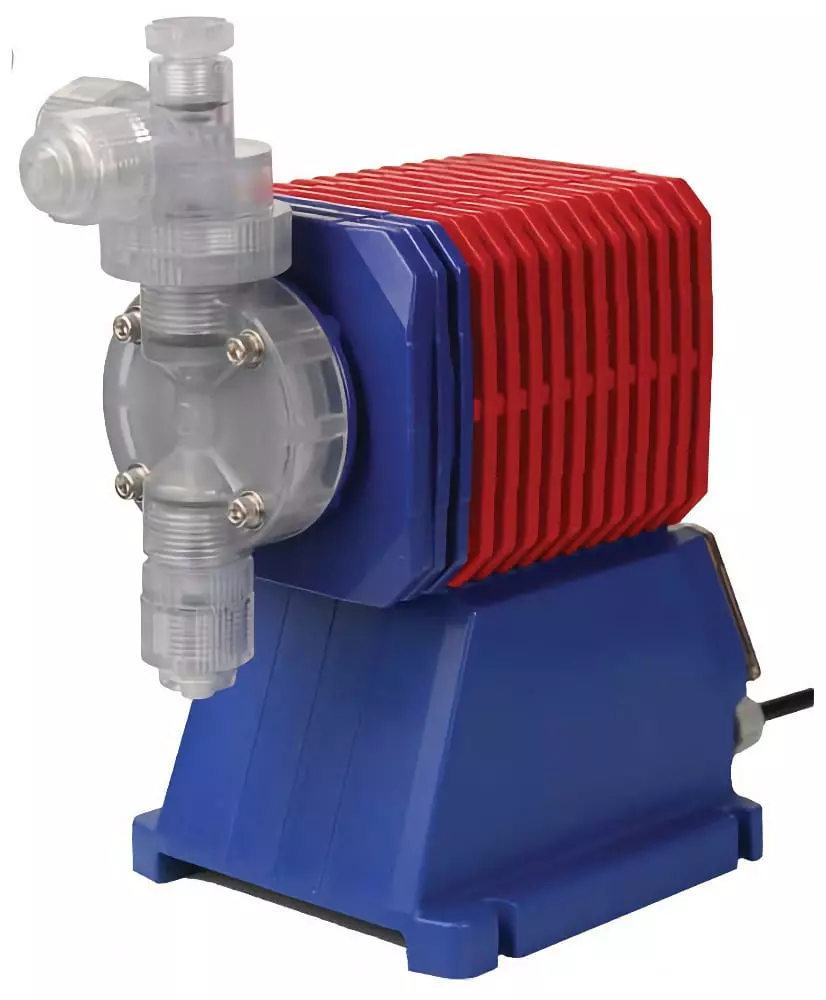

EHE-Series
The EHE is the workhorse of the E-Series metering pumps. EHE Series pumps have outputs up to 20 GPH (75 l/h) and pressure capabilities to 150 PSI (10 bar). Combining the EHE performance with a turndown ratio of 1800:1 yields one of the most versatile pumps in the water treatment industry today.
Superior mechanical design and quality manufacturing merge to create a pump better than the sum of its parts. The versatile control features enable the EHE to be integrated into virtually any chemical feed application. The 360 strokeper-minute operation results in high resolution chemical feed and long service life. EHE pumps prime in seconds and hold prime reliably
Features & Benefits
Key Benefits
High Speed Performance
- 360 strokes-per-minute operation
- High resolution chemical feed
- Superior to competitive products which operate at slower speeds
- Prevents:
- Slug feeding
- Accelerated diaphragm wear
- Poor feed control
Engineered Longevity
- Dual bearing support system
- Bearing support at both ends
- Proper axial movement
- 360 SPM operation capability
- Extended diaphragm life
Superior Check Valve Performance
- Dual Check Valve Assemblies
- Precision ball guides
- Tapered seats
- Controlled valve ball travel
- Complete seating and sealing
- Benefits:
- Fast priming
- Reliable performance
Advanced Compression Technology
- High compression ratio design
- Enhanced priming capability
- Improved venting
- Reduced dead volume in pump head
- Optimized for off-gassing products
- Ideal for Sodium Hypochlorite applications
- Ensures proper chemical feed
Chemical Compatibility
Exploded view
