TK3W-15-SS | 1/2" Truflo TKW Paddlewheel flow Meter - 316SS w/ Viton Seals - Threaded Connections - Blind - Pulse Output - 24VDC

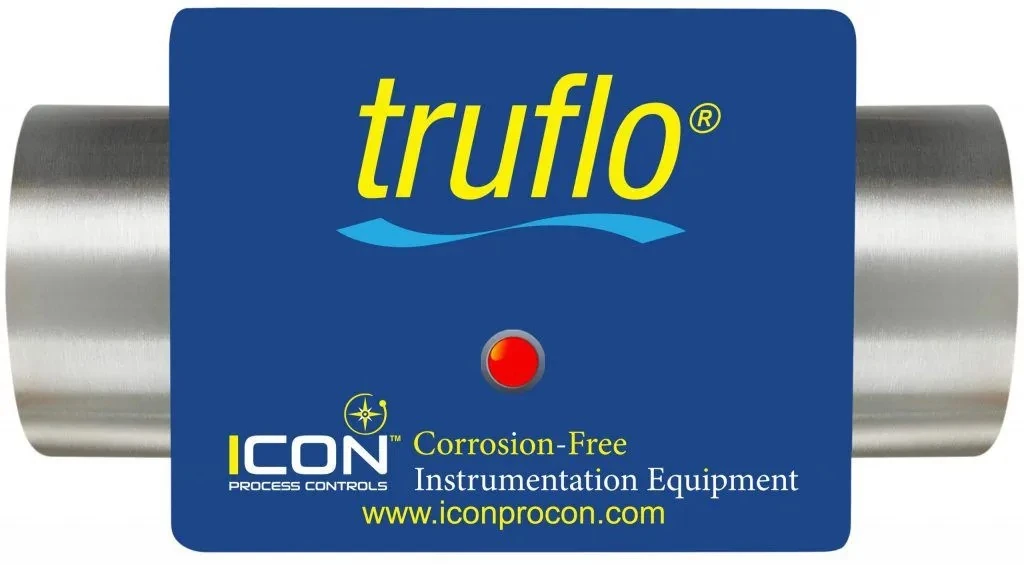

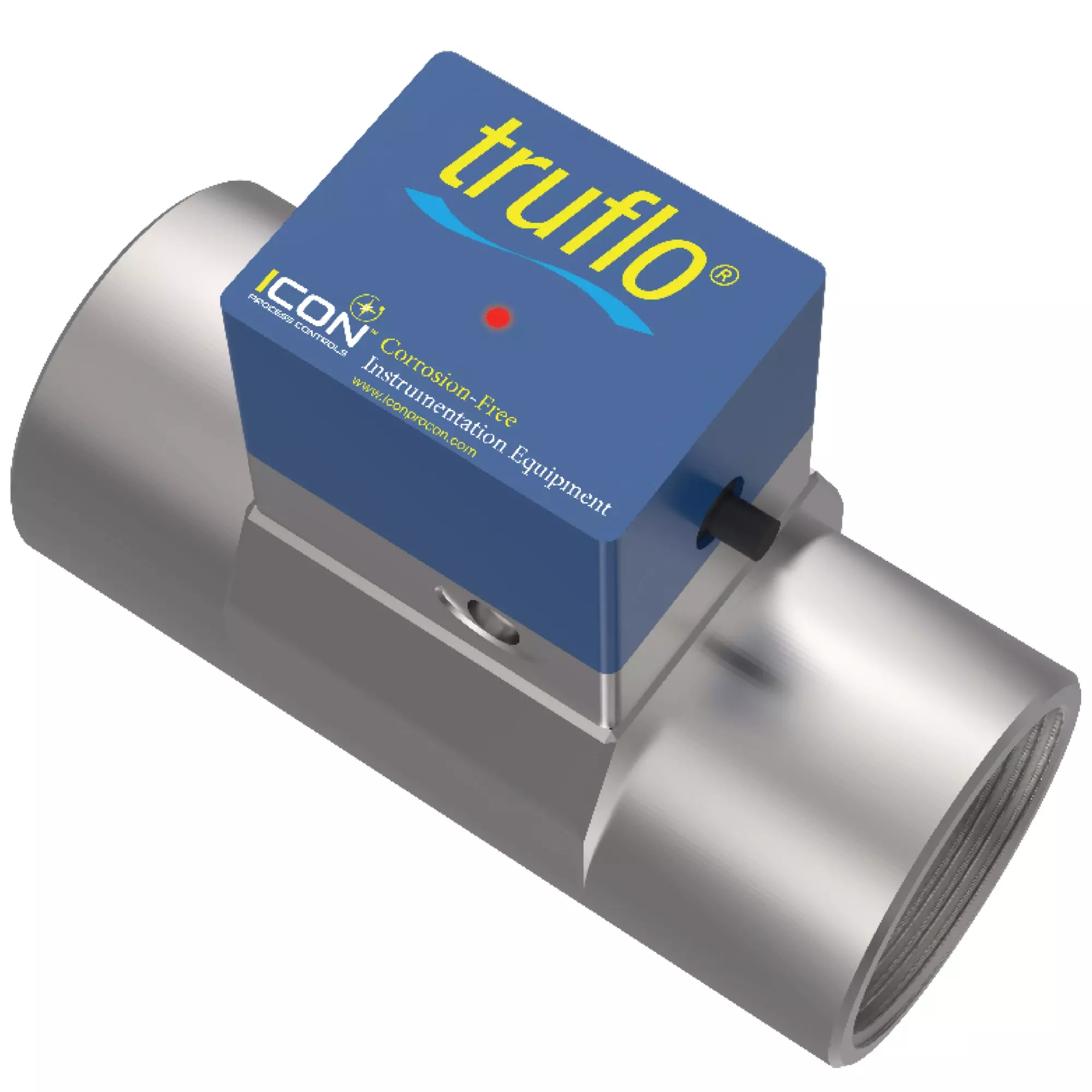

TK3W In-Line Paddle Wheel Flow Meter Sensor

The TK3W Series stainless steel paddle wheel flow meter sensor has been designed for tough industrial applications. The TK3W series paddle wheel flow meter sensor has been engineered to provide long-term accurate flow measurement of liquids. The 316SS in-line flow meter sensor is a blind unit equipped with an LED flow indicator and can provide pulse, 4-20mA or voltage outputs. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter sensor.

Icon’s paddle wheel flow meter sensors incorporate a Tefzel paddle coupled with a zirconium ceramic rotor pin and bushings. The TK3W series battery-operated liquid flow meter sensor is the industry’s longest-lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TK3W Series stainless steel flow meter sensor has a 316SS body and is available with NPT, flanged or sanitary end connections.

Key Features

Performance & Accuracy

• Industry's Highest Accuracy: +/- 0.5%
• NPN Pulse, Voltage, and 4-20mA Outputs
• No Programming Required

Durability & Materials

• Chemical Resistant Materials
  • PVC
  • PP
  • PVDF
• Tefzel Paddle Wheel
• Zirconium Ceramic Rotor and Bushings
• Life-Time Warranty on Paddle Assembly

Applications

• Liquid Chemical Flow Measurement
• Filtration Systems
• Water & Wastewater Monitoring
• Industrial Chemical Distribution
• Process Chemical Skids
• Liquid Consumption
• Discharge Verification
