TK3S-40-SS | 1-1/2" Truflo TKS Paddlewheel Flow Meter - 316SS w/ Viton Seals - Threaded Connections - LED - Flow Rate - Pulse Output - 1 Relay Output - 24VDC

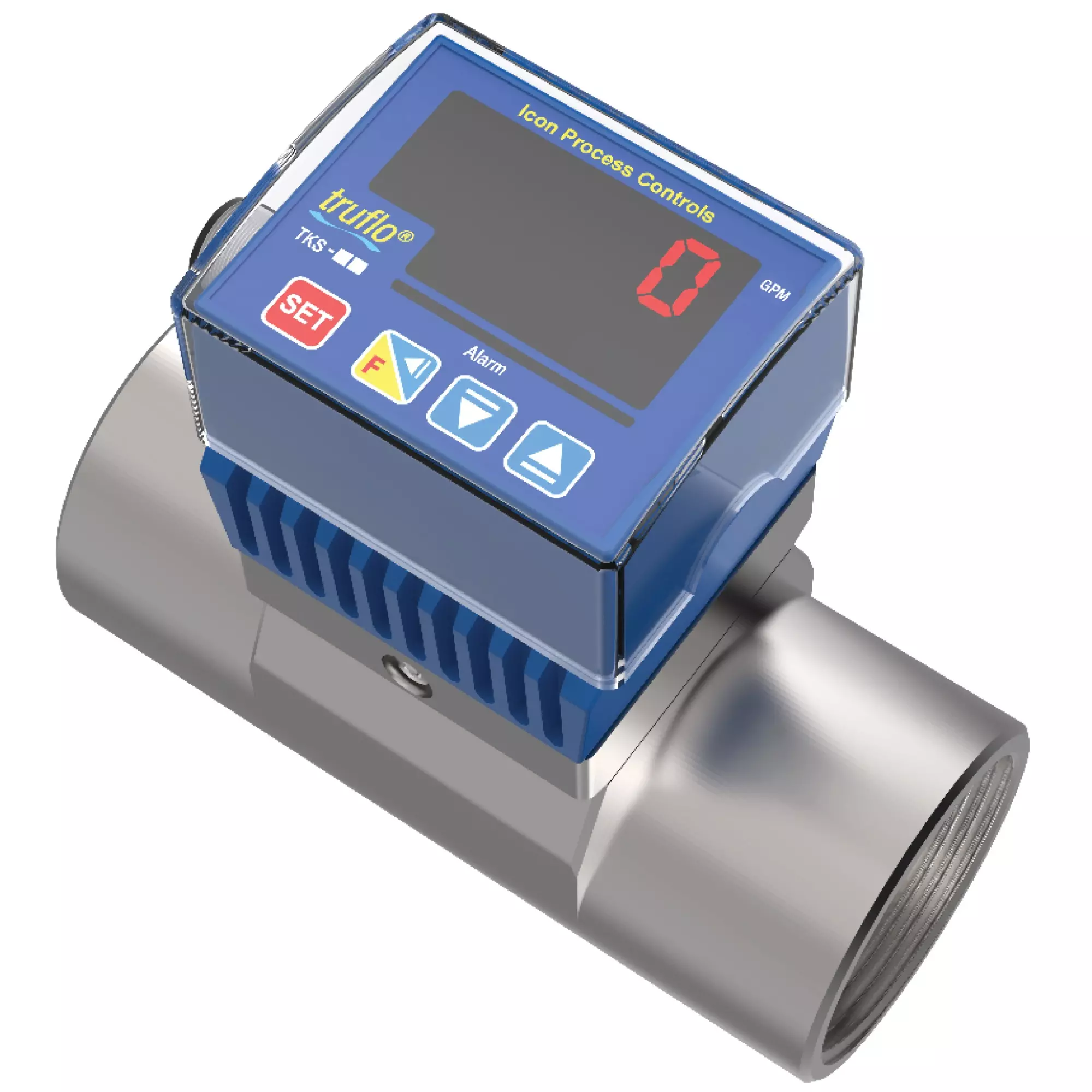

TK3S In-Line Paddle Wheel Flow Meter Sensor

The TK3S Series stainless steel digital paddle wheel flow meter sensor has been designed for tough industrial applications. The TK3S series paddle wheel flow meter sensors are engineered to provide long-term accurate flow measurements of liquids. The 316SS in-line flow meter sensor is equipped with a 360° rotatable vivid LED display showing Flow Rate and provides a pulse output and a 1 Amp relay. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter sensor.

Icon’s paddle wheel flow meter sensors incorporate a Tefzel paddle coupled with a zirconium ceramic rotor pin and bushings. The TK3S series liquid flow meter sensor, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TK3S Series stainless steel flow meter sensor has a 316SS body and is available with NPT, flanged or sanitary end connections. The TKS plastic in-line paddle wheel flow meter sensors incorporate a true-union design with body materials available in PVC, PP and PVDF.

Key Features

Performance & Accuracy

• Industry's highest accuracy: +/- 0.5%
• Frequency Pulse + 1 Amp Relay
• Bright LED Display with Flow Rate
• No Programming Required

Construction & Materials

• Chemical Resistant Materials:
  • PVC
  • PP
  • PVDF
• Tefzel Paddle Wheel
• Zirconium Ceramic Rotor & Bushings
• Life-Time Warranty on Paddle Assembly

Applications

• Liquid Chemical Flow Measurement
• Filtration Systems
• Water & Wastewater Monitoring
• Industrial Chemical Distribution
• Process Chemical Skids
• Liquid Consumption
• Discharge Verification

Technical Specifications
