TK3P-20-SS | 3/4" Truflo TKP Paddlewheel Flow Meter - 316SS w/ Viton Seals - Threaded Connections - LED - Rate & Total - Pulse Output - 24VDC

TK3P In-Line Paddle Wheel Flow Meter Sensor

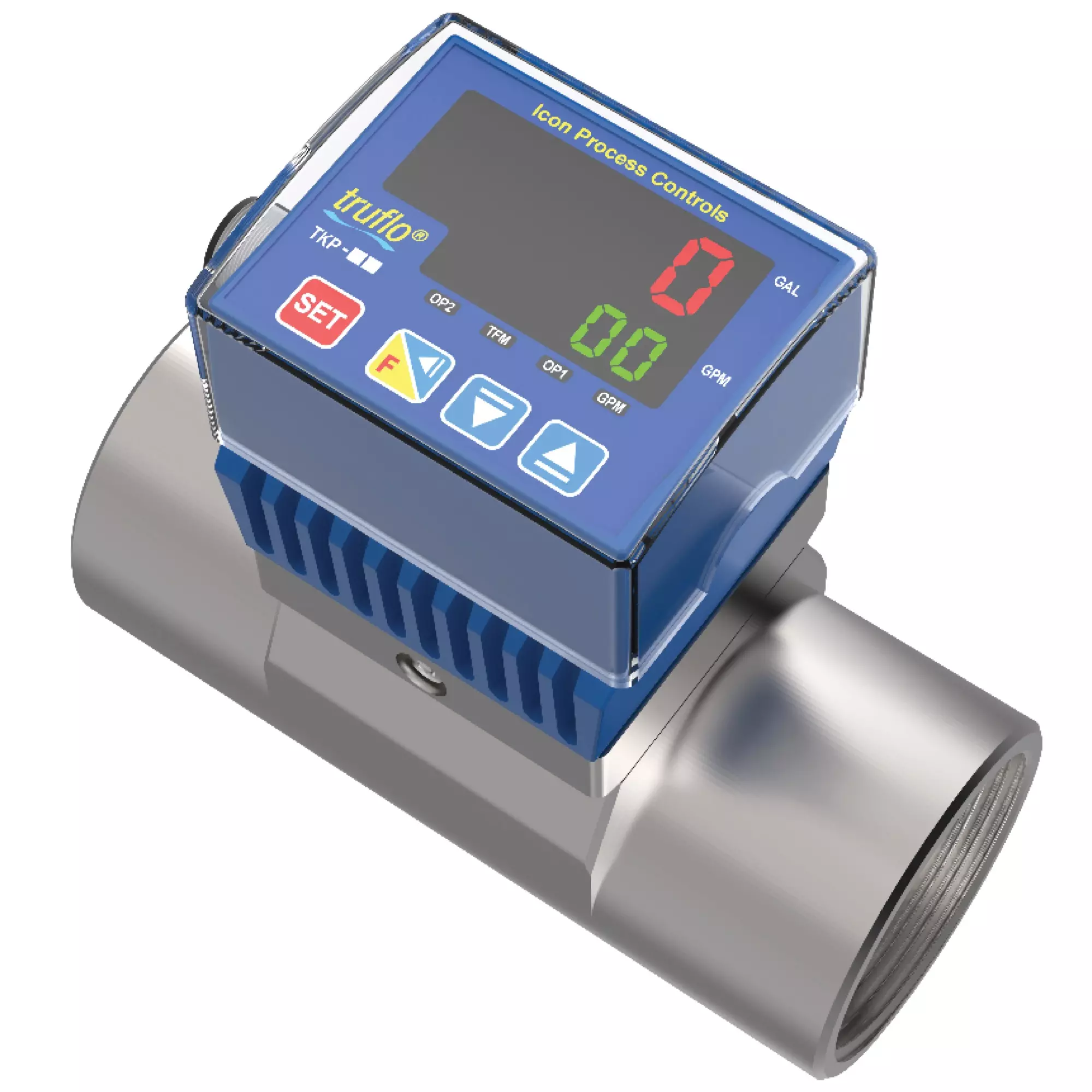

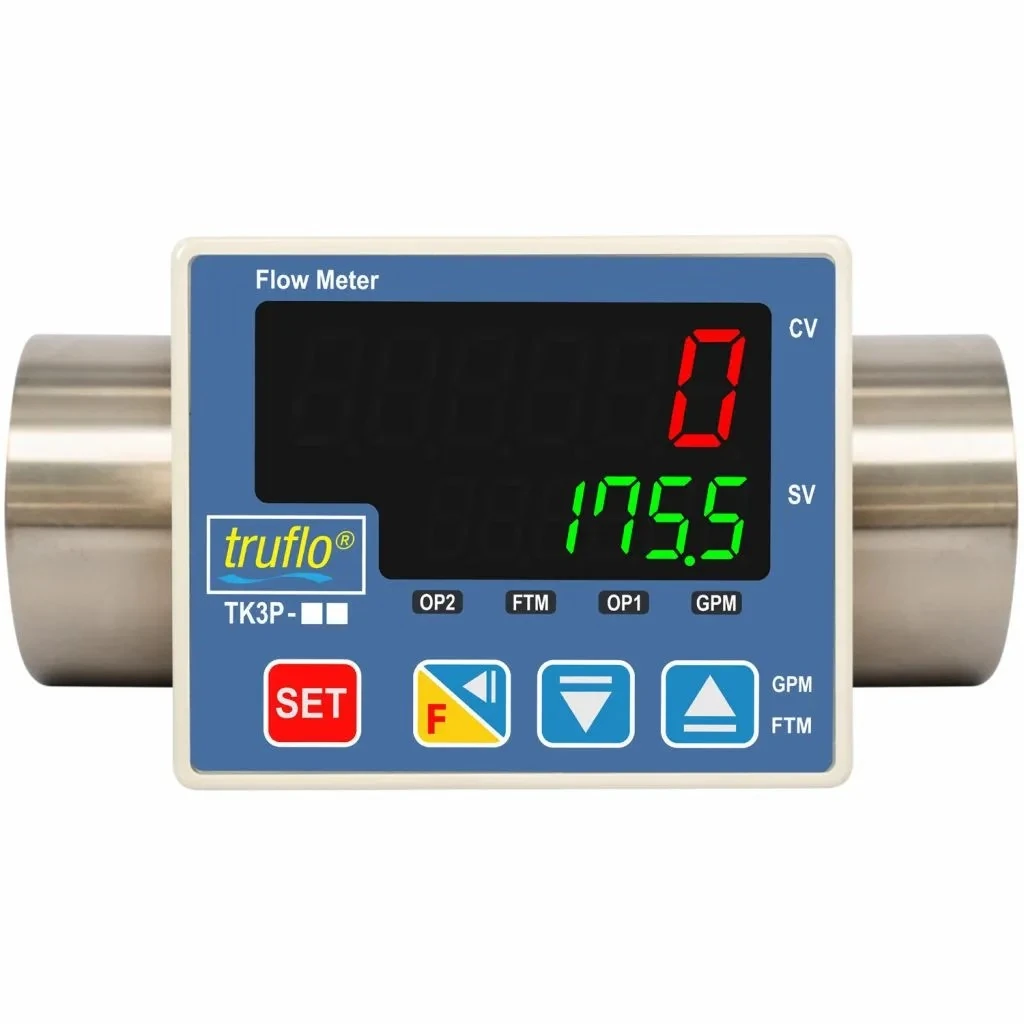

The TK3P Series stainless steel digital paddle wheel flow meter sensor has been designed for tough industrial applications. The TK3P series paddle wheel flow meter sensor has been engineered to provide long-term accurate flow measurement of liquids. The 316SS in-line flow meter sensor is equipped with a 360° rotatable vivid LED display showing both Flow Rate & Flow Total and provides a frequency pulse output. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter sensor.

Icon’s paddle wheel flow meter sensors incorporate a Tefzel paddle coupled with a zirconium ceramic rotor pin and bushings. The TK3P series liquid flow meter sensor, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TK3P Series stainless steel flow meter sensor has a 316SS body and is available with NPT, flanged or sanitary end connections. The TKP plastic in-line paddle wheel flow meter sensors incorporate a true-union design with body materials available in PVC, PP and PVDF.

Key Features

Display & Output

• Bright LED Display showing Flow Rate and Total
• Frequency Pulse Output
• Optional RS485 interface
• No Programming required

Performance & Durability

• Industry-leading accuracy: +/- 0.5%
• Life-Time Warranty on Paddle Assembly
• Tefzel Paddle Wheel
• Zirconium Ceramic Rotor and Bushings

Materials

• Chemical Resistant Construction:
  • PVC
  • PP
  • PVDF

Applications

• Liquid Chemical Flow Measurement
• Filtration Systems
• Water & Wastewater Monitoring
• Industrial Chemical Distribution
• Process Chemical Skids
• Liquid Consumption
• Discharge Verification
