TKB-40-PP-B | 1-1/2" Truflo TKB Battery Operated Paddlewheel Flow Meter - PP - Viton - Butt Fused Connections - LCD - Rate & Total

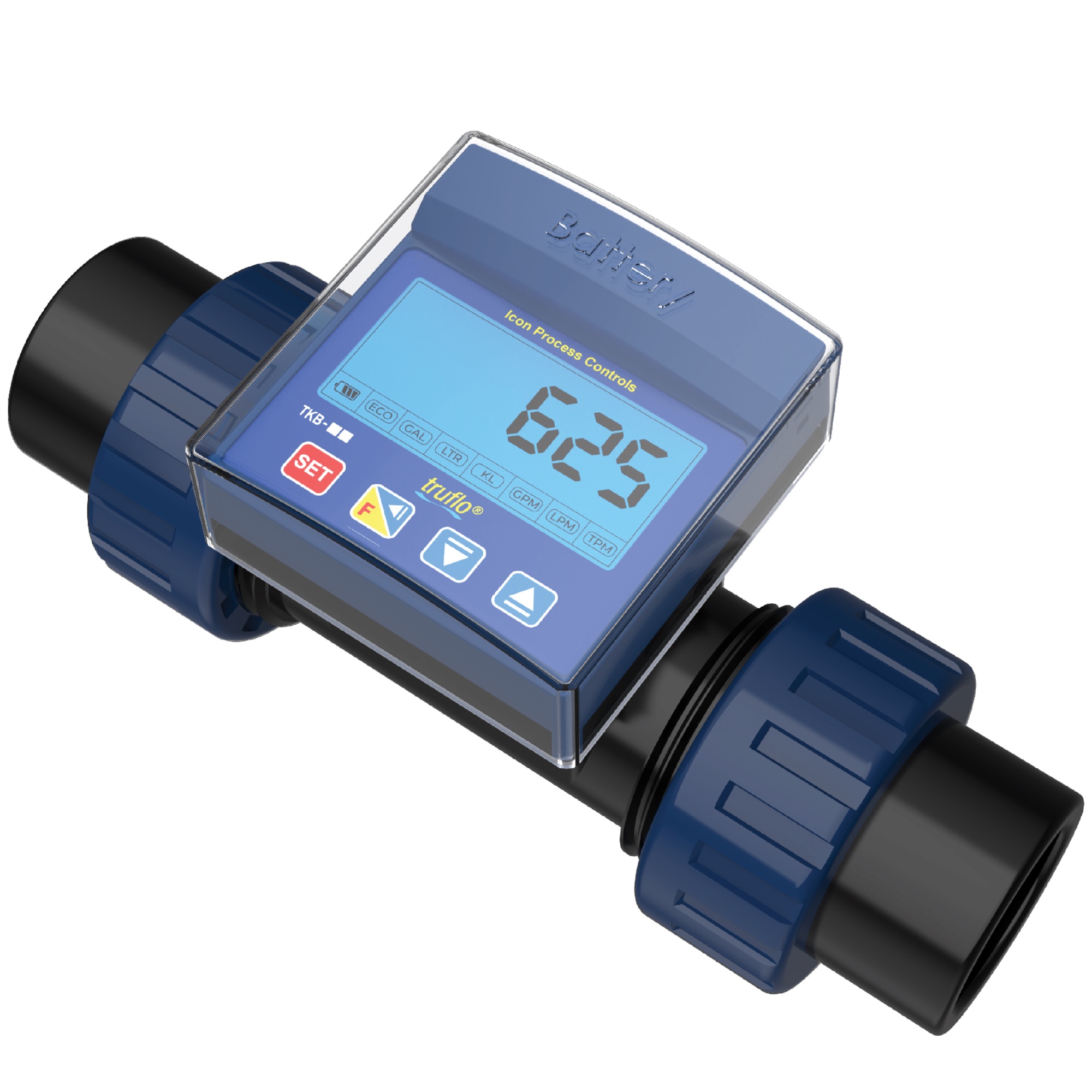

TKB In-Line Paddle Wheel Flow Meter Sensor

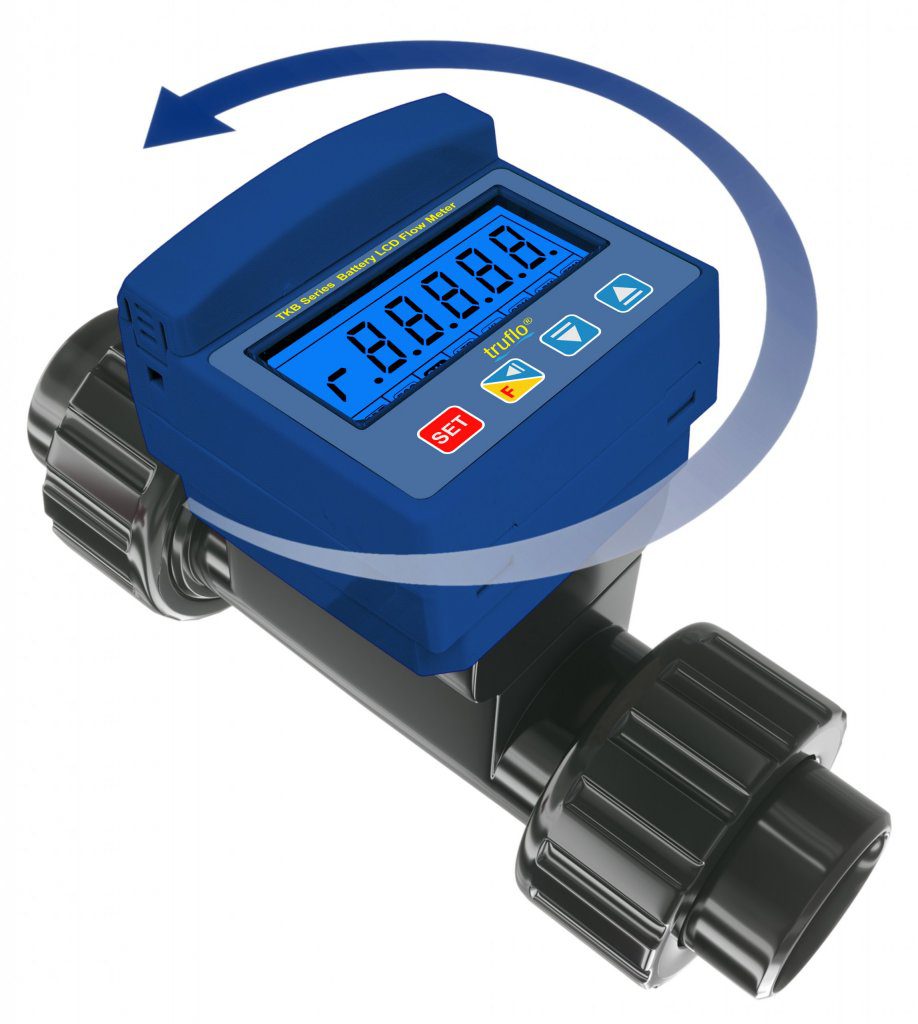

The TKB Series battery operated in-line plastic paddle wheel flow meter sensors has been designed for tough industrial applications. The TKB series paddle wheel flow meter sensor has been engineered to provide long-term accurate flow measurement for both corrosive and non-corrosive liquids. The all plastic in-line digital flow meter sensor is equipped with a 360° rotatable vivid backlit LCD display showing both Flow Rate & Flow Total. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry's most accurate flow meter sensor.

The TKB series plastic flow meter sensors incorporate an all new re-designed air-foil designed rotor that reduces turbulence and drag as the liquid passes by up to 92%. The zirconium rotor pin has been polished to a mirror finish and provides superior chemical and wear resistance over a metal pin.

It should be noted that the rotor has been outfitted with two (2) ceramic bushings. This allows for much finer rotor pin to paddle alignment and greatly reduces paddle wobble that occurs without bushings.

Icon's liquid flow meters incorporate a Tefzel paddle coupled with a zirconium ceramic rotor pin and bushings. The TKB series battery operated liquid flow meter is industry's longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TKB in-line plastic flow meter sensor incorporates a true-union design with body materials available in PVC, PP and PVDF. The TK3B Series Stainless Steel Flow Meter Sensor has a 316SS body and is available with NPT, flanged or sanitary end connections.

Key Features

Display & Operation

• Battery operated back-lit LCD display
• Flow rate and total measurement display
• No programming required

Performance & Durability

• Industry-leading accuracy: +/- 0.5%
• Life-time warranty on paddle assembly
• Tefzel paddle wheel
• Zirconium ceramic rotor and bushings

Materials

• Chemical resistant construction
  • PVC
  • PP
  • PVDF

Applications

• Liquid Chemical Flow Measurement
• Filtration Systems
• Water & Wastewater Monitoring
• Industrial Chemical Distribution
• Process Chemical Skids
• Liquid Consumption
• Discharge Verification
