TK3B-40-SS | 1-1/2" Truflo TKB Battery Operated Paddlewheel Flow Meter - 316SS w/ Viton Seals - Threaded Connections - LCD - Rate & Total

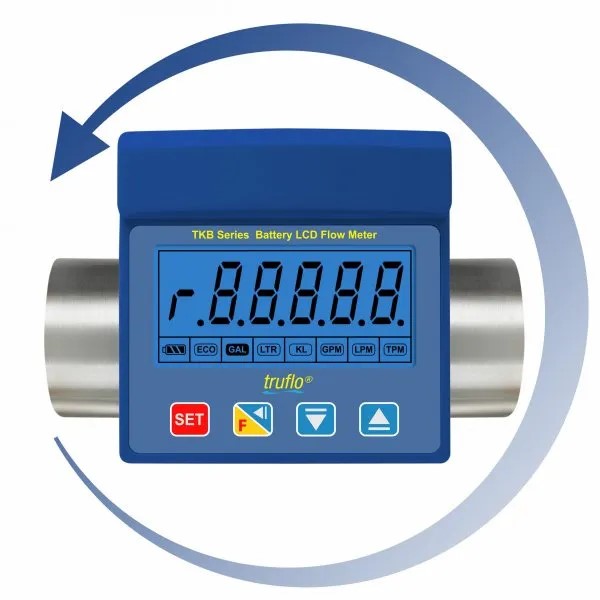

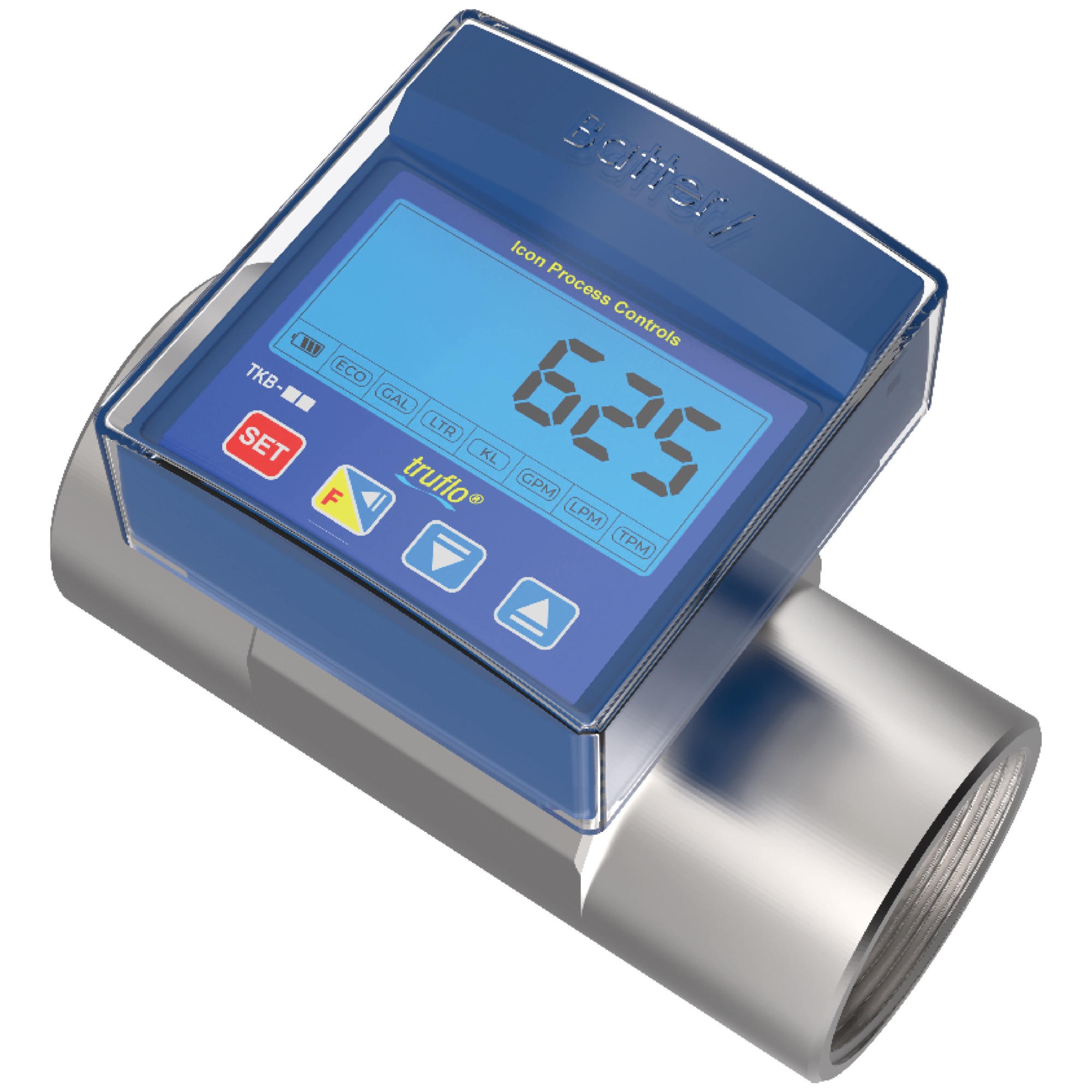

TK3B In-Line Paddle Wheel Flow Meter Sensor

The TK3B Series stainless steel battery-operated paddle wheel flow meter sensor has been designed for tough industrial applications. The TK3B series paddle wheel flow meter sensor has been engineered to provide long-term accurate flow measurement for liquids. The 316SS in-line flow meter sensor is equipped with a 360° rotatable vivid backlit LCD display showing both Flow Rate & Flow Total. The re-engineered low-drag, fluid-dynamic design of the paddle wheel allows it to stand alone as the industry’s most accurate flow meter sensor.

Icon’s paddle wheel flow meter sensors incorporate a Tefzel paddle coupled with a zirconium ceramic rotor pin and bushings. The TK3B series battery operated liquid flow meter sensor, is industry’s longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.

The TK3B Series stainless steel flow meter sensor has a 316SS body and is available with NPT, flanged or sanitary end connections. The TKB plastic in-line paddle wheel flow meter sensors incorporate a true-union design with body materials available in PVC, PP and PVDF.

Key Features

Display & Operation

• Battery operated back-lit LCD display
• Flow rate and total measurement display
• No programming required

Performance & Durability

• Industry-leading accuracy: +/- 0.5%
• Life-time warranty on paddle assembly
• Tefzel paddle wheel
• Zirconium ceramic rotor and bushings

Materials

• Chemical resistant construction
  • PVC
  • PP
  • PVDF

Applications

• Liquid Chemical Flow Measurement
• Filtration Systems
• Water & Wastewater Monitoring
• Industrial Chemical Distribution
• Process Chemical Skids
• Liquid Consumption
• Discharge Verification
