Headline

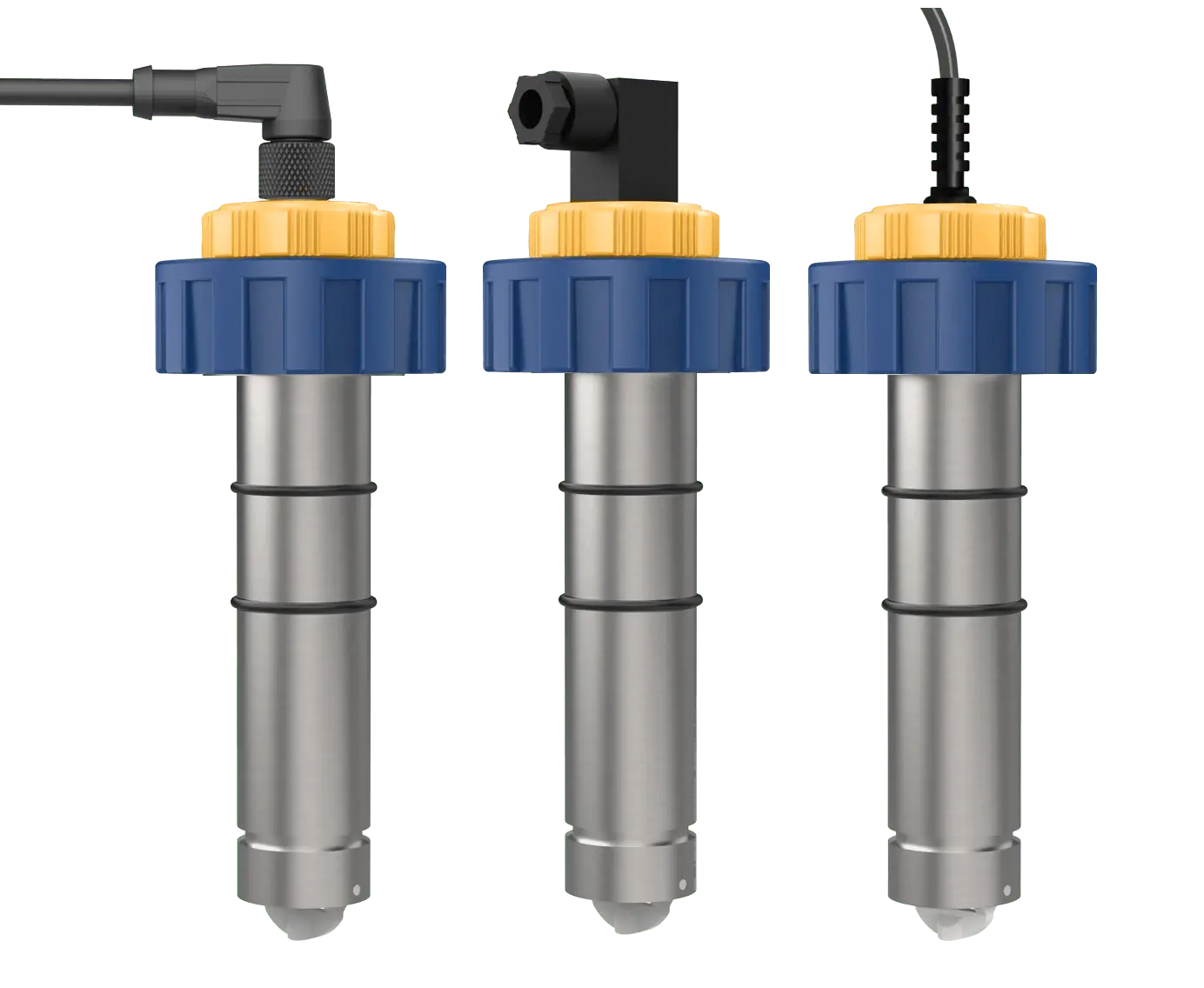

TI3W Insertion Paddle Wheel Flow Meter Sensor
The TI3W Flow Meter Sensors are easy to install with exceptional guaranteed long-life performance. The TI3W Series Paddle Wheel Flow Meter Sensors are highly repeatable, exceptionally accurate, extremely rugged and offer outstanding value and require no maintenance.
TI3W Series has a process-ready output signal with a wide dynamic flow range of 0.3 to 33 ft/s | 0.1 to 10 m/s. TI3W Series sensors are offered in various materials and are available to measure ½ – 24″ pipe sizes.
Features & Benefits
Key Features
Performance & Accuracy
- Industry's Highest Accuracy: +/- 0.5%
- Pulse Output
- Life-Time Warranty on Paddle Assembly
Materials & Construction
- Chemical Resistant Materials:
- PVC
- PP
- PVDF
- Tefzel Paddle Wheel
- Zirconium Ceramic Rotor & Bushings
Integration & Connectivity

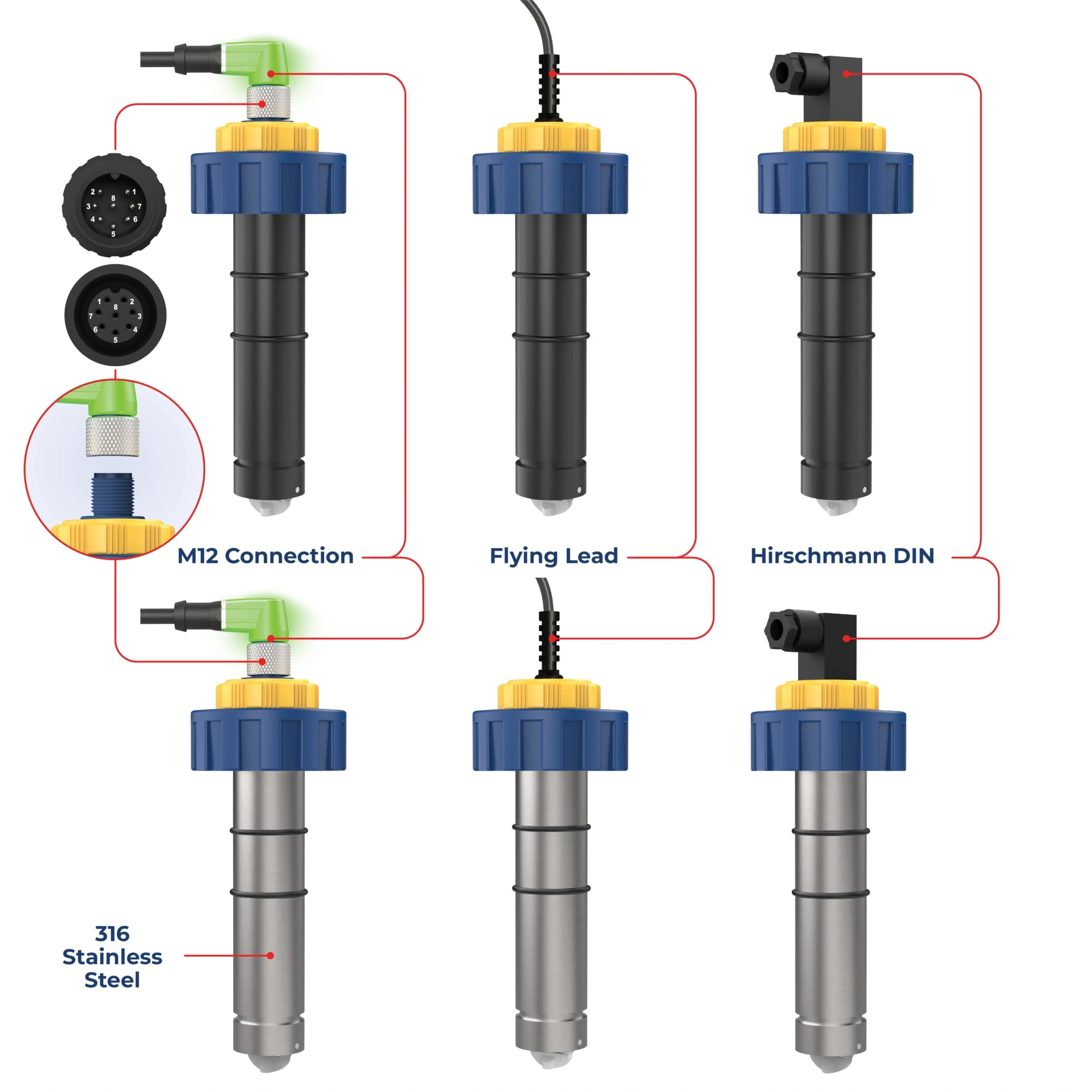

- Connection Options:
- M12
- DIN
- Flying Lead
- Retrofits into Signet Fittings
Applications
- Liquid Chemical Flow Measurement
- Filtration Systems
- Water & Wastewater Monitoring
- Industrial Chemical Distribution
- Process Chemical Skids
- Liquid Consumption
- Discharge Verification
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IPC-TI3WSSL | TI3W-SS-L | Truflo TI3W Insertion Paddlewheel Flow Meter - 316SS w/ Viton Seals - for 6" to 24" Pipe - Blind - Pulse Output - M12 Connection - 5M Cable | $1,186.25 | |
| IPC-TI3WSSLM | TI3W-SS-L-M | Truflo TI3W Insertion Paddlewheel Flow Meter - 316SS w/ Viton Seals - for 6" to 24" Pipe - Blind - Pulse Output - M12 Connection - 5M Cable | $1,186.25 | |
| IPC-TI3WSSS | TI3W-SS-S | Truflo TI3W Insertion Paddlewheel Flow Meter - 316SS w/ Viton Seals - for 1/2" to 4" Pipe - Blind - Pulse Output - M12 Connection - 5M Cable | $1,123.75 | |
| IPC-TIWPFL | TIW-PF-L | Truflo TIW Insertion Paddlewheel Flow Meter - PVDF w/ Viton Seals - for 6" to 24" Pipe - Blind - Pulse Output - DIN Connection | $1,111.25 | |
| IPC-TIWPFLE | TIW-PF-L-E | Truflo TIW Insertion Paddlewheel Flow Meter - PVDF w/ EPDM Seals - for 6" to 24" Pipe - Blind - Pulse Output - DIN Connection | $1,111.25 | |
| IPC-TIWPFLM | TIW-PF-L-M | Truflo TIW Insertion Paddlewheel Flow Meter - PVDF w/ Viton Seals - for 6" to 24" Pipe - Blind - Pulse Output - M12 Connection - 5M Cable | $1,111.25 | |
| IPC-TIWPFLME | TIW-PF-L-M-E | Truflo TIW Insertion Paddlewheel Flow Meter - PVDF w/ EPDM Seals - for 6" to 24" Pipe - Blind - Pulse Output - M12 Connection - 5M Cable | $1,111.25 | |
| IPC-TIWPFS | TIW-PF-S | Truflo TIW Insertion Paddlewheel Flow Meter - PVDF w/ Viton Seals - for 1/2" to 4" Pipe - Blind - Pulse Output - DIN Connection | $1,036.25 | |
| IPC-TIWPFSE | TIW-PF-S-E | Truflo TIW Insertion Paddlewheel Flow Meter - PVDF w/ EPDM Seals - for 1/2" to 4" Pipe - Blind - Pulse Output - DIN Connection | $1,036.25 | |
| IPC-TIWPFSM | TIW-PF-S-M | Truflo TIW Insertion Paddlewheel Flow Meter - PVDF w/ Viton Seals - for 1/2" to 4" Pipe - Blind - Pulse Output - M12 Connection - 5M Cable | $1,036.25 | |
| IPC-TIWPFSME | TIW-PF-S-M-E | Truflo TIW Insertion Paddlewheel Flow Meter - PVDF w/ EPDM Seals - for 1/2" to 4" Pipe - Blind - Pulse Output - M12 Connection - 5M Cable | $1,036.25 | |
| IPC-TIWPL | TIW-P-L | Truflo TIW Insertion Paddlewheel Flow Meter - PVC w/ Viton Seals - for 6" to 24" Pipe - Blind - Pulse Output - DIN Connection | $623.75 | |
| IPC-TIWPLE | TIW-P-L-E | Truflo TIW Insertion Paddlewheel Flow Meter - PVC w/ EPDM Seals - for 6" to 24" Pipe - Blind - Pulse Output - DIN Connection | $623.75 | |
| IPC-TIWPLM | TIW-P-L-M | Truflo TIW Insertion Paddlewheel Flow Meter - PVC w/ Viton Seals - for 6" to 24" Pipe - Blind - Pulse Output - M12 Connection - 5M Cable | $623.75 | |
| IPC-TIWPLME | TIW-P-L-M-E | Truflo TIW Insertion Paddlewheel Flow Meter - PVC w/ EPDM Seals - for 6" to 24" Pipe - Blind - Pulse Output - M12 Connection - 5M Cable | $623.75 |
