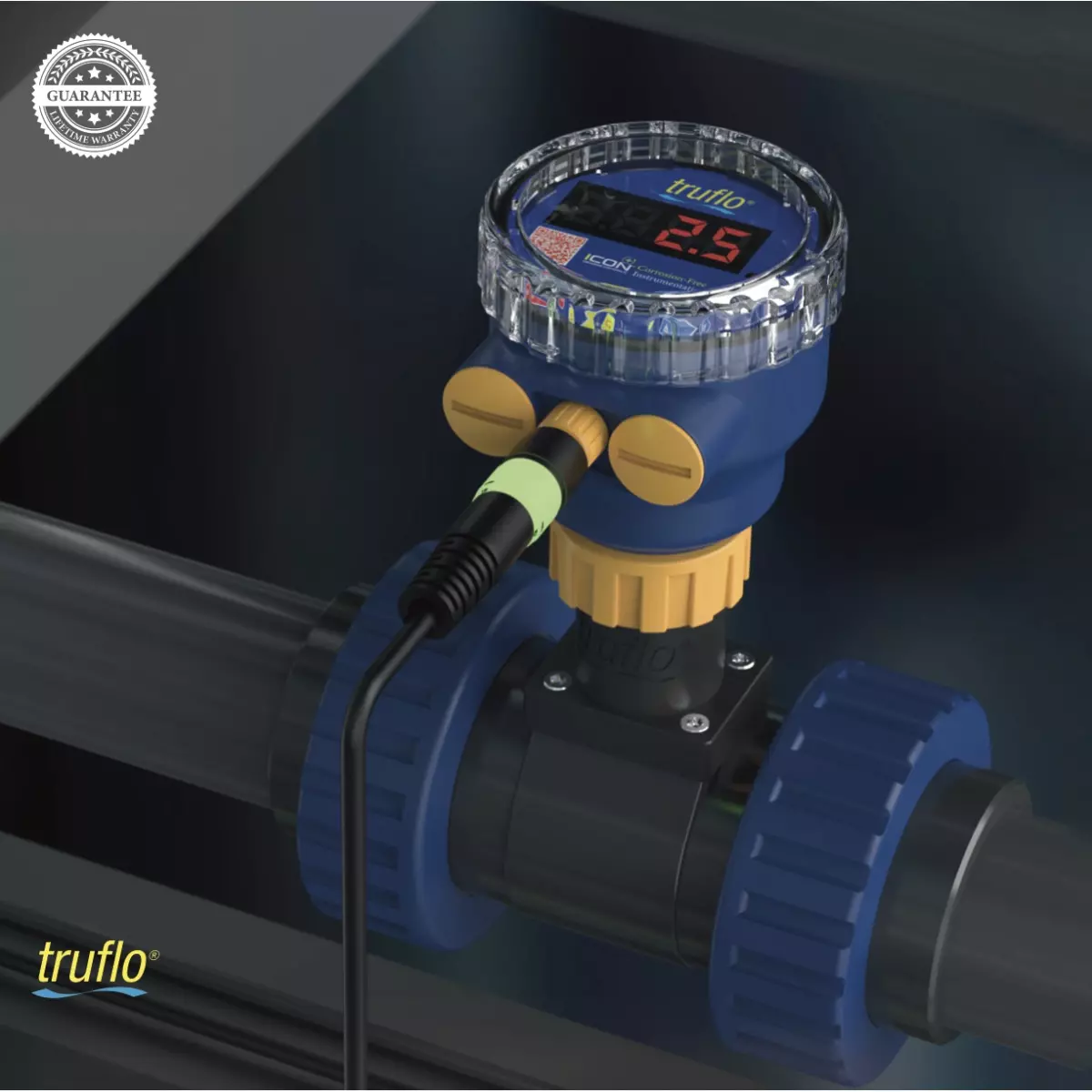

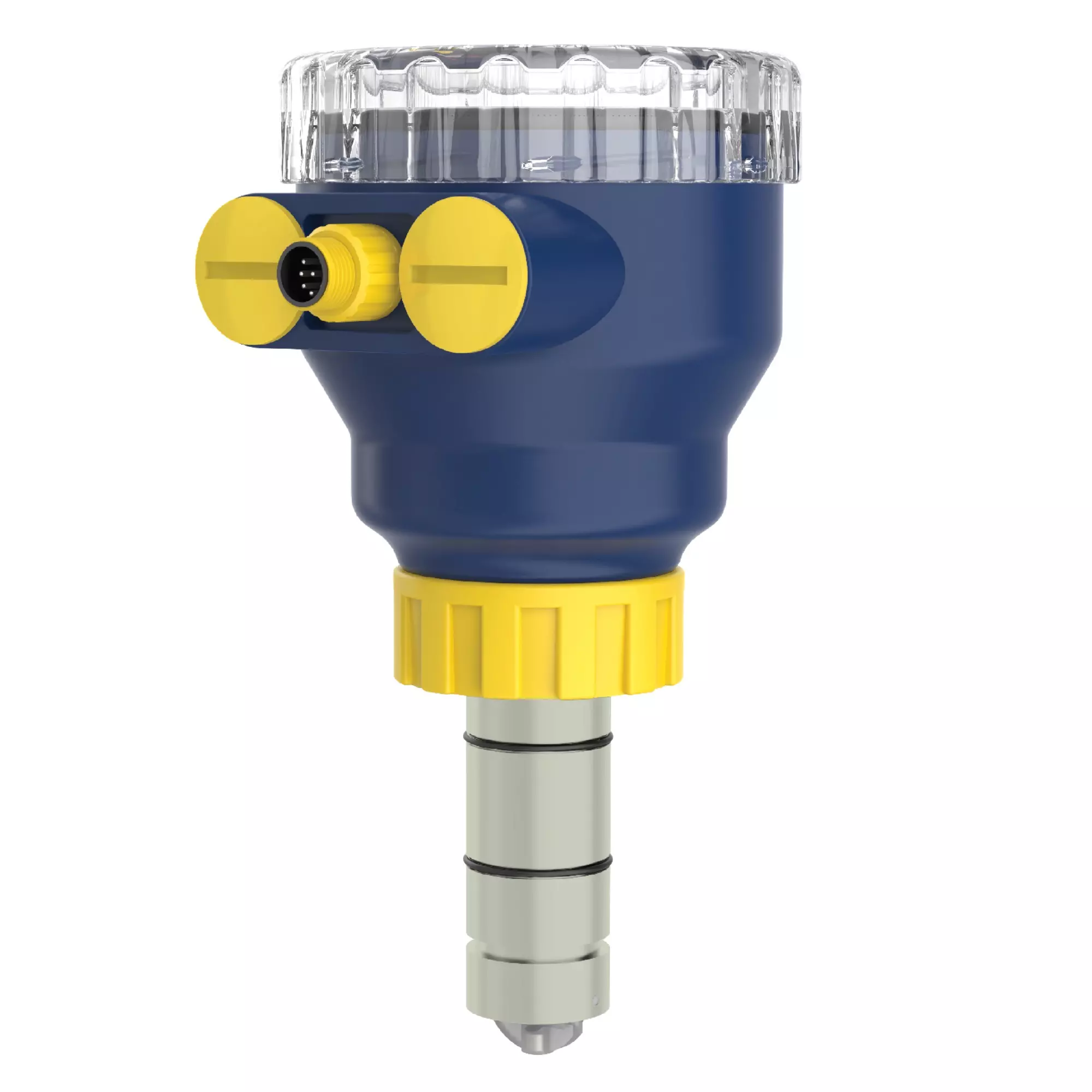

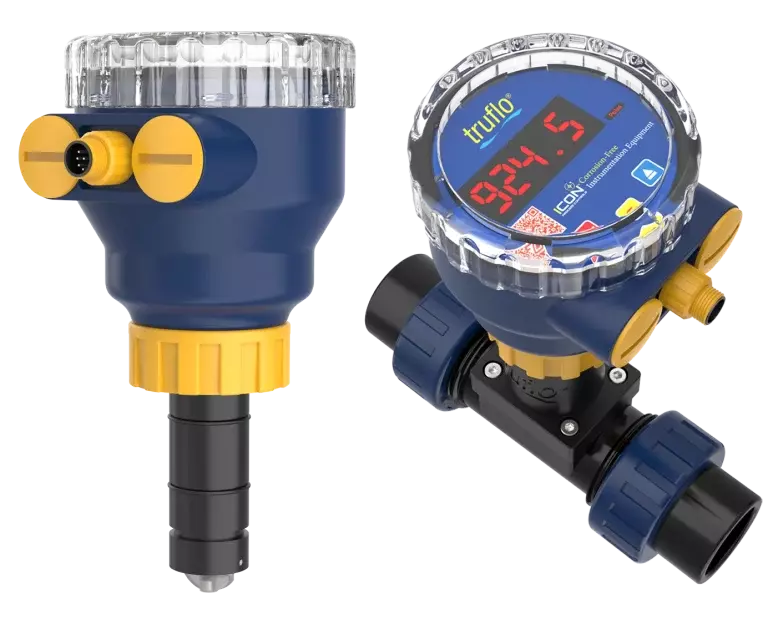

TIR Insertion Paddle Wheel Flow Meter Sensor
The TIR Series paddle wheel flow meter sensor has been designed for tough industrial applications. The TIR series chemical flow meter sensor has been engineered to provide long-term accurate flow measurement for both corrosive and non-corrosive liquids. The plastic insertion flow meter sensor is a blind unit that provides a 4-20mA output and is internally equipped with a mini LED screen that allows the user to easily set their 4 and 20mA set points through the use of push-buttons. The re-engineered low-drag, fluid-dynamic design of the chemical paddle wheel allows it to stand alone as the industry's most accurate flow meter sensor.
Icon's paddle wheel flow meter sensors incorporate a Tefzel® paddle coupled with a zirconium ceramic rotor pin and bushings. The TIR liquid flow meter sensor, is industry's longest lasting paddle wheel flow meter and comes with a lifetime warranty on the paddle wheel assembly.
The TIR insertion paddle wheel liquid flow meter sensor is available in PVC, PP and PVDF. The digital flow meter sensors can be installed into pipe sizes ½ – 24" using our line of comprehensive custom fittings. Icon's complete line of insertion paddle wheel flow meter sensors will also retrofit into any Signet® style fitting.
Product Features
Core Specifications
- Industry's Highest Accuracy: +/- 0.5%
- Size Range: 1/2 - 24 inches
- M12 Quick Connect
Technical Capabilities
- Pulse / 4-20mA / 1Amp Relay
- Zirconium Ceramic Rotor and Bushings
- Tefzel Paddle Wheel
Durability & Materials
- Life-Time Warranty on Paddle Assembly
- Chemical Resistant Materials: PVC / PP / PVDF
- Retrofits into Signet Fittings
Applications
Process & Industrial
- Liquid Chemical Flow Measurement
- Industrial Chemical Distribution
- Process Chemical Skids
Water Management
- Water & Wastewater Monitoring
- Filtration Systems
- Liquid Consumption
- Discharge Verification
| SKU | Description | List price | - |
|---|---|---|---|
| IPC-TI3RSSL | TI3R-SS-L | Truflo TI3R Insertion Paddlewheel Flow Meter - 316SS w/ Viton Seals - for 6" to 24" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,811.25 | |
| IPC-TI3RSSS | TI3R-SS-S | Truflo TI3R Insertion Paddlewheel Flow Meter - 316SS w/ Viton Seals - for 1/2" to 4" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,748.75 | |
| IPC-TIRPFL | TIR-PF-L | Truflo TIR Insertion Paddlewheel Flow Meter - PVDF w/ Viton Seals - for 6" to 24" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,911.25 | |
| IPC-TIRPFLE | TIR-PF-L-E | Truflo TIR Insertion Paddlewheel Flow Meter - PVDF w/ EPDM Seals - for 6" to 24" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,911.25 | |
| IPC-TIRPFS | TIR-PF-S | Truflo TIR Insertion Paddlewheel Flow Meter - PVDF w/ Viton Seals - for 1/2" to 4" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,836.25 | |
| IPC-TIRPFSE | TIR-PF-S-E | Truflo TIR Insertion Paddlewheel Flow Meter - PVDF w/ EPDM Seals - for 1/2" to 4" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,836.25 | |
| IPC-TIRPL | TIR-P-L | Truflo TIR Insertion Paddlewheel Flow Meter - PVC w/ Viton Seals - for 6" to 24" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,361.25 | |
| IPC-TIRPLE | TIR-P-L-E | Truflo TIR Insertion Paddlewheel Flow Meter - PVC w/ EPDM Seals - for 6" to 24" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,361.25 | |
| IPC-TIRPPL | TIR-PP-L | Truflo TIR Insertion Paddlewheel Flow Meter - PP w/ Viton Seals - for 6" to 24" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,398.75 | |
| IPC-TIRPPLE | TIR-PP-L-E | Truflo TIR Insertion Paddlewheel Flow Meter - PP w/ EPDM Seals - for 6" to 24" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,398.75 | |
| IPC-TIRPPS | TIR-PP-S | Truflo TIR Insertion Paddlewheel Flow Meter - PP w/ Viton Seals - for 1/2" to 4" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,361.25 | |
| IPC-TIRPPSE | TIR-PP-S-E | Truflo TIR Insertion Paddlewheel Flow Meter - PP w/ EPDM Seals - for 1/2" to 4" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,361.25 | |
| IPC-TIRPS | TIR-P-S | Truflo TIR Insertion Paddlewheel Flow Meter - PVC w/ Viton Seals - for 1/2" to 4" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,311.25 |
