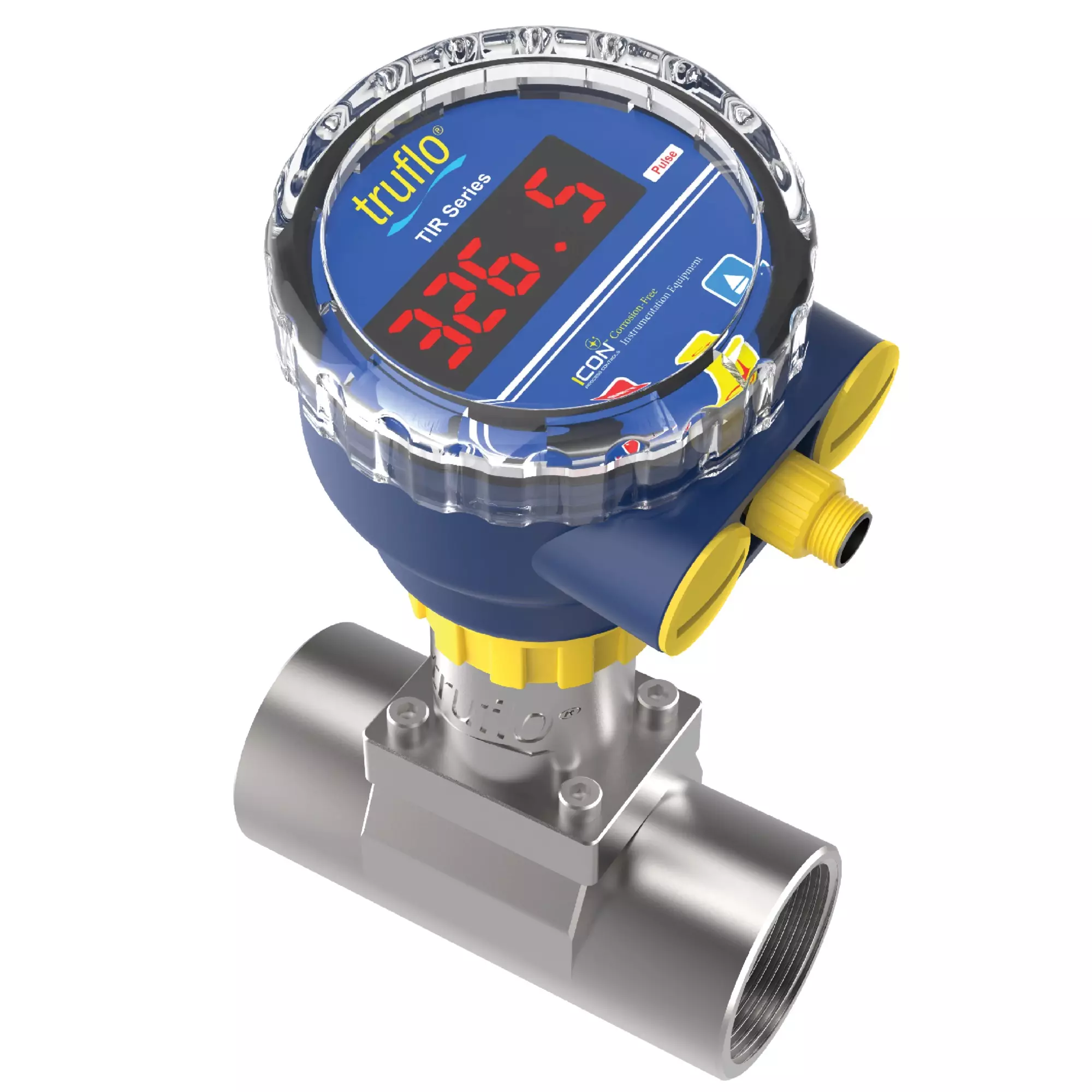

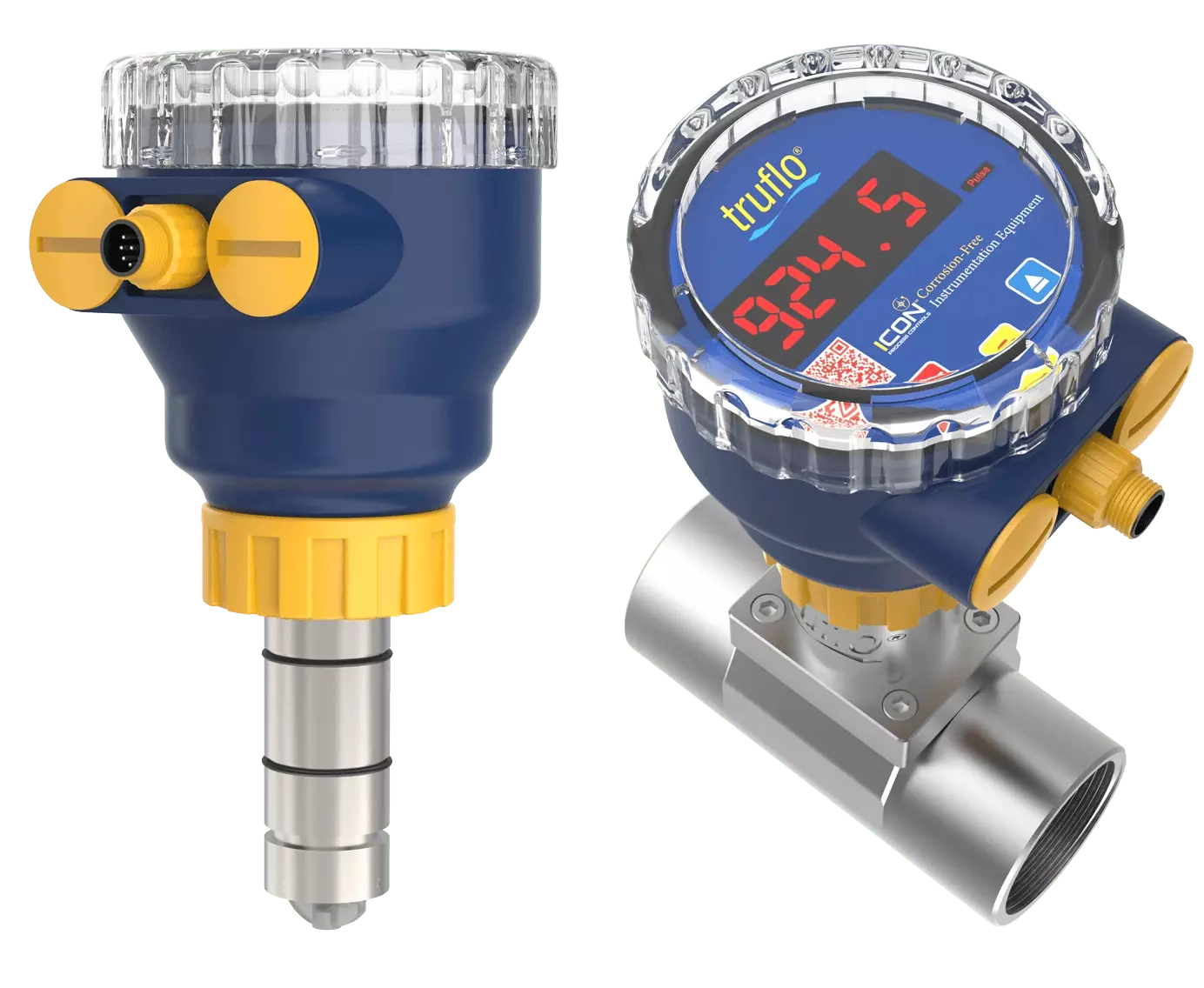

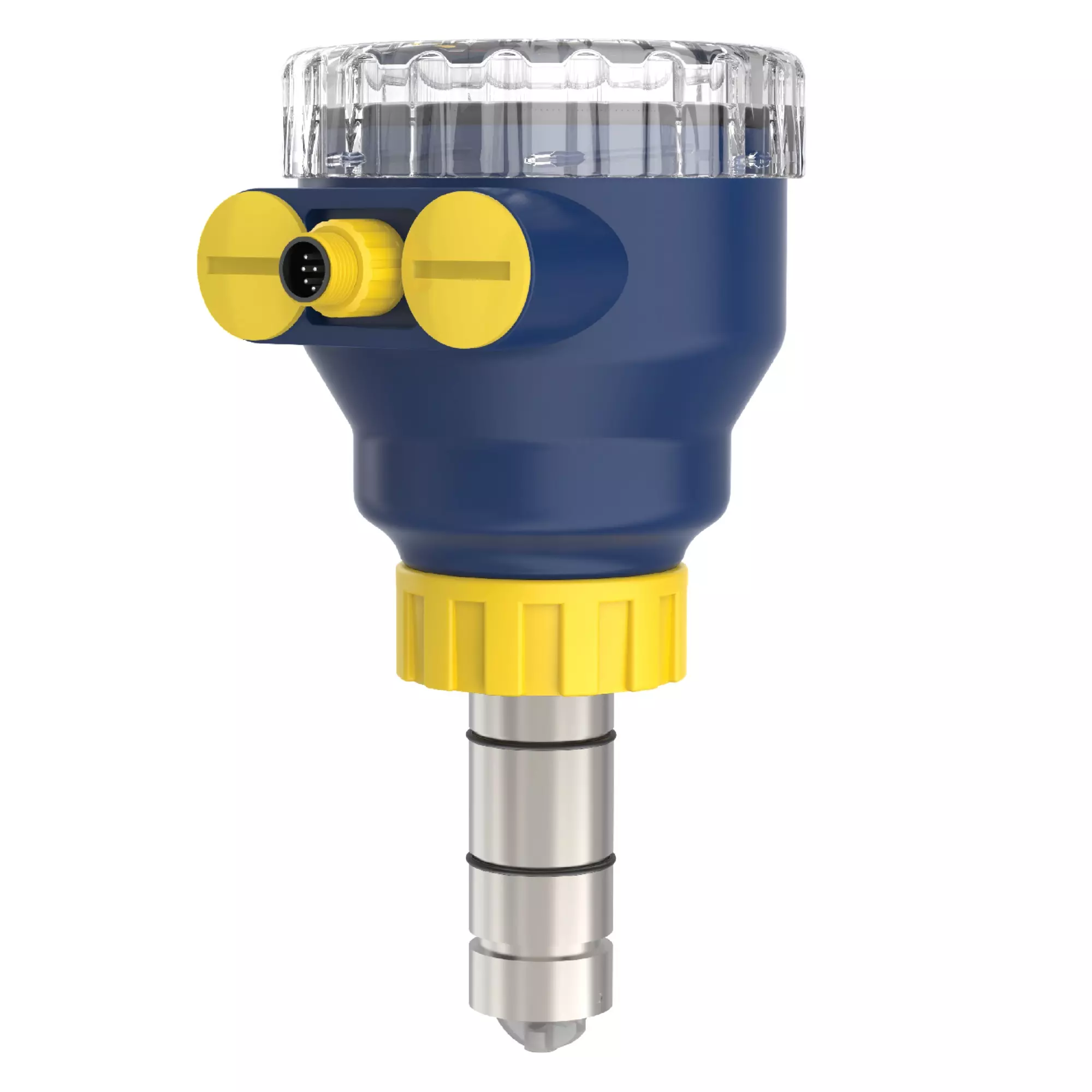

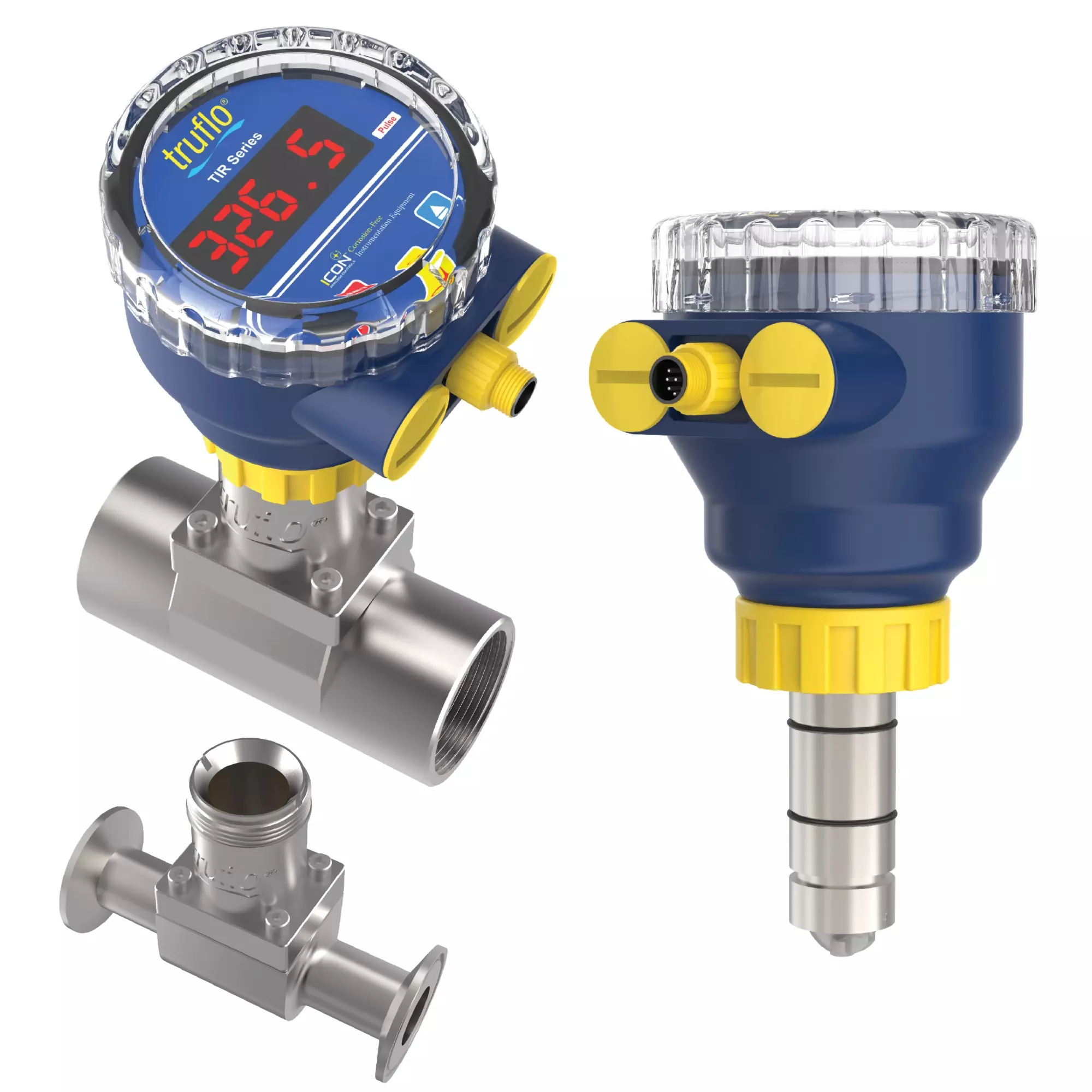

TI3R Insertion Paddle Wheel Flow Meter Sensor
The TI3R Digital Flow Meter Sensors are easy to install with exceptional guaranteed long-life performance. The TI3R Series Paddle Wheel Flow Meter Sensors are highly repeatable, exceptionally accurate, extremely rugged and offer outstanding value and require no maintenance.
TI3R Series has a process-ready output signal with a wide dynamic flow range of 0.3 to 33 ft/s | 0.1 to 10 m/s. TI3R Series sensors are offered in various materials and are available to measure ½ – 24″ pipe sizes.
Features & Benefits
Product Features
Core Specifications
- Industry's Highest Accuracy: +/- 0.5%
- Size Range: 1/2 - 24 inches
- M12 Quick Connect
Technical Capabilities
- Pulse / 4-20mA / 1Amp Relay
- Zirconium Ceramic Rotor and Bushings
- Tefzel Paddle Wheel
Durability & Materials
- Life-Time Warranty on Paddle Assembly
- Chemical Resistant Materials: PVC / PP / PVDF
- Retrofits into Signet Fittings
Applications
Process & Industrial
- Liquid Chemical Flow Measurement
- Industrial Chemical Distribution
- Process Chemical Skids
Water Management
- Water & Wastewater Monitoring
- Filtration Systems
- Liquid Consumption
- Discharge Verification
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IPC-TI3RSSS | TI3R-SS-S | Truflo TI3R Insertion Paddlewheel Flow Meter - 316SS w/ Viton Seals - for 1/2" to 4" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,748.75 | |
| IPC-TIRPFL | TIR-PF-L | Truflo TIR Insertion Paddlewheel Flow Meter - PVDF w/ Viton Seals - for 6" to 24" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,911.25 | |
| IPC-TIRPFLE | TIR-PF-L-E | Truflo TIR Insertion Paddlewheel Flow Meter - PVDF w/ EPDM Seals - for 6" to 24" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,911.25 | |
| IPC-TIRPFS | TIR-PF-S | Truflo TIR Insertion Paddlewheel Flow Meter - PVDF w/ Viton Seals - for 1/2" to 4" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,836.25 | |
| IPC-TIRPFSE | TIR-PF-S-E | Truflo TIR Insertion Paddlewheel Flow Meter - PVDF w/ EPDM Seals - for 1/2" to 4" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,836.25 | |
| IPC-TIRPL | TIR-P-L | Truflo TIR Insertion Paddlewheel Flow Meter - PVC w/ Viton Seals - for 6" to 24" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,361.25 | |
| IPC-TIRPLE | TIR-P-L-E | Truflo TIR Insertion Paddlewheel Flow Meter - PVC w/ EPDM Seals - for 6" to 24" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,361.25 | |
| IPC-TIRPPL | TIR-PP-L | Truflo TIR Insertion Paddlewheel Flow Meter - PP w/ Viton Seals - for 6" to 24" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,398.75 | |
| IPC-TIRPPLE | TIR-PP-L-E | Truflo TIR Insertion Paddlewheel Flow Meter - PP w/ EPDM Seals - for 6" to 24" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,398.75 | |
| IPC-TIRPPS | TIR-PP-S | Truflo TIR Insertion Paddlewheel Flow Meter - PP w/ Viton Seals - for 1/2" to 4" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,361.25 | |
| IPC-TIRPPSE | TIR-PP-S-E | Truflo TIR Insertion Paddlewheel Flow Meter - PP w/ EPDM Seals - for 1/2" to 4" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,361.25 | |
| IPC-TIRPS | TIR-P-S | Truflo TIR Insertion Paddlewheel Flow Meter - PVC w/ Viton Seals - for 1/2" to 4" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,311.25 | |
| IPC-TIRPSE | TIR-P-S-E | Truflo TIR Insertion Paddlewheel Flow Meter - PVC w/ EPDM Seals - for 1/2" to 4" Pipe - LED - Flow Rate - 4-20mA Output + Relay | $1,311.25 |
