Headline

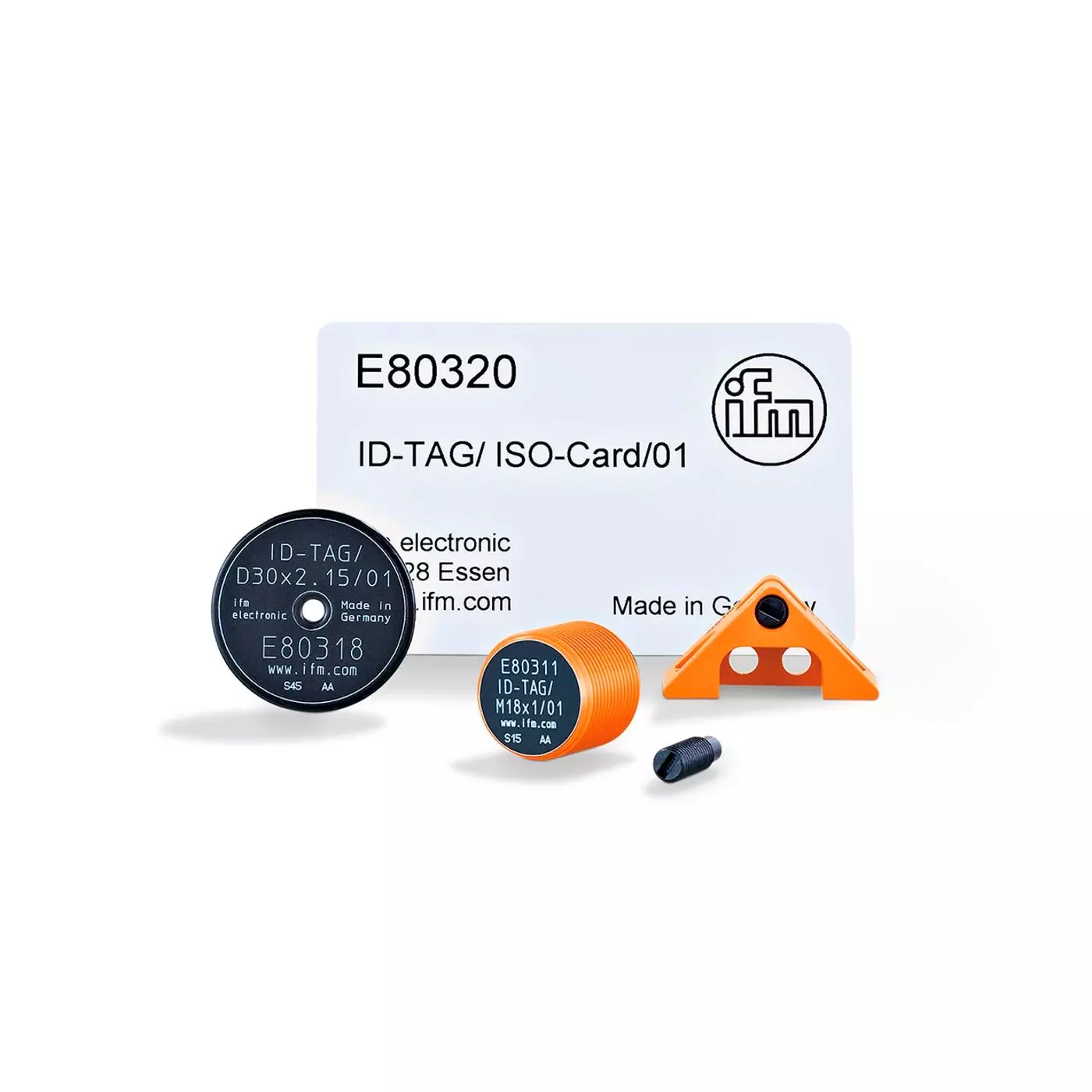

ID tags for RFID system 13.56 MHz
ID tags are the information carriers of the RF identification system. They consist of a robust, easy-to-mount housing with integrated transponder. The tags are used for coding of workpiece carriers in guided material handling systems. ifm offers different types of ID tags for various applications. The range includes cylindrical, metric and special designs. For high temperature environments such as paint shops or ovens, tags with a very high temperate rating are offered.
Features & Benefits
- Long write/read distances up to 200 mm
- Solutions for mounting on metal and in metal
- High temperature rating up to 250 °C
- Easy, quick and secure mounting
- High protection rating for the requirements of harsh industrial environments
Additional Notes
MPN | Product designation | Operating frequency | Memory size | Dimensions | Thread length |
---|---|---|---|---|---|
E80341 | ID tag | 13,56 MHz | 896 bit | Ø 47 / L = 10 mm | |
E80342 | ID tag | 13,56 MHz | 896 bit | Ø 34 / L = 6 mm | |
E80343 | ID tag | 13,56 MHz | 896 bit | 90 x 34 x 7 mm | |
E80344 | ID tag | 13,56 MHz | 896 bit | Ø 16 / L = 3 mm | |
E80347 | ID tag | 13,56 MHz | 896 bit | M5 / L = 16.5 mm | 12.3 mm |
E80348 | ID tag | 13,56 MHz | 896 bit | 18 x 33 x 16.9 mm | |
E80349 | ID tag | 13,56 MHz | 16000 bit | Ø 20 / L = 3 mm | |
E80370 | ID tag | 13,56 MHz | 16000 bit | Ø 30 / L = 2.8 mm | |
E80371 | ID tag | 13,56 MHz | 896 bit | Ø 30 / L = 3 mm | |
E80377 | ID tag | 13,56 MHz | 896 bit | Ø 20 / L = 3 mm | |
E80379 | ID tag | 13,56 MHz | 896 bit | 50 x 80 x 0.1 mm | |
E80380 | ID tag | 13,56 MHz | 65536 bit | Ø 30 / L = 3 mm | |
E80381 | ID tag | 13,56 MHz | 896 bit | Ø 4.35 / L = 3.6 mm | |
E80382 | ID tag | 13,56 MHz | 896 bit | 30 x 65 x 0.1 mm | |
E80383 | ID tag | 13,56 MHz | 16000 bit | Ø 50 / L = 3 mm | |
E80384 | ID tag | 13,56 MHz | 1024 bit | Ø 50 / L = 3 mm | |
E80387 | ID tag | 13,56 MHz | 896 bit | 40 x 31 x 4.8 mm | |
E80388 | ID tag | 13,56 MHz | 896 bit | Ø 12.3 / L = 2.1 mm | |
E80404 | ID tag | 13,56 MHz | 896 bit | Ø 22 / L = 3 mm | |
E80407 | ID tag | 13,56 MHz | 896 bit | 54 x 86 x 1 mm | |
E80416 | ID tag | 13,56 MHz | 16384 bit | Ø 22 / L = 20.5 mm | |
E80418 | ID tag | 13,56 MHz | 16000 bit | Ø 22 / L = 3 mm | |
UR0002 | ID tag | 13,56 MHz | 1024 bit | Ø 9.5 / L = 1 mm | |
UR0003 | ID tag | 13,56 MHz | 896 bit | Ø 34 / L = 8 mm | |
UR0006 | ID tag | 13,56 MHz | 1280 bit | 76 x 19 x 28 mm | |
ZH4033 | ID tag | 13,56 MHz | 16384 bit | Ø 22 / L = 20.5 mm | |
ZH4036 | ID tag | 13,56 MHz | 16384 bit | Ø 50.5 / L = 7.6 mm |
Alternate configurations
SKU | Description | List price | - |
---|---|---|---|
IFM-110160010 | ifm Accessories - for identification systems - ID tags for RFID systems 125 kHz | $0.01 | |
IFM-110160030 | ifm Accessories - for identification systems - ID tags for RFID systems UHF | $0.01 | |
IFM-110160040 | ifm Accessories - for identification systems - Connection cables for antennas | $0.01 | |
IFM-110160050 | ifm Accessories - for identification systems - Antenna adapters to increase the ranges | $0.01 | |
IFM-110160060 | ifm Accessories - for identification systems - Mounting accessories | $0.01 |
