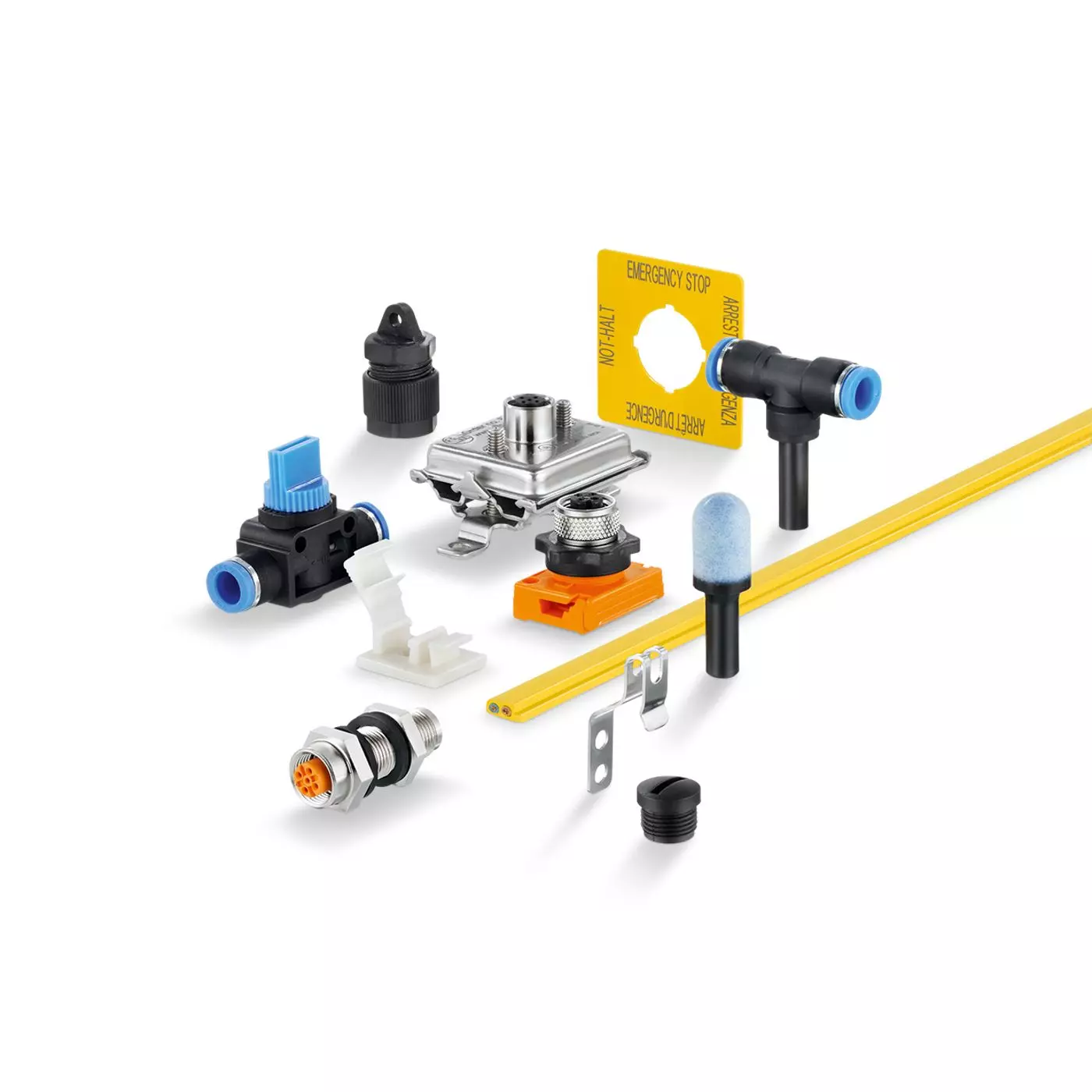

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Flat cable splitters and insulation displacement connectors
AS-i flat cable insulation displacement connectors are used for AS-i wiring of machines and installations, creating a connection between AS-i flat cables and conventional wiring systems. The range includes types for the transition from flat cables to M12 sockets or to round cables. AS-i flat cable splitters are used for setting up spurs to extend the AS-i network. Different types of insulation displacement connectors and FC splitters are offered. For use in breweries, dairies and industrial process applications, units with robust stainless steel housings are available. They are resistant to high-pressure cleaning with aggressive cleaning agents and offer high protection ratings, a hygienic design and a high temperature resistance.
Features & Benefits
- For the connection of AS-i components with additional 24 V supply
- Reliable connection of AS-i components in the field
- For use in wet areas
- Quick and easy mounting
- High protection rating for the requirements of harsh industrial environments
Additional Notes
| MPN | Product designation | Dimensions | Thread length | Inside diameter | Material |
|---|---|---|---|---|---|
| AC2950 | passive power distributor | Housing: PA grey; Connectors: stainless steel (1.4404 / 316L) | |||
| AC2951 | passive power distributor | Housing: PA grey; Connectors: stainless steel (1.4404 / 316L) | |||
| AC5005 | Flat cable insulation displacement connector | sealing: NBR; housing: PA; O-ring: FKM; screws: stainless steel (1.4305 / 303); knurled nut: brass nickel-plated; contact pins: bronze gold-plated | |||
| E70096 | Flat cable insulation displacement connector | PA | |||
| E70354 | Flat cable splitter box | metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FPM; O-ring: EPDM | |||
| E70377 | Flat cable splitter box | metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FPM; O-ring: EPDM | |||
| E70454 | Flat cable splitter box | metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FPM; O-ring: EPDM | |||
| E70471 | Flat cable insulation displacement connector | sealing: EPDM; housing: PA; O-ring: EPDM; screws: stainless steel (1.4305 / 303); knurled nut: stainless steel (1.4305 / 303); contact pins: bronze gold-plated | |||
| E70581 | Flat cable splitter box | PBT; screw: stainless steel (1.4305 / 303); contact pins: gold-plated | |||
| E70582 | Flat cable insulation displacement connector | housing: PBT / PC | |||
| E70583 | Flat cable insulation displacement connector | housing: PBT / PC | |||
| E70585 | Flat cable insulation displacement connector | PBT / PC | |||
| E70586 | Flat cable insulation displacement connector | PBT / PC | |||
| E70587 | Flat cable insulation displacement connector | Housing: PBT / PC; screw: stainless steel (1.4305 / 303) | |||
| E70588 | 4-M12 branching connections | PA 6.6; Socket: stainless steel (1.4404 / 316L); screws: stainless steel (1.4404 / 316L); Nut: stainless steel (1.4404 / 316L); O-ring: NBR; Flat cable seal: NBR | |||
| E70598 | Flat cable insulation displacement connector | Housing: PBT / PC; screw: stainless steel (1.4305 / 303) | |||
| E70599 | Flat cable insulation displacement connector | Housing: PBT / PC; screw: stainless steel (1.4305 / 303) | |||
| E70600 | 4-M12 branching connections | PA 6.6; screws: stainless steel (1.4404 / 316L); Nuts: stainless steel (1.4404 / 316L); Flat cable seal: NBR | |||
| E7377A | Flat cable splitter box | metal parts: stainless steel (1.4404 / 316L); rubber gasket for contact pins: FKM; sealing: EPDM | |||
| E79995 | Flat cable insulation displacement connector | ||||
| E79998 | Flat cable insulation displacement connector |
