Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
For mounting

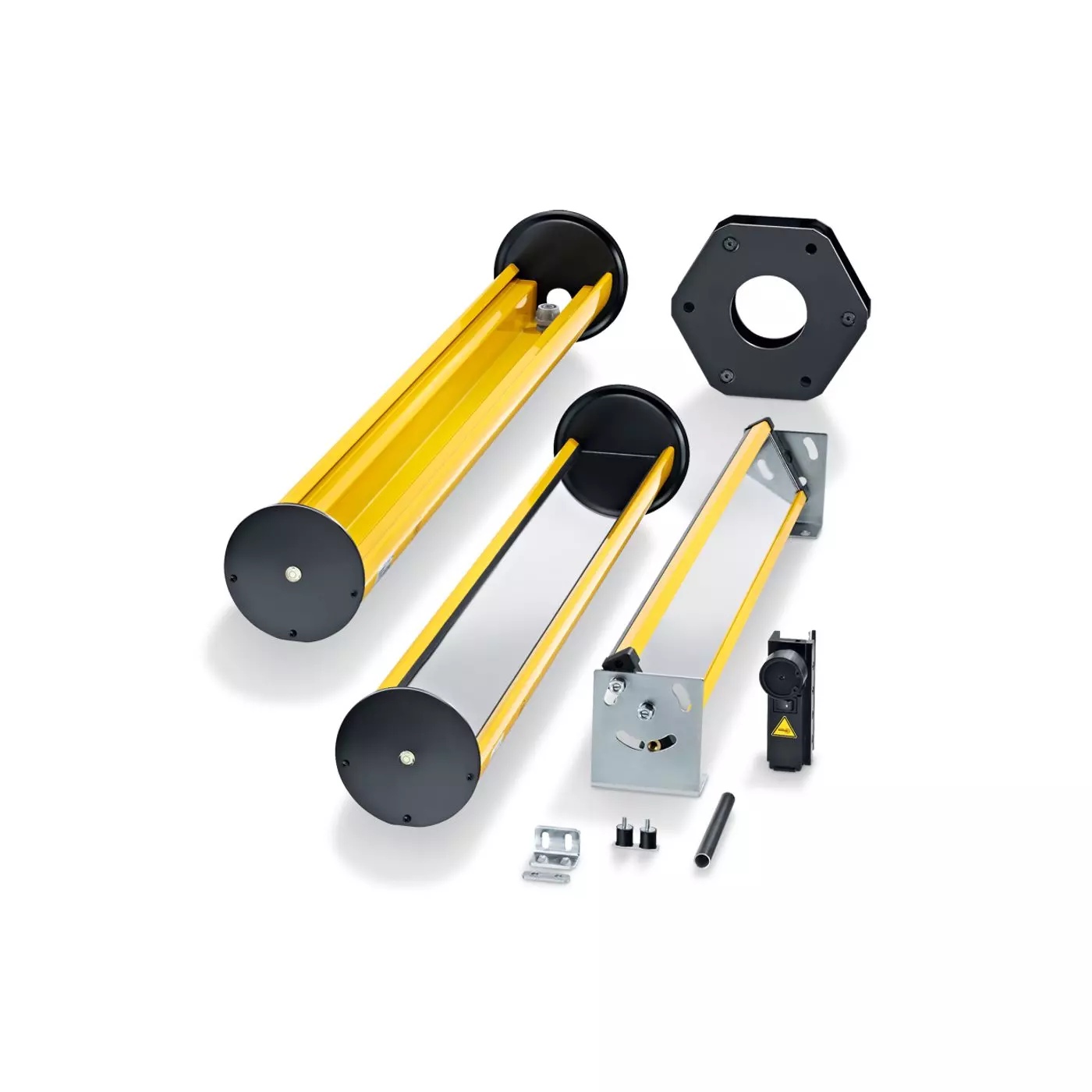

Adjustable angle brackets and mounting bases ensure quick, easy and low-cost mounting and fixing of safety light grids and curtains. The product range also includes accessories for effective vibration damping. The robust design allows use in harsh industrial environments.
Features & Benefits
- Robust base
- Efficient vibration damping
- Quick and easy mounting and fixing
Additional Notes
| MPN | Product designation | Dimensions | Design | Material | Pack quantity |
|---|---|---|---|---|---|
| EY2001 | Base | Ø 130 mm | for safety light grids, 2 beams, for safety light curtains, ...760 mm | aluminum epoxy-powder coated; plastics | 1 pcs. |
| EY2002 | Base | Ø 130 mm | for safety light grids, 3 beams, 4 beams, for safety light curtains, ...1060 mm | aluminum epoxy-powder coated; plastics | 1 pcs. |
| EY2003 | Base | Ø 130 mm | for safety light curtains, ...1360 mm | aluminum epoxy-powder coated; plastics | 1 pcs. |
| EY2004 | Base | Ø 130 mm | for safety light curtains, ...1510 mm | aluminum epoxy-powder coated; plastics | 1 pcs. |
| EY2005 | Mounting base | 43 x 202 x 224 mm | 1 pcs. | ||
| EY3001 | Vibration damper | 40 x 27.5 x 10 mm | rubber; metal galvanized | 4 pcs. | |
| EY3002 | Vibration damper | 40 x 27.5 x 10 mm | rubber; metal galvanized | 6 pcs. | |
| EY3004 | Adjustable bracket | metal galvanized | 4 pcs. | ||
| EY3005 | Adjustable bracket | metal galvanized | 6 pcs. | ||
| EY3011 | Rotatable brackets | 90 x 24 x 28 mm | Angle brackets: steel black | 4 pcs. | |
| EY3013 | Mounting and fine adjustment bracket | 55 x 57.9 x 43.5 mm | PA 6.6 reinforced glass-fibre | 4 pcs. | |
| EY3100 | Adjustable bracket | 50 x 54 x 50 mm | metal galvanized | 4 pcs. | |
| EY5010 | Through-beam sensor | crossbeam muting with two through-beam sensors | aluminum; polypropylene | 4 pcs. | |
| EY5011 | Retro-reflective sensor | sequential muting with four parallel retro-reflective sensors | aluminum; polypropylene | 4 pcs. | |
| EY5020 | Through-beam sensor | crossbeam muting with two crossbeam multi-beam light barriers | aluminum; polypropylene | 4 pcs. | |
| EY5021 | Through-beam sensor | sequential muting with four parallel multi-beam light barriers | aluminum; polypropylene | 4 pcs. | |
| EY5050 | Base | Ø 90 mm | for safety light grids, 2 beams | aluminum epoxy-powder coated; plastics | 1 pcs. |
| EY5051 | Base | Ø 90 mm | for safety light grids, 2 beams, 3 beams | aluminum epoxy-powder coated; plastics | 1 pcs. |
| EY5052 | Base | Ø 90 mm | for safety light grids, 2 beams, 3 beams, 4 beams | aluminum epoxy-powder coated; plastics | 1 pcs. |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-110130010 | ifm Accessories - for safety light grids and curtains - Corner mirrors | $0.01 | |
| IFM-110130030 | ifm Accessories - for safety light grids and curtains - Adjustment and verification | $0.01 |
