Headline
Mounting sets
The easy-to-use mounting sets consist of a clamp, a mounting element for the sensor and a bolt with nut. The clamp, which is fastened by only one screw, keeps the mounting element with the sensor safely in position and guarantees free movement in all directions.
The clamp can be mounted in three different ways: rod mounting, free-standing mounting and fitting onto aluminium extrusions which are common in industry.
Features & Benefits
- Complete mounting set for clamp mounting
- Quick and easy mounting
- Robust design for use in harsh industrial environments
- For mounting to a rod
- Each sensor position possible due to free movement in all directions
Additional Notes

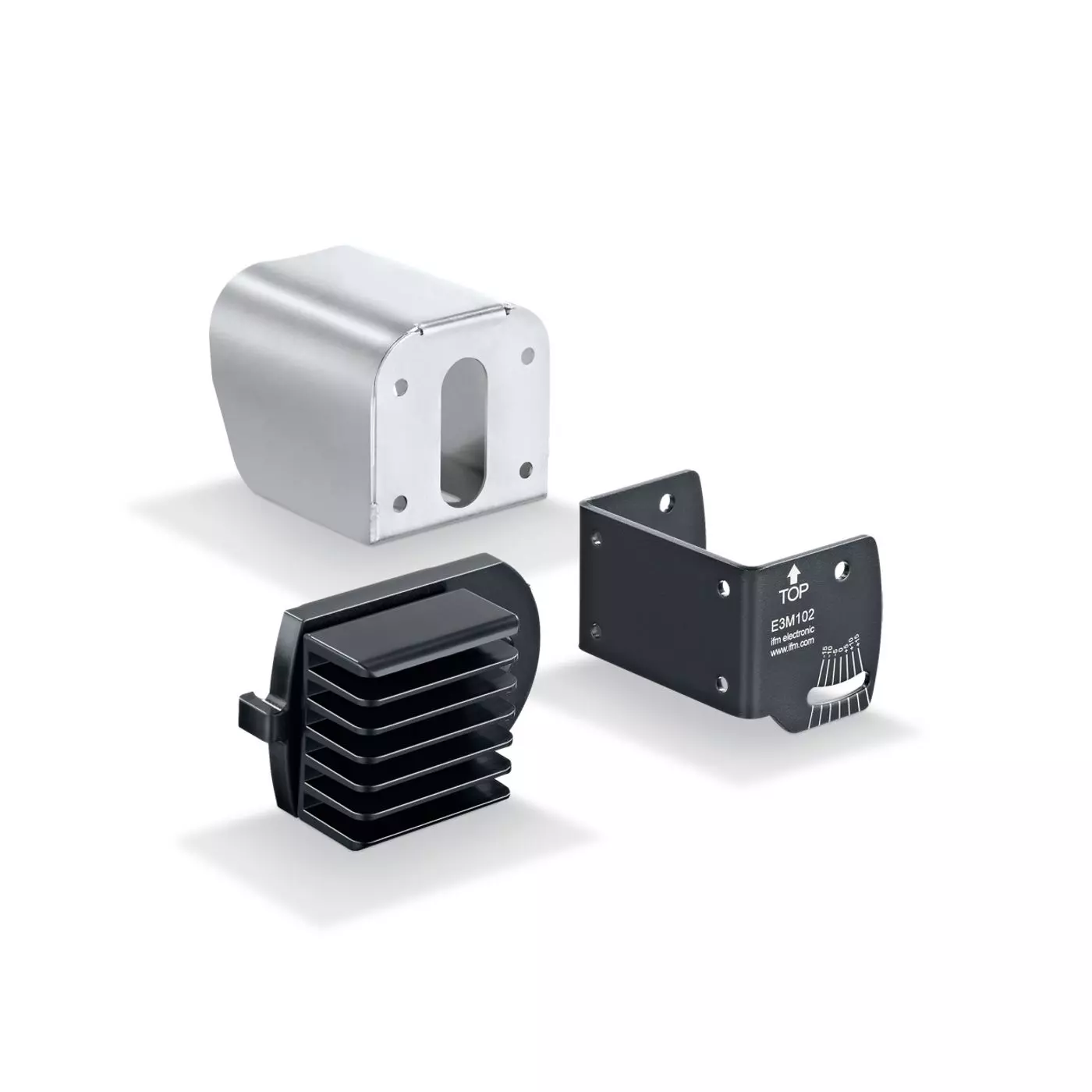

| MPN | Product designation | Dimensions | Thread length | Inside diameter | Material |
|---|---|---|---|---|---|
| E2M210 | Mounting set | 64 x 78 x 35 mm | fixture: ABS | ||
| E2M211 | Mounting bracket | 85 x 75 x 82 mm | housing: ABS reinforced glass-fibre; PC; PA | ||
| E2M212 | protective housing | 81.5 x 85 x 101.6 mm | housing: stainless steel (1.4301 / 304) | ||
| E2M213 | Vibration damper | Ø 20 / L = 30 mm | absorber: rubber 60 Shore A; set screw: steel M6 x 15 mm | ||
| E3D103 | Mounting set | fixture: stainless steel (1.4301 / 304); Clamp: stainless steel (1.4408) | |||
| E3D301 | Mounting set | fixture: stainless steel (1.4301 / 304); Clamp: stainless steel (1.4408) | |||
| E3D302 | Cooling element | Cooling element: AlMgSi1MgMn; Heat conductor: AlMg3 | |||
| E3D303 | Heat conductor | Heat conductor: AlMg3 | |||
| E3D304 | Cooling element | Cooling element: AlMgSi1MgMn; Heat conductor: AlMg3 | |||
| E3D306 | sealing | 46 x 28.2 x 4.8 mm | sealing: PU | ||
| E3D307 | sealing | 35.6 x 26.6 x 4.8 mm | sealing: PU | ||
| E3D352 | Cooling element | Cooling element: AlSi1MgMn; Heat conductor: AlMg3 | |||
| E3D353 | Cooling element | Heat conductor: AlMg3 | |||
| E3D354 | Cooling element | Cooling element: AlSi1MgMn; Heat conductor: AlMg3 | |||
| E3M100 | Mounting set | fixture: stainless steel (1.4301 / 304) | |||
| E3M102 | Mounting set | fixture: stainless steel (1.4301 / 304) black | |||
| E3M103 | Mounting set | fixture: stainless steel (1.4301 / 304); Clamp: stainless steel (1.4408) |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-110120010 | ifm Accessories - for 3D sensors and cameras - Operating and parameter setting software | $0.01 | |
| IFM-110120030 | ifm Accessories - for 3D sensors and cameras - Reflectors | $0.01 |
